Tecnomotor Socio X3 PC based Diagnostic Tool

Tecnomotor Socio X3 PC based Diagnostic Tool

1,795.00 ex. VAT

Available on back-order

Free Delivery In Ireland

If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €10.50 ex.VAT Read Our Delivery Information

Product Description

Tecnomotor logoTecnomotor Socio X3 PC based Diagnostic Tool

And add 1 years access to TisWeb tech to the above for only €240 + vat or TisWeb full for only €410 + vat

(note this offer for TisWeb technical information system is for the 1st year when buying with a new diagnostic tool, enquire for prices after 1st year)

Tecnomotor have been at the forefront of the multi brand diagnostic tool market since 1985 and as well as making after market equipment they also supply some of the OEM’s such as Fiat, Ducati, Iveco, Magneti Marelli, Continental, Corghi, Denso, Husqvarna motorcycles, this can only prove their strength.

The Tecnomotor diagnostic tool range has one of the best all round vehicle coverage available on the market with constant development and updates every month.

The Socio X3 is the latest PC based diagnostic tool from Tecnomotor. It comes with the same vehicle coverage as the 410, X5 and X6.

Click here to see a comparison table

It comes in a very rugged rubber shockproof case. Power supply 8 to 40 v.

The software has over 50 different car, LCV and SUV brands listed.

And now also has the option for a in built technical information system called TIS Web Click here for more info (note TIS Web is optional and is a online technical information system that requires a valid subscription)



It covers systems such as

  • Engine electronics
  • ABS/ Traction control/ESP
  • Airbag
  • Transmission control
  • Immobilizer
  • A/C system
  • Suspension electronics
  • Instrument panel
  • Service reset
  • EPS
  • EPB
  • TPMS
  • Radio
  • Parking assistance
  • Auxiliary heating
  • CAN network
  • Body computer
  • Plus many other systems

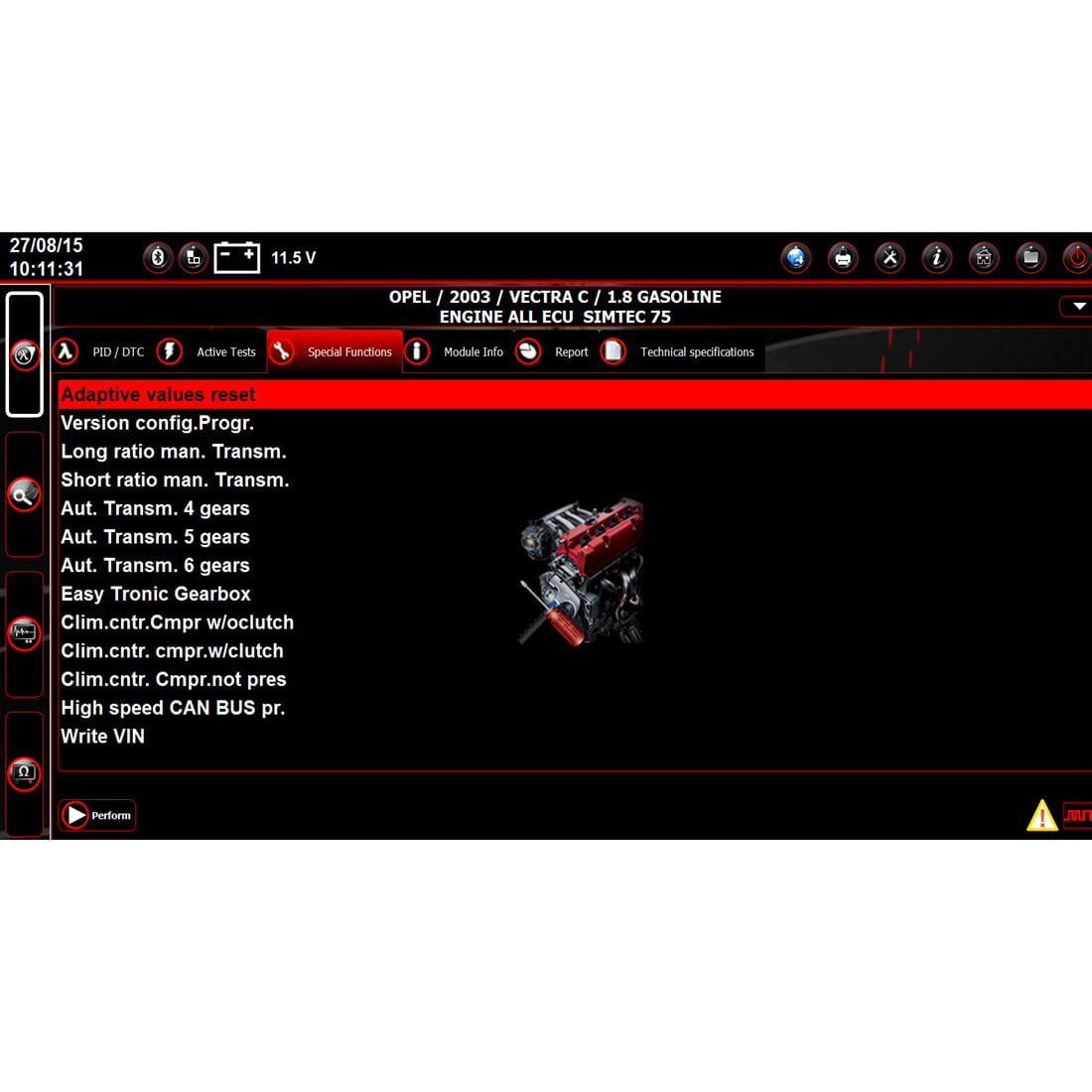

As well as providing the normal diagnostic functions the range can also complete a huge amount of special functions such as

  • Particulate filter regeneration/replacement and settings,
  • Common rail injector coding,
  • Key coding (on some makes and models),
  • Electronic brake calliper functions,
  • Service resets,
  • Common rail IMV/SCV/DRV valves learning
  • TPMS programming
  • Steering angle calibration
  • And many other special functions

Features:

  • Free updates for 1 years
  • Software for European, Asian and American vehicles
  • 12 updates per year via the internet
  • No time out
  • Fault code read clear

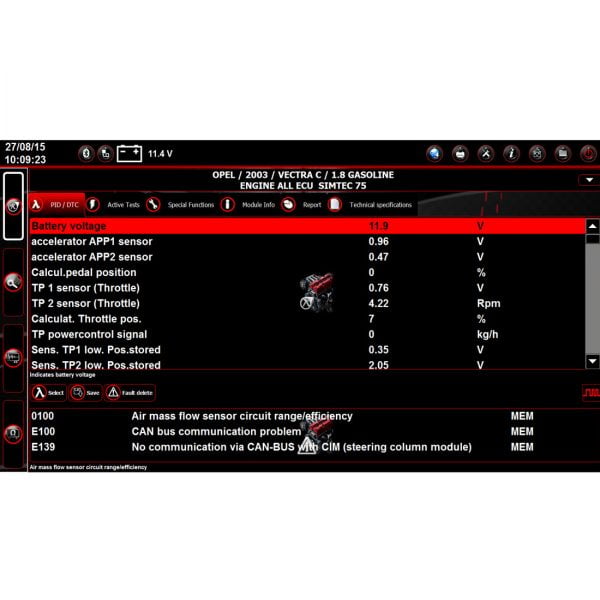

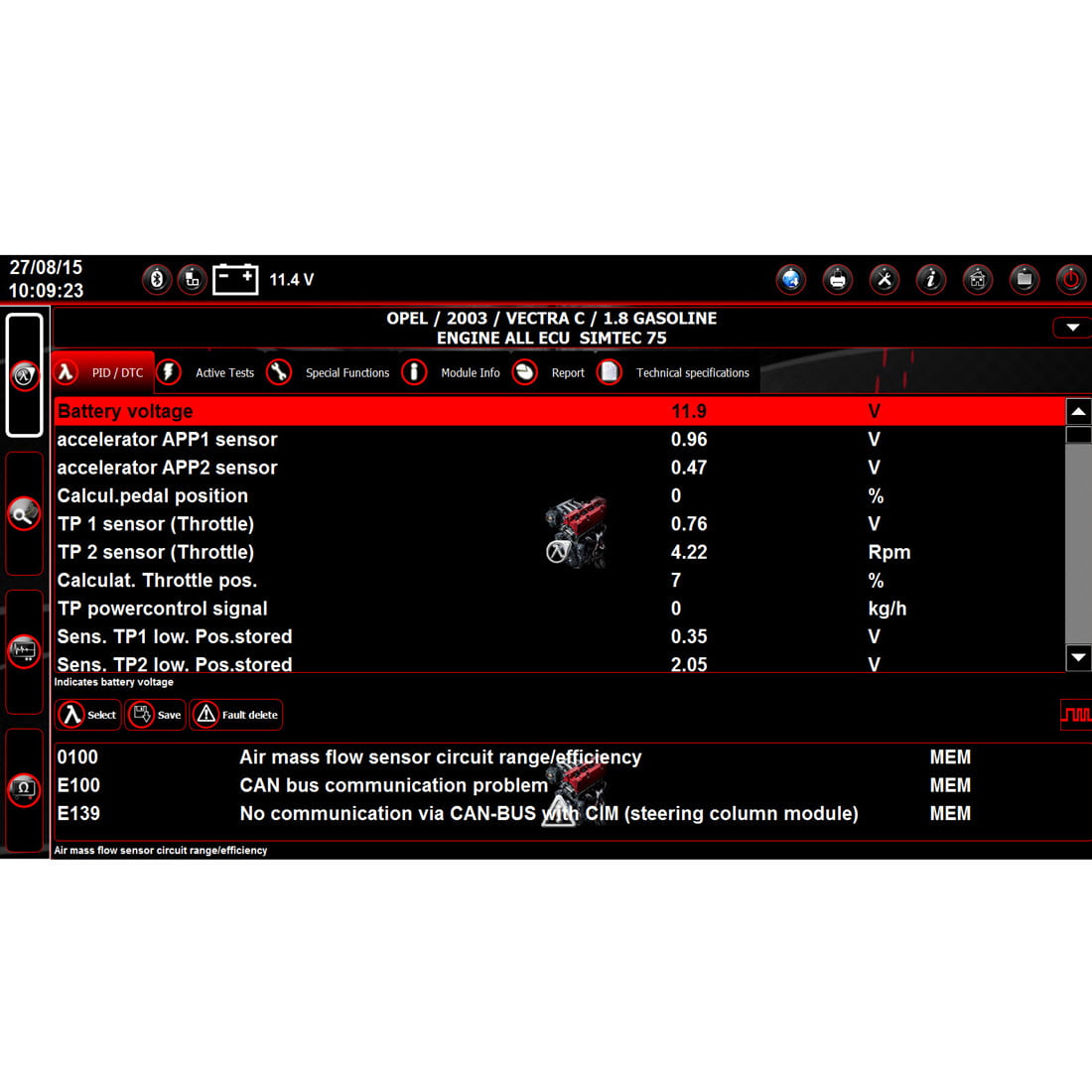

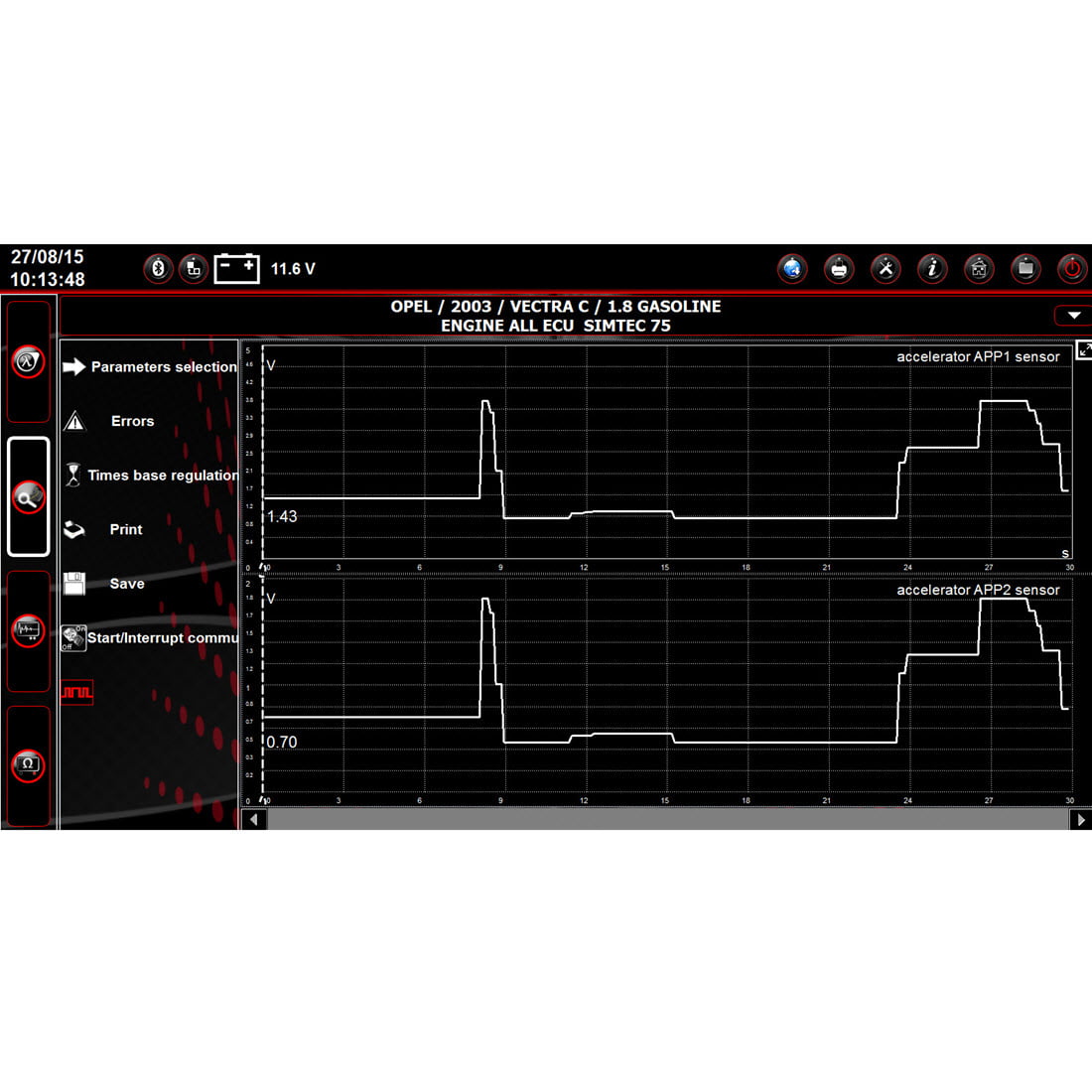

  • Live data and graphing
  • Data logging/flight record

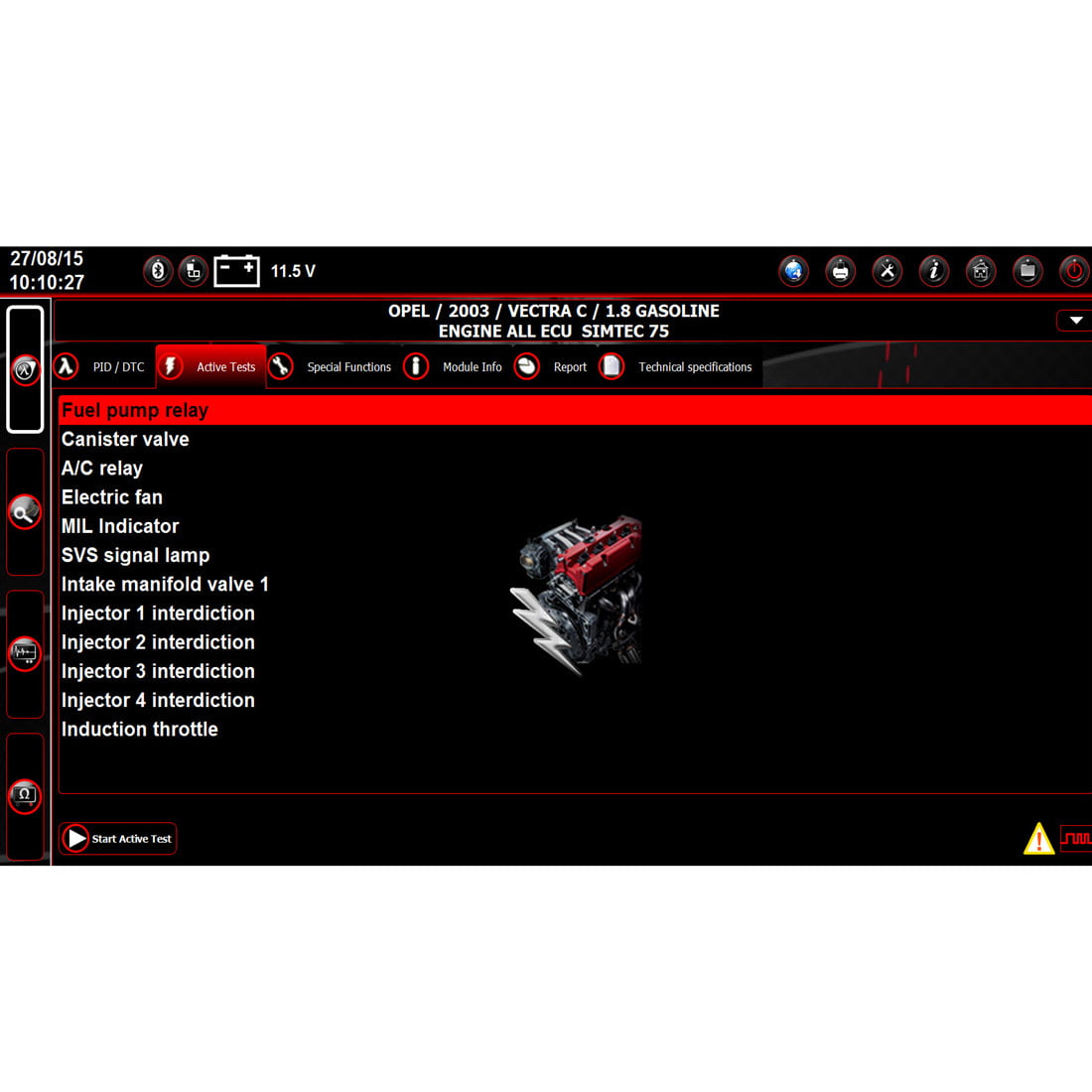

  • Actuator operations
  • Adaptions
  • Coding dependent on vehicle and system
  • Multiple Languages
  • Diagnostic report print out
  • ECU information reading
  • Stores last 50 diagnostic details

Other Features:

  • Integrated Easy Diag, Easy Diag has these following diagnostic advantages : Automatically scan the complete vehicle for error codes and at anytime you can click on a particular control unit and diagnose that control unit without having to wait until the end of the automatic scan. Bidirectional control, this allows you to activate components and at the same time view the status or value of the sensor that measures it. Automatic search of control units. Flight recorder allows you to record serial diagnostic readings
  • Integrated Pokayoke system, Pokayoke is a Japanese term that means ” fail – safing” or “mistake proofing” allowing you to manage vehicle electronics in the simplest way. You decide what to do, the tool takes care of how to do it. Able to directly select the operation to be performed, without the need to know which and how many control units should be involved in the operation, ensuring ease of interaction with the ECU
  • Automatic control unit search
  • Scan error automatic DTC search
  • Road test feature
  • Flight recorder
  • Blue tooth or cable connection options

Includes:

  • Interface
  • Carry case
  • 16 pin EOBD cable
  • Bluetooth dongle for your PC
  • USB cable
  • Quick start guide
  • CD with insulation software

Optional Extras:

Please do not hesitate to contact us if you require further information or to arrange a demo.

Product Specifications

Weight 5 kg
Dimensions 35 × 30 × 15 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

    If you want to ask a pre-sale question about this product, please feel free to use the form below.

    Your First Name (required)

    Your Phone (required)

    Your Last Name (required)

    Your Email (required)

    Your Question

      If you want to book a demo for this product, either in our garage or at a venue convenient to you, please complete the following form.

      Your Name (required)

      Your Email (required)

      Company/Business Name

      Your Phone (required)

      Additional Message

      Click here to see the document

      Below is a brief comparison between the different Tecnomotor diagnostic tools

      General
      We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
      As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
      We are also in a great position to support these products as we use them every day in our own workshop,
      Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
      All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.

      Warranty
      All Tecnomotors diagnostic tools come with 1 year warranty
      And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
      We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).

      Items excluded from the 1 year warranty are
      Main cable and OBD connections,
      Problems caused by the users own laptop/PC
      Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorised modifications.

      Delivery and Training
      Ryan’s Automotive or a courier will deliver the unit to your workshop and we will install and set up the software on your laptop/PC in person or via Team viewer and test it on a vehicle and ensure it is ready to work, (the laptop or PC the customer wants to use must have the required specs and space and be in good working order)
      And spend 2 hours onsite (or if not possible to call onsite can provide training over team viewer, WhatsApp and phone) providing training on use of the machine.
      We also can provide extra chargeable training if required.

      Support
      Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use and subject to having the software on the latest version).
      We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
      Additional support packages are required for vehicle technical support.

      Not included in the support
      Technical information that is found on systems like Tecnomotor TIS web, Autodata, Alldata etc,
      The above support does not include vehicle technical support but we are always willing to help customers were we can.
      Problems with the users own lap top or PC which affects how the Tecnomotor diagnostic software works
      examples virus, lap top gone very slow or crashing etc, lap top software issues,

      Repairs not covered by the warranty and after the warranty period
      For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
      1 Log into the unit via team viewer
      2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
      3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
      4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
      5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
      6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)

      Spare parts and optional connectors
      We keep a stock of the following parts if required
      Main OBD cable
      Mains charger
      Pre 16 pin connectors (for some of the most popular brands)
