TOPDON TC001 TCView Thermal Imager

TOPDON TC001 TCView Thermal Imager Camera

Authorized Official Irish Topdon distributor,
we ONLY deal directly with the manufacturer to offer you the best support possible so you can purchase with piece of mind.

Unrivalled support and warranty supplied with Topdon products.

269.00 ex. VAT

19 in stock (can be backordered)

Free Delivery In Ireland

If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €10.50 ex.VAT Read Our Delivery Information

Product Description

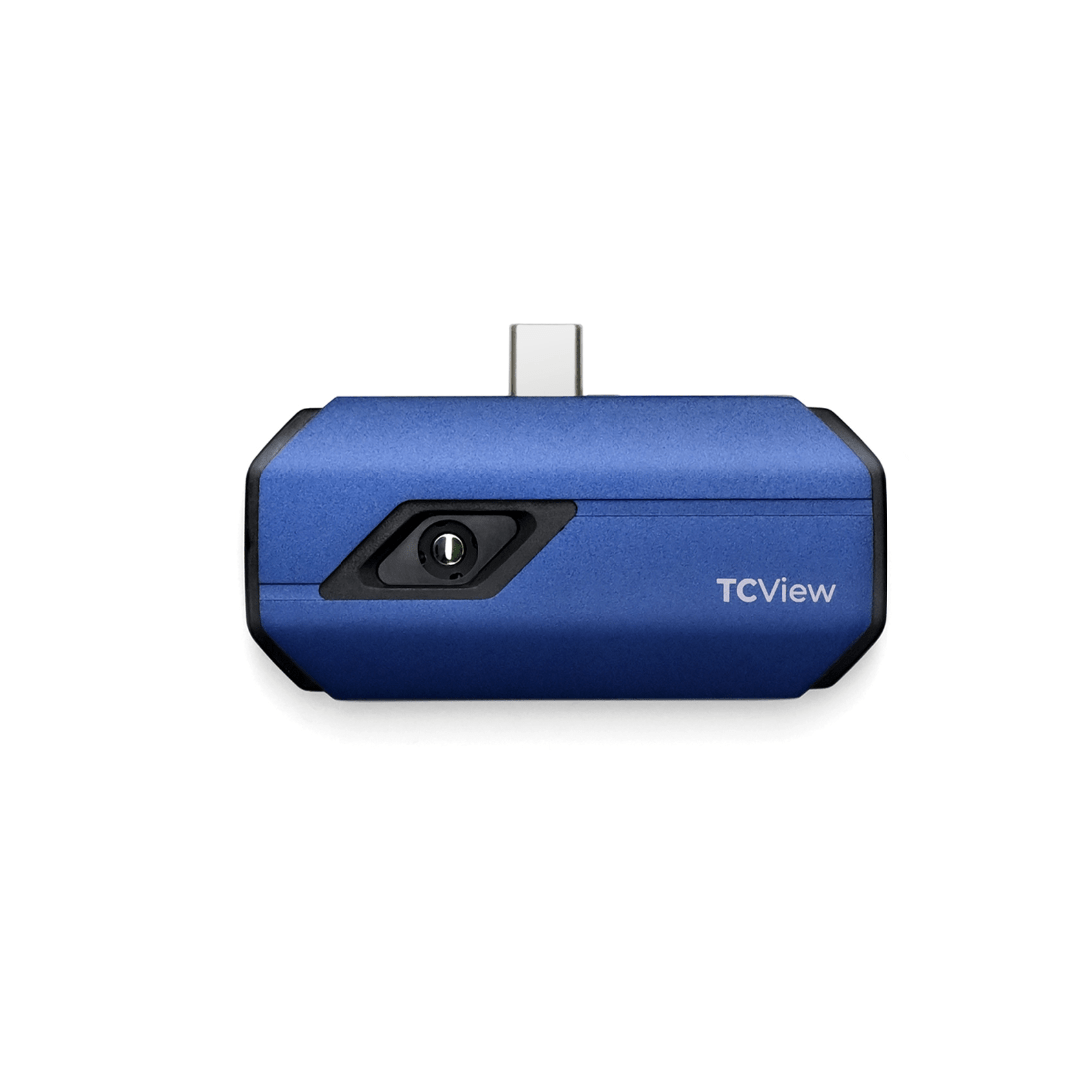

TOPDON TC001 TCView Thermal Imager Camera

The TCView Series turns your smartphone, tablet or computer into an infrared thermal camera. With an ultra-high IR camera resolution of 256×192, these devices infrared thermal camera can display a thermal picture of your target with high resolution and clarity, delivering great image quality. The TCView Series can take continuous measurements of a scene, storing the data and generate a waveform graph. The DIY mode can infrared thermal camera allows users to set temperature limits, helping users to view the temperature of the targeted area intuitively.

FEATURES

  • Superior Image Quality with an IR Resolution of 256×192.
  • Optimized Temperature Accuracy, the TC001 is especially suitable for objects where surface temperature is hardly distinguishable, such as circuit boards and other electronics.

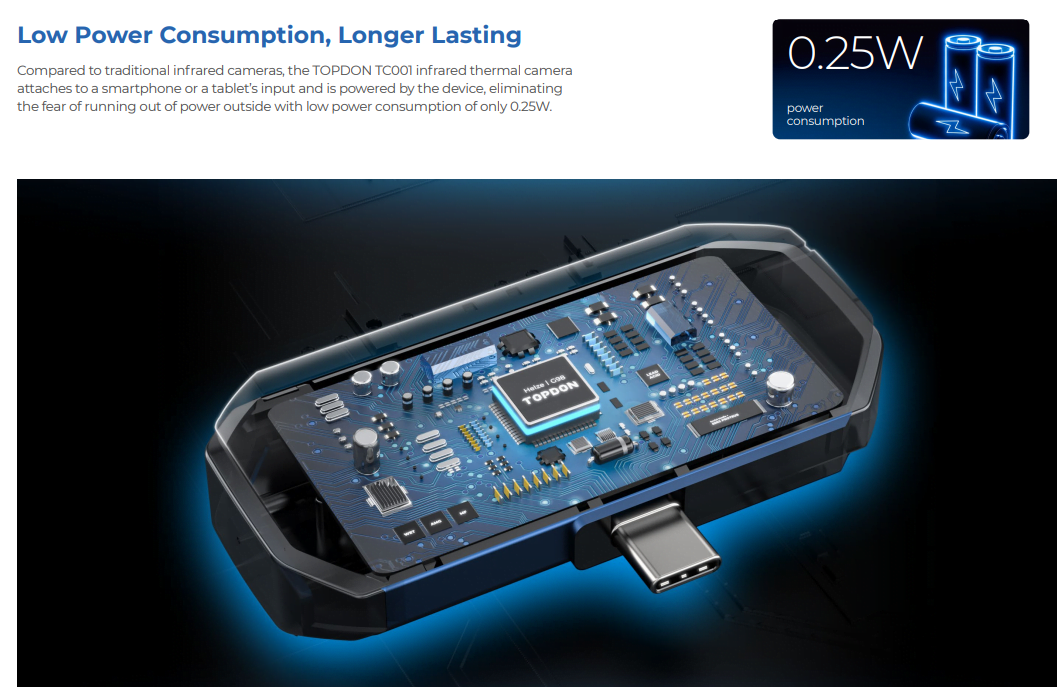

  • With low power consumption of only 0.25W, compared to traditional infrared cameras, the TOPDON TC001 infrared thermal camera attaches to a smartphone or a tablet’s input and is powered by the device, eliminating the fear of running out of power outside with low power consumption of only 0.25W.
  • High Heat Sensitivity with 50mk, with a wide temperature range of -4℉ to 1022℉(-20℃ to 550℃) , the camera can perform temperature readings for all kinds of objects, the TC001 infrared thermal camera can perform temperature detection within ±3.6ºF (2ºC) or 2% of max temperature, it can also measure temperature to 0.1ºC accuracy, allowing users to detect temperature with extreme accuracy.
  • Compatible with Android Phones and Windows Tablets & Laptops, the TC001 is compatible with Android phone/tablet and features a downloadable app to turn a regular smartphone into a high-tech thermal camera. Windows tablet functionality is also supported, with the TCView app available to download from the TOPDDON official website.
  • Enhanced Testing Range of -20°C to 550°C (-4°F to 1022°F).
  • Three Temperature-Reading Dimensions.
  • DIY Temperature Range.

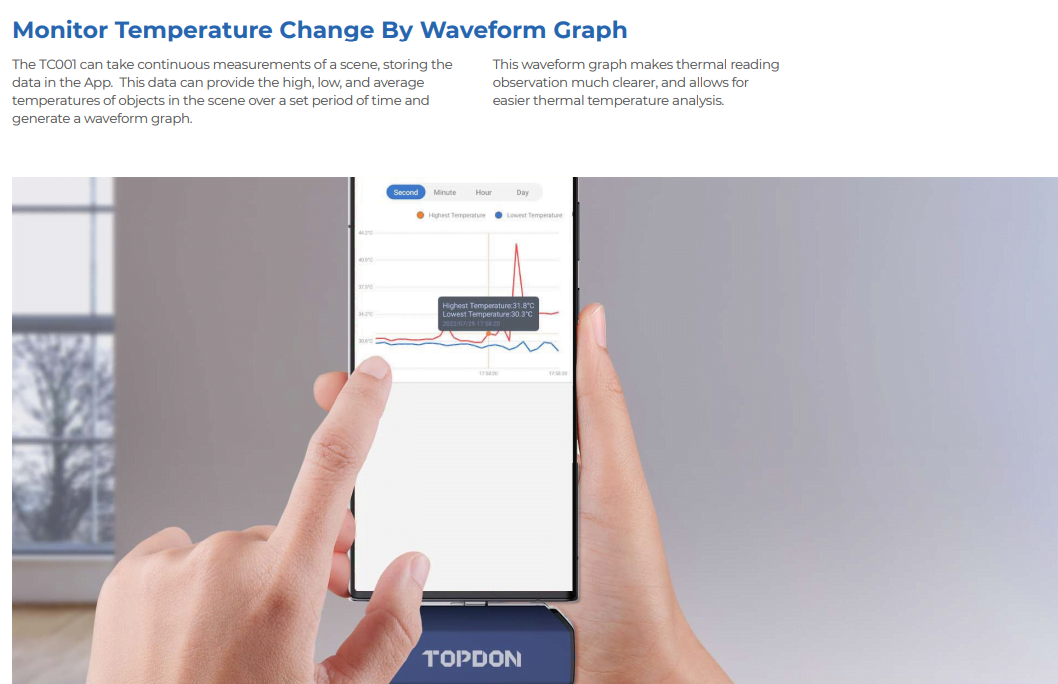

  • Monitor Temperature Change by Waveform Graph, the TC001 can take continuous measurements of a scene, storing the data in the App. This data can provide the high, low, and average
    temperatures of objects in the scene over a set period of time and generate a waveform graph, This waveform graph makes thermal reading observation much clearer, and allows for easier thermal temperature analysis.
  • Image Enhancement Technology, includes 10 different color palettes, sharpness and contrast adjustment, picture-in-picture and many other functions. Image enhancement technology makes the field of view clearer and more detailed, and enhances the target recognition function.

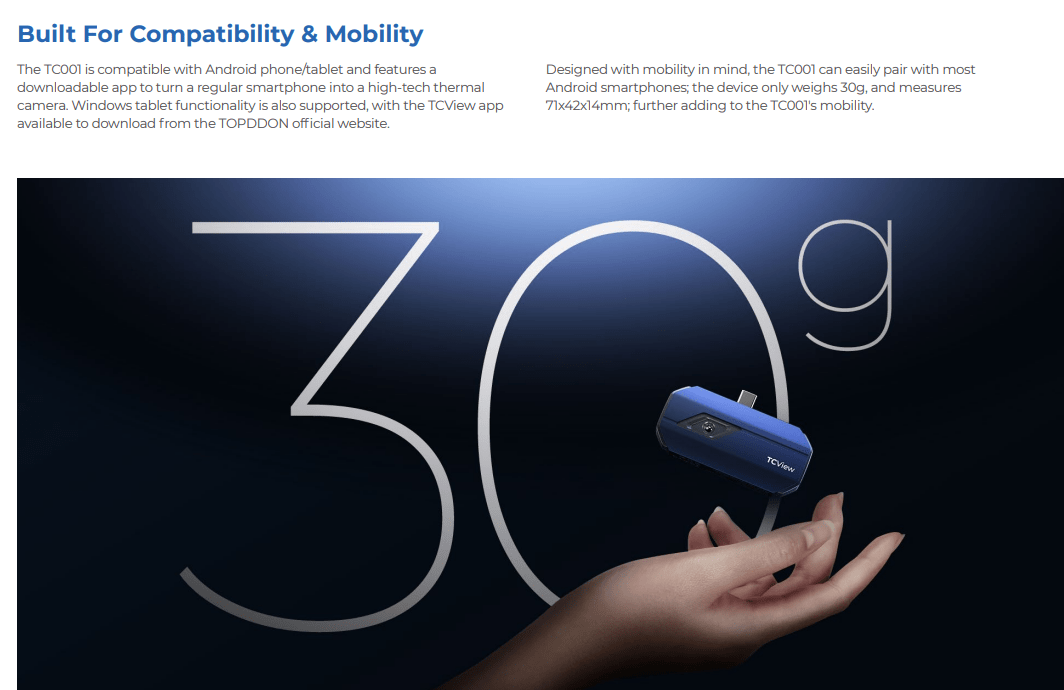

  • Measuring 71x42x14mm and weighing 30g.
  • Discover More with the TOPDON TC001 App.

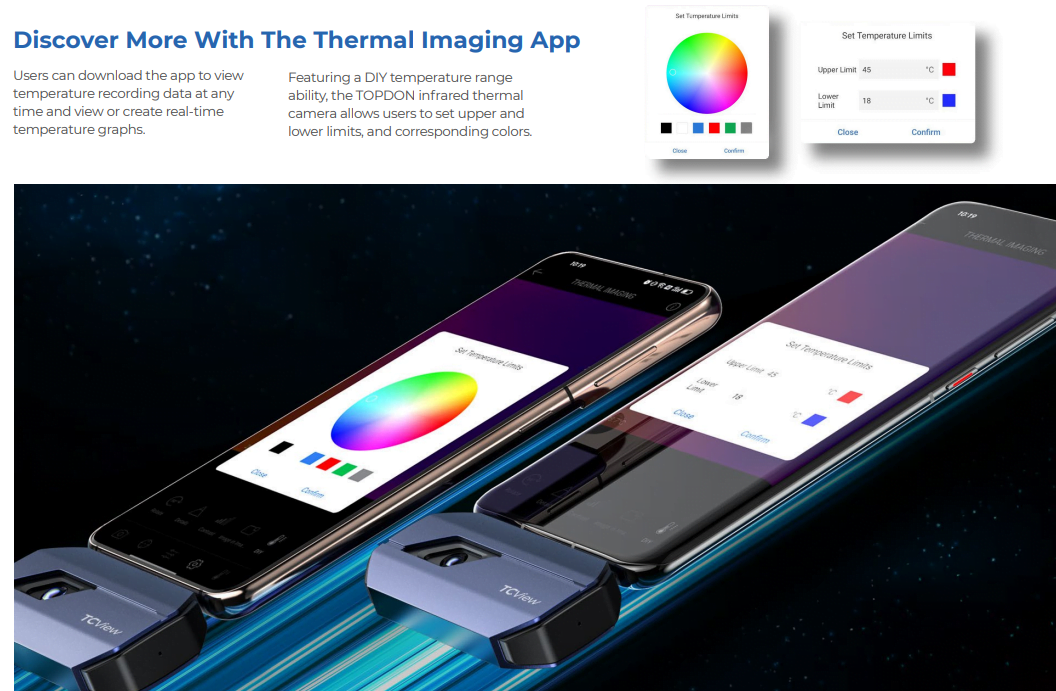

  • Discover More With The Thermal Imaging App, users can download the app to view temperature recording data at any time and view or create real-time temperature graphs. featuring a DIY temperature range ability, the TOPDON infrared thermal camera allows users to set upper and lower limits, and corresponding colors.

TECHNICAL SPECIFICATIONS

  • Spectral Range: 8 to 14μm
  • Resolution: 256×192
  • Pixel Size: 12μm
  • NETD<50mK @25°C, F#1.0, 25Hz
  • Frame Rate: 25Hz
  • Object Temperature Range: -20 to 150°C (-4°F to 302°F),150°C to 550°C (302°F to 1022°F)
  • Accuracy: ±2ºC or ±2% of reading

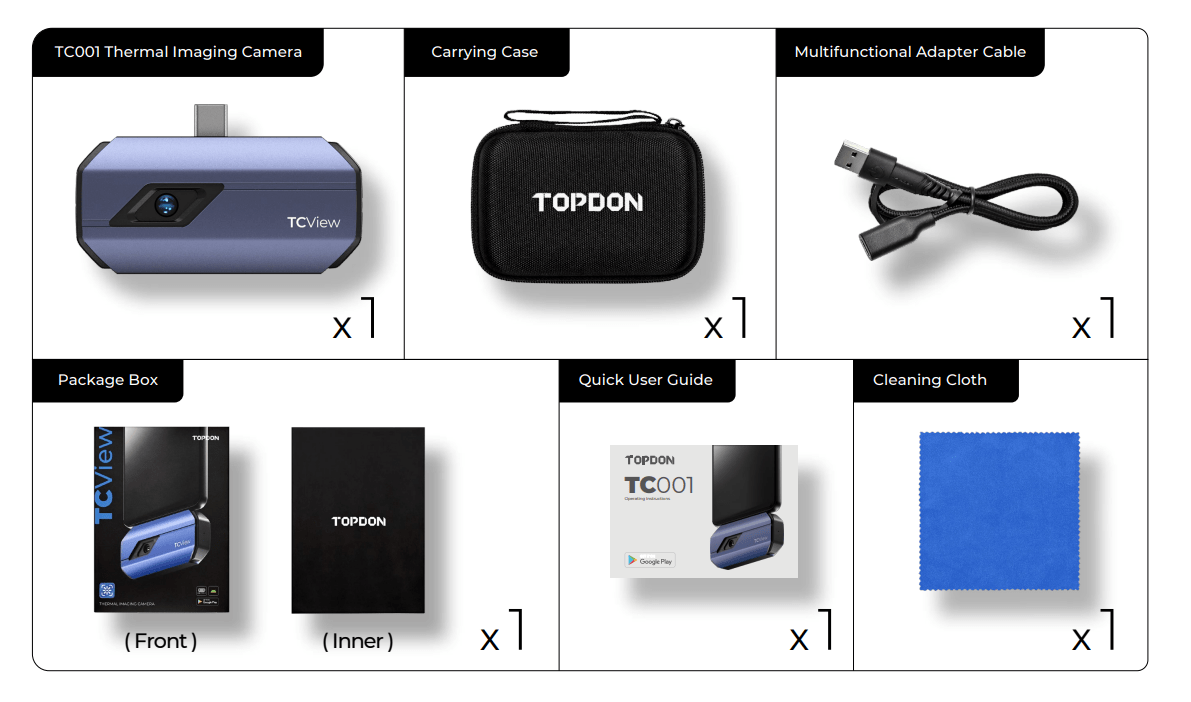

PACKAGE LIST

  • TC001 Thermal Imaging Camera
  • 0.5m Multifunctional Adapter Cable
  • Carrying Bag
  • Cleaning Cloth
  • Quick User Guide

Additional Information

Weight 1 kg
Dimensions 19 × 16 × 10 cm

User Manual

Short Product Profile

Product Profile
