Automotive Sensor Simulator and Tester

Product Description

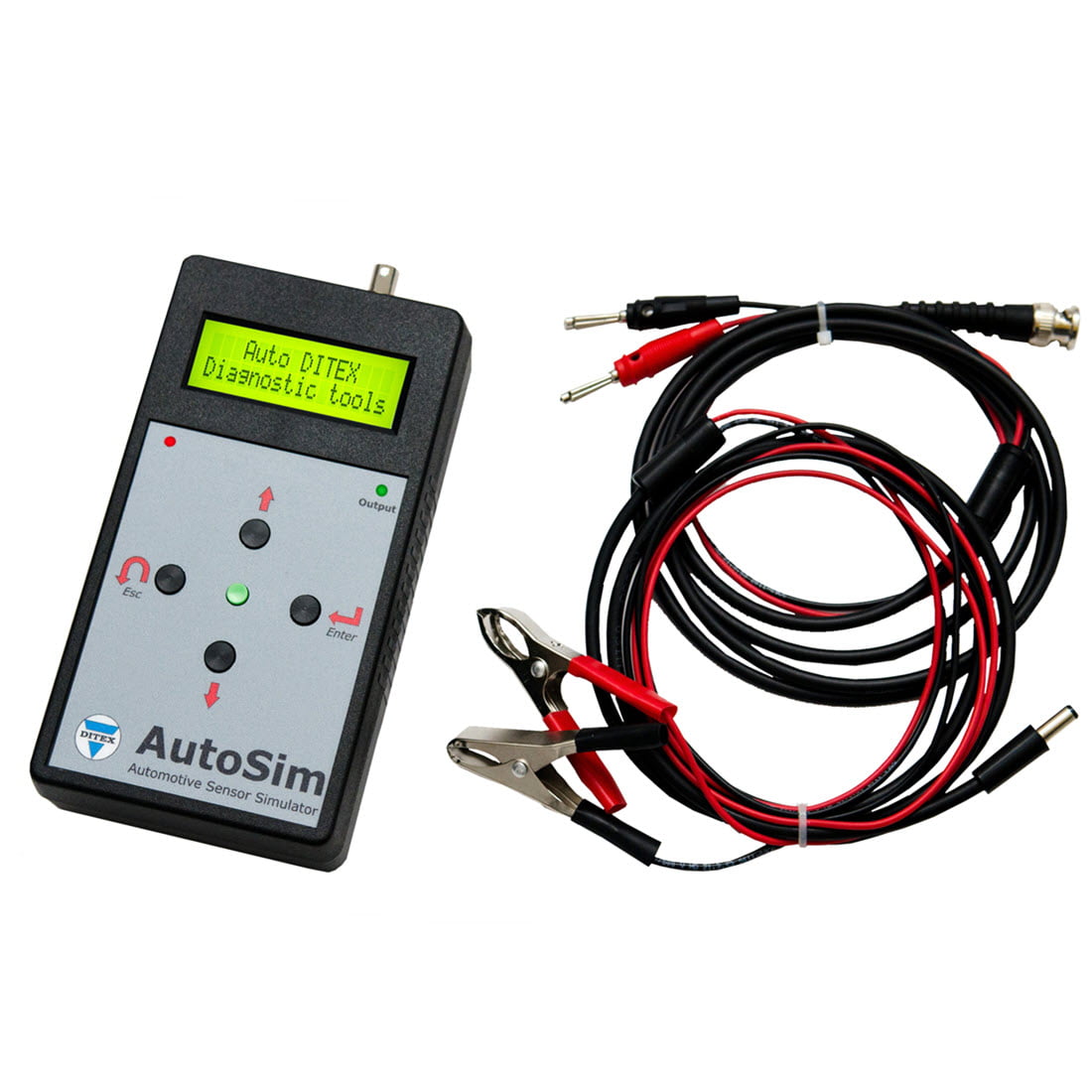

Automotive sensor simulator and tester

Simulates output signal of the most popular automotive sensors and activates actuators

AutoSim is a smart testing device with power-on self-test. It is mainly used to simulate the output signal from automotive sensors: frequency, voltage, and O2 sensor signal. The users can enjoy great convenience provided by its user-friendly interface and fault tolerance design.

AutoSim picks up a service problem where the on-board computer’s diagnosis ends. Sensors tell the on-board computer something is wrong. AutoSim lets the technician determine if the faulty operation is a faulty sensor, a defect in the wiring or a problem in the computer itself.

The product is mainly used for wiring tests. This is because the device can simulate the voltages and check the live data readings on the scan tool to confirm the wiring. You can simulate most sensors from ABS to O2 sensors. Eliminates need to replace non-defective sensors, by the time you have changed a couple of un-needed sensors the device has paid for itself.

Features:

• Hand-held sensor simulator tester;
• Works independently or with any scan tool or oscilloscope;
• Eliminate unnecessary replacement of non-defective sensors;
• Sensor simulation: voltage, frequency, O2 sensor signal;
• Trigger output impulse;
• Digital LCD display shows actual output of signals;
• Matrix LCD screen with backlight;
• Output short circuit current protection;
• Anti-dirt film keyboard;

Applications:

• Simulates actual working condition of the most automotive sensors;
• Varable adjustable voltage output from 0 to 12 volts
• Simulates O2 sensor signal zirconia and titania
• Simulates crank and cam sensors inductive and hall
• In both crank and cam modes you are able to adjust the number of teeth and the number missing
• Checking of basic ECU operation;
• Controlling the output signal allows to check the ECU response and operation;
• It can drive ECU into “open” or “closed” loop;
• Activation of some actuators;

Specifications:

• Voltage simulation range = 0.1V ~ 12V
• Frequency simulation range = 0.1Hz ~ 10KHz
• Trigger pulse output = up to 0.15 amperes maximum
• Output amplitude = 0.2V to 12V output amplitude can be selected at each mode
• Output short circuit current protection = ± 150 mA
• Power = 12V DC (auto battery typical)
• Power supply range = 9V DC ~ 40V DC maximum
• Power connector = 2.5mm DC Plug
• Quiescent power current = ≤160mA
• Ambient temperature = -5°C ~ +50°C
• Ambient humidity = 0%RH ~ 85%RH
• Dimensions = 195mm x 100mm x 40mm
• Weight = 400g
