Petrol/Electric HYBRID technology Functional model Prius III

Product Description

Petrol/Electric HYBRID technology Functional model Prius III

Order Number: PMTP-03

Description

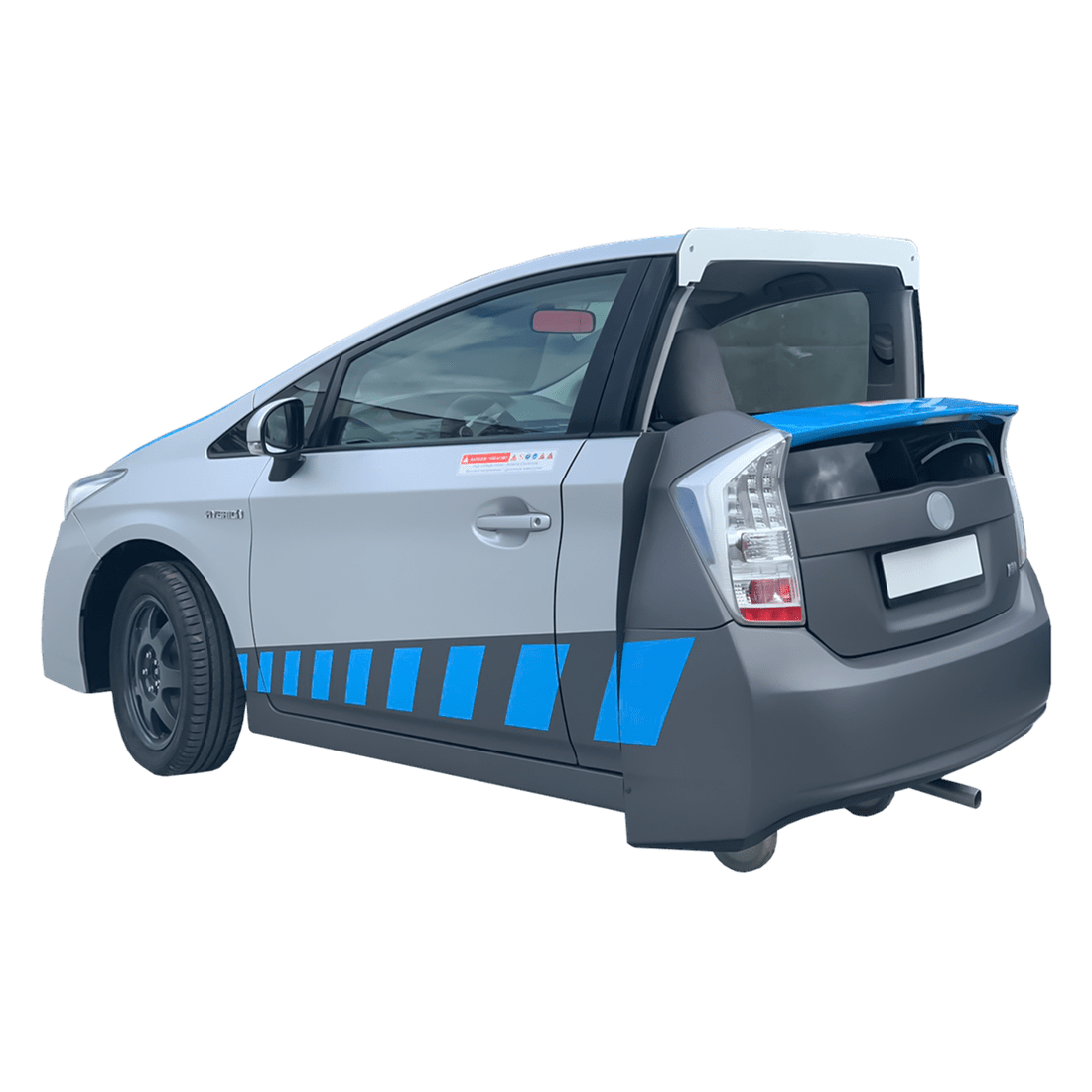

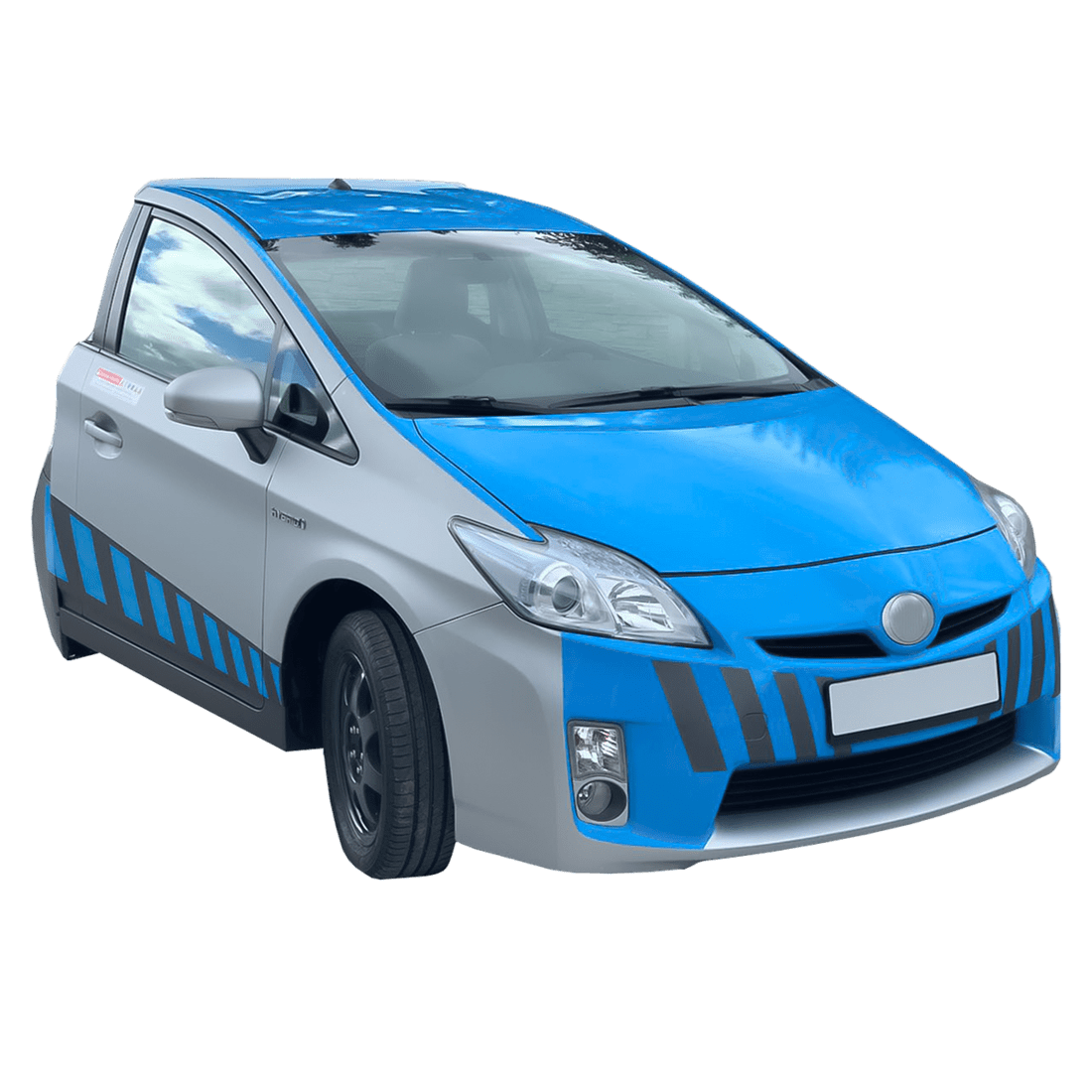

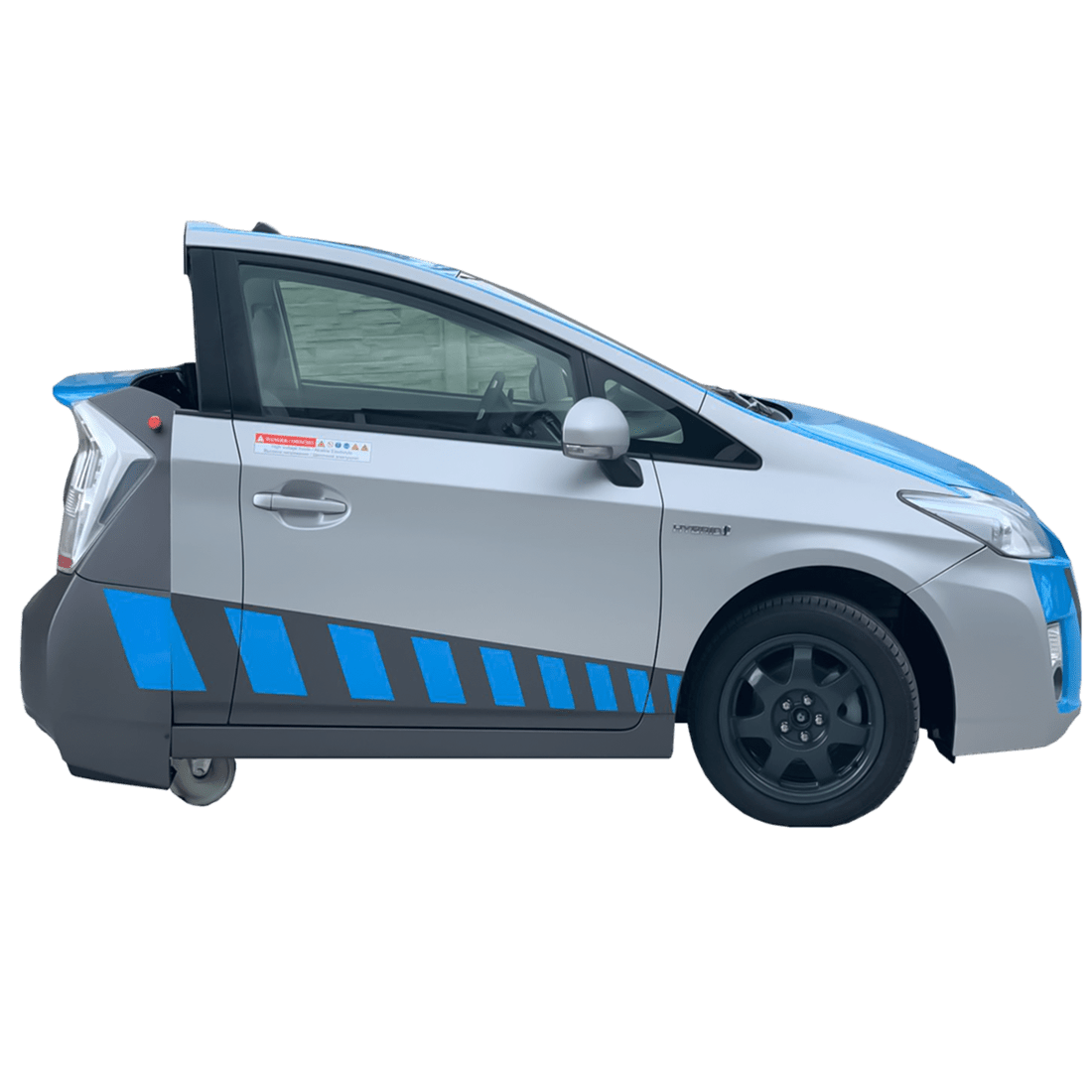

Educational fully operational functional model with hybrid petrol / electric system. This functional model is as an alternative for a complete vehicle, it is just a space saving version and it has the same advantages of a complete car. This functional model is made from Toyota Prius III and can be separated just after the B-pillars. In the front end all the components like engine air conditioning system and other components remain fully functional. In the rear the components such as the bumper and tail lights are fully functional. The functional model remains mobile with the help of additional swivel casters.

This functional model is a great educational tool that allows students to learn the components of the hybrid system, air conditioning system, ABS system, SRS AIRBAG system and other systems and its components.

Technical specifications and functions

The educational functional model with:

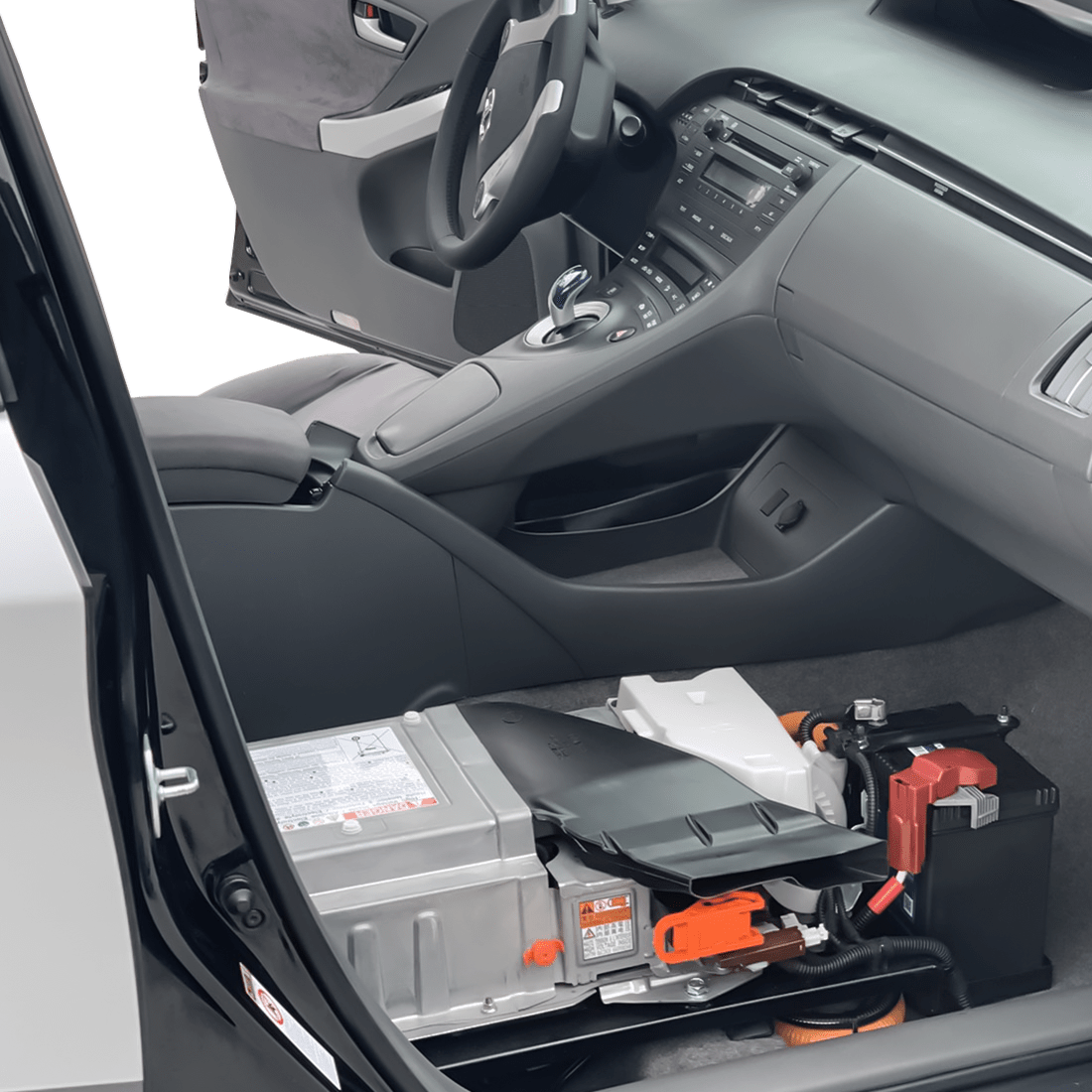

• Petrol/electric Toyota Hybrid Control System
• Automatic gearbox
• Climate control
• CAN Gateway network
• Exhaust system
• SRS Airbag system (Integrated inactive airbag igniters (after activation)
• ABS

Diagnostic and measurement

Control unit diagnosis

• Diagnosis through OBD 16 – pin diagnostic connector
• Electronic control unit (ECU) identification
• Reading/erasing fault codes
• Displaying the operating system parameters (live data)
• Actuator test (depends on the control unit)
• Control unit coding/configuration (depends on the control unit)
• Automatic search of ECU’s (depends on scan tools possibility)

Optional accessories break out box and fault insertion panel for functional models

• Built in measuring box with open contacts and wiring diagram for engine control system = PMTP-ENG /Box
• Fault simulation for engine control system = PMTP-ENG/Faults
• Built in measuring box with open contacts and wiring diagram for climate control = PMTP-AC/Box
• Fault simulation for climate control = PMTP-AC/Faults
• Built in measuring box with open contacts and wiring diagram for SRS AIRBAG = PMTP-SRS/Box
• Fault simulation for SRS AIRBAG = PMTP- SRS/Faults

Optional tools and equipment for measurement and services

• Automotive oscilloscope
• OBD Diagnostic scan tool
• The gas analyser
• The exhaust extraction system
• Air Conditioning service station

Other:

• Made in Lithuania
• CE certificate
