Truck Trailer WABCO EBS D 2S/2M Braking Training Stand

Product Description

Truck trailer WABCO EBS D 2S/2M braking system training stand

Order number: MSPSEBSD

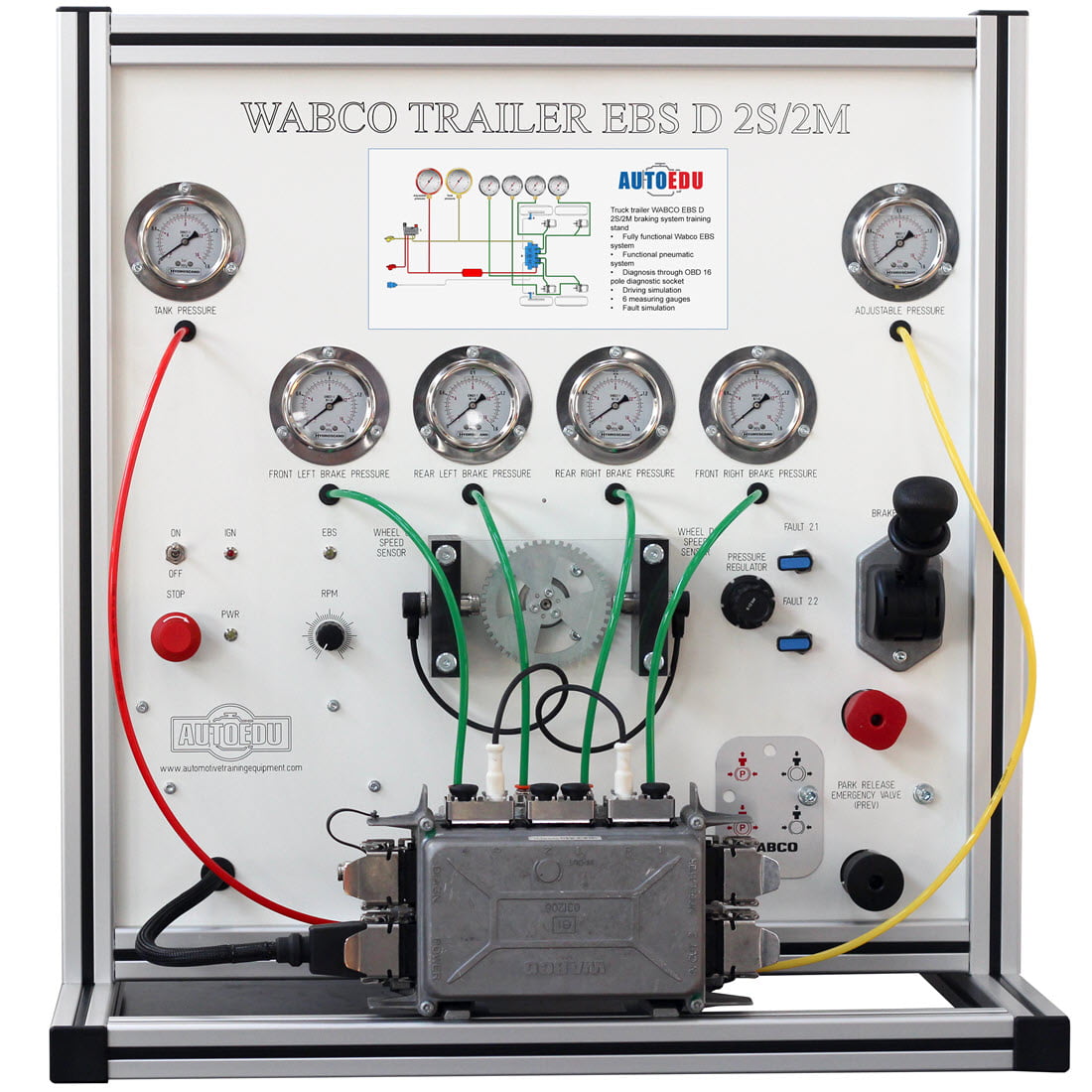

Fully functional, truck trailer pneumatic braking system with WABCO EBS D 2S/2M is installed in the aluminum frame. The training stand is specially designed to demonstrate pneumatic braking system with electronic EBS system. The educational automotive training stand is based on original Wabco components. The trainer is equipped with a functional WABCO EBS braking system and demonstrates different operation modes.

The truck trailer braking EBS system is a great educational tool that allows students to learn the structure of pneumatic braking system, study its components, perform various measurements, tests and other service and diagnostic procedures.

The training stand can be used as visual educational aid for students of mechanical subjects to demonstrate and explain the structure and components. Also, automotive training stand can be used as a training equipment for the brake system repair and service procedures.

AutoEDU braking system training stand is equipped with WABCO EBS modulator, pneumatic system and ABS sensors. With the help of installed air pressure gauges, it is possible to monitor the pressure in the brake circuit of each wheel. Simulation of blocking (slipping) wheel in a drive mode allows the monitoring of the ABS system demonstration. With the help of installed pressure gauges it is possible to monitor the brake force distribution.

The training board has an integrated ISO type diagnostic connector that allows the diagnostic tool to connect with and perform various measurements, tests and other diagnostic procedures such as reading fault codes, displaying parameters of the operating systems, reprogramming and etc.

Technical specifications and functions

• Clearly visible fully functional truck trailers braking system and its components;
• Pneumatic braking system without calipers and heavy hardware, just the most important components of pneumatic and electronic systems
• Functional electronic EBS system;
• With installed pressure gauges can be monitored the pressure in the brake circuit of each wheel;
• Driving mode simulation;
• The training stand can be used for mechanical service and repair training
• Integrated emergency stop button
• On board 24V
• Compressed air connection

Control unit diagnosis

• Diagnosis of electronic WABCO EBS D 2S/2M system through ISO type diagnostic connector;
• Electronic control unit (ECU) identification;
• Reading/erasing fault codes;
• Displaying the operating system parameters (live data);
• Reprogramming possibility

Other

• Power supply: 220V, internal 24V
• Made in Lithuania
• CE certificate

Optional accessories

• Diagnostic tool with cables
• Air compressor
