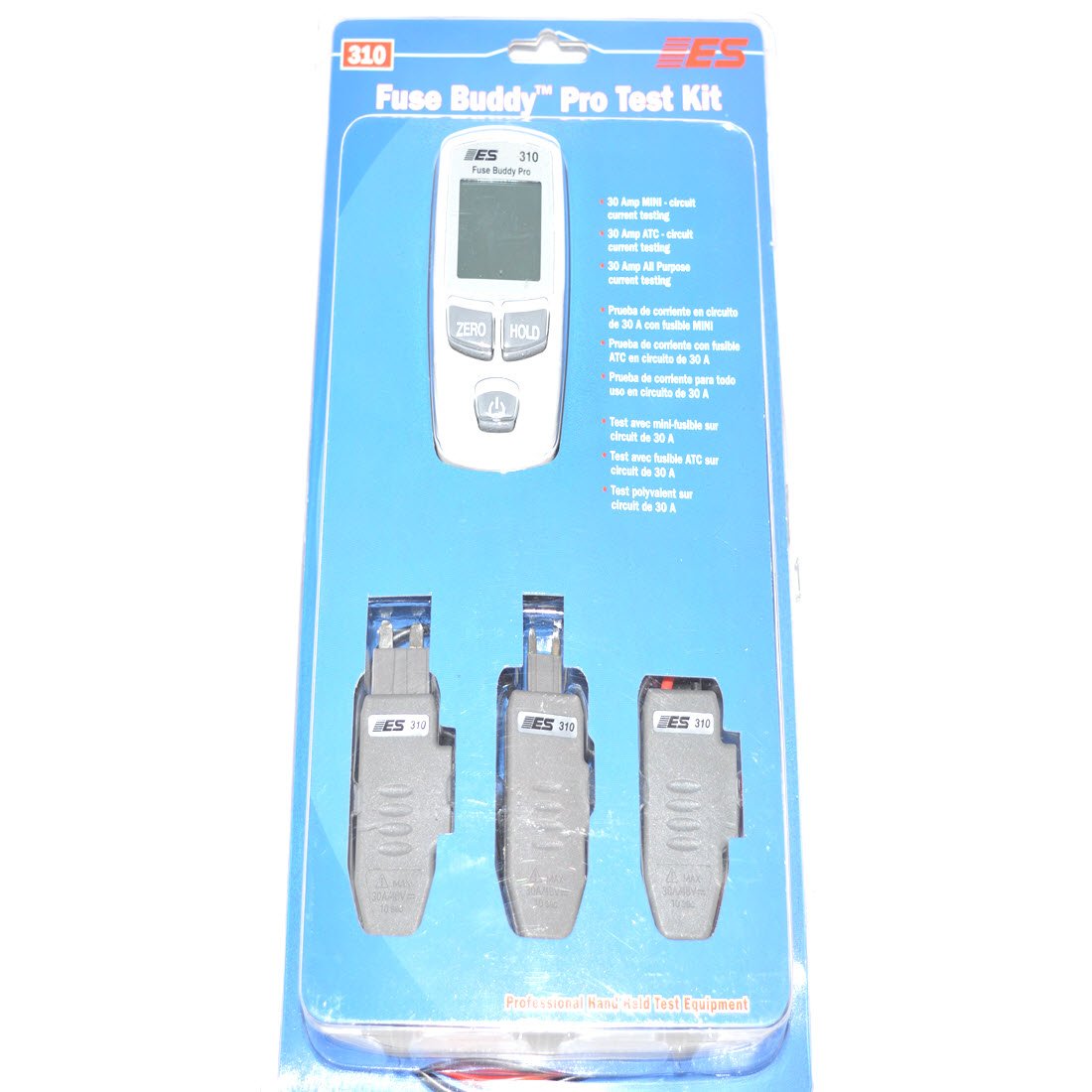

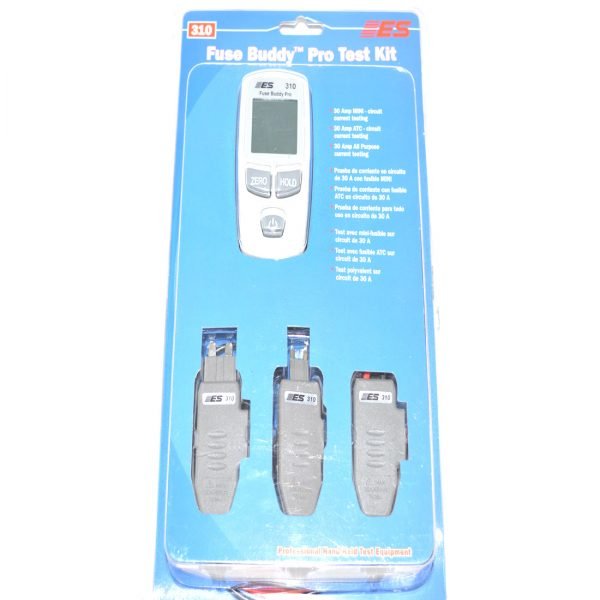

Fuse buddy™ pro test kit
Great new tool with 3 interchangeable test functions.
1) 30 Amp MINI – Circuit Amperage Testing
2) 30 Amp ATC – Circuit Amperage Testing
3) 30 Amp All Purpose Amperage Testing
The new Fuse Buddy Pro Kit can read amperage draws on both ATC and Mini fused circuits up to 30 Amps.
As an added bonus, the Fuse Buddy Pro can be used as an all purpose amp meter with the included 30A test clips.
Quick and easy way to check circuit amperage draws
Check blower motor and fuel pump amperage draws
Installing an auto-resetting circuit breaker allows you to check for intermittant shorts and monitor the current draw at the same time
Also handy for checking current readings on A/C compressors that are not easily accessible
Deluxe LCD display features full ANALOG BAR GRAPH
Unit features DATA HOLD and AUTO POWER-OFF
Resolution: .1A (100 mA) – Accuracy: +2% of reading
Measurement range: 0 to 30 Amps / 48 Volts
