LOADpro Dynamic Test Leads & Back Probe Kit

Product Description

LOADpro Dynamic Test Leads & Back Probe Kit

LOADpro Test Leads load the circuit to see if current can flow.

LOADpro finds these problems FAST:

• High Corrosive Resistance
• Shorts to Ground
• Open Circuits

By loading the circuit, LOADpro makes a voltage drop test “on the fly”.  Just press the switch – the test results can not lie.

Use LOADpro w/your DMM and follow our test method, you will find wiring faults quicker.

LOADpro Test Leads feature Steady Pin Probe Tips, which allows the probe to sit firmly on a male ECM or connector pin.

LOADpro test leads are OEM approved – finds corroded circuits!

The process is very simple just read voltage. It’s that easy, really. If a vehicle component is inoperable, just unplug the connector. Read voltage at the connector. Do you see 12 volts? If yes, press the LOADpro switch – if the voltage remains, the wiring is good – go on to something else. If the voltage drops – the circuit has high resistance… i.e.- corroded wiring or connections. If you see no voltage initially, you have an open or short to ground. LOADpro Test Leads also feature SteadyPin Probe Tips. Instead of a pointed probe, SteadyPin tips have a small recess at the tip that allows the probe to sit firmly on a male ECM or connector pin. Traditional pointed probes fail to give an effective connection and creates difficulties in completing manufacturer specific voltmeter tests.

We recommend replacing your existing test leads with LOADpro and leave them in place.

This popular tool is now available with 4mm tip adapters and an assortment of back probes and clips.

The new LOADpro adapter tips are equipped with standard 4mm banana plugs and are compatible with most test lead kits in the field.

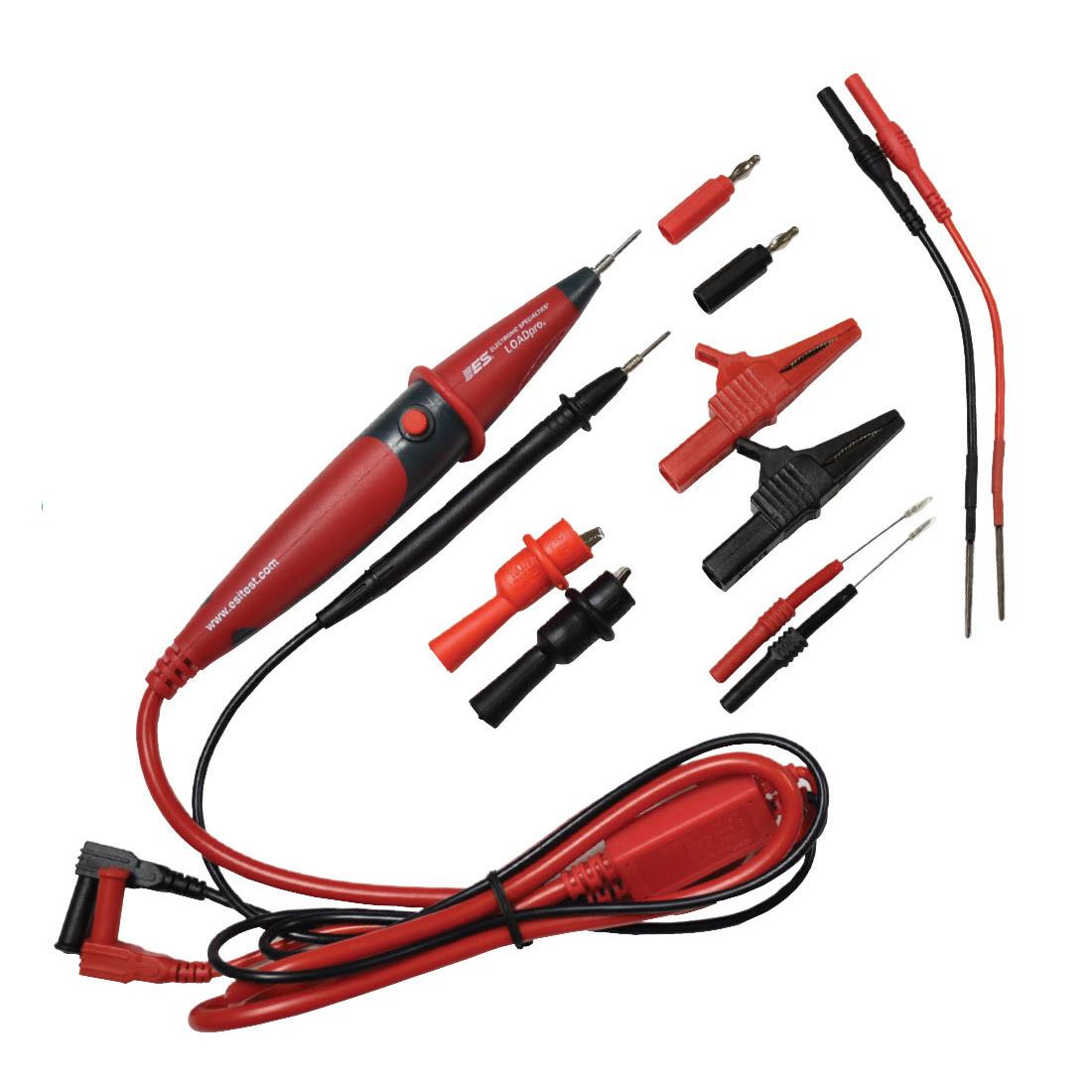

Packaging List:

• LOADpro® Test Leads
• LOADpro® Tip Adapters
• Flexible Silicon Back Probes
• Spoon Probe Curved Back Probes
• Large Crocodile Clips
• Push-on Alligator Clips

Winner of the top 20 tools award 2011
