Back Probes With Collar

Product Description

Back Probes With Collar

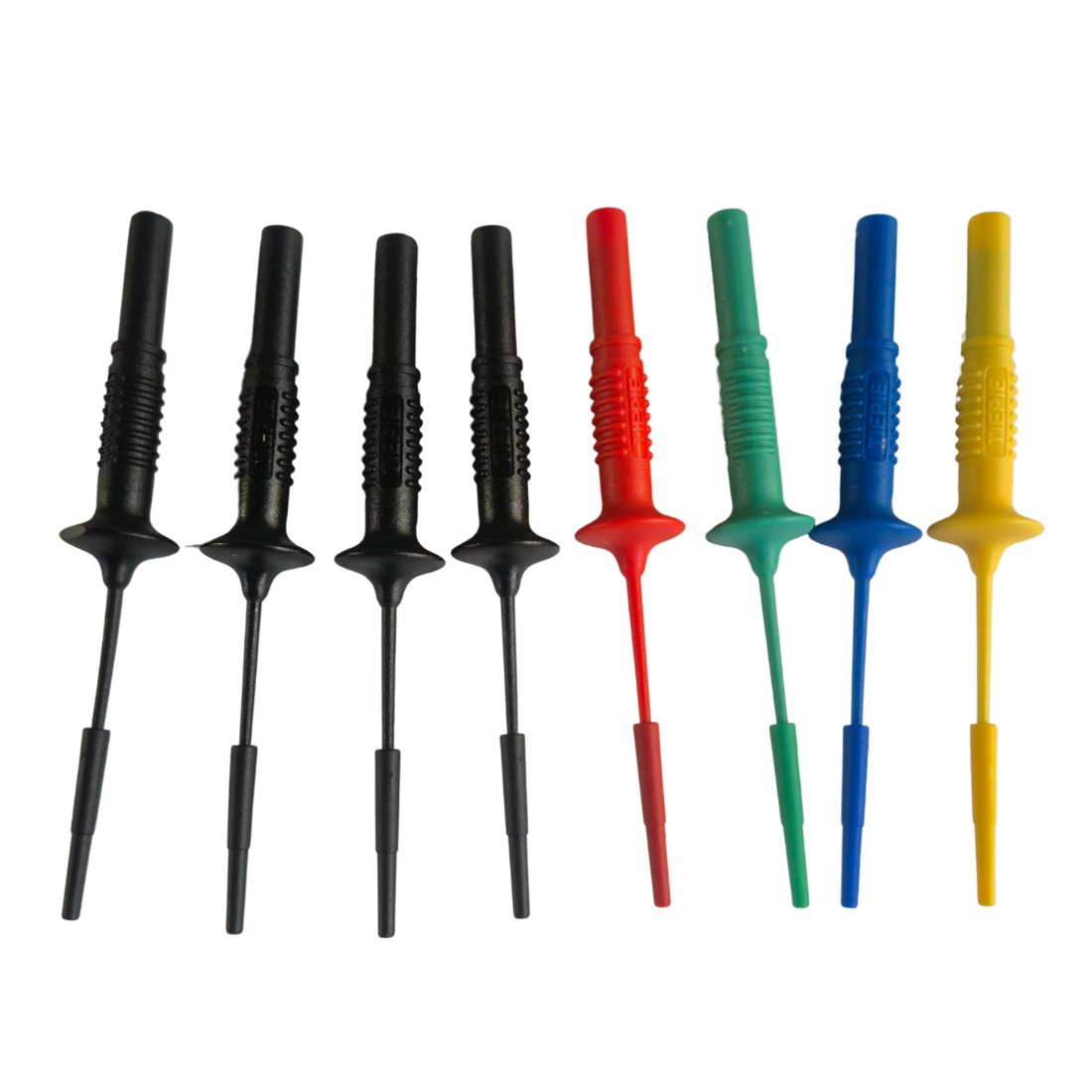

Colour coded back probe set 4mm with collar that improves holding grip on the back probe and avoids fingers sliding to the tip where dangerous voltages may be present. Includes 8 probes.

These thin and flexible measuring probes fit on any test lead with 4 mm banana jacks and make it possible to connect to hard to reach places. They allow to back probe wires in connectors, without breaking the circuit, without the need of break out boxes and without damaging the wire isolation. The set contains 8 probes, four black ones, a red, a yellow, a green and a blue one, matching the input channel colour coding of the Automotive scope ATS5004D.

The Back Probe TP-BP100 is very useful in back probing connectors to measure in an existing circuit without having to use a break out box or damage the wire isolation. The long, thin and flexible pins can easily be slid between the connector housing and the contacts in the connector.

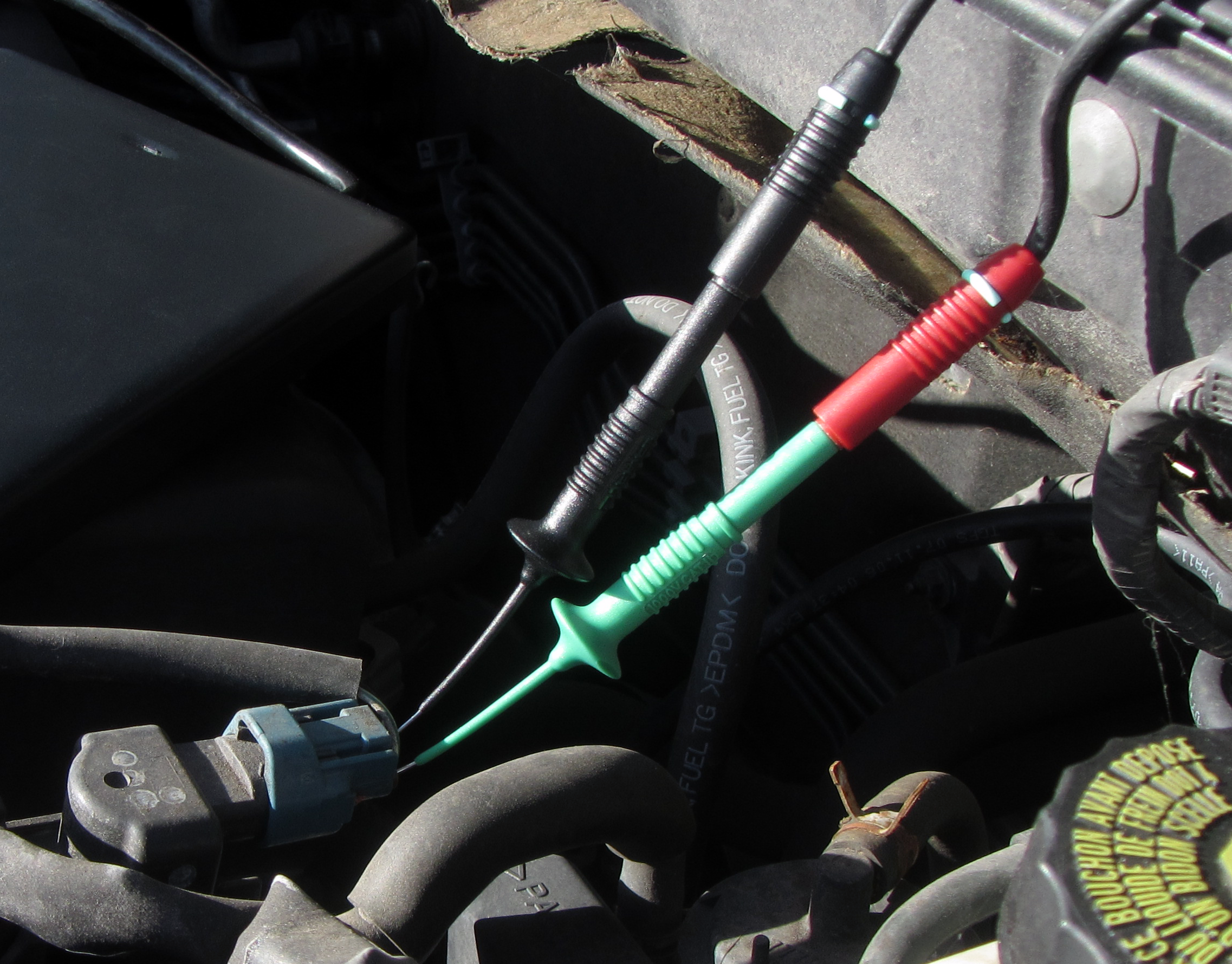

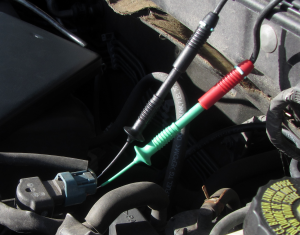

Figure 1: Back probes in use on a sensor measurement.

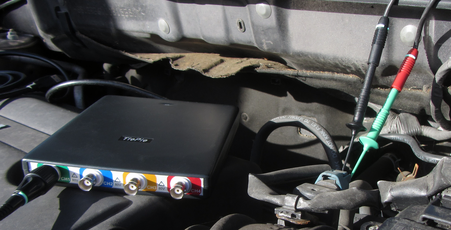

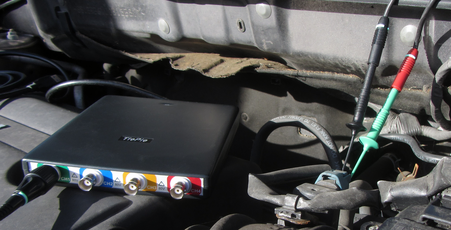

Figure 2: Back probes in use with scope and measure leads.

Specifications

• Connector: 4 mm banana socket
• Rated voltage: 1000 V CAT II
• Dimensions: Length 102 mm, Width 9 mm, Collar width 16 mm
• Tip: Diameter 0.6 mm, Total length 45 mm, Unisolated length 18 mm
• Weight: 5.8 g
• Color: green, blue, yellow, red or black
