GMTO Wheel Speed Sensors System Training Board

Product Description

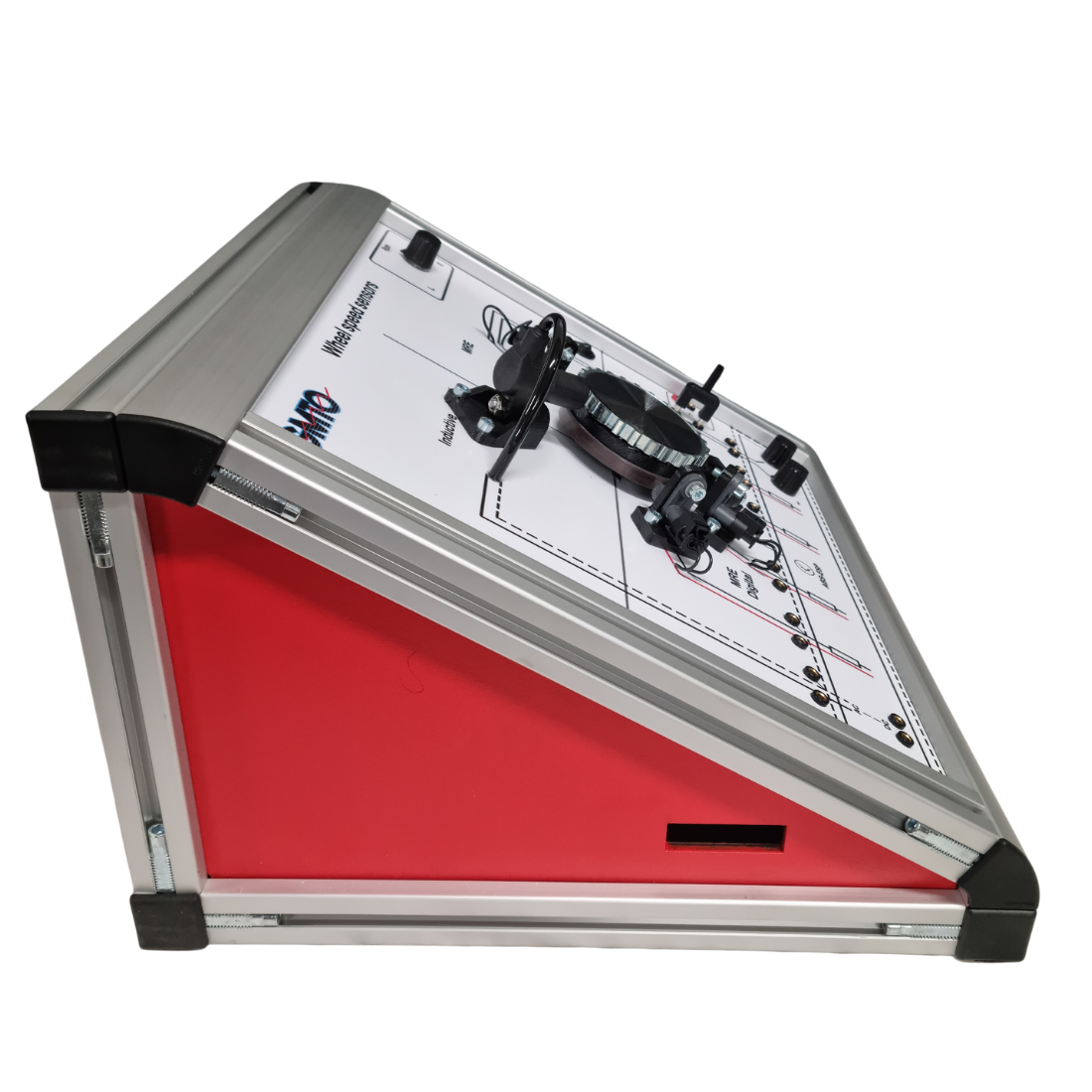

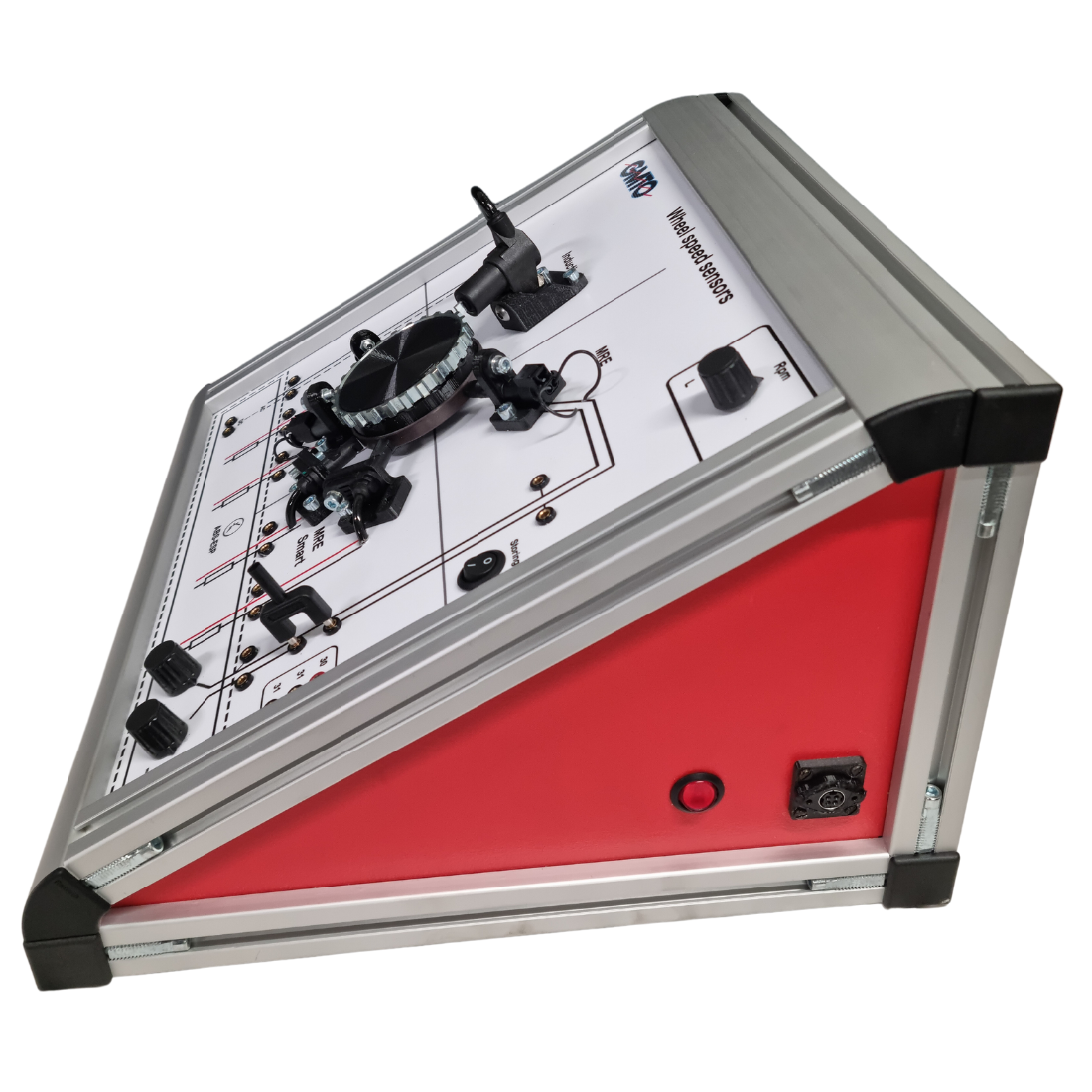

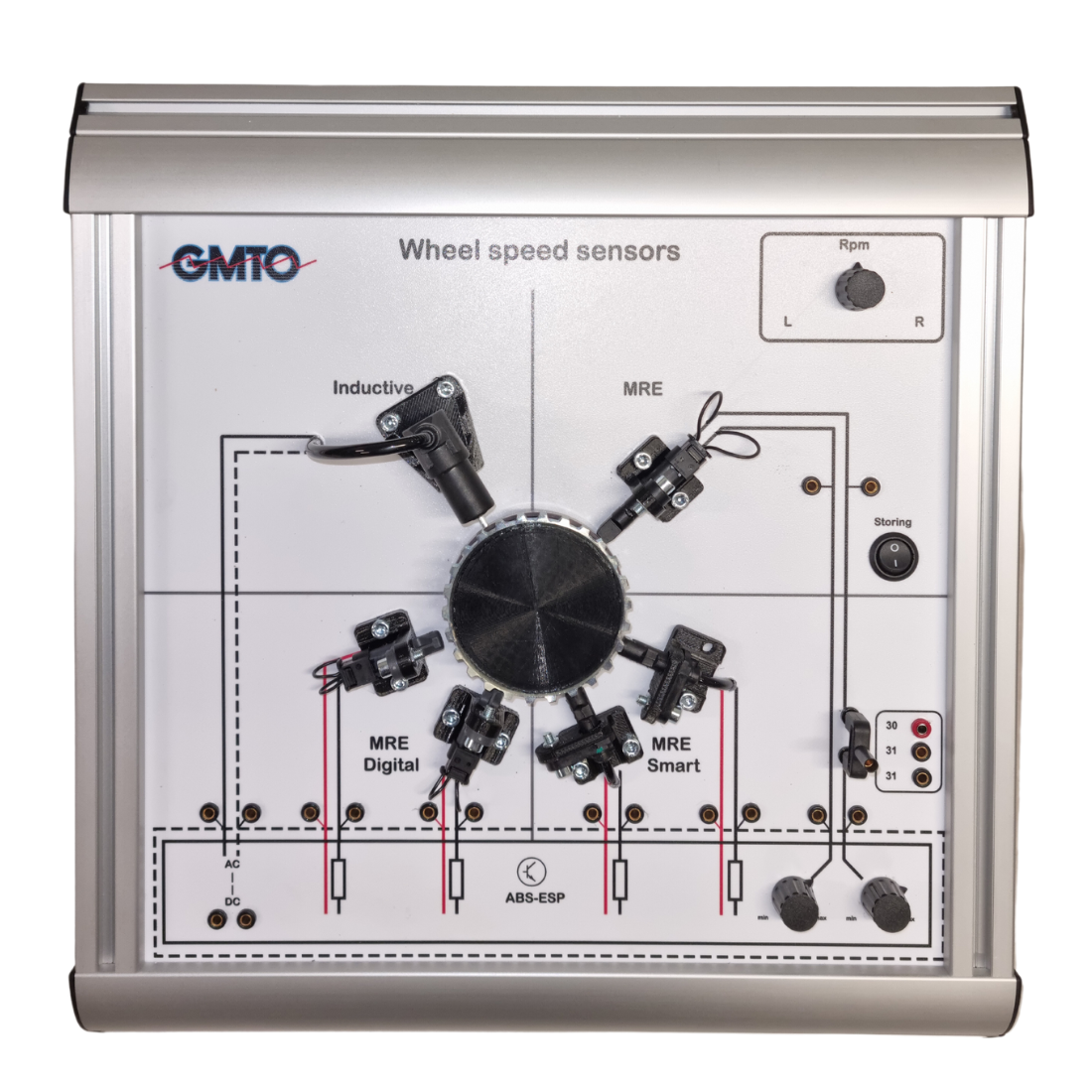

GMTO Wheel Speed Sensors System Training Board

With the wheel sensors board it makes the principle operation and signals of the inductive, hall and MRE sensors clear and easy to test and understand, Its also very portable due to its compact size

The board consists of:

• Rotary knob to control the speed and rotation direction of the impulse wheel (note it can rotate forward and backwards and also rotate at very slow speeds)
• The fault switch allows you to create a fault in one of the MRE (active ABS sensors) the fault creates a 80 ohm resistance in the wiring from the MRE sensor
• Connecting bridge for current measurement milliamps,
• Rotary knobs for creating resistance in the ABS/ESP ECU,
• 4mm measuring points on all sensors
• Impulse wheel with trigger ring and magnetic encoder ring
• Inductive ABS sensor
• MRE/Active sensor with normal gap
• MRE/Active sensor with bigger gap
• MRE/Active sensor with fault switch and bridge
• MRE/Active sensor intelligent with normal gap
• MRE/Active sensor intelligent with bigger gap

What’s Included:

• Training Board
• Manual
• Power Adaptor

Optional:

• ATIS lite scope software, which gives scope sample wave froms and technical information on how inductive and Active/MRE sensors work including smart MRE sensors
• Various types of oscilloscopes click here to see our range of PC based oscilloscopes and click here to see our hand held range
