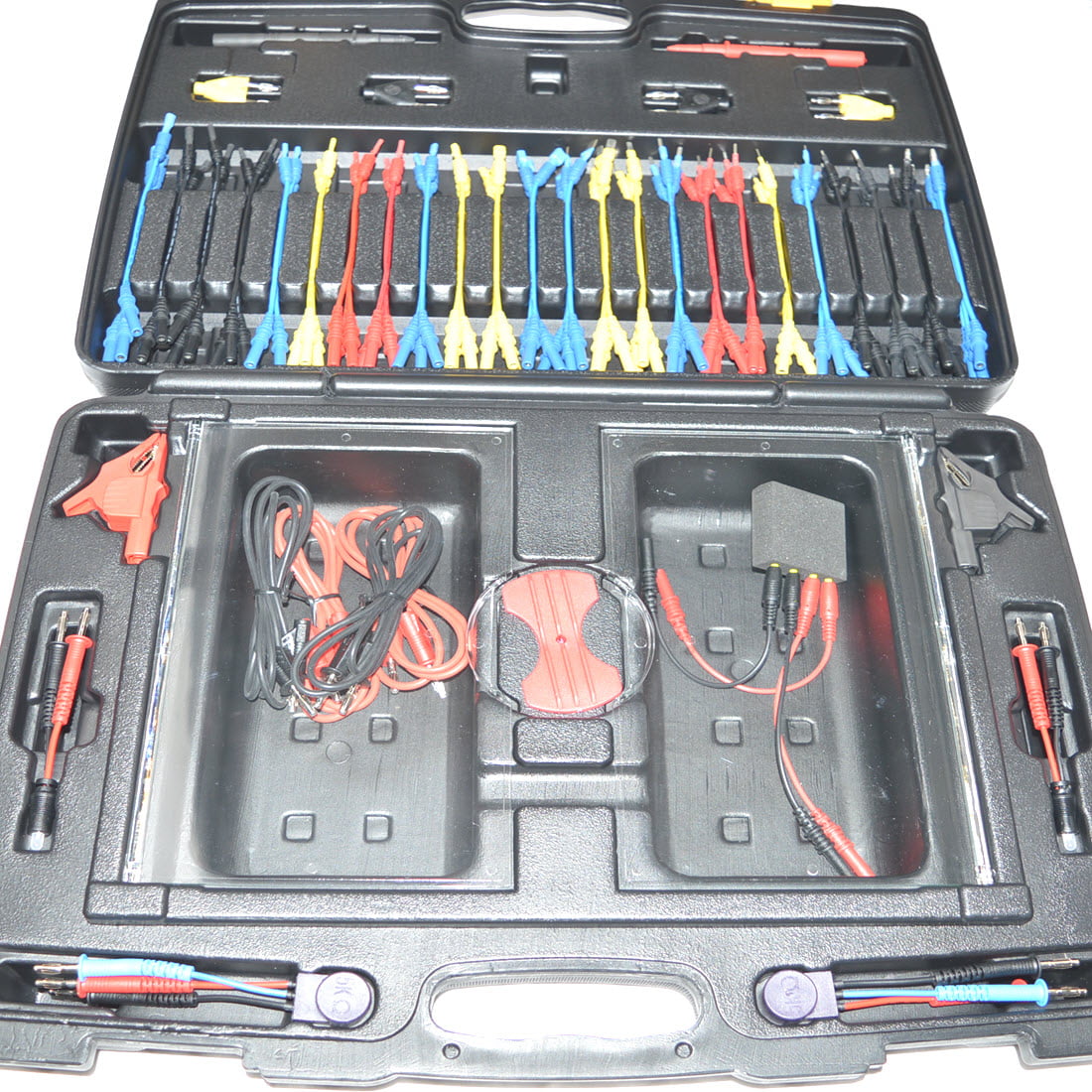

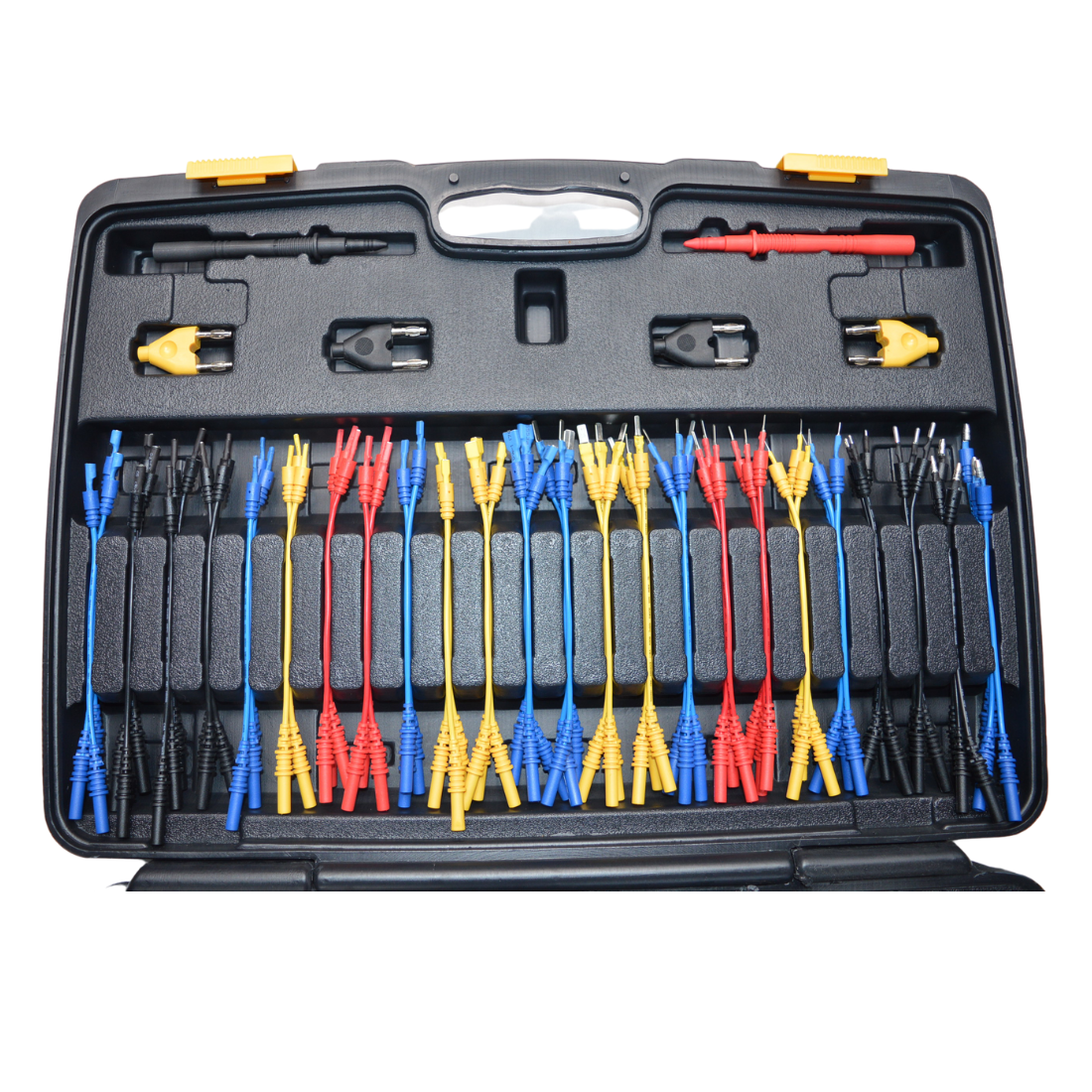

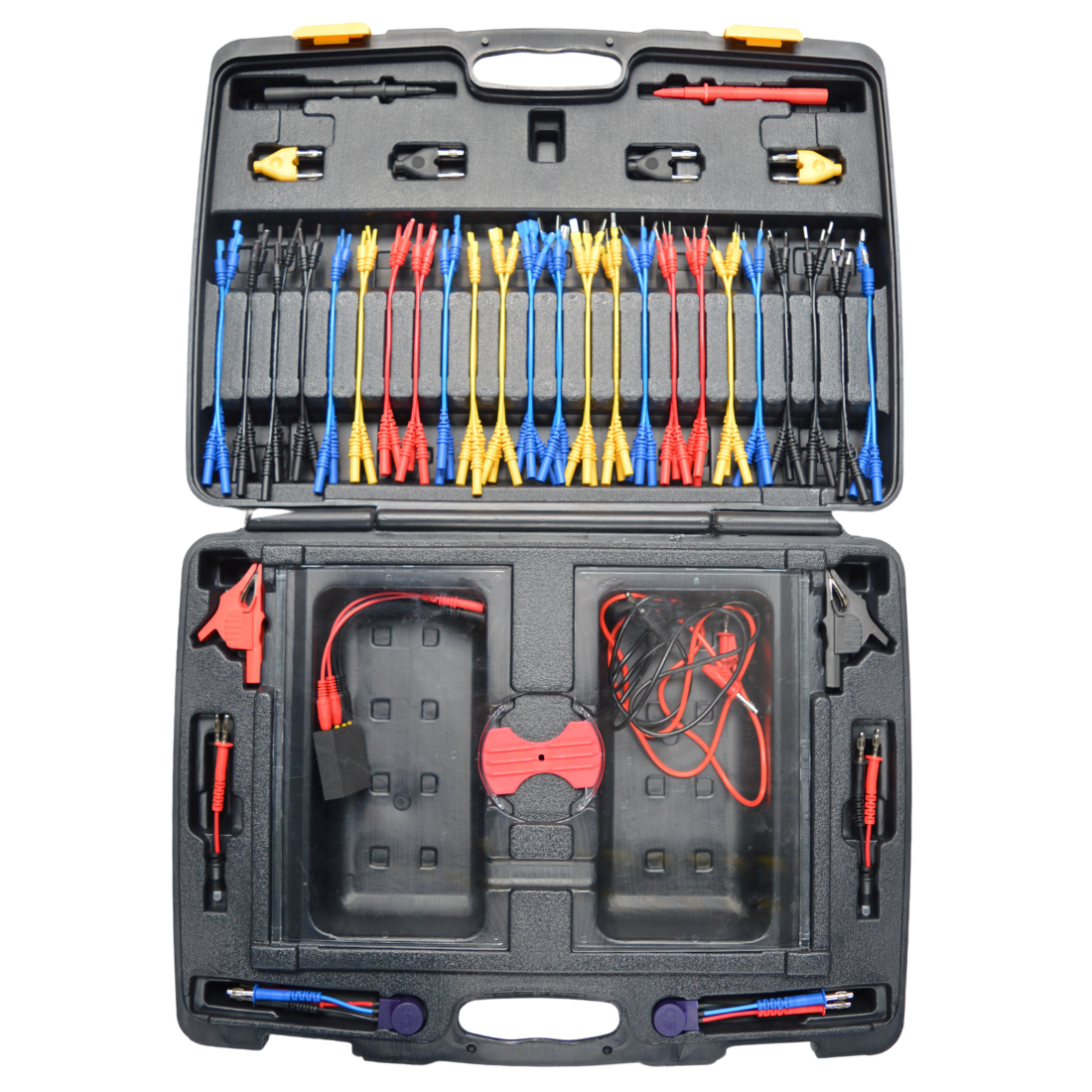

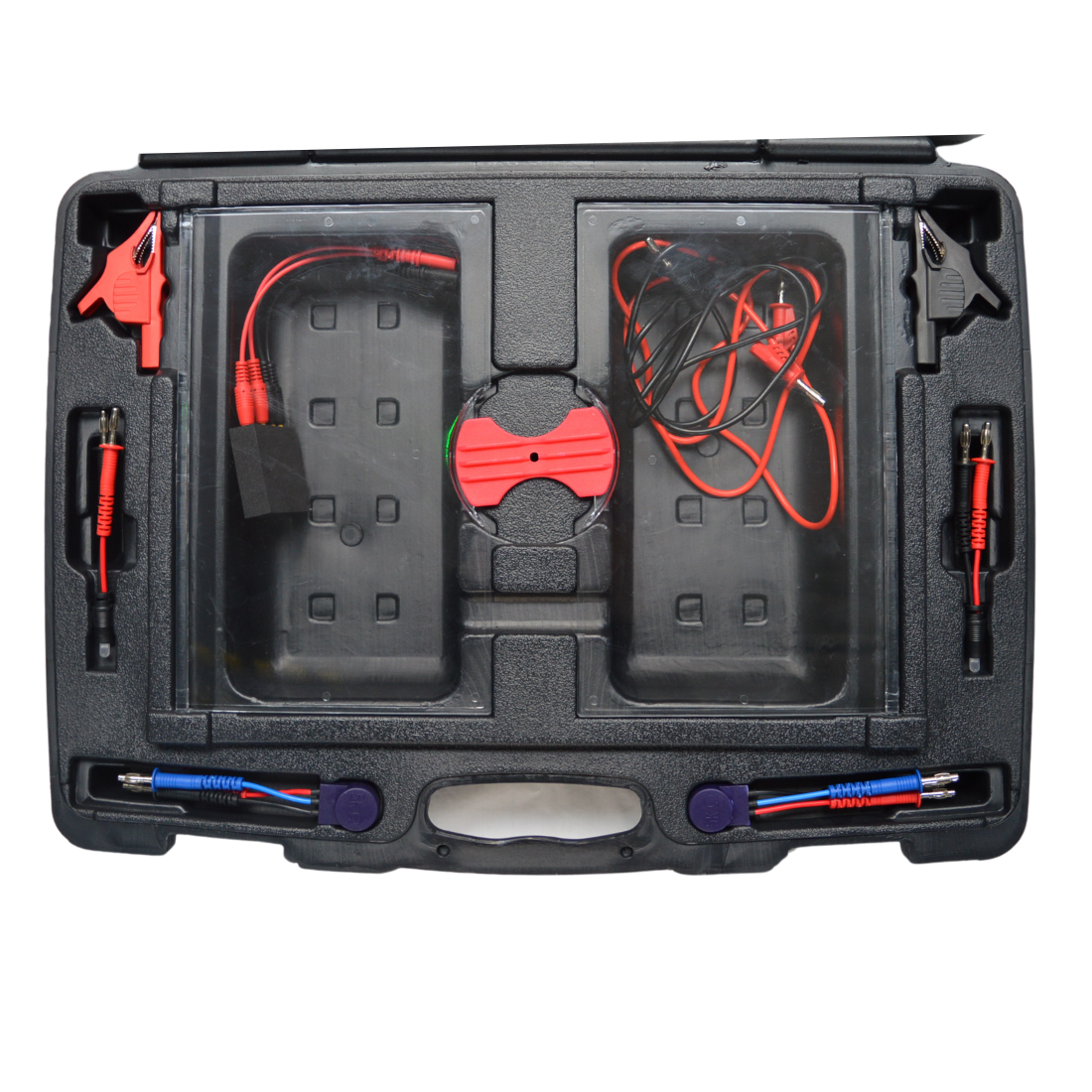

92 Piece Universal Test Lead Set

Product Description

92 Piece Universal test lead set

Multipurpose test lead set for use with any DMM or Oscilloscope, uses all 4mm banana type connections. This multipurpose test lead set is an ideal aid to use when testing or simulating voltages current and resistance.

Some typical applications: For repair and diagnosis of sensors and actuators and ECU signals. For simulation of voltage and resistance signals. For simulation on the air bag/SRS system and many more applications.

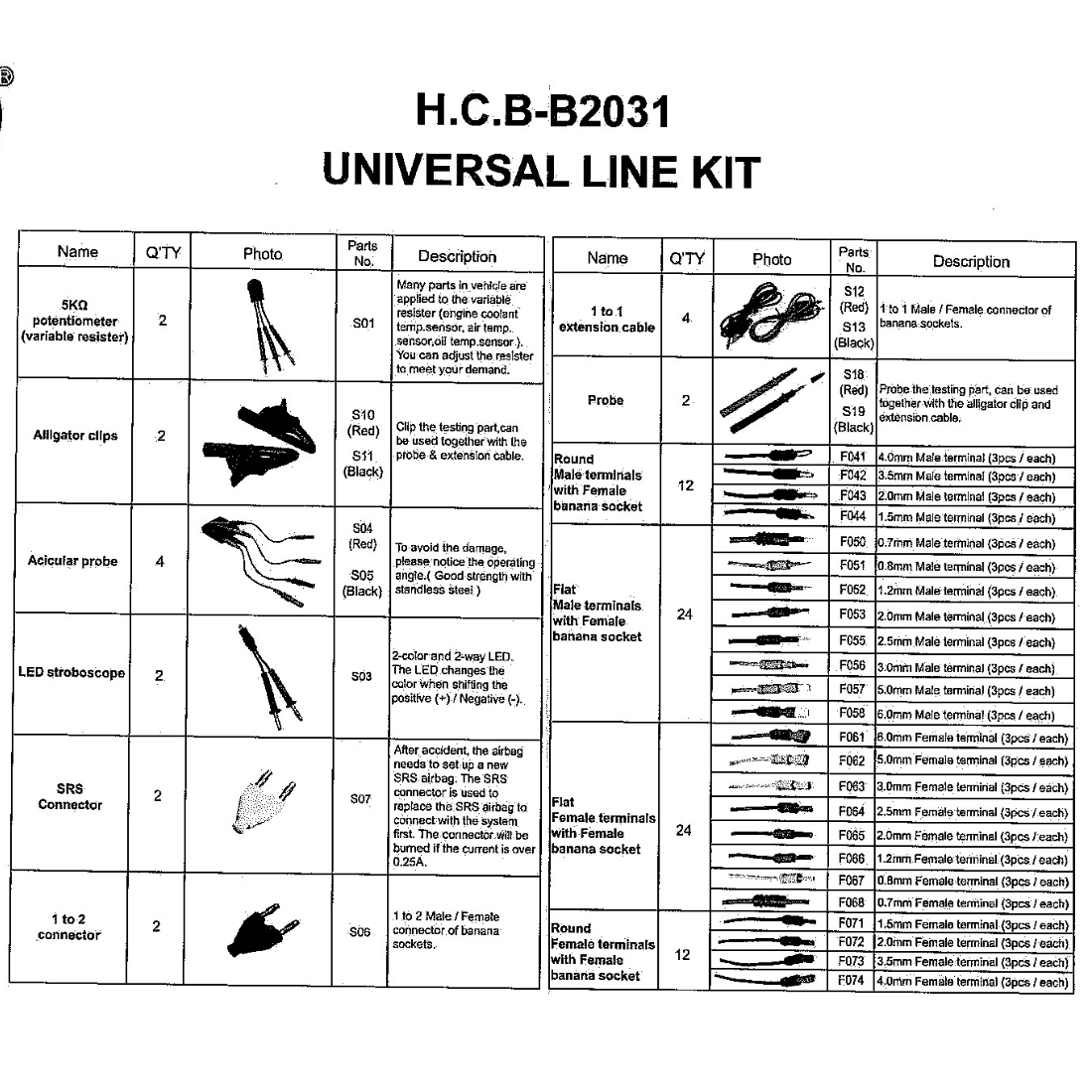

Includes: 4 x back probes, 2 x test probes, 2 x alligator clips, 2 x 5k ohm potentiometer, , 2 x LEDs , 2 x 3-way adaptors, 2 x airbag/SRS simulator,    4 x stacking banana cable 1.0m. Flat test leads to female banana socket : 3 x male & 3 x female 0.8mm, 3 x male & 3 x female 1.2mm, 3 x male & 3 x female 2.0mm, 3 x male & 3 x female 2.5mm, 3 x male & 3 x female 3.0mm, 3 x male & 3 x female 5.0mm, 3 x male & 3 x female 6.0mm. Round test leads to female banana socket : 3 x male & 3 x female 1.5mm, 3 male & 3 female 2.0mm, 3 male & 3 female 3.5mm, 3 male & 3 female 4.0mm.
