Consino Battery Lifting Table MLT-715E

Product Description

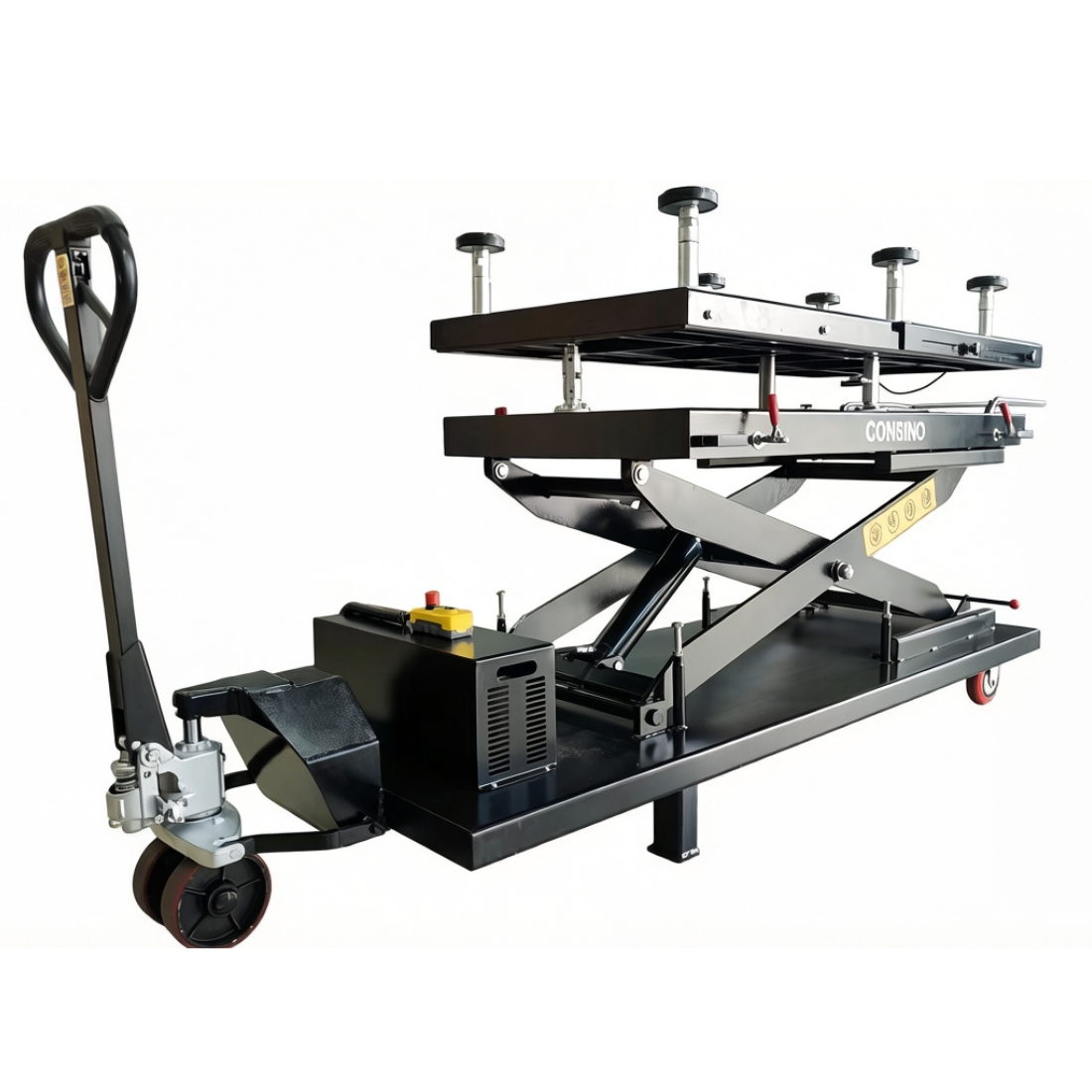

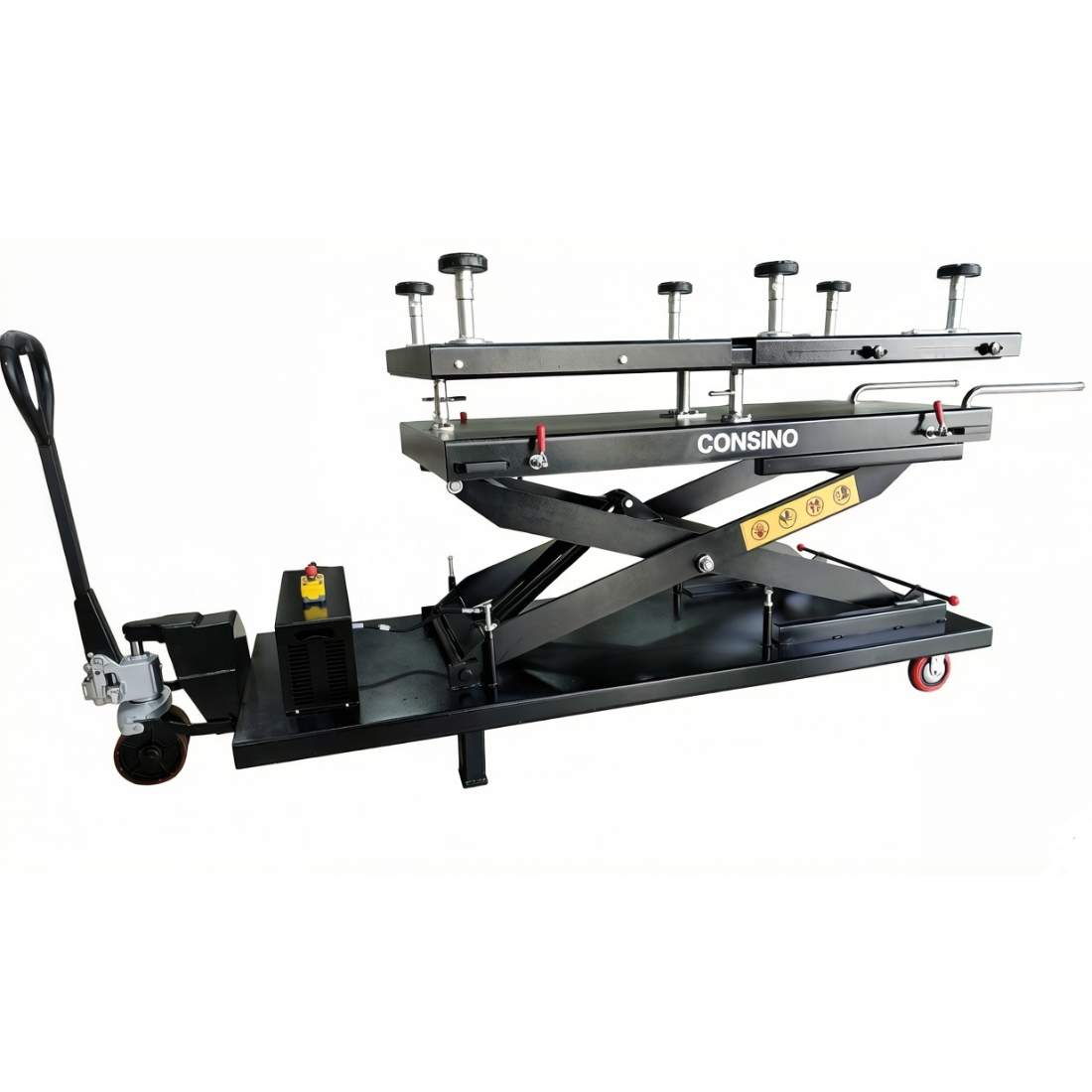

Consino Battery Lifting Table MLT-715E

MLT-715E is an ideal choice for the disassembly and assembly of new energy vehicle batteries. It can be used flexibly in the workshop and is suitable for the repair and maintenance of new energy vehicle batteries below 1.5ton.

Also these lifting tables are not just useful for batteries but also ideal for lifting out many other parts like

• Drive motors
• Subframes
• Engines and transmissions
• And much more

Features:

• Lifting weight: 1500kg

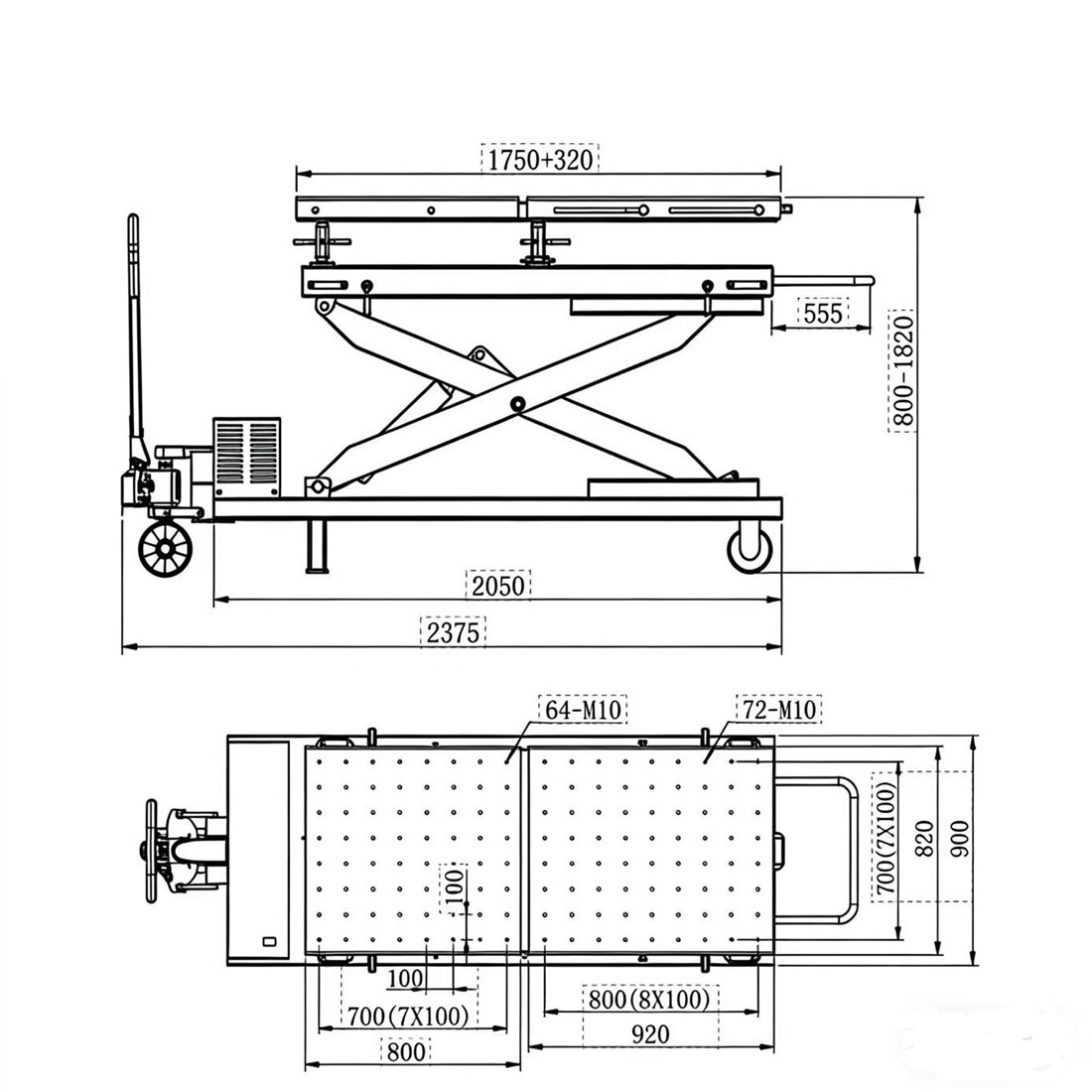

• Table size: 1750 to 2070 x 820mm
• Lifting height: 1820mm
• Minimum height: 800mm
• Lifting time: 45s
• Overall length: 2375mm
• Overall height: 850mm
• Overall width: 976mm
• Overall weight: 580kg
• Rated Voltage: 220V
• Rated public rate: 0.75kw
• Power mode: electrohydraulic
• Includes: 6 adjustable pads for uneven designs of battery’s
• Can move side to side to allow for alignment of bolts
• Tilting table Enables precise alignment angle of the table top to the vehicle to ensure easy removal and installation of vehicle components, the table can tilt in both directions
• Extendable length table top, the table can slide apart by 320 mm
