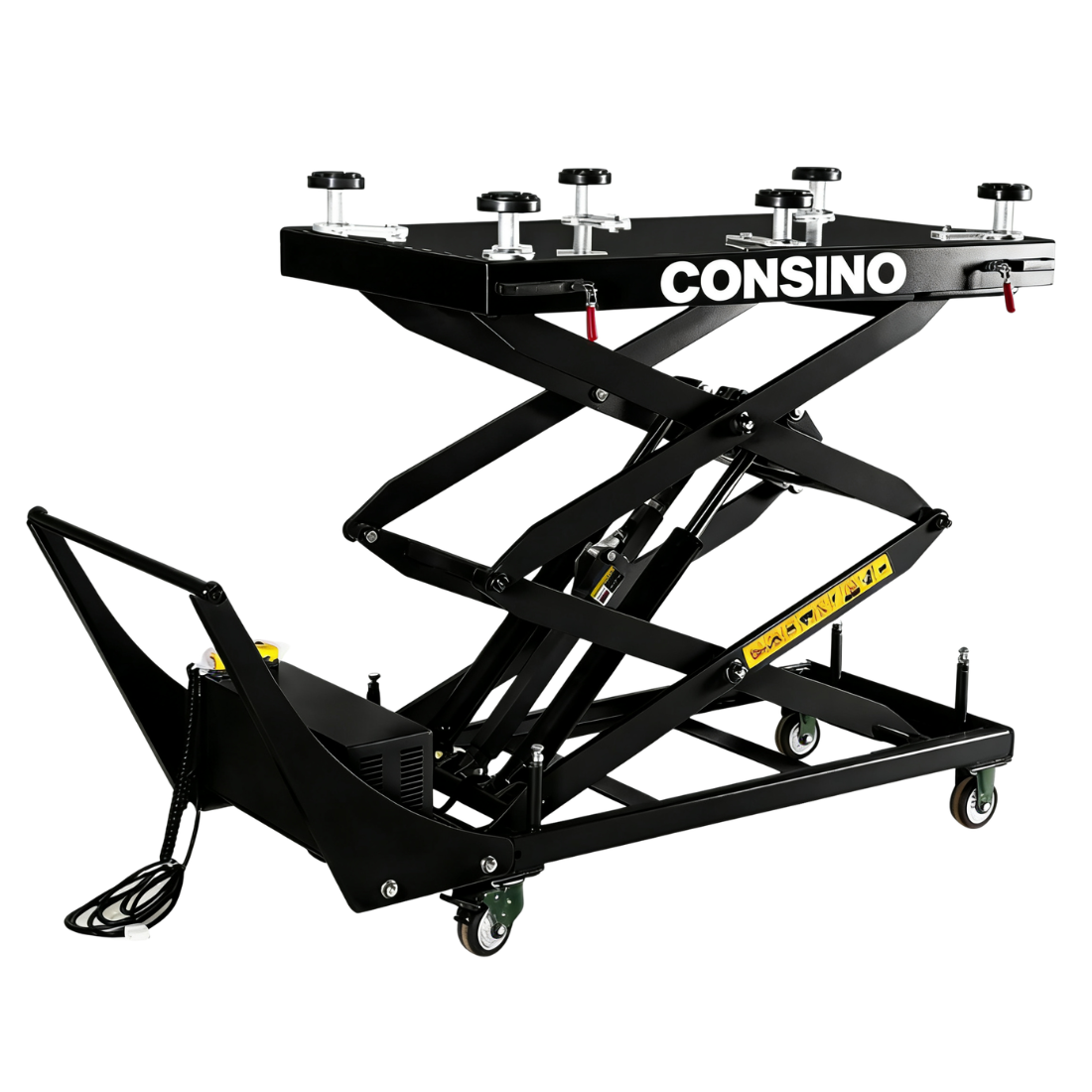

Consino Battery Lifting Table MLT-715C

Product Description

MLT-715C is an ideal choice for the disassembly and assembly of new energy vehicle batteries. It can be used flexibly in the workshop and is suitable for the repair and maintenance of new energy vehicle batteries below 1.5ton.

Also these lifting tables are not just useful for batteries but also ideal for lifting out many other parts like

• Drive motors
• Subframes
• Engines and transmissions
• And much more

Features:

• Lifting weight: 1500kg
• Table size: 1500 x 800mm
• Lifting height: 1850mm
• Minimum height: 500mm
• Lifting time: 45s

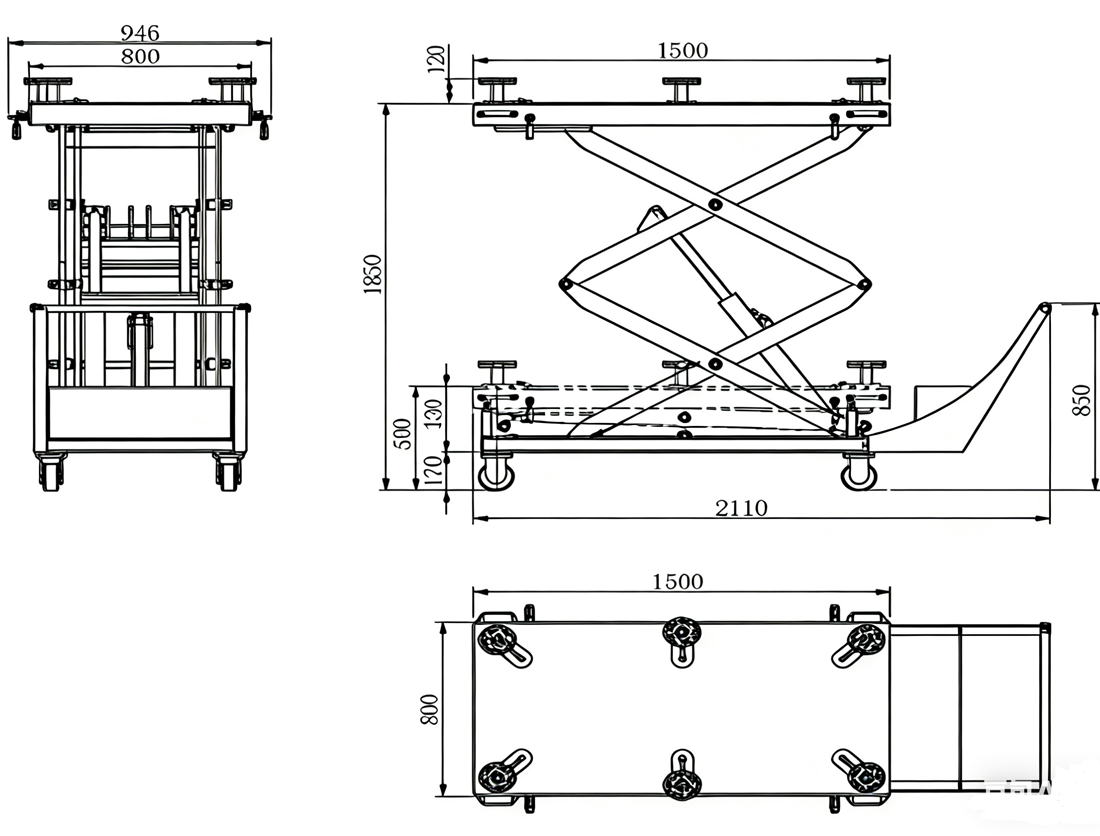

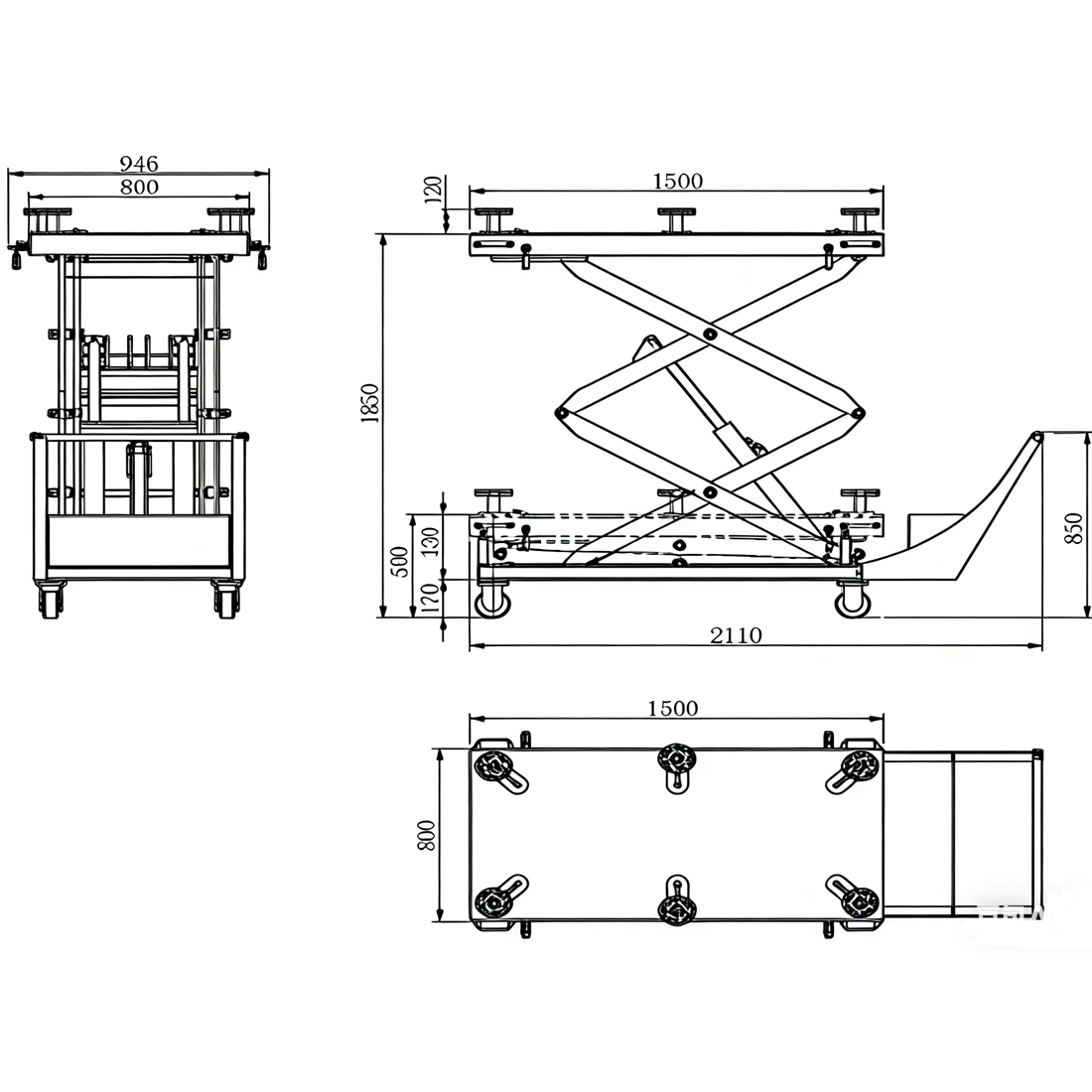

• Overall length: 2110mm
• Overall height: 850mm
• Overall width: 976mm
• Overall weigth: 480kg
• Rated Voltage: 220V
• Rated public rate: 0.75kw
• Power mode: electrohydraulic
• Includes: 6 adjustable pads for uneven designs of battery’s
• Can move side to side to allow for alignment of bolts
