Product Description
HaynesPro Car WorkshopData Complete Package
HaynesPro serves the automotive aftermarket through WorkshopData. Its database contains a vast amount of multilingual automotive OEM-based data for cars.
WorkshopData is built on three main modules
The cornerstone of our ingenious WorkshopData application. This module contains extensive identification, repair and maintenance information, all at your disposal.
Includes:
- Identification data
- Maintenance
- Adjustment data
- Lubricants and fluids
- Repair manuals
- Recalls
- Repair times
- Technical drawings
Identification data:
The first critical step.
Identifying a vehicle is the critical first step in finding relevant pieces of information. WorkshopData Tech features extensive search methods* such as KBA, engine code, TecDoc Number, Type Approval, VIN and type which help you select the correct vehicle. A three-step graphics-based vehicle selection is also available.
Features:
- VIN and identification plate locations
- VIN decoder

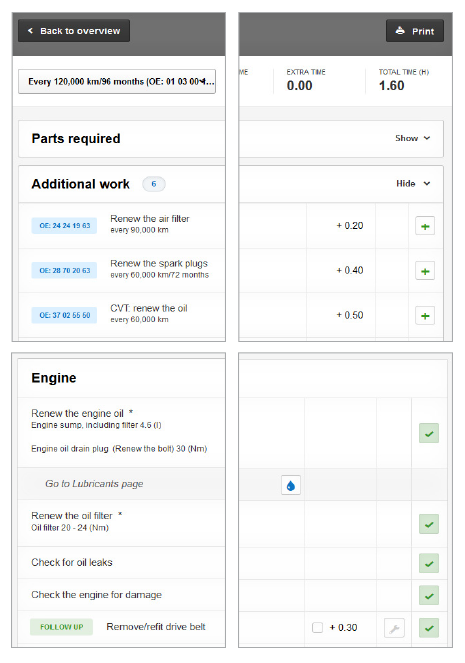

Maintenance:
Clear, comprehensive and above all helpful
Our maintenance section provides a clear overview of all the maintenance requirements set by vehicle manufacturers. Where necessary, there are links to technical drawings and additional information such as lubricant and adjustment data. A unique feature is the availability of logical follow-up tasks which make it easier to complete a work sheet.
Features:
- Maintenance schedules (OEM-based)
- Printable work sheets
- Links to generic parts
- Follow-up tasks
- Additional tasks
- Service times
- Service indicator reset
- Timing belt renewal intervals
- Tyre pressure monitoring system
Adjustment data:
Comprehensive doesn’t begin to describe the extent

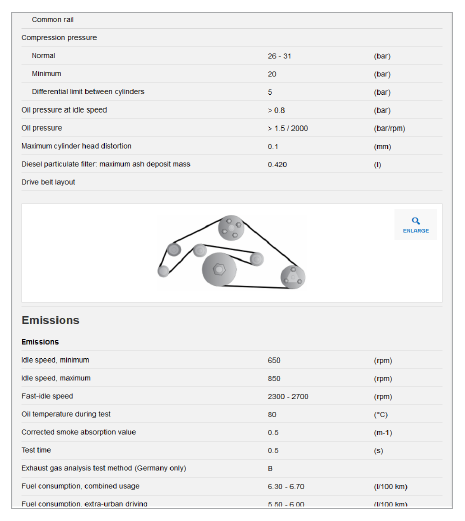

The adjustment data specifications which we provide range from torque settings to cylinder firing order, from idle speed to NOx emissions, and from cooling system cap pressure to rear brake disc thickness.
Features:
- Ancillary drive belt
- Wheel alignment
- Emission data
- Tyre sizes and pressures
- Torque settings
- Air-conditioning service connectors
- Capacities
Lubricants and fluids:

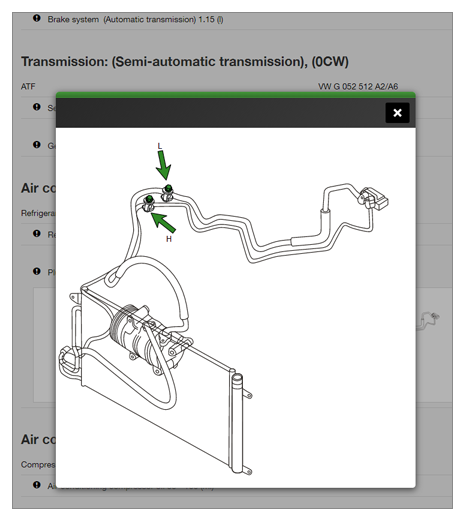

Technical illustrations showing the locations
Again, all conceivable specifications are provided here, conveniently linked to related data for ease of use, and featuring technical illustrations showing the location of filler and drain plugs.
Features:
- Qualities and viscosities
Repair manuals:
Detailed, step by step instructions
Tech features detailed, step-by-step repair and service instructions for those tasks which, while being relatively routine, require specific procedures for the selected vehicle. Tech also provides technical illustrations and, where necessary, reference numbers identifying special tools. In this way, Tech helps boost productivity and improve workshop flow.
Features:
- Timing belt; removal/installation
- Timing chain; removal/installation
- Ancillary drive belt; removal/installation
- Clutch: removal/installation
- Manual transmission; removal/installation
- Cooling system; drain/refill
- Engine assembly; removal/installation
Recalls:
Ensures that the vehicle conforms to the safety standards

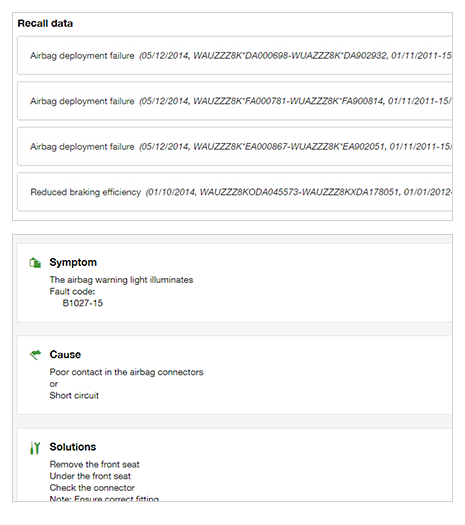

Helping to ensure that the vehicle conforms to safety standards, HaynesPro Tech also features official OEM recall data.
Features:
- Safety related recall actions issued by OEM
- Link to fault codes and related cases
Repair times:
A more realistic timeframe:

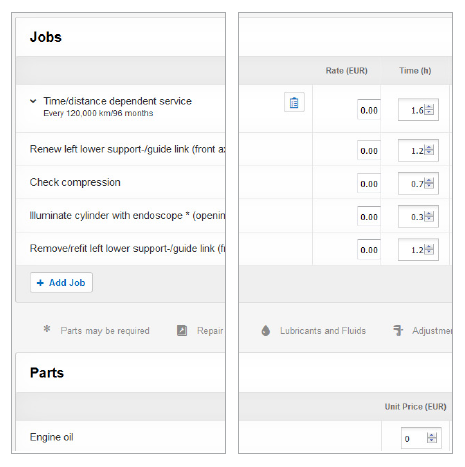

HaynesPro expands official repair times to take account of associated tasks, making its data more helpful and relevant in the real world. The module contains numerous included tasks for overlap calculation. By listing follow-up tasks we ensure that no labour times are overlooked. This helps to maximise workshop revenue.
Features:
- Overlap technology
- Standard labour times
- Link to generic parts
- Follow-up work
Technical drawings:
Over 100.000 high-quality technical drawings

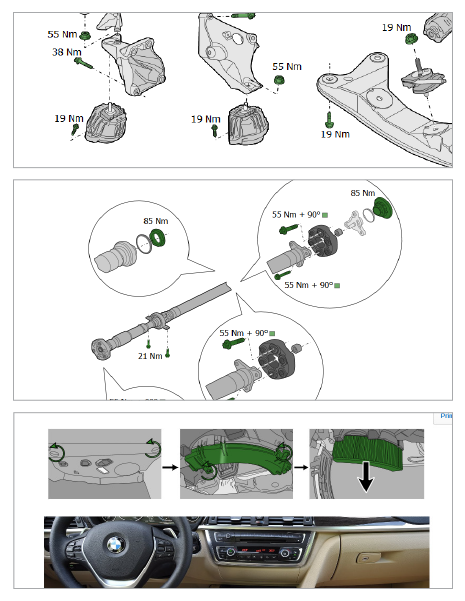

A picture is worth a thousand words. HaynesPro has over 100,000 high-quality technical drawings in its database. These are bespoke illustrations with featured parts highlighted for ease of identification, and the option to link directly to a shopping cart in a parts catalogue. Torque settings are indicated in the drawing to ensure that the correct torque is used for the specified bolt/nut.
Features:
- Links to generic parts
- Torque settings
2: HaynesPro WorkshopData™ Electronics
Helps technicians identify, locate and resolve electrical system and component errors using intelligent data applications such as our Vehicle Electronics Smart Assistant (VESA™).
Includes:
- VESA™ (Guided diagnostics)
- Comfort Wiring Diagrams
- Fuses and Relays
With electrical systems and advanced technologies becoming an increasingly significant feature in modern cars, WorkshopData Electronics has become an essential application for technicians. At its heart lies HaynesPro’s unrivalled Vehicle Electronics Smart Assistant (VESA™).
VESA guided diagnostics:
Electronic diagnostics reimagined
VESA™ is an innovative electronics diagnostics application. It retrieves data from the vehicle’s CAN-Bus system to help technicians diagnose faults and component errors which have generated fault codes. Up to seven fault codes can be entered simultaneously. VESA™ then presents the technician with descriptions of the fault codes, together with a suggested list of components to test.
Features:
- Wiring diagrams for engine management, ABS, ESP and air conditioning
- Component locations and information
- Fault codes (manufacturer and EOBD)
- Diagnostics wizard
- Ground point locations
- Links fault codes to the Smart Module
Fuses and relays:

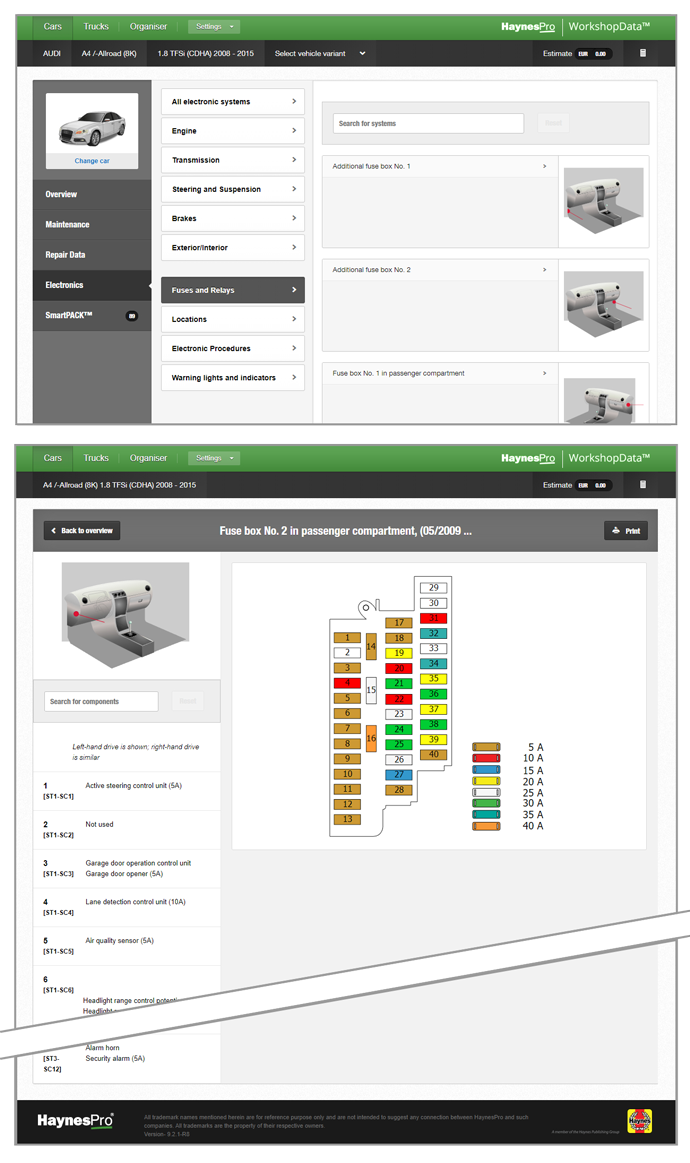

Clear fuse location and identification feature
Fuse boxes may be installed in various locations on a vehicle and finding them can be a challenge. Using the Fuses and Relays data in WorkshopData Electronics minimises the time spent on searching.
Features:
- Fuse and relay box locations
- Fuse and relay overview
Locations:

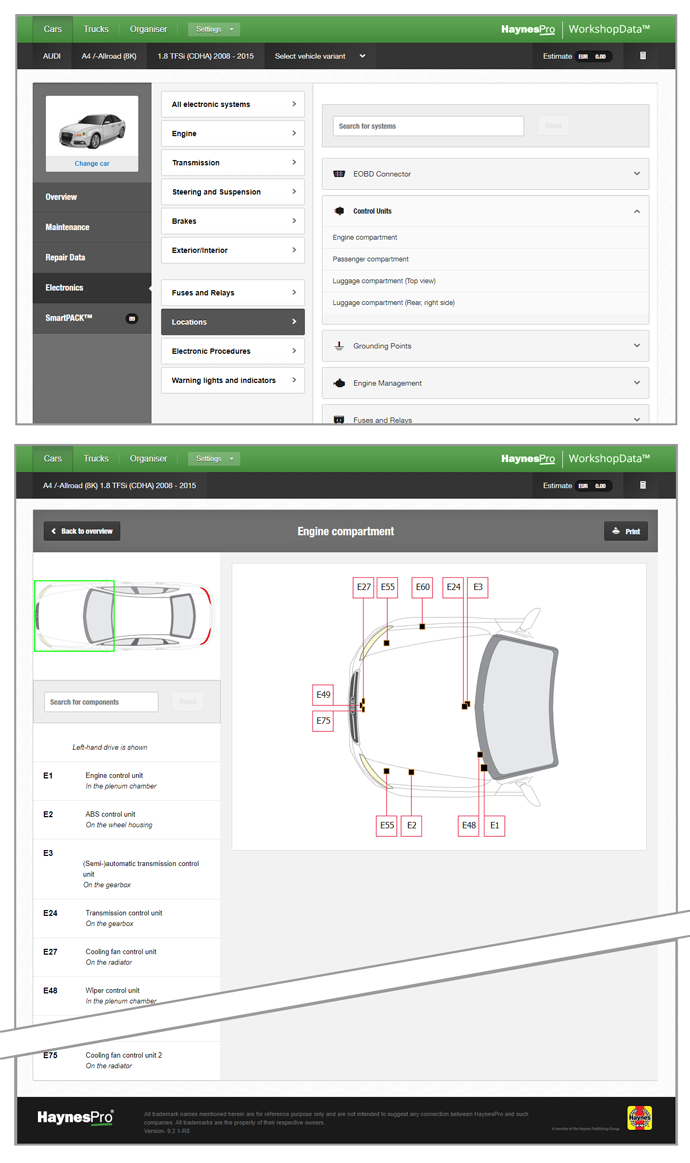

One of our goals is to help our customers reduce their unbillable hours. This means minimising the time spent on searching for ground points, control units or the EOBD connector location. HaynesPro’s electronic data speeds up this process by offering direct links to such locations.
- EOBD connector location
- Ground point locations
- Control unit locations

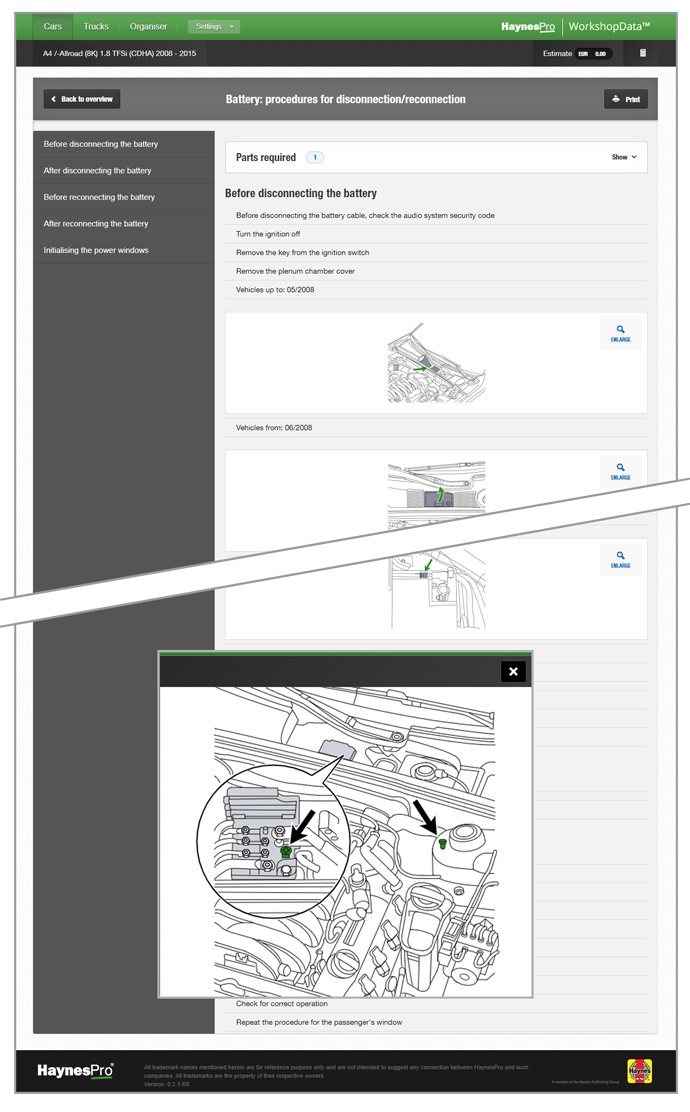

Electronic Procedures:
Disconnecting/reconnecting a battery is becoming an increasingly complicated task on modern cars. A technician needs to know the correct procedures to follow after reconnecting a battery. This ensures that no customer will have to return their vehicle to the workshop because of subsequent errors in systems such as parking assistance.
Due to the growing number of hybrid vehicles on the market, technicians also need specific instructions on how to work safely on these vehicles.
- Battery disconnection/reconnection procedures
- High-voltage circuit deactivation procedures

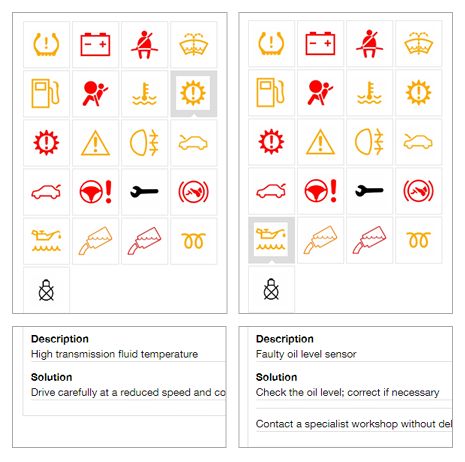

Warning lights and indicators:
Electronics features an extensive list of possible warning lights, specific to each manufacturer, with a short description of the fault and required action.
- Make-specific overview of available warning lights
- Covering both the European and the US car park
Comfort wiring diagrams:
Clear, localised, wiring schematics
Clear, ‘localised’ wiring schematics for all key vehicle features, with wire and component trace functionality for fast, efficient, first-time fixes.
Features:

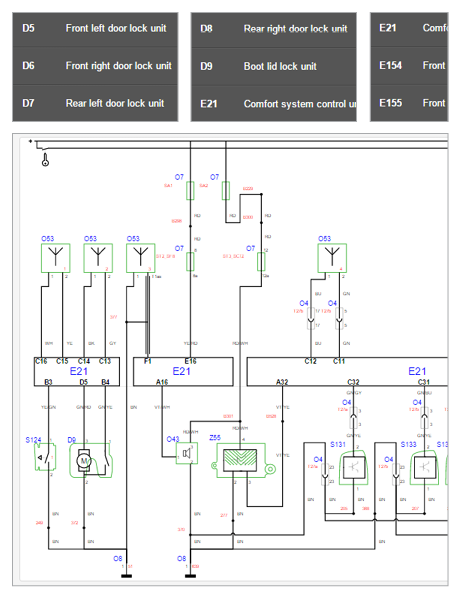

- Wiring diagrams covering e.g. door locks, windows, airbags, exterior lights, starting/charging and wash/wiper systems
- Pan and zoom functionality
- Highlight functionality to trace corresponding wires and components
3: HaynesPro WorkshopData™ Smart
Helps technicians reduce the time spent on fixing common faults and includes OEM Technical Service Bulletins (TSBs) and recalls.
Includes:
- Known fixes and tips (SmartCASE™)
- Technical Service Bulletins (SmartFIX™)
- Recalls
Helps technicians reduce the time spent on fixing common faults and includes OEM Technical Service Bulletins (TSBs) and recalls.
Technical Service Bulletins (SMARTFIX™)
Information that adds real value for professional mechanics

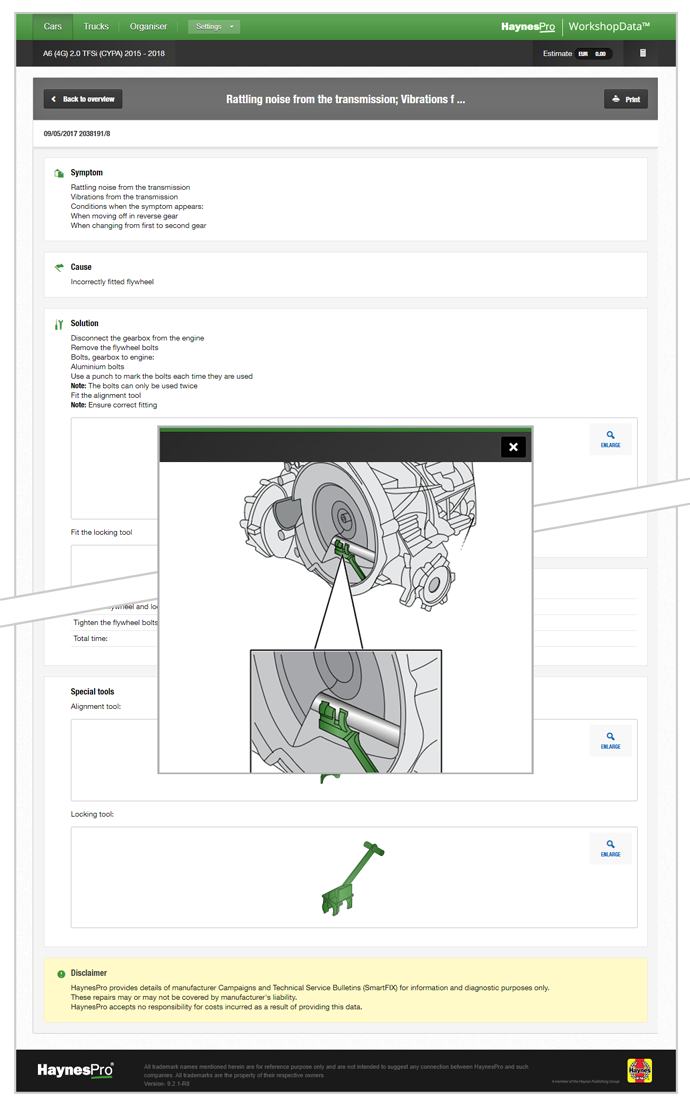

WorkshopData offers instant access to a multitude of Technical Service Bulletins (TSBs) sourced from original equipment manufacturers (OEM). Our team of technical authors carefully adapts the TSBs we receive and orders them via symptom, cause and solution.
Features:
- Technical Service Bulletins
- Link to fault codes and related cases
What makes HaynesPro TSBs stand out?
Verified fixes and tips (SmartCASE™)
Save time and money

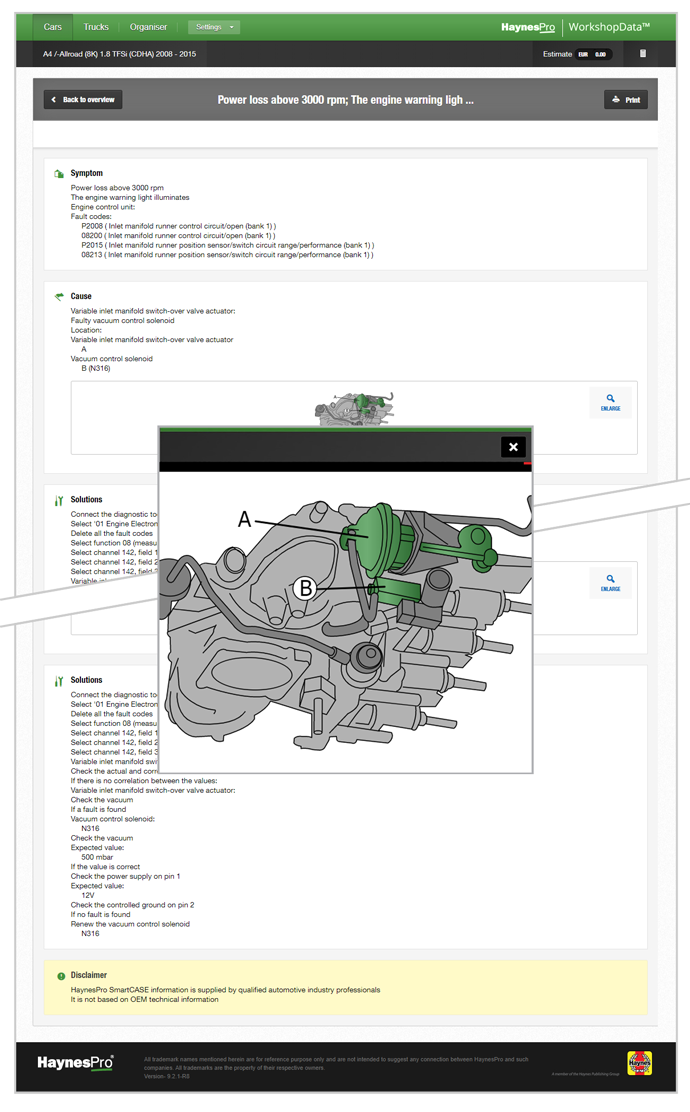

This feature extends HaynesPro’s coverage from OEM-based technical data to information sourced from industry experts and renowned helpdesk organizations. SmartCASE™ is a unique feature containing cases, with verified fixes and tips. It allows technicians to check quickly for solutions to common problems related to a selected vehicle which may or may not be linked to a fault code; thereby saving time and money.
- Verified fixes and tips
- Link to fault codes and related cases
What makes HaynesPro SmartCASE stand out?

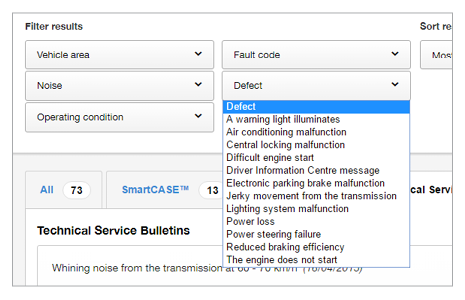

Quick search
Specific vehicle TSB identification
Quick Search enables specific vehicle identification. Users can identify a TSB, case or recall by specifying vehicle area (engine, steering etc.), fault code, noise, defect, or operating condition.

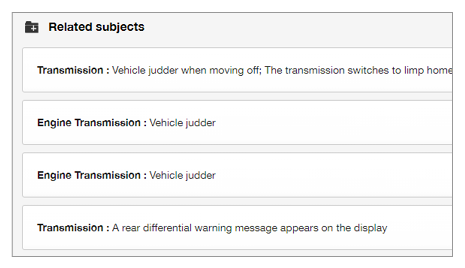

Related subjects
Providing quick access to related information
All service bulletins contain smart links, providing quick access to related information.
