MM03 Mini, Common Rail Injector Driver

Product Description

MM03 mini, common rail injector driver

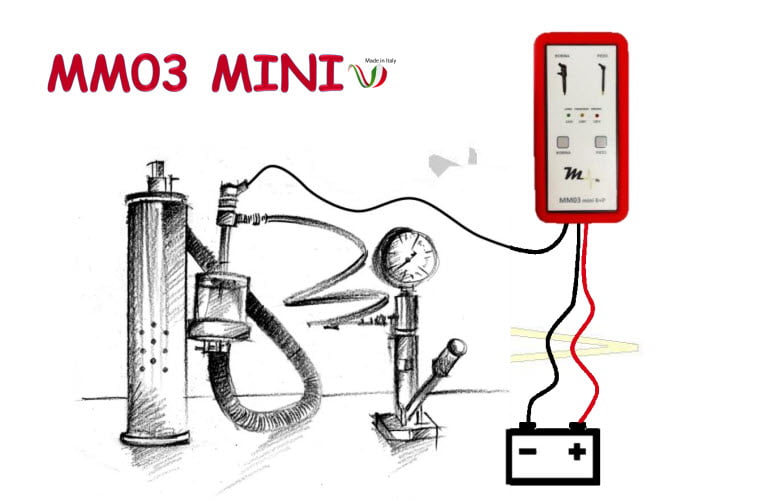

When used with an injector test hand pump and an aspirator,

it is able to verify the functionality of the common rail injectors both coil and piezo electric type.

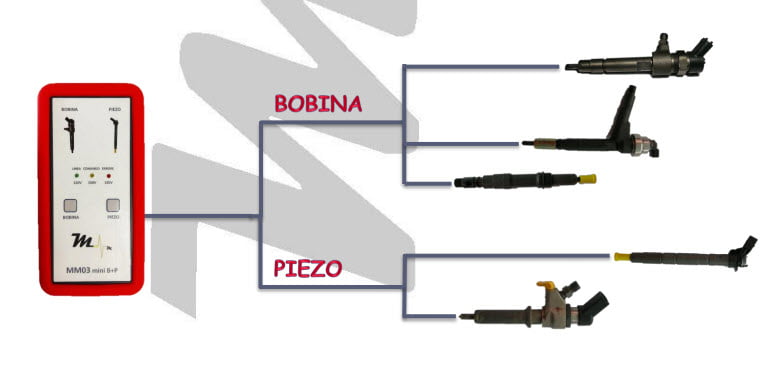

Excites the following brands of injectors:

• Bosch coil type
• Bosch piezo type
• Denso coil type
• Denso piezo type
• Delphi coil type
• Delphi piezo type
• Siemens/VDO/Coniential piezo type

Allows you to do the following tests on the bench:

• Electrical operation
• Opening pressure
• Spray pattern
• Integrity of the injectors—leakage test

Allows you to do the following tests on the vehicle:

• Electrical operation (by listening for ticking sound)
• Integrity of the injectors—leakage test (will need to have a long flexible high pressure pipe to preform this)

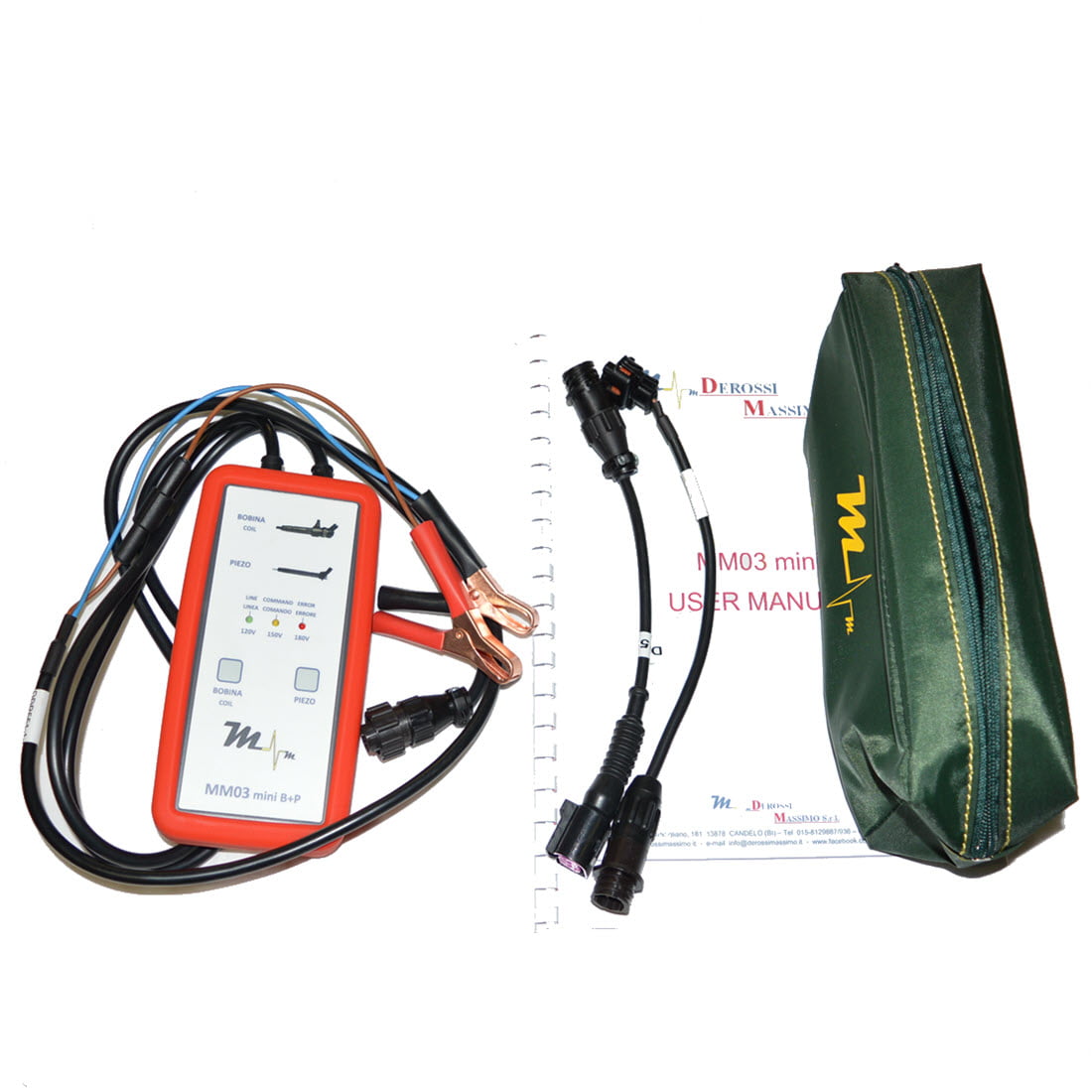

Includes:

• Main unit
• Bosch coil type cable DDP035
• Bosch piezo cable DDP517/P
• User manual
• Storage pouch

Optional connecting cables:

• Universal cable DDP034
• Delphi type 1 cable DDP033
• Delphi type 2 cable DDP033/1
• Delphi piezo cable DDP033/p
• Denso type 1 cable DDP034/D1
• Denso type 2 cable DDP034/D2
• Truck/Tractor cable DDP516
• Siemens and Bosch cable DDP517
