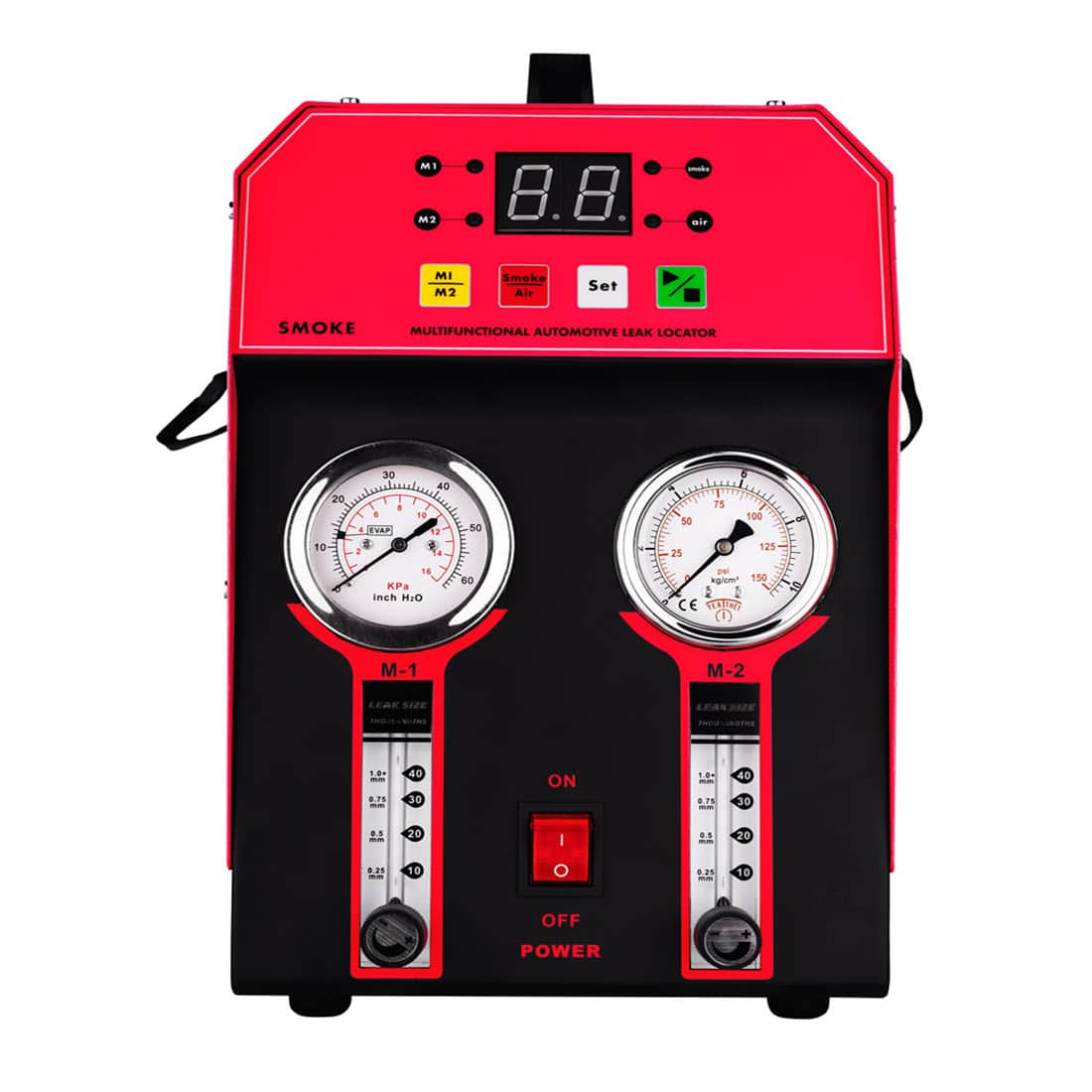

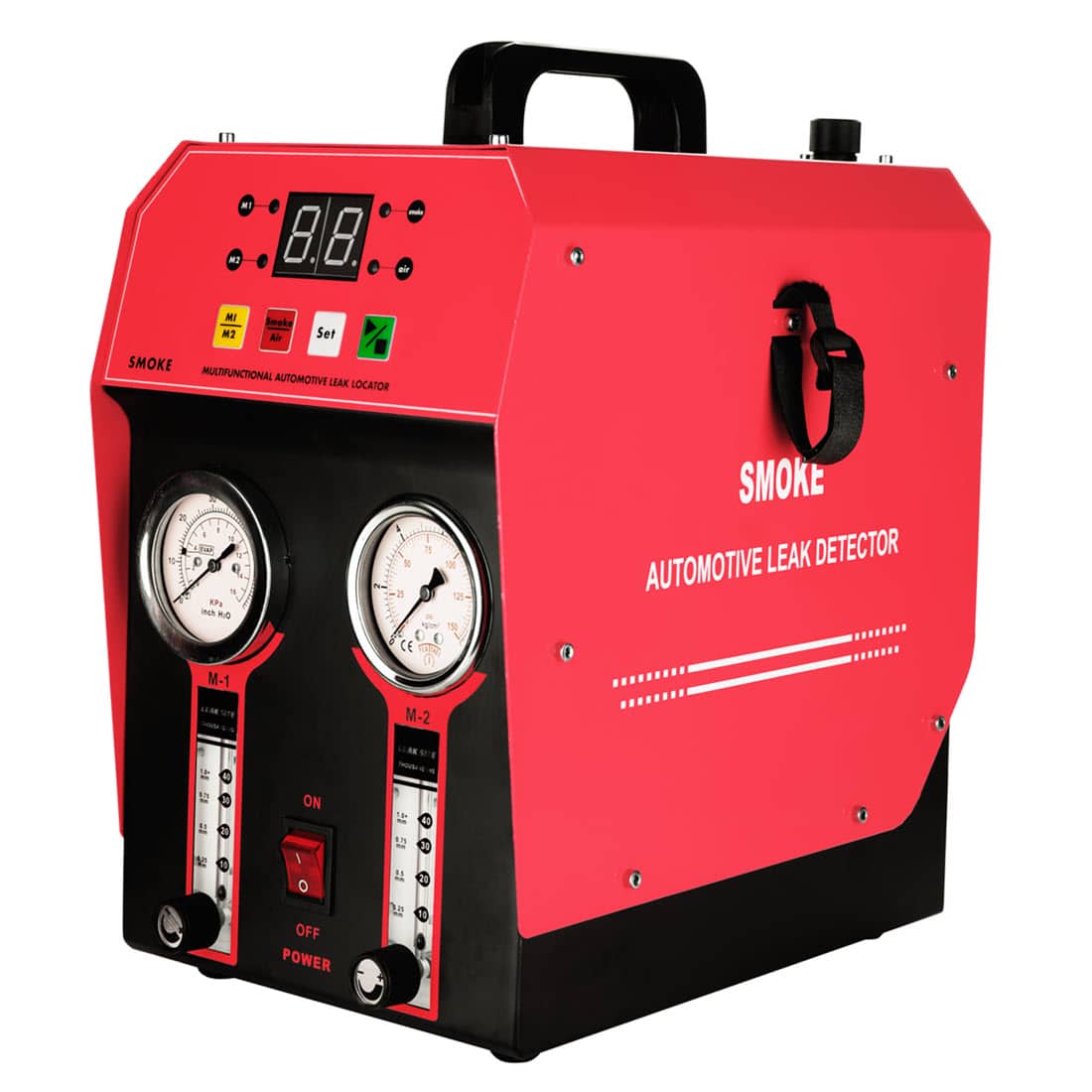

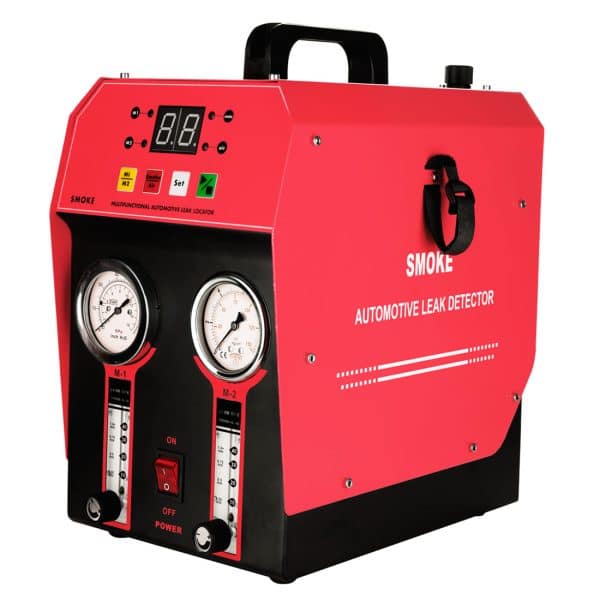

Rainco ALT550 3 In 1 Automotive Smoke Leak Detector

Product Description

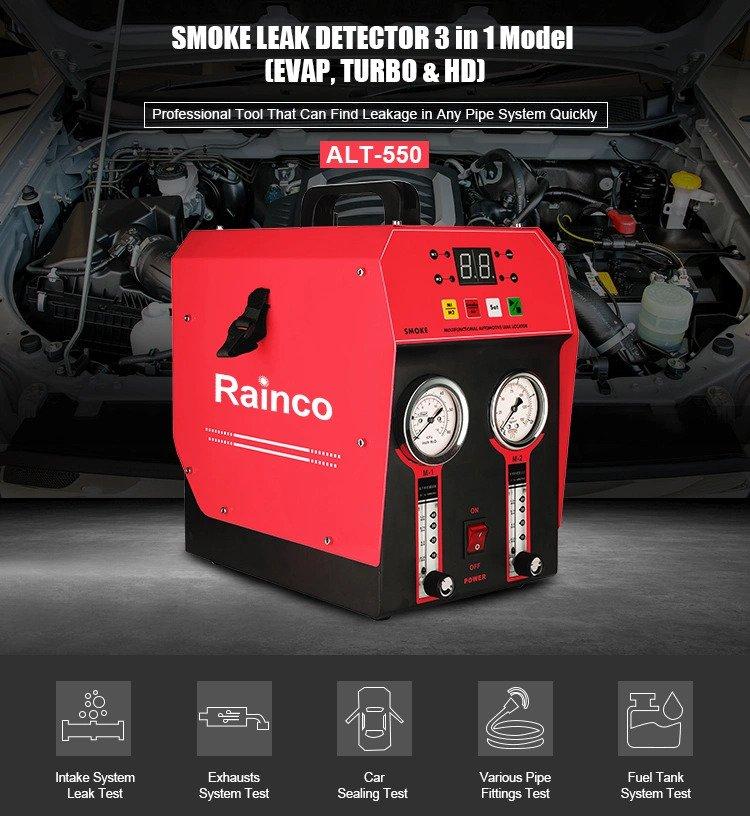

Rainco ALT550 is a 3 In 1 Automotive Smoke Leak Detector (High and low pressure and HD)

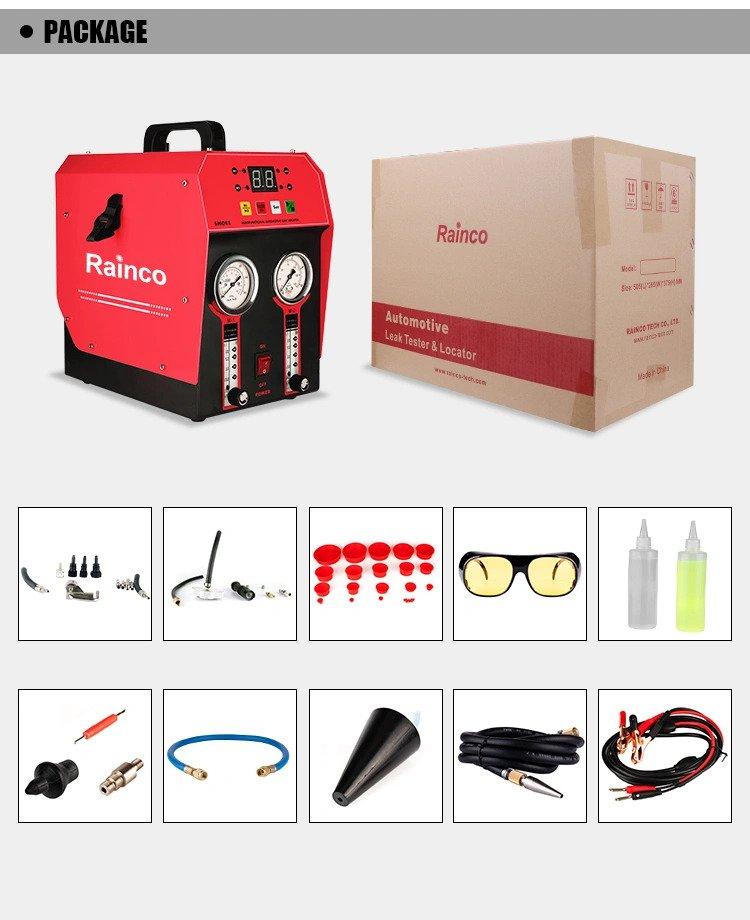

The ALT550 smoke leak detector is a 3 in one smoke machine with high pressure, low pressure and heavy duty leak detection and includes bladder

(note user must be carful with a high pressure smoke machine and always think about where you are applying the pressure and is that system designed for the pressure you are going to apply ?)

Note when using the ALT550 in HD mode it needs workshop compressed air to operate, the ALT550 in HD heavy duty mode is up to 7 bars and in this mode it is not suitable for engine intake system use.

Tests

• EVAP Systems
• EGR Valves
• Gaskets, Fittings & Hoses
• Worn Throttle Shafts
• Brake Boosters
• Exhaust Systems
• Central Locking Systems
• Diaphragms & Seats
• Door & Window Seals
• Turbos & Intercoolers
• Oil Leaks
• Coolant leaks
• Fuel System Test
• Cracked or Broken Plastic Components
• Head & Tail Lamp Housings
• Cracked Manifolds
• Air Brake System Test
• Air Test Mode
• And Much More

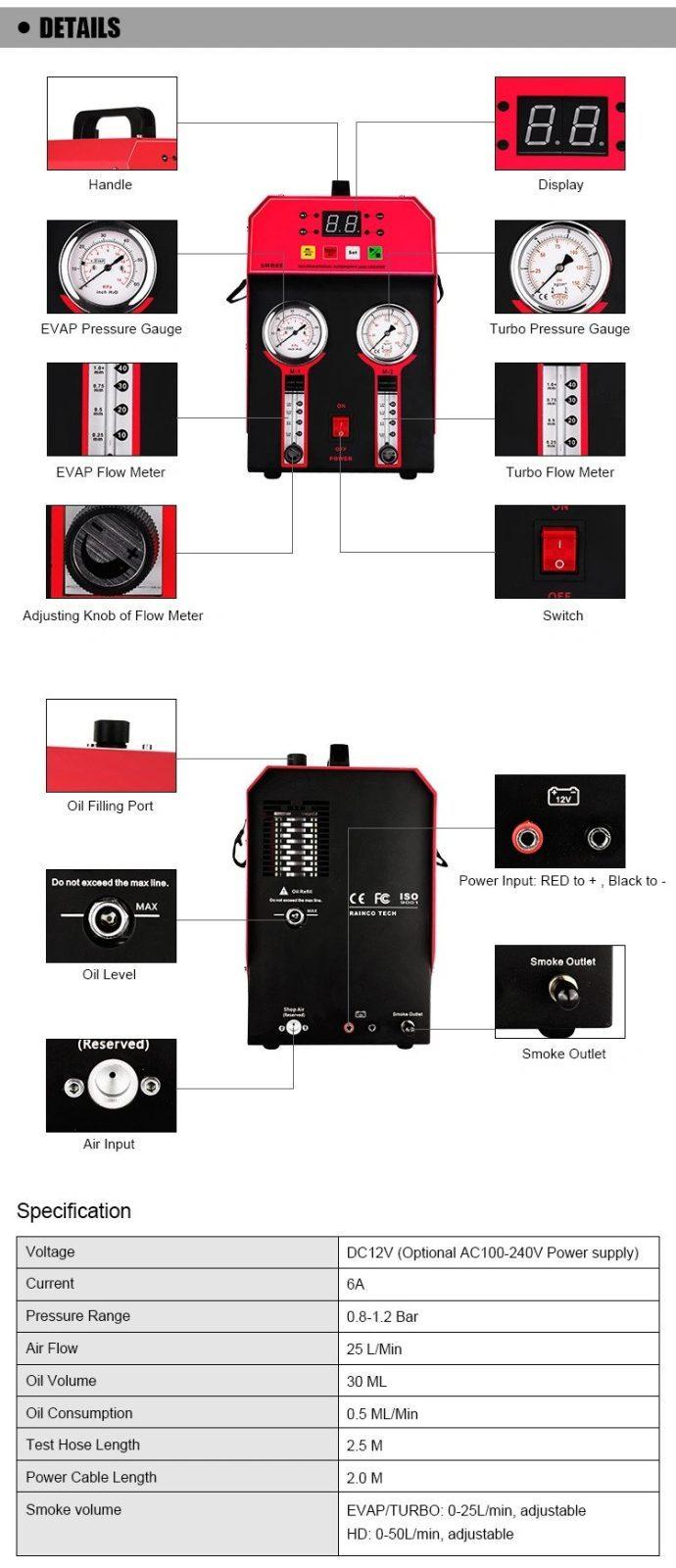

Features

• MCU Control with LED Display
• Double Pressure Gauges
• Double Flowmeters
• EVAP Test Mode
• HD Test Mode
• Turbo Test Mode
• Smoke Test Mode
• Dual Mode (Smoke Mode & Air Mode)
• Inbuilt mini air compressor, instant smoke generation
• Self-protection system keeps machine away from overload
• Easy operation and quick locating the leak parts

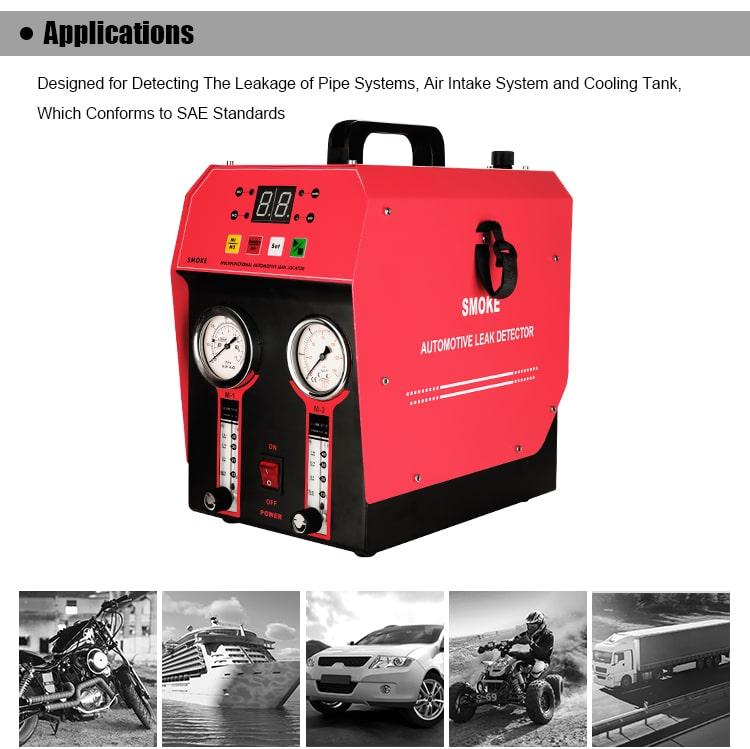

• For Various Motor Vehicles
• It can change special oils (Baby Oil & Mineral Oil) into smoke
• It can produce large volumes of smoke quickly

Specifications

• Current:6A
• Air Flow:1-25 L/Min
• Oil Volume:30ML
• Oil Consumption:0.5 ML/Min
• EVAP:5~8 KPa
• TURBO:0.8~1.20 Bar
• HD:2-8 Bar
• Test Hose Length:2.5 M
• Voltage:12
• Certification:CE,FCC
• Model Number: ALT500
• Warranty: 12 Months (warranty does not cover the following, bladder, hose, cones, blanks etc and power cable, it just covers main unit and is subject to correct use)
