Spin Recovery Machine For R134A & R1234YF Gas

This Spin recovery machine for R134A & R1234YF gas is used to recover gas and oil from both vehicles and machines.

Usage scenarios:

• For car dismantlers to remove gas from end of life vehicles
• To recover gas from a AC machine to perform repairs on it
• To recover gas from a vehicle where you suspect the gas may be contaminated
• Or any other case where you want to recover gas form a vehicle or machine and pump it into a external cylinder

Technical Specifications:

• Compressor: Hermetic with the automatic recovery of oil
• Oil/Refrigerant separator: Serpentine type
• Dehydrating filter: 1
• Refrigerant humidity detector: In the inlet
• Power: 250 watt
• Recovery capacity (liquid phase): 400g/min –
• Inlet pressure gauge: Analogical – Ø63 – cl 1
• Power supply: 230 V /50 Hz
• Loudness: Under 70dB (measured with sound level meter class 2 according to standards IEC 651 and IED 804)
• Machine dimensions: 330 x 250 x h 750mm
• Weight: 30Kg

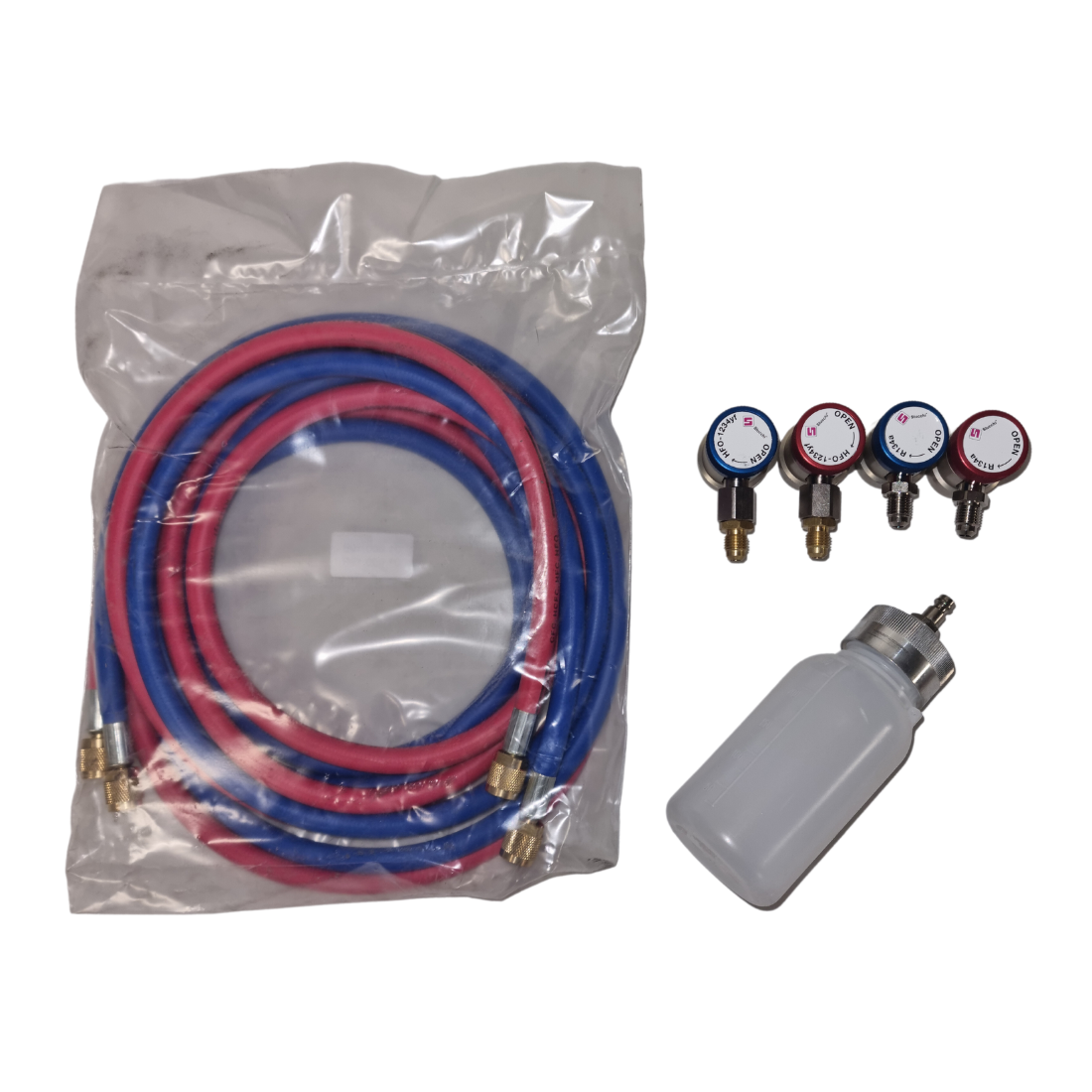

What’s Included:

• 1 plastic dispenser of 250 g to drain the waste oil
• 1 power supply cable
• 1 low pressure quick coupling R134A
• 1 high pressure quick coupling R134A
• 1 low pressure quick coupling R1234yf
• 1 high pressure quick coupling R1234yf
• 1 high pressure hose
• 1 low pressure hose

Note does not include empty cylinders to collect the gas in,
