WDF X580 R1234YF Air Conditioning Machine

WDF X580 R1234yf Air Conditioning Machine

Original price was: €3,250.00.Current price is: €2,850.00. ex. VAT

5 in stock (can be backordered)

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €13.40 ex.VAT Read Our Delivery Information

Product Description

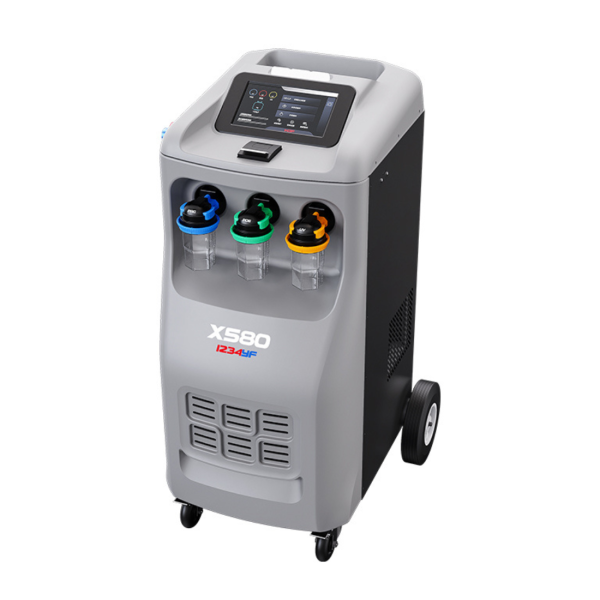

WDF X580 R1234YF Air Conditioning Machine

The fully automatic 1234YF service unit meets the highest standards for A/C systems. Equipped with a 10-inch touchscreen, five digital scales, four hermetically sealed oil bottles, and four pressure transducers, the X580 combines all maintenance functions in a single device. Thanks to its leak test function, dual ventilation system, and over 95% recovery efficiency,

Features

  • Fully automatic: it can do recovery, vacuum, charge.
  • 5 digital scales, respectively for PAG oil, POE oil, UV dye, drained oil and cylinder gas.
  • 4 completely sealed oil bottles (1pc PAG, 1pc POE, 1pc UV dye, 1pc oil drain), no worry about contamination.
  • Database and printer. The database can be updated using an SD card. The printer can print out a report with the car plate, workshop’s name, and address.
  • 10-inch touch screen, clear and user-friendly.
  • Self-protection system: when the fan stops, the machine stops.
  • Leaking hunting function
  • Strong operation menu

Product Specifications

Weight 126 kg
Dimensions 135 × 104 × 85 cm

    If you want to book a demo for this product, either in our garage or at a venue convenient to you, please complete the following form.

    Your Name (required)

    Your Email (required)

    Company/Business Name

    Your Phone (required)

    Additional Message

      If you want to ask a pre-sale question about this product, please feel free to use the form below.

      Your First Name (required)

      Your Phone (required)

      Your Last Name (required)

      Your Email (required)

      Your Question

      General
      We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
      As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
      We are also in a great position to support these products as we use them in our own workshop,
      Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
      All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland

      Warranty
      All WDF AC machines come with 1 year warranty
      And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back.
      We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday)
      The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.

      Items excluded from the 1 year warranty are
      Hoses and vehicle connection couplings
      Service parts (Vacuum pump oil, dryer filter and labour to replace these service items)
      Scales calibrations (if knocked out of calibration due to mishandling)
      Database updates
      Damage to machine due to ingress of stop leak additives that are on the market, You can prevent damage to your machine caused by these stop leak additives by fitting a Recycle Guard leak stop protection kit,
      Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, incorrect gasses, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.

      Conditions to keep warranty valid
      All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.

      Delivery and Training
      Ryan’s Automotive will deliver the unit to you workshop ready to work and can have it filled with AC gas, oils and dyes if requested (AC gas oils and dyes are a extra purchase)
      And spend 2 hours onsite providing training on use of the machine.

      Support and extra training
      Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.

      Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
      Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
      For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
      1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
      completion
      2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
      transportation fees)
      3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
      4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
      operation
      5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
      warranty repairs and subject to availability)

      AC consumables, Other AC tools and Equipment and parts
      We also stock a large range of other AC products to support workshops in the AC servicing and repair business to include
      Other AC tools and test equipment
      AC consumables
      AC parts to include compressors, Pressure sensors etc
