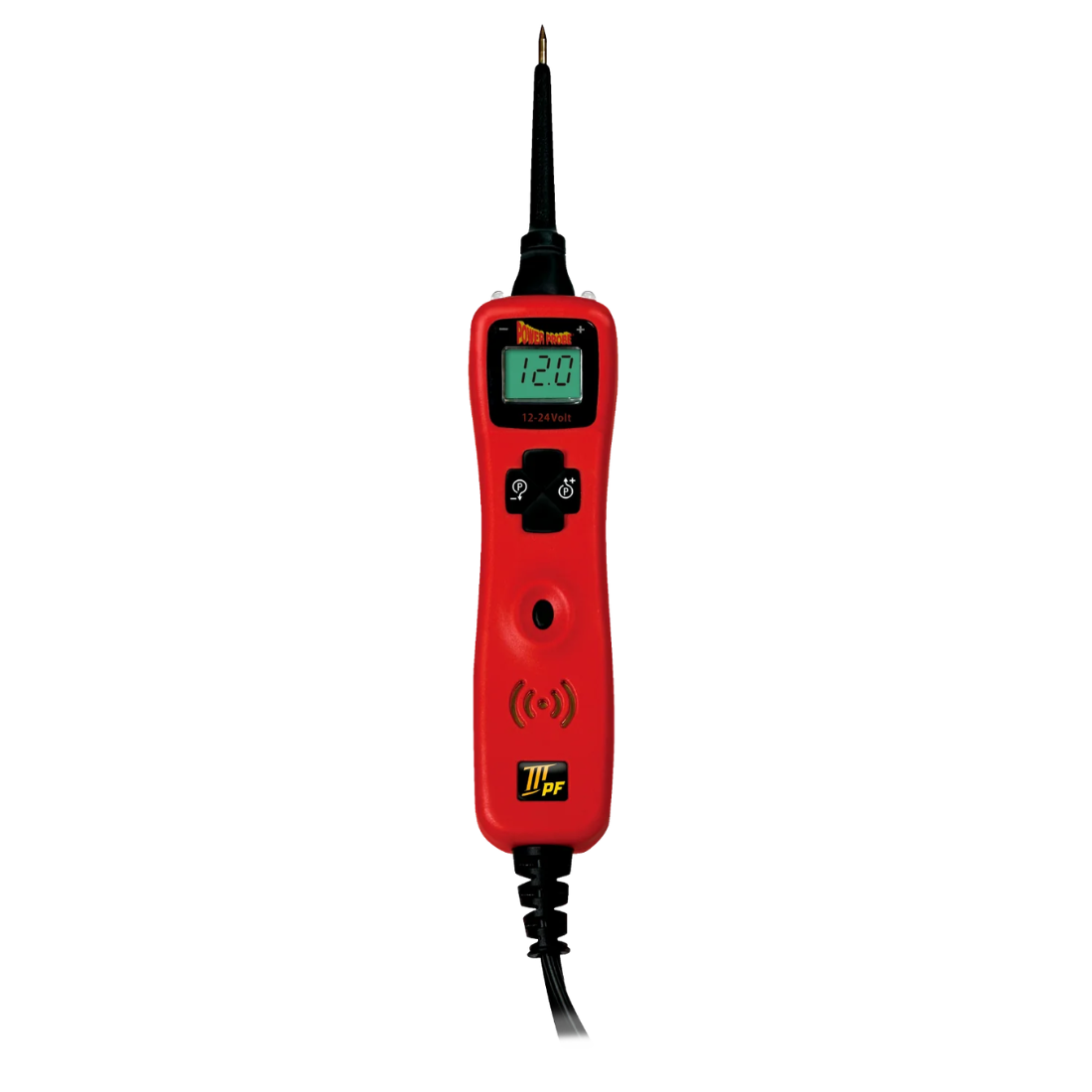

Power Probe 3 Circuit Tester PP3PF With PowerFlow Technology

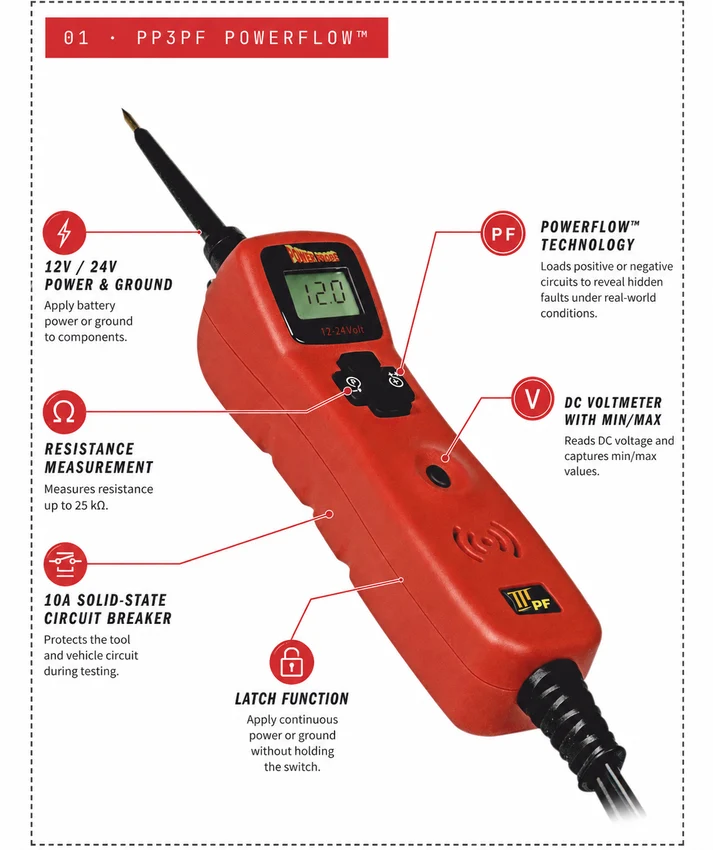

• PowerFlow™ Circuit Loading Technology – Actively load positive or negative circuits to test wiring under real operating conditions. PowerFlow™ helps reveal voltage drop, high resistance, weak grounds, corrosion, damaged wiring, and poor connections that may not appear during standard no-load voltage testing.
• Apply Battery Power or Ground – Quickly supply 12V or 24V battery power or ground directly to components for fast functional testing. Ideal for checking motors, lights, relays and other electrical components.
• Resistance Measurement up to 25 kΩ – Measure resistance to help verify component specifications, identify poor connections, and locate high-resistance faults caused by corrosion, damaged wiring, or component degradation.
• 10A Solid-State Circuit Breaker – The integrated 10-amp solid-state circuit breaker provides protection while supporting higher-load component testing. It allows technicians to power demanding loads with added confidence and automatic reset protection.
• Built-In Electronic Latch Function – Apply continuous power or ground without holding the actuator switch. This is especially useful for extended component activation, dynamic troubleshooting, and hands-free testing.
• Quick-Connect Ground Lead – The ground connection uses a 4mm banana jack for improved flexibility and reliability. It allows the use of extensions, adapters, and test leads while maintaining a secure ground connection.

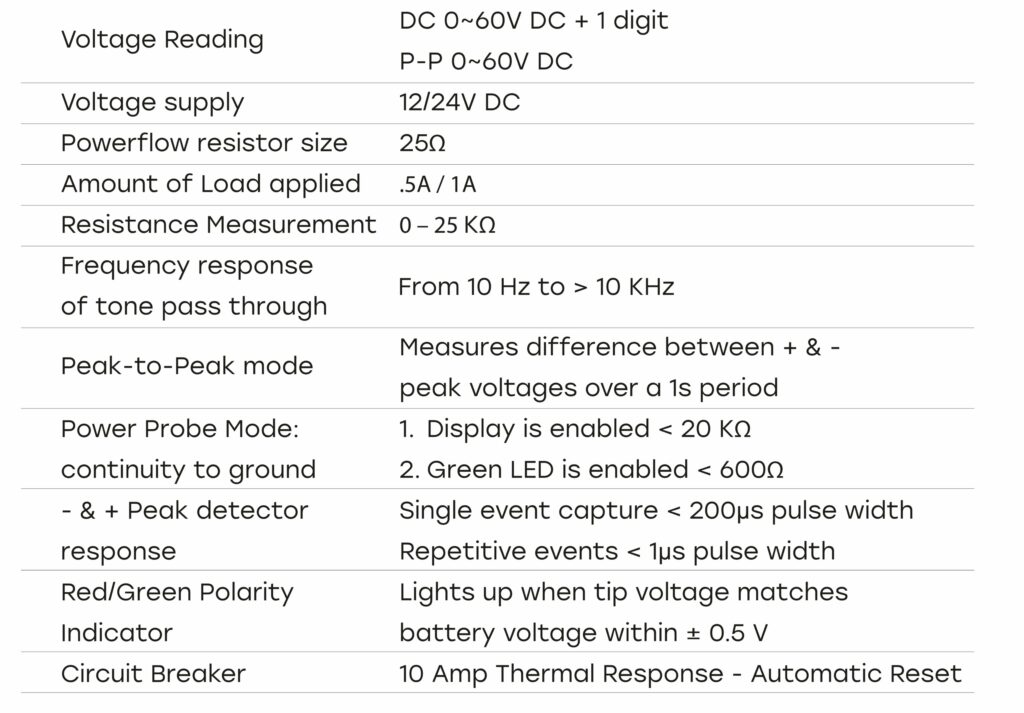

Specifications
