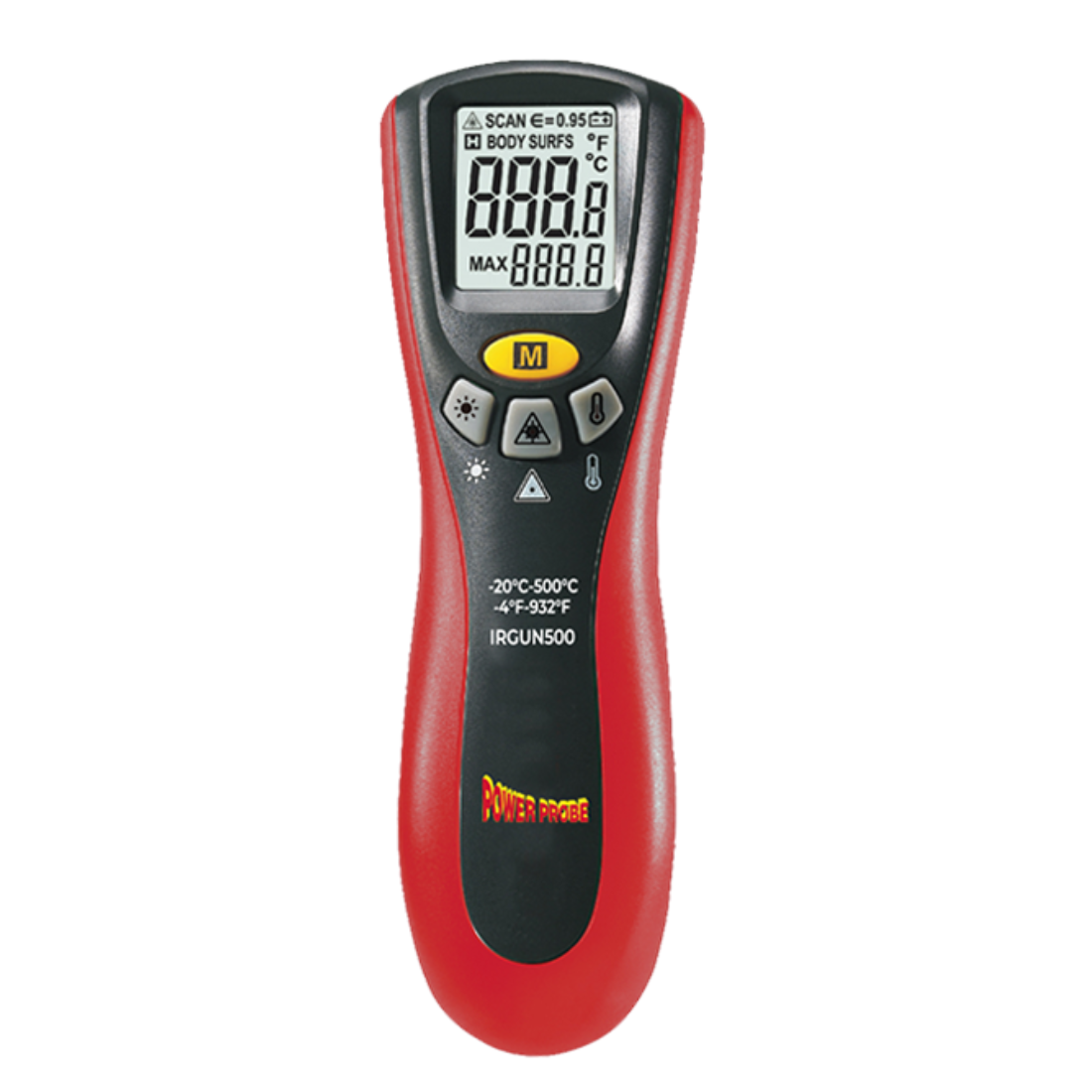

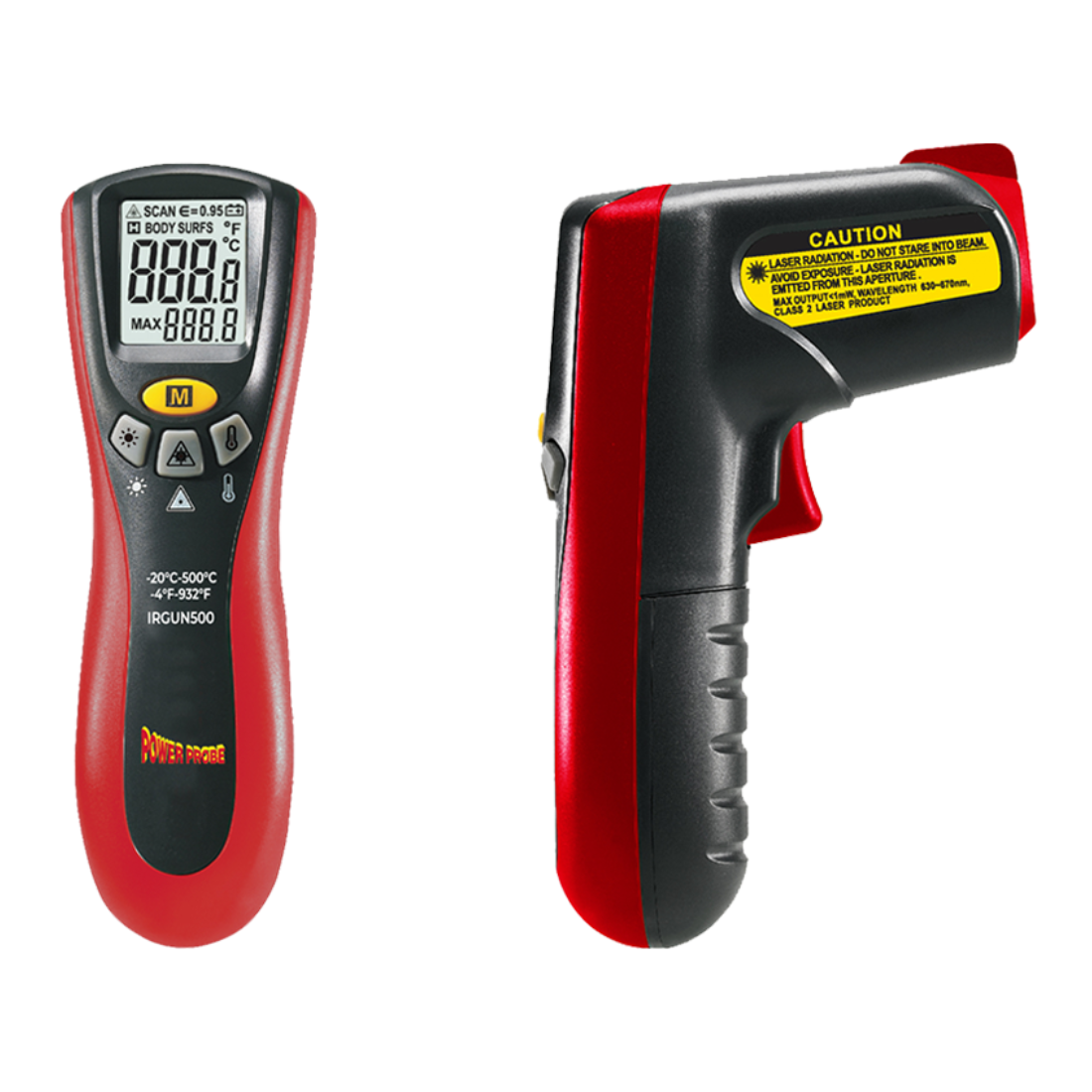

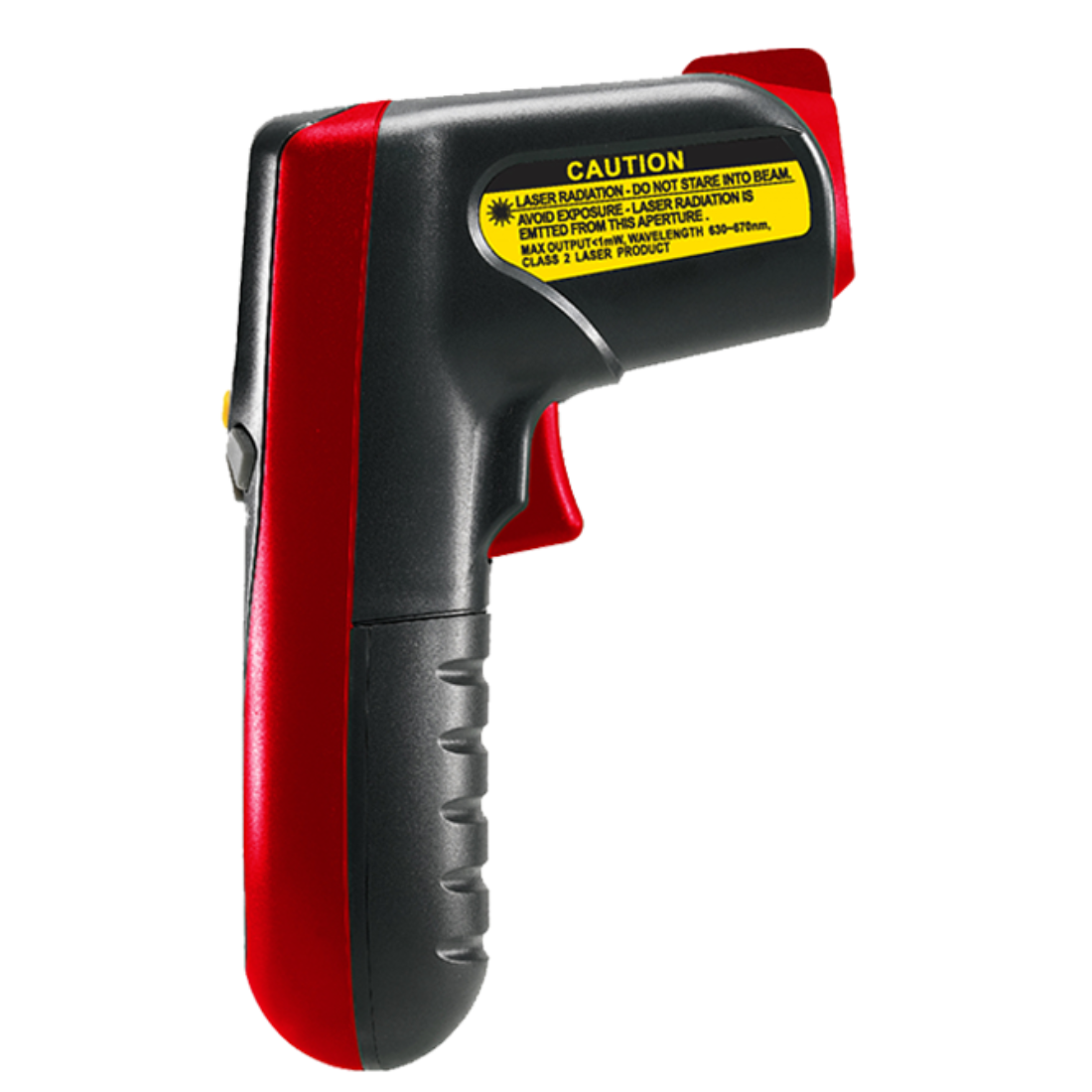

Power Probe IRGUN500 Infrared Thermometer

Product Description

Power Probe IRGUN500 Infrared Thermometer

Precise temperature measurement with infrared technology

Introduction

The No-Contact Thermometer detects the infrared rays that an object emits. The instrument focuses the infrared energy of the object through the lens and onto a sensor. As a result, the instrument changes the surface temperature into an electrical signal, and a microcomputer calculates and displays the measured temperature on the LCD.

Features

• Spectral Response 8-14 μm
• Laser <1mW / 630-670nm
• °C / °F Selection
• Response Time 1 second
• Relative Humidity 10%~90%

Specifications

• Temperature range: -20°C~500°C(-4°F~932°F)
• Accuracy: Assumes ambient Operating temperature (23°C ± 2°C or 73°F±3°F): -20°C~0°C(±3°C), -4°F~32°F(±5°F), 0°C~500°C ±(2.0%rdg+2°C), 32°F~932°F(2.0%rdg+3°F)
• Optical resolution: 10:1
• Spectral response: 8-14 um
• Repeatability: 1°C
• Response time: Approx.1s
• Resolution: 0.1°C/0.1°F
• Emissivity: 0.95
• Ambient Operating Range: 0~40°C
• Relative humidity: 10%~90%
• Conforms to: EN61326, EN61010-1, EN60825-1
• Conforms to: UL STD 61010-1, Certified to CSA STD C22.2, No.61010-1
• Laser: <1mW, 630-670nm, class2
• Dimensions: 143×99×47mm
• Power: 2×1.5V AAA
• Weight: Approx.160g
