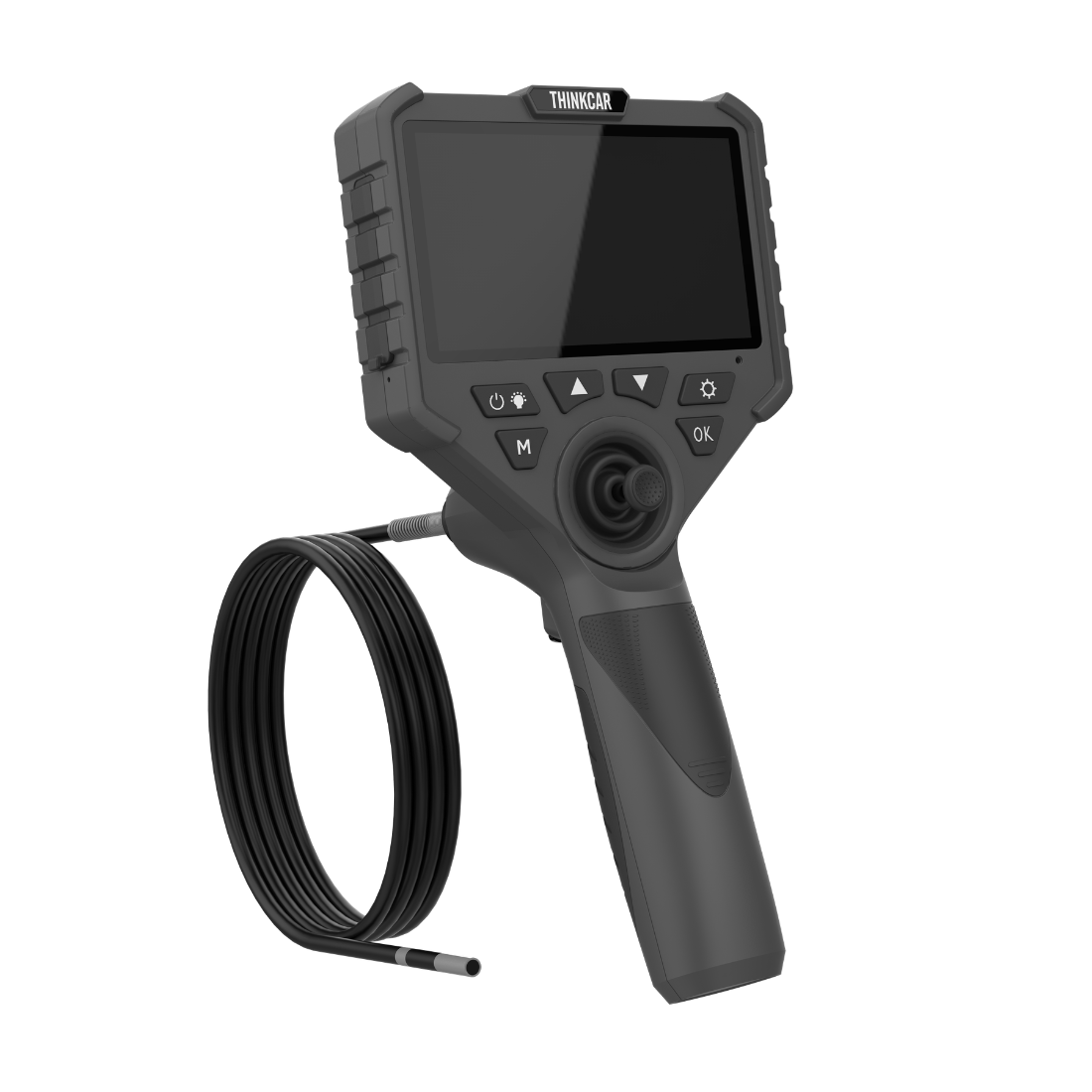

ThinkCar 360° Borescope ES501

Product Description

ThinkCar 360° Borescope ES501

ThinkCar ES501 endoscope is equipped with 360°4-way adjustable probe, 1.5M flexible stainless steels tube, it supports video, photo, image zoom in/out etc, which is widely used for precision instruments maintenance inspection, such as aircraft/vehicle engine, industrial mechanism, printer,locker, etc.

Advantages

• 4-Way 360° Rotation: The ES501 features a highly responsive joystick-controlled probe that offers 360° full-circle rotation for easy directional adjustment, ensuring every detail is captured.
• 5″ Monitor with HD Video: The ES501 supports both photo and video functions. Its 5-inch IPS color LCD display delivers vibrant and clear visuals.
• Unique Ergonomic Design: Allows one-handed operation for steering control, power-on, photo capture, video recording, and light adjustment – saving both time and effort.
• 2200mAh High-Capacity Battery:  Equipped with a 2200mAh high-performance polymer battery that features large capacity and low energy consumption, supporting over 3 hours of continuous operation.
• IP67 Water-Resistant Lens: The lens is constructed with special sealing materials, making it waterproof, oil-resistant, and corrosion-resistant.
• 6 Adjustable LED Lights: Features six adjustable LED lights with three-level brightness control, accurately illuminating details in dark environments.
• High-Temperature Alarm: When temperature reaches 80℃, the device automatically triggers an alarm and stops lens operation, providing reliable protection.

Specifications

• Lens size：6.2mm(±0.25)
• Pixel：1million
• Depth of field：30-100mm
• Perspective：70°
• Number of LEDs：6 bright LEDs
• Tube length：1.5M
• Tube material：wear-resistant metal hose
• Screen size：5 inches
• Battery capacity：2200mAh
• Power consumption：600±20mA
• Usage duration：≥3 hours
• Photo/Video resolution：JPG/AVI 1280*720
• Screen resolution：480*854
• Language：Supports 8 languages
• Storage：8GB TF
• Steering angle：Maximum 210°
• Steering：4-way Articulating
• Bending radius：47mm
