Product Description

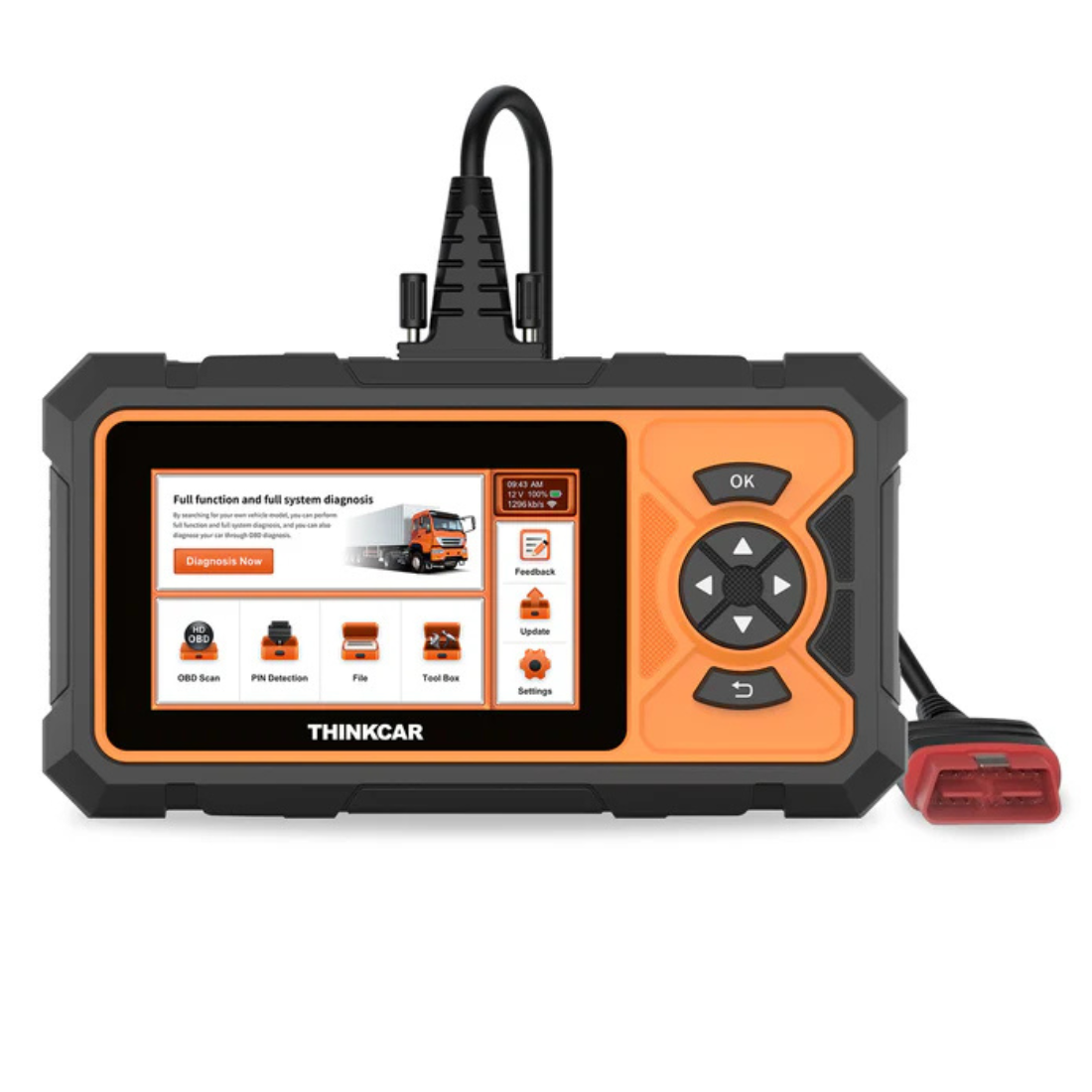

Thinkcar ThinkScan HD Heavy Duty Diagnostic Tool With 2 Years Updates
Please check the coverage list here to fully understand its coverage, Check coverage here
It list many brands of HD vehicles but the coverage varies
THINKSCAN HD is a professional grade scanner designed for 74 commercial vehicles brands, heavy duty trucks, and medium duty trucks. It offers a wide range of features including the ability to read and clear DTCs, view data streams, view version information, and perform DPF regeneration etc. Expertly designed to meet most of your commercial vehicle scanning needs. THINKSCAN HD delivers the advanced ability to read and clear DTCs and save data streams. Get up-to-date version info and perform DPF regeneration effortlessly.

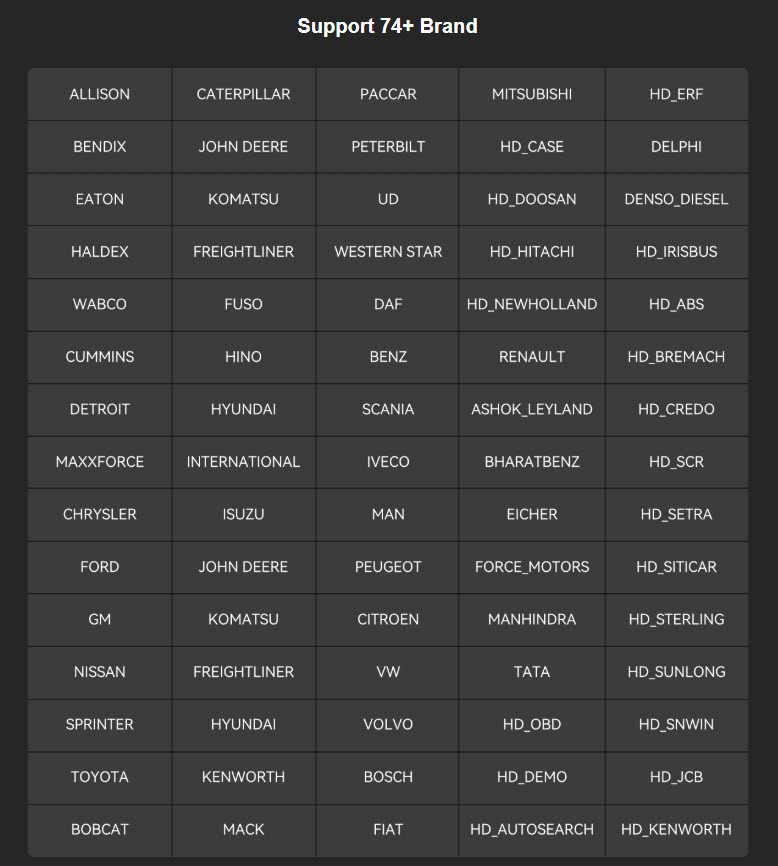

- Covers 74+ Truck, Bus, Machinery: Bosch, Caterpiller, Cummins, Doosan, Daewoo, Detroit, DAF, Hyundai, International, Isuzu, Iveco, Kinglong, Mahindra, Man, Mitsubishi ,JCB, Mercedes-Benz, Renualt, Scania, Sinotruck, Tata Volvo, Eicher, Sprinter, UD, Hino, Howo, Wabco, Kamaz, Maz and many more
- System Diagnostics: Read and clear faults, Data stream, actuation tests, special functions, maintenance reset, DPF regenerations etc.
- Near OE Level Diagnostics: The Thinkcar ThinkScan HD has a big range of capabilities for full vehicle scan, read and clear DTCs, live data stream, read version information, special function, actuation test and generate test reports for many makes and models but we don’t claim all
-

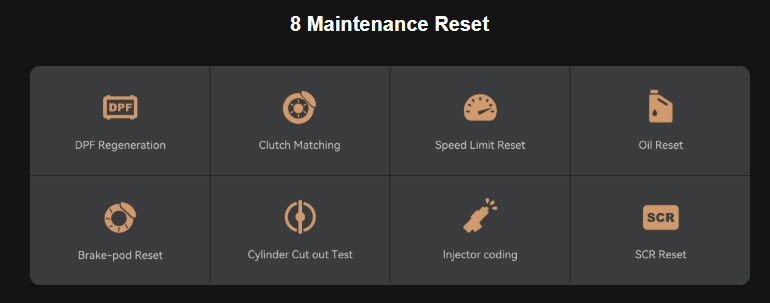

Thinkcar ThinkScan HD integrates the common used special function: DPF Regeneration, Injector Coding, Reset Service(MIL), Maintenance Confirmation, Injection Quantity Adjustment, Particulate Filter Replacement Reset, Reset Pressure Differential Sensor, Reset Pressure Limiting Valve, Bleeding The Adblue Circuit, VGT Electronic Actuator Installation And Calibration, Trip Reset, Parked SCR Efficiency Test, DPF Ash Accumulator Reset, for many makes and models but we don’t claim all
- PARAMETER CALIBRATION: Thinkcar ThinkScan HD allows technicians to reset the parameter and do parameter programming (on some makes and models)
Idle Speed Adjustment, Speed Limit, Cruise Control, Idle-Stop System, PTO, Coolant Level Switch, Exhaust Brake Valve, Intake Air Preheating, Vehicle Speed Controller, Air Conditioner, Oil Pressure Sensor, Electronic Fan, ABS, Automatic Transmission and more. (can perform these functions on many vehicles but we don’t claim all, please check the coverage list)
- Full HD OBD Function: Thinkcar ThinkScan HD supports full HD OBD and EOBDII function to read and clear fault code, live data stream, freeze frame and more.
- Thinkcar ThinkScan HD : Includes 1 years updates




TECHNICAL DETAILS
- Operating System: Android 6
- Screen Size:5-inch
- Battery:3150mAh\3.8V

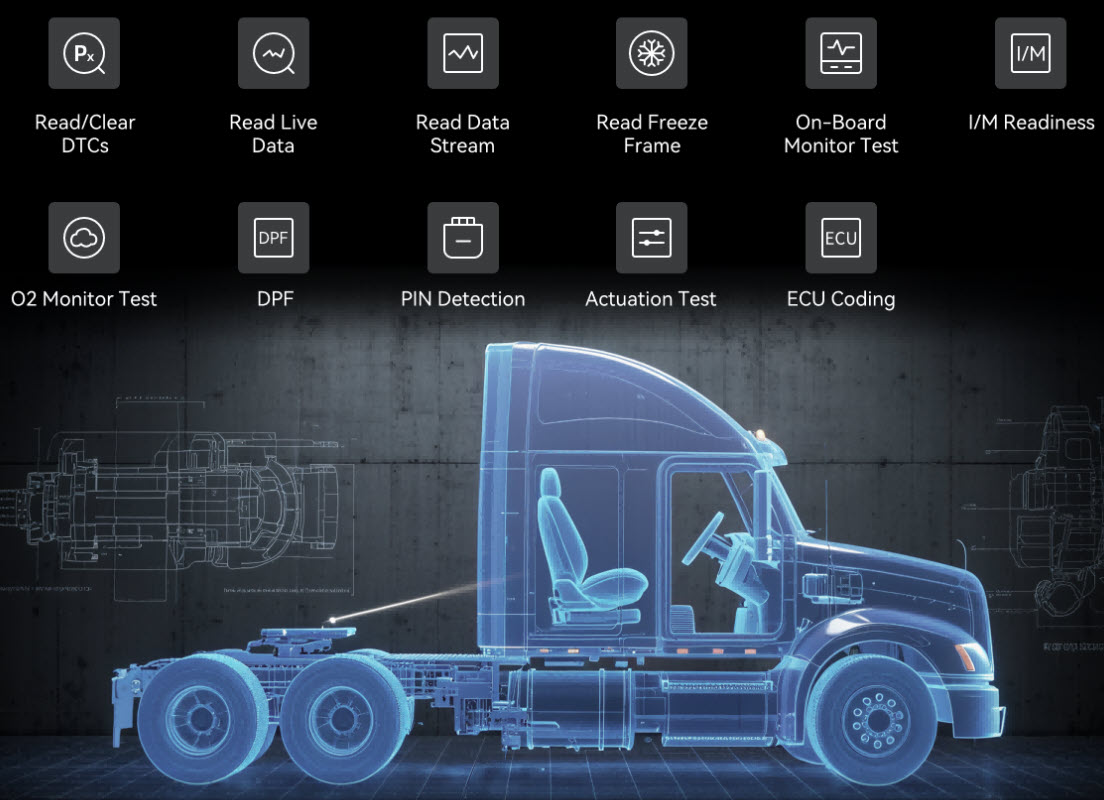

FUNCTIONS
- Read/Clear DTCs
- Read Freeze Frame
- O2 Monitor Test
- Read Live Data
- On-Board Monitor Test
- Resets And Adaptions
- Read Data Stream
- I/M Readiness
- PIN Detection

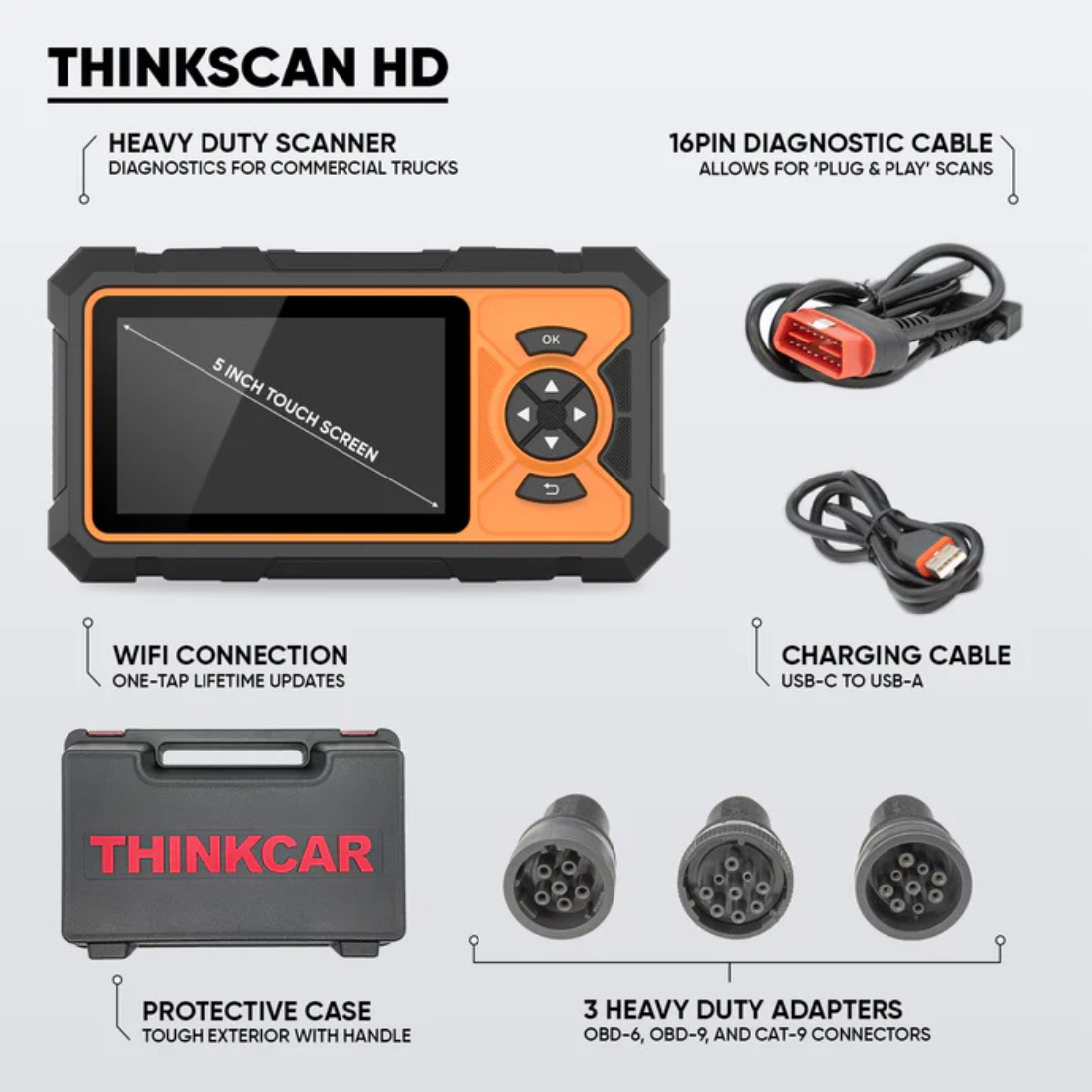

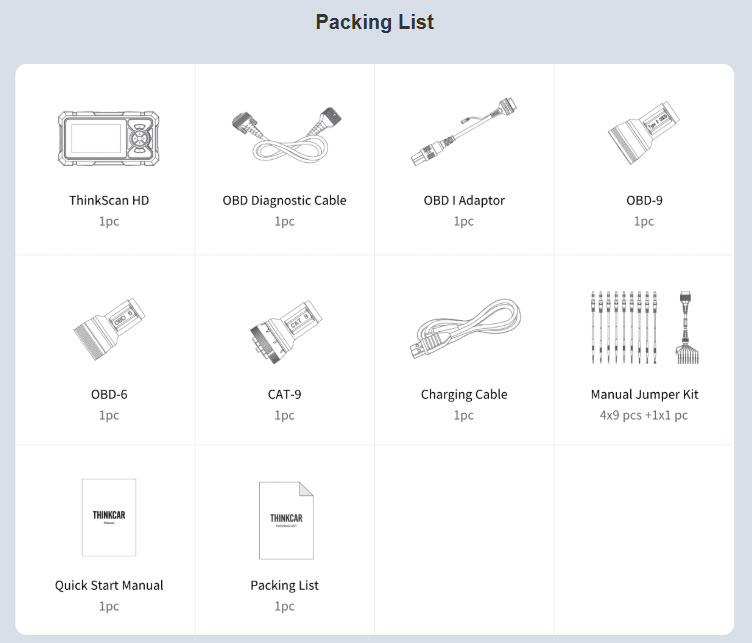

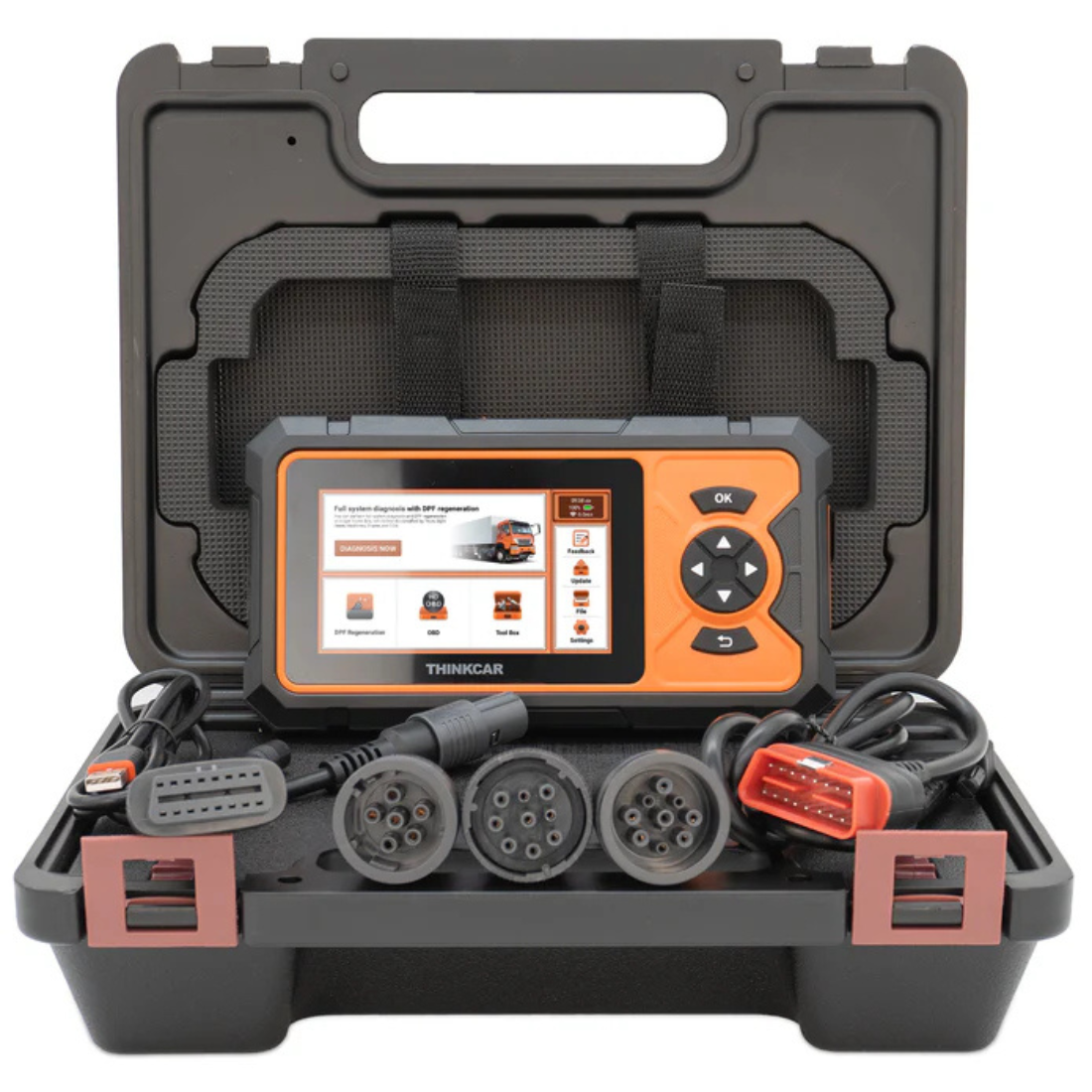

PACKING LIST
- THINKSCAN HD Tablet
- OBD Diagnostic Cable

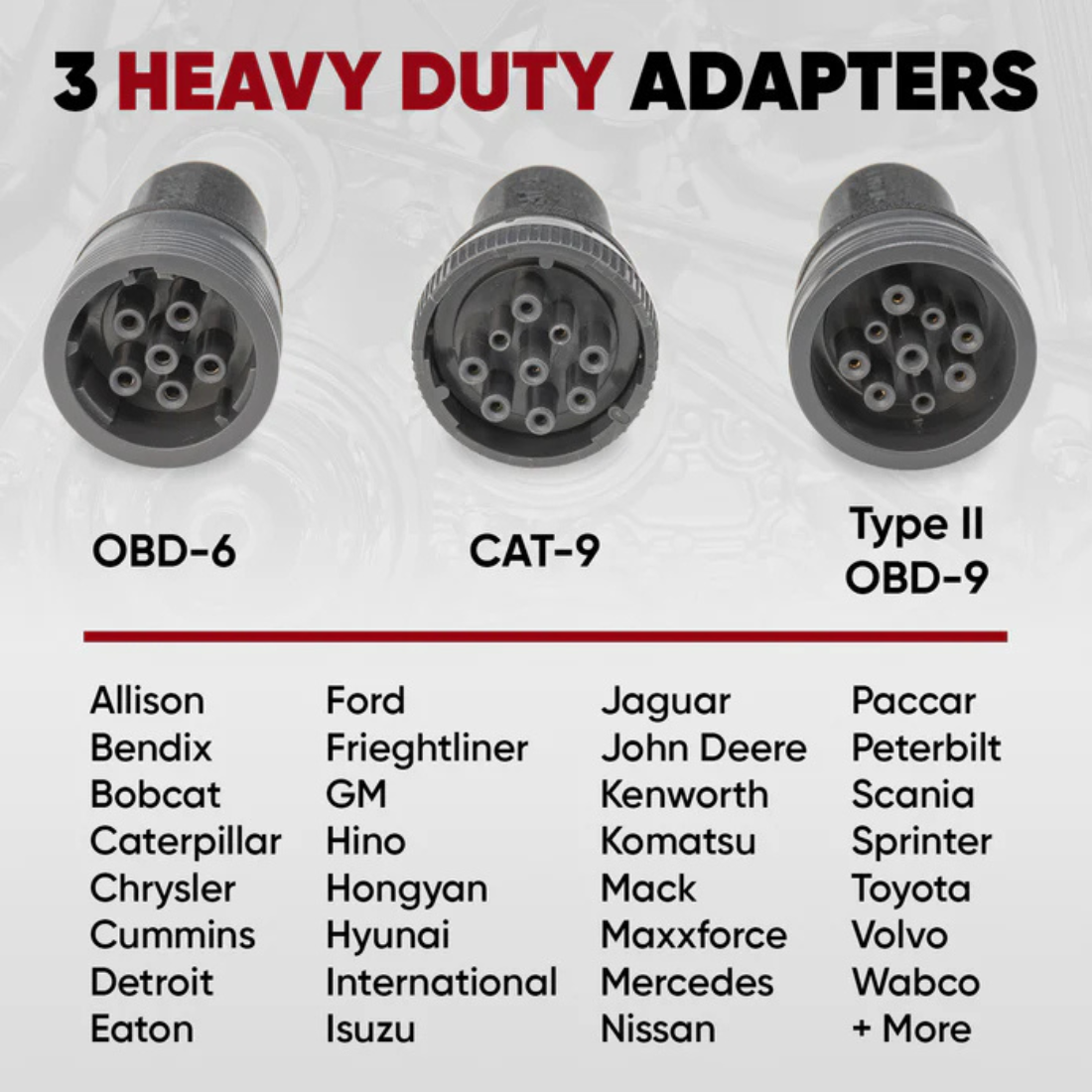

- OBD I Adaptor
- Type II OBD-9
- OBD-6
- CAT-9
- Charging Cable
- Manual Jumper Kit
- Quick Start Manual
OPTIONS
COVERAGE LIST: Click here to view coverage list
For other ThinkCar models please click HERE
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them every day in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.
Warranty
All ThinkCar diagnostic tools come with 2 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).
Items excluded from the 2 year warranty are
Cables, OBD connections, scope leads and scope accessories
Problems caused by other APPS or other software’s that the user installs on the device
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.
Delivery and Training
Ryan’s Automotive or a courier will deliver the unit to your workshop and we will assist in registering and updating if needed
And spend 1 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
We also can provide extra chargeable training if required.
Support
Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
Additional support packages are required for vehicle technical support.
Not included in the support
Technical information that is found on systems like Autodata, Alldata etc,
The above support does not include vehicle technical support but we are always willing to help customers were we can.
Repairs not covered by the warranty and after the warranty period
For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
1 Log into the unit via team viewer
2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
