Tenomotor Socio X3 PC based Diagnostic Tool With Rugged Tablet Now Available

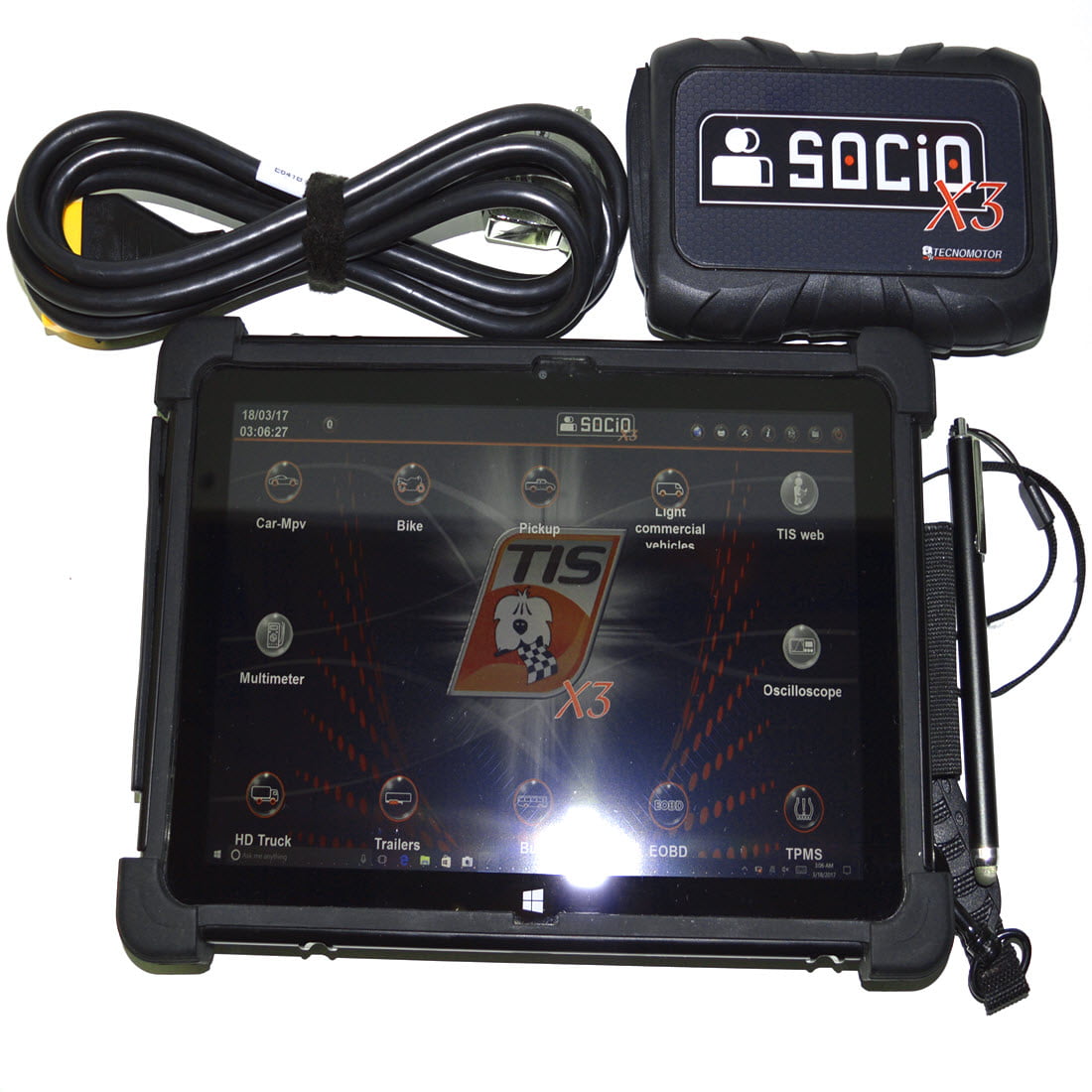

           Tenomotor Socio X3 PC based Diagnostic Tool with semi rugged windows based tablet

Tecnomotor have been at the forefront of the multi brand diagnostic tool market since 1985 and as well as making after market equipment they also supply some of the OEM’s such as Fiat, Ducati, Iveco, Magneti Marelli, Continental, Corghi, Denso, Husqvarna motorcycles, this can only prove their strength.

The Tecnomotor diagnostic tool range has one of the best all round vehicle coverage available on the market with constant development and updates every month.

The Socio X3 is the latest PC based diagnostic tool from Tecnomotor. It comes with the same vehicle coverage as the 410, 510 and X6. The advantages over the 510 includes :  easy diag (guided diagnostic procedures) and TIS web (full technical information system note this is a optional subscription)
But does not have a scope like the 410 and X6

It comes in a very rugged rubber shockproof case. Power supply 8 to 40 v.

The software has over 50 different car, LCV and SUV brands listed.

It covers systems such as

  • Engine electronics
  • ABS/ Traction control/ESP
  • Airbag
  • Transmission control
  • Immobilizer
  • A/C system
  • Suspension electronics
  • Instrument panel
  • Service reset
  • EPS
  • EPB
  • TPMS
  • Radio
  • Parking assistance
  • Auxiliary heating
  • CAN network
  • Body computer
  • Plus many other systems

As well as providing the normal diagnostic functions the range can also complete a huge amount of special functions such as

  • Particulate filter regeneration/replacement and settings,
  • Common rail injector coding,
  • Key coding (on some makes and models),
  • Electronic brake calliper functions,
  • Service resets,
  • Common rail IMV/SCV/DRV valves learning
  • TPMS programming
  • Steering angle calibration
  • And many other special functions


  • Free updates for 1 year
  • Software for European, Asian and American vehicles
  • 12 updates per year via the internet
  • No time out
  • Fault code read clear
  • Live data and graphing
  • Data logging/flight record
  • Actuator operations
  • Adaptions
  • Coding dependent on vehicle and system
  • Multiple Languages
  • Diagnostic report print out
  • ECU information reading
  • Stores last 50 diagnostic details

Other Features:

  • Integrated Easy Diag, Easy Diag has these following diagnostic advantages : Automatically scan the complete vehicle for error codes and at anytime you can click on a particular control unit and diagnose that control unit without having to wait until the end of the automatic scan. Bidirectional control, this allows you to activate components and at the same time view the status or value of the sensor that measures it. Automatic search of control units. Flight recorder allows you to record serial diagnostic readings
  • Integrated Pokayoke system, Pokayoke is a Japanese term that means ” fail – safing” or “mistake proofing” allowing you to manage vehicle electronics in the simplest way. You decide what to do, the tool takes care of how to do it. Able to directly select the operation to be performed, without the need to know which and how many control units should be involved in the operation, ensuring ease of interaction with the ECU
  • Automatic control unit search
  • Scan error automatic DTC search
  • Bidirectional control
  • Road test feature
  • Flight recorder
  • Blue tooth or cable connection options


  • Interface
  • Carry case
  • 16 pin EOBD cable
  • Bluetooth dongle for your PC
  • USB cable
  • Quick start guide
  • CD with insulation software
  • Windows 10 semi rugged tablet
  • 1 days training

Tablet Details:

  • Windows® 10 Professional or Windows® 10 Home
  • Intel® Quad-Core Atom™ Processor
  • 4GB RAM and 64GB Storage
  • 10-Inch Touchscreen
  • MIL-STD-810G with 4-foot drop
  • Only 1.98 lbs. (0.9kg) with Case
  • 5MP and 2MP Color Cameras
  • WiFi & Bluetooth
  • USB ports x 2
  • HDMI port
  • Comes with Screen Protector, Rugged Protective Case and Carrying Straps
