Sale!

Geatek Kambio KNX ATF Machine

Geatek Kambio KNX Machine for automatic transmission servicing

Original price was: €4,750.00.Current price is: €4,500.00. ex. VAT

1 in stock (can be backordered)

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €13.40 ex.VAT Read Our Delivery Information

Product Description

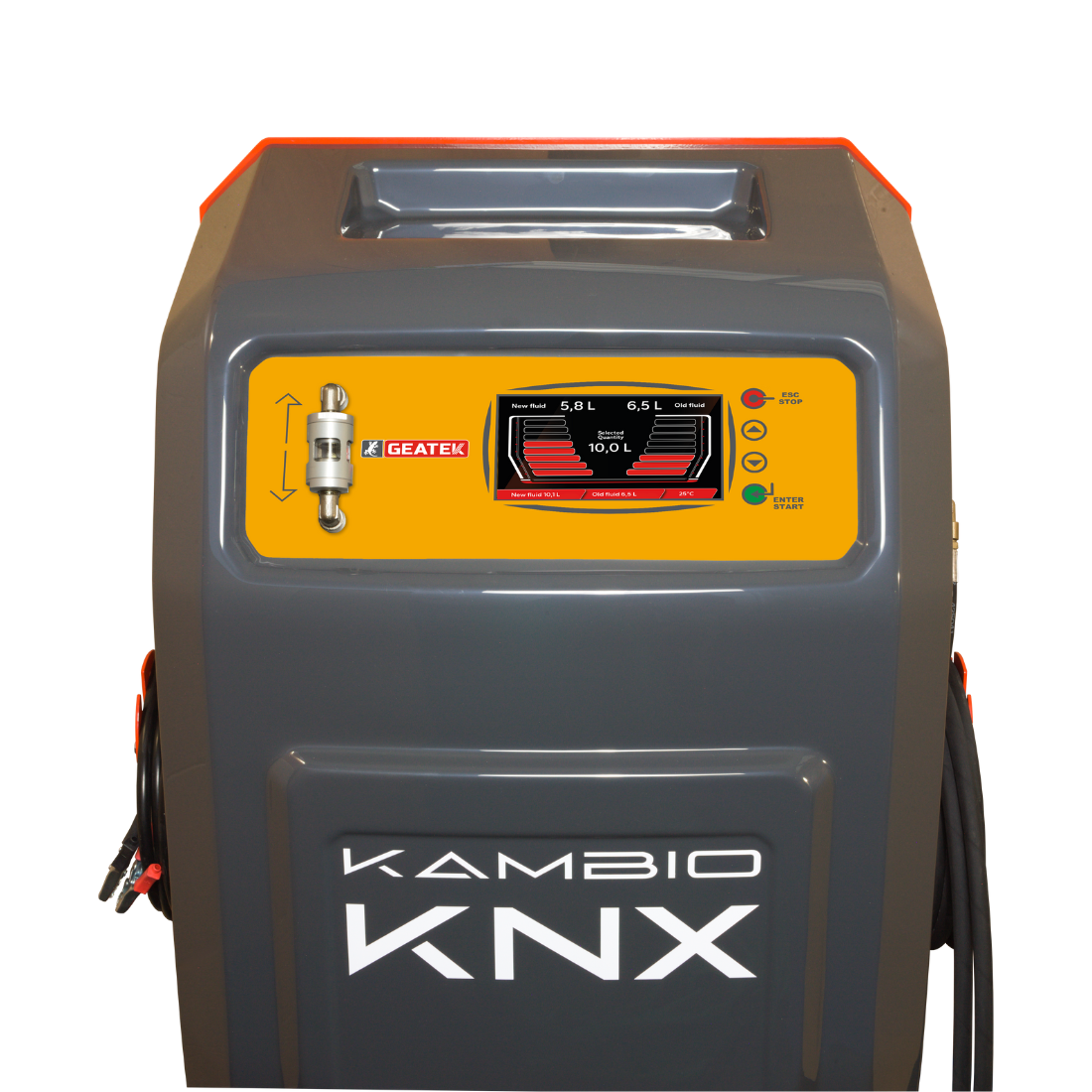

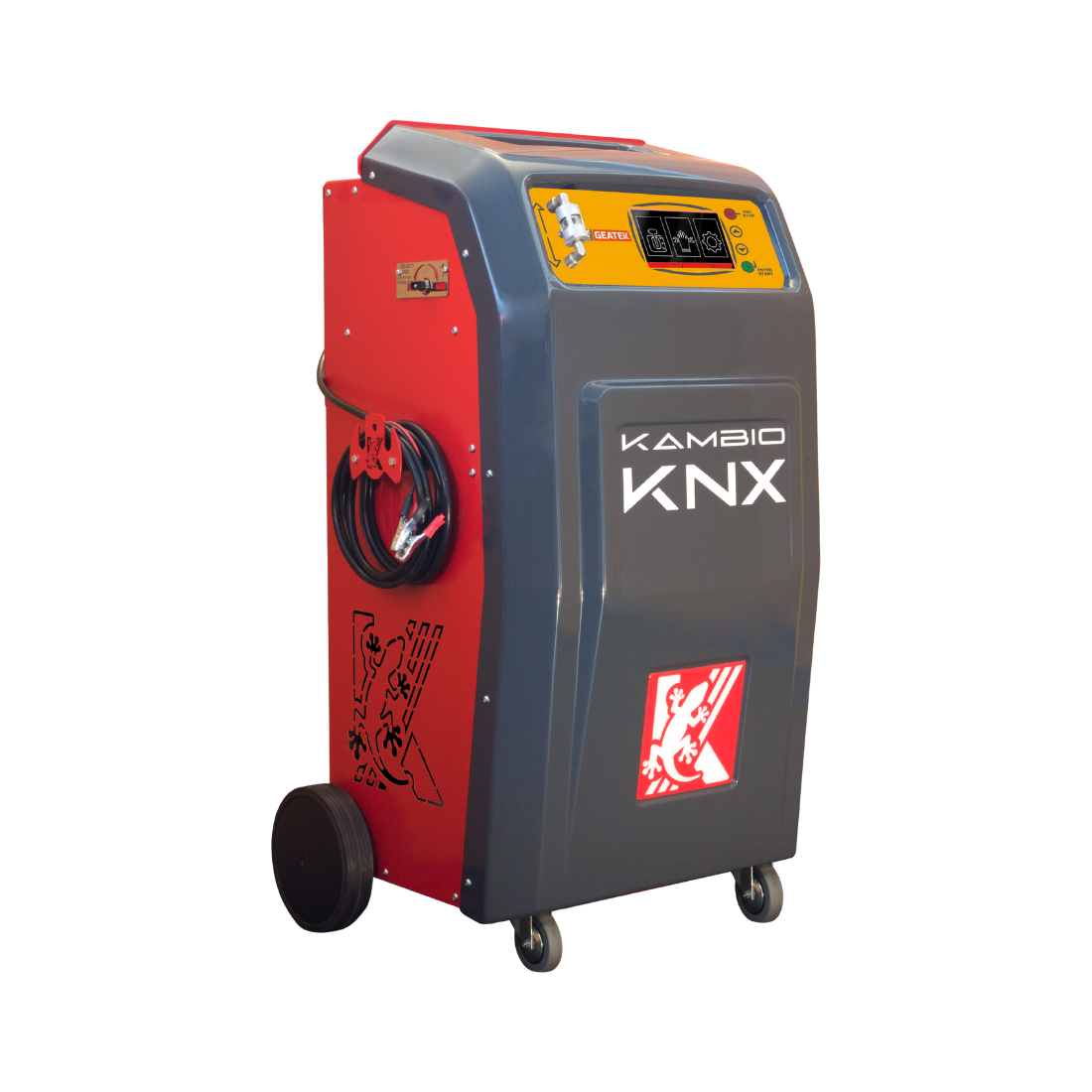

Geatek Kambio KNX Machine for automatic transmission servicing

The equipment allows for complete and guided maintenance of the automatic transmission in a simple and safe way. KAMBIO KNX is capable of effectively flushing the entire automatic transmission circuit in just 10 minutes. Each phase is fully automated and safe for the mechanic and the staff.

KAMBIO KNX boasts some technical features that make it the perfect equipment for performing automatic transmission oil changes:

Features:

  • Step-by-step guided work procedure. Mistakes during automatic transmission maintenance are impossible if you follow the Automatic Cycle program on the equipment display.
  • Automatic oil flow identification.  Equipment hoses can be connected to the vehicle without having to worry about which hose is the transmission coolant supply and return hose.
  • Oil level correction.  The oil fill and drain functions allow you to correct the transmission oil level.
  • Temperature sensor. Thanks to the integrated sensor, KAMBIO KNX can measure the temperature of the oil flowing through it. This function eliminates the need for a diagnostic tool and is a valuable aid in determining whether maintenance is being performed correctly.

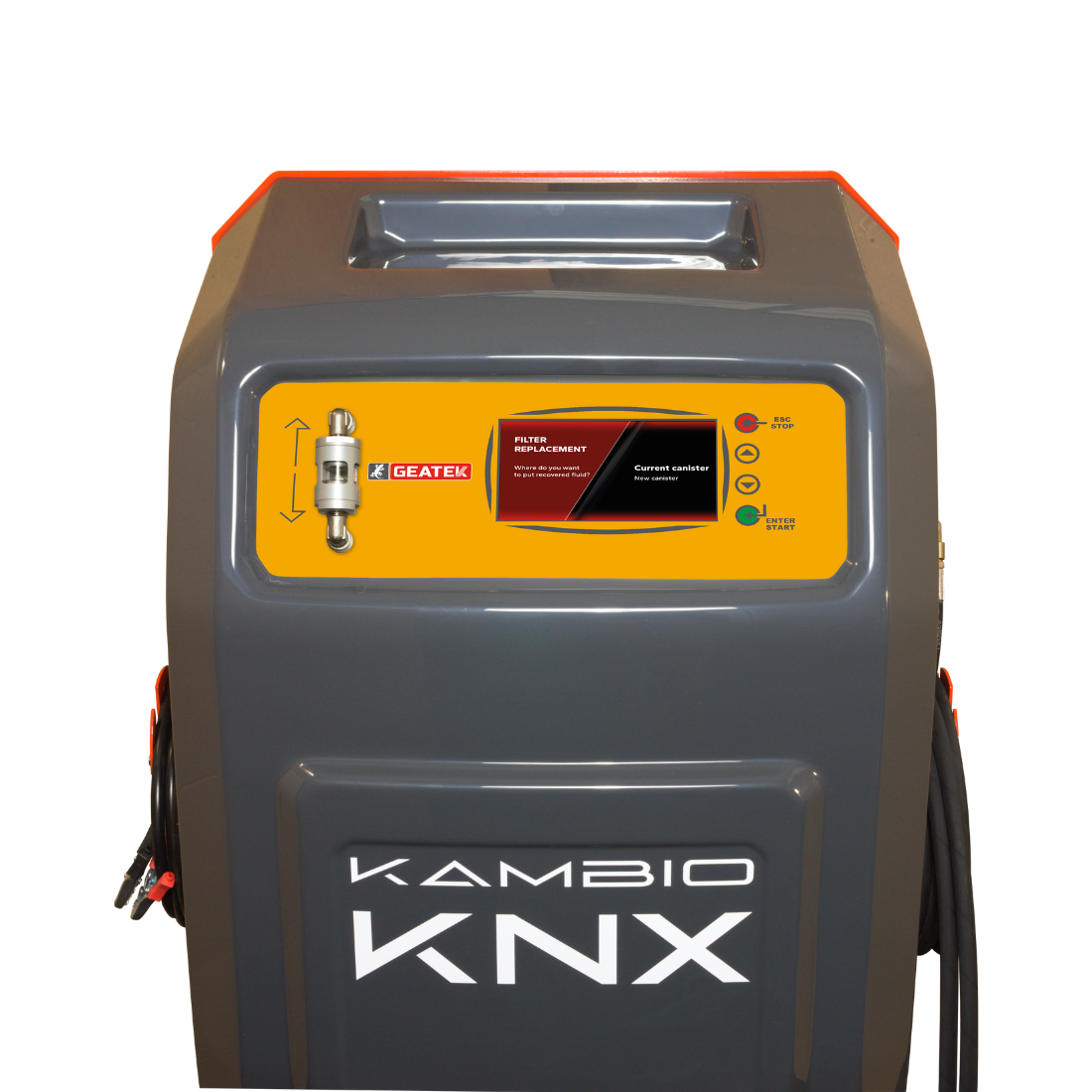

  • Replacing the sump filter. The device displays the steps to replace the filter located in the automatic transmission’s oil pan. It weighs and displays the amount of oil recovered from the sump and suggests the correct amount to fill the sump.
  • Detergent and additive tank. A dedicated tank with a level sensor allows for convenient and automatic addition of washing detergent or additives to the new oil. The automatic decontamination procedure after each injection ensures that the product is injected correctly and that there is no residue in the tank.
  • High-performance filters. KAMBIO KNX is equipped with very fine filters (10 microns) that can effectively eliminate particles present in the transmission oil during the flushing phase.
  • Variable displacement pump. During an oil change, the washer pump instantly adjusts to the flow rate of the transmission being serviced. This ensures the transmission operates at the correct pressures, avoiding the risk of too much or too little oil.
  • Accurate scales. The new oil and used oil tanks are positioned on two independent scales that constantly weigh the amount of oil present, allowing the machine to perfectly regulate the amount of oil flowing out and into the transmission during the oil change.
  • Safety loop.  In the event of any malfunction or accidental shutdown of the equipment, no harmful conditions can occur for the gearbox, since the KAMBIO KNX circuit is designed to recirculate the oil from the gearbox.
  • Technical information: GEA IDEA Transmission database for servicing (GEAIDEA database provides all the necessary information for performing maintenance on the automatic transmission  where to find the transmission lines, how to disconnect them (with real photos), and how to correctly measure the oil level. You will also find all the information needed to replace the fluids in automated manual transmissions. this information is viewed on a PC or laptop and can also be printed

Includes:

Optional

Oils, additives, adapters (Sold Separately) (ask about our trade prices)

Flyer

Product Specifications

Weight 60 kg
Dimensions 84 × 76 × 115 cm

    If you want to ask a pre-sale question about this product, please feel free to use the form below.

    Your First Name (required)

    Your Phone (required)

    Your Last Name (required)

    Your Email (required)

    Your Question

    General
    We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
    As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
    We are also in a great position to support these products as we use them in our own workshop,
    Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
    All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland

    Warranty
    All Geatek ATF machines come with 1 years manufacturers warranty.
    And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and where possible a loaner unit will be left with the user until the unit is delivered back.
    We aim to keep the customer up and running and will either have the issue fixed or if possible a loaner unit delivered to the customer within 48 hours (Monday to Friday)
    The 2 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.

    Items excluded from the 2 year warranty are
    Hoses and vehicle connection couplings
    Service parts (filters,etc)
    Scales calibrations (if knocked out of calibration due to mishandling)
    Database updates
    Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.

    Conditions to keep warranty valid
    All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.

    Delivery and Training
    Ryan’s Automotive will deliver the unit to you workshop ready to work and spend 2 hours onsite providing training on use of the machine.

    Support and extra training
    Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.

    Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
    Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
    For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
    1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
    2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
    3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
    4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
    5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none warranty repairs and subject to availability)
