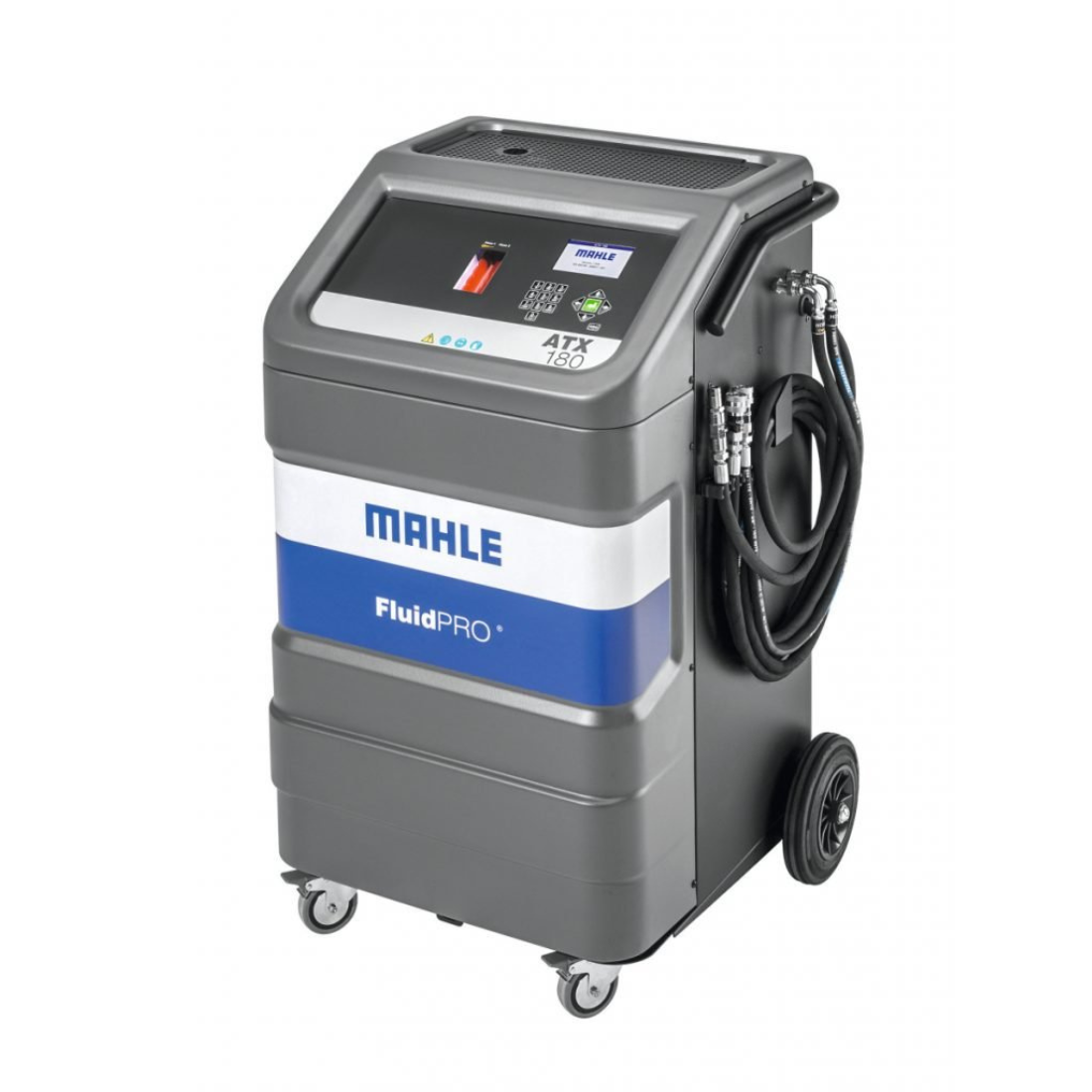

Mahle FluidPro ATX180 ATF Machine (Used)

Product Description

Mahle FluidPro ATX180 Gearbox Flush Machine, Used But In As new Condition

FluidPRO® ATF Machine for automatic transmission servicing

Mahle FluidPRO ATX 180 ATF Machine. User-friendly design and state-of-the-art technology

Adaptor Kit 1-17 included. Additional adaptors available separately.

The number of vehicles with automatic gearboxes has risen sharply in recent years. The recommendation is to service the gearbox system every 60,000 km / 37,500 miles, on average.

With the right equipment, such as the FluidPRO® ATX180 by MAHLE, this is an uncomplicated job.
With the ATX180 you are assured of maximum professionalism and great ease of use.

Vehicle manufacturers recommend servicing automatic gearboxes:

1. To avoid high secondary costs in the event of problems
2. To extend the service life of automatic gearboxes
3. To maintain good vehicle performance
4. To prevent malfunctions due to wear and contaminated ATF
5. To ensure a more comfortable ride

Advantages of FluidPro by Mahle

• Highest level of purity: No contamination of the oil, separate oil circuits, and an automated cleaning process
• Economical: Database—the intelligent database quickly provides detailed information on the relevant vehicle specifications and service information, such as oil type, fill level, adapter, and filter
• Efficient: Complete—the simple and intuitive interface guides you quickly and comprehensively though the automated service process
• Almost 100% fluid replacement with each use
• Clear indication of oil quality and transmission oil pressure during the service
• Precise control of flushing quantity with the double weighing principle
• Change oil types easily with the removable oil tanks
• Hose connections are checked automatically and adjusted to the direction of flow before every service—no need to change this manually any more
• Checks the temperature of the transmission oil automatically: The flushing process
• Starts automatically as soon as the oil has reached the correct temperature
• Integrated process for removing the oil pan and changing the transmission oil filter

Features

• Integrated Database & Technical Information: providing you with the right oil quantity, oil type, tightening torques, oil filter code and indication of the type of fittings to be connected to the gearbox.
• 7 inch touchscreen display
• Automatic Detection: of oil flow direction in the transmission and prevents any damage to the system.
• Exclusive Software: that guides the recovery/recharge processes (patented) that allows for maximum performance on every type of ATF transmission.
• Maximum control: over new oil contamination is guaranteed by the Zero Cross-Contamination function (internal flushing of the circuit and external hoses), as well as by the interchangeable oil canister replacement system.
• Inspection windows: allows you to visual control over the oil quality
• Built-in Dipstick function: for working on sealed transmission systems
• Boost function: which boosts used oil drainage, speeding up oil change operations.
• Quick Discharge function: maximum speed in emptying the used oil tank
• 25 l interchangeable tank for new ATF with quick coupler
• Additive container: 500 ml
• Drain grille for oil sump
• Holders for hose storage
• Automatic cycle: assisted procedure
• Flushing: automatic
• Hose cleaning: automatic
• Drainage of old ATF tank
• 10 l/min gear pump x 2
• 3x extra containers included

Technical Data

• Type of service: Automatic and fully guided, 7″ colour display, keyboard
• Keyboard: Membrane
• New oil filter 90µm mesh filter
• Dipstick function Integrated with ø6mm and ø10mm tubes
• Hoses 2 x 3 m (service hoses)
• Waste oil drainage hoses 1 x 1.5m
• Upper grate grate
• Oil pump 2 x 10 l/min hydraulic pump; PWM controlled
• Power supply 90/240 VAC, 50-60Hz, 500W, 12A
• Capacity: 25l
• Wight Measurement: Scale
• Additive Container: 500ml
• Delivery Pump: 10 l/min single stage gear
• Boost Pump: 10 l/min single stage gear
• Pump Displacement:  3.6cm³
• Additive Injection: Load Cell
• Emptying of spent ATF tank: Dedicated pipeline with tap
• Operating Temperature: 5-50°C
• Humidity: 10-90% RH (non-condensing)
• Dipstick function: Integrated with ø6mm and ø10mm tubes
• Boost Function: Integrated
• Upper grate: With joints holder functionality

Adapters Kit 1-17 (Included) Adapters & Variants:

• BMW, Volvo, Mercedes Benz, Audi, Renault, Saab, Ford – Various Transmission Type
• BMW, Audi, Renault, Saab, Ford, Range Rover, Jaguar – Various Transmission Type
• Audi, Volkswagen, Jeep – Various Transmission Type
• Opel, Subaru, Mazda, Citroen, Renault, Alfa Romeo, Lancia – Various Transmission Type
• Audi, BMW (8 SPEED), Jaguar, Land Rover, Alfa Romeo, Jeep, Iveco – ZF
• BMW (8 SPEED) D. 18mm – ZF
• Jeep, Fiat, Chrysler, Mercedes Benz, Subaru – Various Transmission Type
• Audi, Mercedes Benz, Mitsubishi – Various Transmission Type
• Jaguar, Mercedes Benz, Ssangyong – Various Transmission Type
• Jaguar, Mercedes Benz, Mitsubishi, Ssangyong – 5-SPEED
• Jaguar, Ford, Mazda – 5-SPEED
• Volkswagen, Audi, Mitsubishi – ZF
• Audi, Volkswagen, Porsche, Lexus, Mitsubishi – AISIN /ZF
• Volvo – Various Transmission Type
• Hyundai, Toyota, KIA, Mitsubishi, Isuzu – Various Transmission Type
• Pipes For General Use Diameter 10 – 13 – 15mm”
• Audi, Volkswagen, Seat, Skoda – VW DSG
• Jeep, Fiat, Alfa Romeo, Opel, Citroen – AISIN

GeaIdea transmission flushing instructions software also available. Click HERE for more details

And other individual adapters and kits available on request
