Product Description
FluidPRO® ATF Machine for automatic transmission servicing

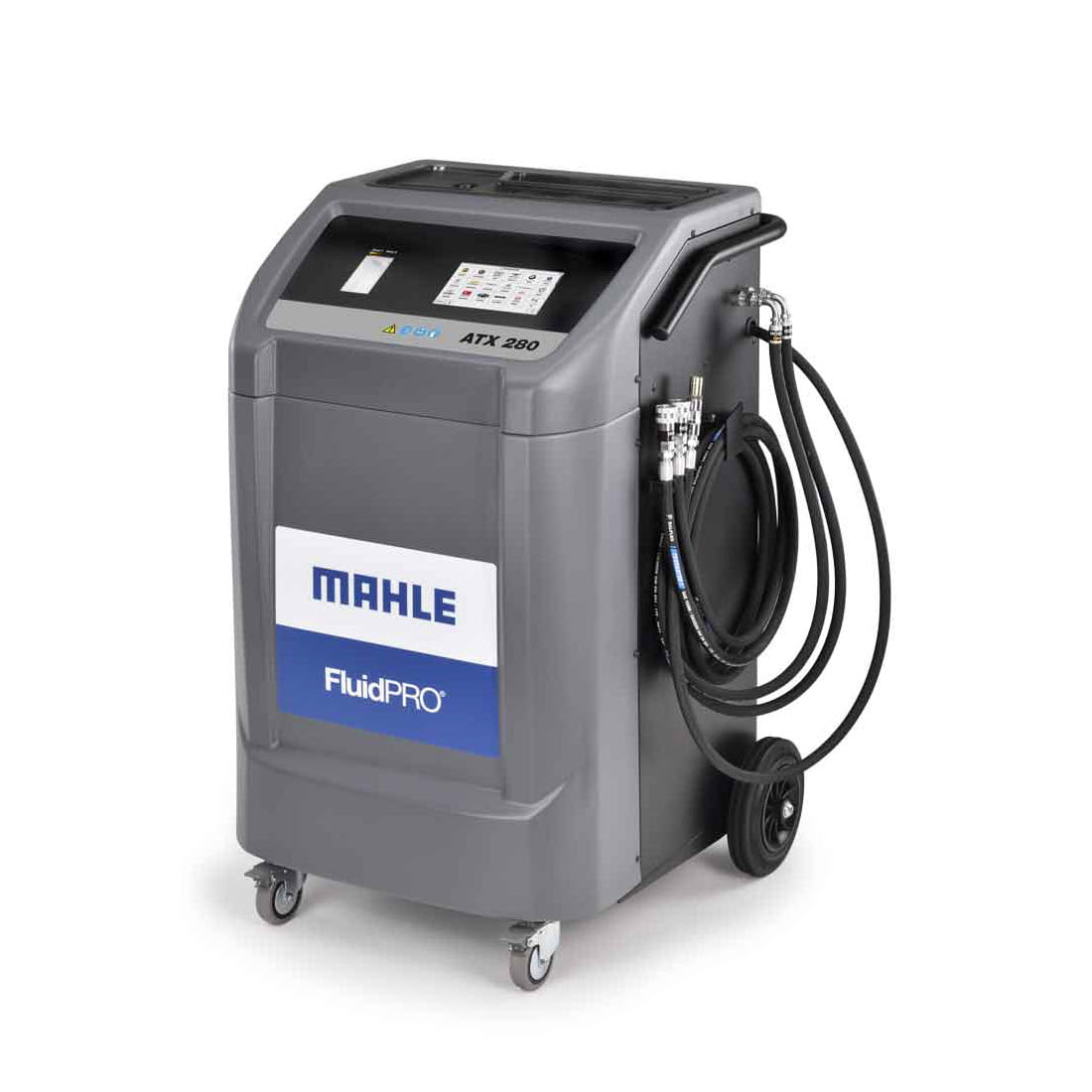

Mahle FluidPRO ATX 280 ATF Machine. User-friendly design and state-of-the-art technology
Adaptor Kit 1-17 included. Additional adaptors available separately.
The number of vehicles with automatic gearboxes has risen sharply in recent years. The recommendation is to service the gearbox system every 60,000 km / 37,500 miles, on average.
With the right equipment, such as the FluidPRO® ATX280 by MAHLE, this is an uncomplicated job.
With the ATX280 you are assured of maximum professionalism and great ease of use.
Vehicle manufacturers recommend servicing automatic gearboxes:
- To avoid high secondary costs in the event of problems
- To extend the service life of automatic gearboxes
- To maintain good vehicle performance
- To prevent malfunctions due to wear and contaminated ATF
- To ensure a more comfortable ride
Advantages of FluidPro by Mahle
- Highest level of purity: No contamination of the oil, separate oil circuits, and an automated cleaning process
- Economical: Database—the intelligent database quickly provides detailed information on the relevant vehicle specifications and service information, such as oil type, fill level, adapter, and filter
- Efficient: Complete—the simple and intuitive interface guides you quickly and comprehensively though the automated service process
- Almost 100% fluid replacement with each use
- Clear indication of oil quality and transmission oil pressure during the service
- Precise control of flushing quantity with the double weighing principle
- Change oil types easily with the removable oil tanks
- A service time of just 5 to 15 minutes
- Hose connections are checked automatically and adjusted to the direction of flow before every service—no need to change this manually any more
- Checks the temperature of the transmission oil automatically: The flushing process
- Starts automatically as soon as the oil has reached the correct temperature
- Integrated process for removing the oil pan and changing the transmission oil filter
Features
- Integrated Database & Technical Information: providing you with the right oil quantity, oil type, tightening torques, oil filter code and indication of the type of fittings to be connected to the gearbox.
- 7 inch touchscreen display
- Automatic Detection: of oil flow direction in the transmission and prevents any damage to the system.
- Exclusive Software: that guides the recovery/recharge processes (patented) that allows for maximum performance on every type of ATF transmission.
- FluidPRO® ATX Remote Viewer App: can be activated, allowing the operator to freely control all running steps.
- Maximum control: over new oil contamination is guaranteed by the Zero Cross-Contamination function (internal flushing of the circuit and external hoses), as well as by the interchangeable oil canister replacement system.
- Inspection windows: allows you to visual control over the oil quality
- Built-in Dipstick function: for working on sealed transmission systems
- Boost function: which boosts used oil drainage, speeding up oil change operations.
- Quick Discharge function: maximum speed in emptying the used oil tank
- WiFi connection: enables the connection to the WEB Databank (included in the first year), constant updates and remote assistance (Re.Solve), as well as the possibility to print the final report directly from your workshop’s PC (Nexus Print).
- High Quality instructions: The provision of the complete online database, renewed in its graphics, provides complete instructions and information, supported by detailed images of each procedure.
- 25 l interchangeable tank for new ATF with quick coupler
- Additive container: 500 ml
- Drain grille for oil sump
- Holders for hose storage
- New oil filter: stainless steel mesh filter / 150 μm size
- Automatic cycle: assisted procedure
- Flushing: automatic
- Hose cleaning: automatic
- Drainage of old ATF tank
- 10 l/min gear pump x 2
- 2 Years Manufacturers Warranty
Technical Data
- Type of service: Automatic and fully guided, 7″ colour display, keyboard
- Keyboard: Membrane
- New oil filter 90µm mesh filter
- Dipstick function Integrated with ø6mm and ø10mm tubes
- Hoses 2 x 3 m (service hoses)
- Waste oil drainage hoses 1 x 1.5m
- Service report printing: Via Wifi( With Nexus Port). export via USB to flash drive
- Upper grate grate
- Oil pump 2 x 10 l/min hydraulic pump; PWM controlled
- Languages Menu 15 different languages
- Power supply 90/240 VAC, 50-60Hz, 500W, 12A
- Software Update: Wifi
- Service USB: Wifi
- Smartphone App FluidPRO® ATX Remote Viewer
- Dimensions/weight 120 x 74 x 74 cm, 62 kg
- Capacity: 25l
- Wight Measurement: Scale
- Additive Container: 500ml
- Delivery Pump: 10 l/min single stage gear
- Boost Pump: 10 l/min single stage gear
- Pump Displacement: 3.6cm3
- Additive Injection: Load Cell
- Emptying of spent ATF tank: Dedicated pipeline with tap
- Web Data Bank: 1st year free
- Operating Temperature: 5-50°C
- Humidity: 10-90% RH (non-condensing)
- Dipstick function: Integrated with ø6mm and ø10mm tubes
- Boost Function: Integrated
- Upper grate: With joints holder functionality
Adapters Kit 1-17 (Included) Adapters & Variants:
- BMW, Volvo, Mercedes Benz, Audi, Renault, Saab, Ford – Various Transmission Type
- BMW, Audi, Renault, Saab, Ford, Range Rover, Jaguar – Various Transmission Type
- Audi, Volkswagen, Jeep – Various Transmission Type
- Opel, Subaru, Mazda, Citroen, Renault, Alfa Romeo, Lancia – Various Transmission Type
- Audi, BMW (8 SPEED), Jaguar, Land Rover, Alfa Romeo, Jeep, Iveco – ZF
- BMW (8 SPEED) D. 18mm – ZF
- Jeep, Fiat, Chrysler, Mercedes Benz, Subaru – Various Transmission Type
- Audi, Mercedes Benz, Mitsubishi – Various Transmission Type
- Jaguar, Mercedes Benz, Ssangyong – Various Transmission Type
- Jaguar, Mercedes Benz, Mitsubishi, Ssangyong – 5-SPEED
- Jaguar, Ford, Mazda – 5-SPEED
- Volkswagen, Audi, Mitsubishi – ZF
- Audi, Volkswagen, Porsche, Lexus, Mitsubishi – AISIN /ZF
- Volvo – Various Transmission Type
- Hyundai, Toyota, KIA, Mitsubishi, Isuzu – Various Transmission Type
- Pipes For General Use Diameter 10 – 13 – 15mm”
- Audi, Volkswagen, Seat, Skoda – VW DSG
- Jeep, Fiat, Alfa Romeo, Opel, Citroen – AISIN
GeaIdea transmission flushing instructions software also available. Click HERE for more details
And other individual adapters and kits available on request
Specifications
Dimensions: 140 x 74 x 74 mm
Weight: approx 72 kg
Only logged in customers who have purchased this product may leave a review.
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All Mahle ATF machines come with 2 years manufacturers warranty.
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and where possible a loaner unit will be left with the user until the unit is delivered back.
We aim to keep the customer up and running and will either have the issue fixed or if possible a loaner unit delivered to the customer within 48 hours (Monday to Friday)
The 2 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 2 year warranty are
Hoses and vehicle connection couplings
Service parts (filters,etc)
Scales calibrations (if knocked out of calibration due to mishandling)
Database updates
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop ready to work and spend 2 hours onsite providing training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €10.50 ex.VAT
