Product Description
Wigam Piccola R744 CO2 Air Conditioning Machine
Made in Italy:
Optional Hermetically sealed bottles and Wifi kit are included in the pricing.

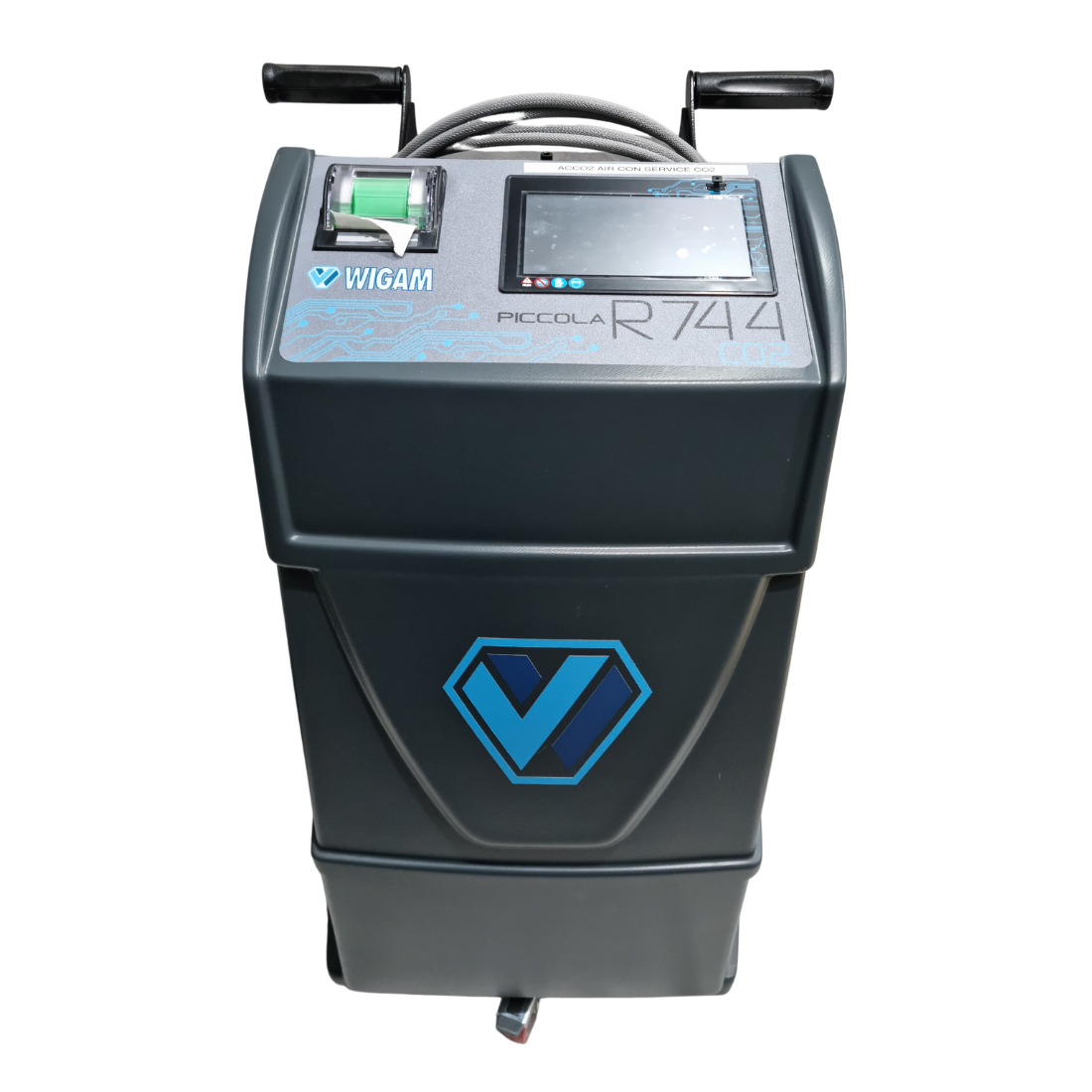

The Wigam Piccola machine is a Automatic recovery, recycling, vacuum and charging unit with 7″ touch screen suitable for R744.
Features:
- The Piccola R744 unit permits quick and efficient the discharge of refrigerant from the A/C system, evacuation, check for tightness, additive and lubricant injection, the subsequent charge with refrigerant and measurement of the operating pressures. Thanks to the wide 7″ screen, the unit is very versatile and is able to help the operator with information useful to perform the various operations.
- PICCOLA-R744 is the unit designed and manufactured by Wigam for the new generation of R744 (CO2) air-conditioning systems that are increasingly present in new electrically driven vehicles.
- PICCOLA-R744 works completely automatically and guarantees total safety throughout the process. The innovative electronics with the 7” touchscreen display makes PICCOLA-R744 the ideal unit for a simple system maintenance
- The 3 independent scales with 1 g resolution, managing oils and additives, allow to operate in a safe and reliable way. Through the K-HERMETIC KIT, the unit can be immediately set up to work with hermetically sealed dosimeters
- WIGAM’s solution of a channelled discharge offers a higher safety in the working environment.
- Thanks to its new 7″ touch screen, the ease of use is similar to that of the OPTIMA series units.
- The OPTIONAL WI-FI KIT allows interconnection to the WIGAM service portal with the resulting potential.
- Suitable for different R744 cylinder sizes.
- Automatic management of all phases, Automatic LOW and HIGH valves, Automatic discharge with quantification. Automatic Vacuum/Vacuum test.
Automatic oil discharge (with scale). Automatic charge of PAG, POE and UV oils. Automatic refrigerant charge.
Automatic personalized cycle (discharge-vacuum-charge).

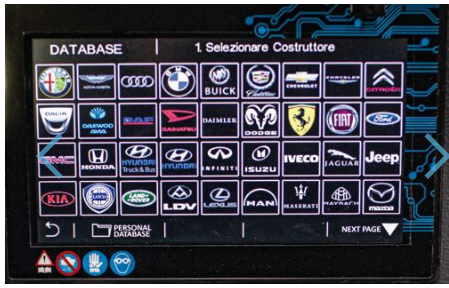

- Graphical database by brand
- Hybrid-ready: Auto-Clean function for hybrid and electric vehicles.
- Automatic alarm for maintenance: the unit notifies when you have to replace the oil in the vacuum pump.
- Continuous monitoring of the internal cylinder pressure.
- Auto-test every 20 days of the internal circuit tightness.
- Pressure test with refrigerant before the charging phase.
- Pressure test with nitrogen or AZOIDRO (N2-H2).
- Integrated room temperature probe.
- Automatic anti-shock system of the refrigerant scale.
- 3 independent scales for oils and additives.
- Automatic compensation of the service hoses length
- Database that can be updated through USB key.
Unit Specifications:
- Refrigerants = R744 (CO2)
- Discharge rate = 60 g/min

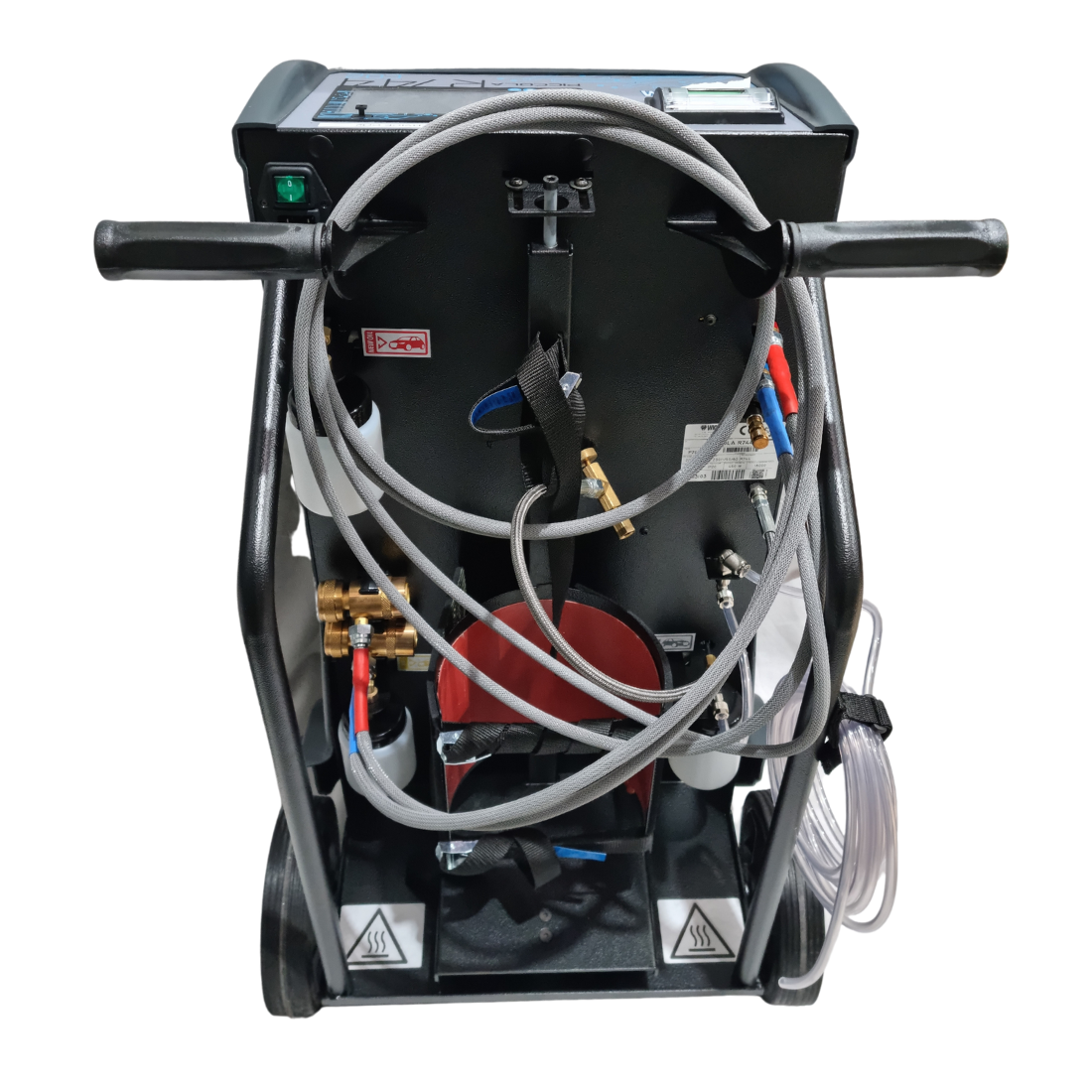

- Flexible hoses – L = 3.0 meters with quick couplers
- Charging precision = +/- 15 g
- Pump swept volume = 100 l/min
- Bottle compatibility = 5-7-14 L
- Refrigerant scale resolution = 5g
- Oil/UV scales resolution = 1g
- Dimensions (without packaging) = 53 x 53 x 92 cm
- Weight (without packaging) = 37kg
- Vacuum Pump = Rotary vane type, 100 l/min
- Control module = 7″ Touch Screen
- Printer = Thermal
- Low and High valves = Automatic
- Refrigerant heater belt = Automatic and completely managed by software
- Set up for interconnection through Wi-Fi kit (optional).
- Wigam Service Portal, accessible via PC and smartphone, for handling and exchange of information and report (Wi-Fi kit necessary).

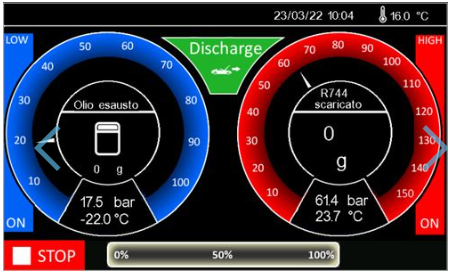

The unit has a wide 7″ colour touch screen. The display shows the following information:
- Refrigerant quantity (kg/lb) inside the bottle
- Pressure of internal refrigerant bottle
- New oil quantity (g/oz) inside the bottle (it could be set for thermic, hybrid or electric car)
- UV quantity (g/oz) inside the bottle
- Exhaust oil quantity (g/oz) inside the bottle
- Ambient temperature (°C/°F)
- Hour and date
- Low pressure (bar/psi) and the corresponding saturation temperature (°C/°F)
- High pressure (bar/psi) and the corresponding saturation temperature (°C/°F)
- Alarm warnings and machines signals
- Start functions (Discharge, Vacuum, Charge and Automatic)
- Service
- Menu
- Access to messages and reports
- Status of WIFI signal (if installed)
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All Wigam AC machines come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday)
The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 1 year warranty are
Hoses and vehicle connection couplings
Service parts (Vacuum pump oil, dryer filter and labour to replace these service items)
Scales calibrations (if knocked out of calibration due to mishandling)
Database updates
Damage to machine due to ingress of stop leak additives that are on the market, You can prevent damage to your machine caused by these stop leak additives by fitting a Recycle Guard leak stop protection kit,
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, incorrect gasses, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop ready to work and can have it filled with AC gas, oils and dyes if requested (AC gas oils and dyes are a extra purchase)
And spend 2 hours onsite providing training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
AC consumables, Other AC tools and Equipment and parts
We also stock a large range of other AC products to support workshops in the AC servicing and repair business to include
Other AC tools and test equipment
AC consumables
AC parts to include compressors, Pressure sensors etc
If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €12.50 ex.VAT
