Lifting Frame For EV Battery Handling

Product Description

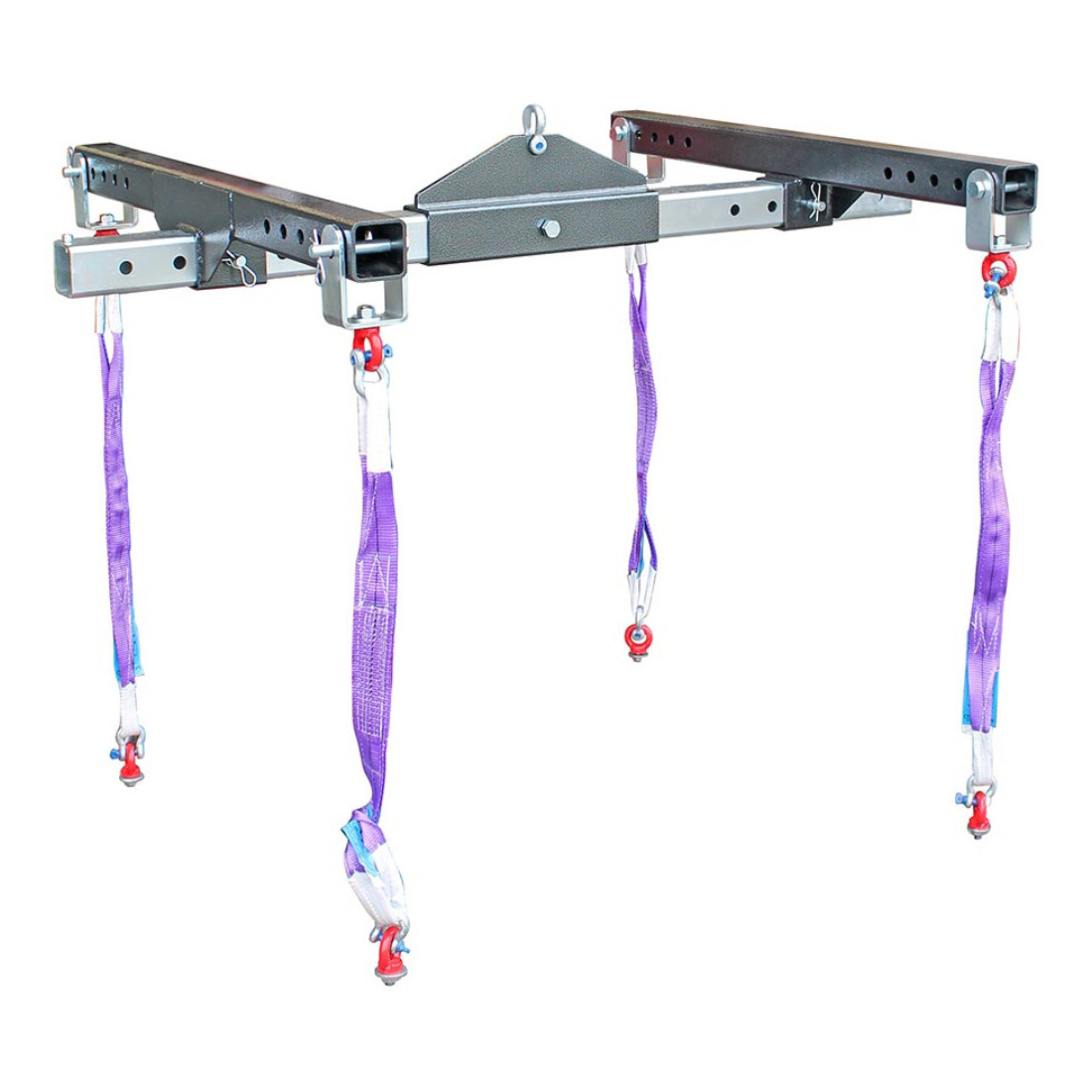

Lifting frame for EV battery handling

This lifting frame is designed to be used during professional and safe handling of batteries or other components, with a maximum total load capacity of 1500kg.
Required to lift battery’s to and from their transport crate and to lift on and off battery lifting tables

• It is equipped with 4 gripping points, equally distributed; which guarantee the stability of the load during movement.
• The equipment consists of a series of hooks and lifting belts for gripping the tools on the battery.
• The two side beams can slide along the main beam with a stroke of 300 mm each.
• The ends of the main beam are equipped with limit stops to prevent the crossbeams from slipping out if the instrument is used incorrectly.
• The gripper forks can slide along the side crossbars for a stroke of 200 mm each.

Technical Data

• Dimensions 1450 x 990 x 180mm
• Main structure S355 – UNI EN 10025-2:2019
• Locking pins M16
• Central pivot centre beam/main beam C40
• Lifting belts L=75cm

Components

• 1 x main structure
• 2 x side crossbar
• 8 x eyebolts
• 4 x lifting belts
