Product Description

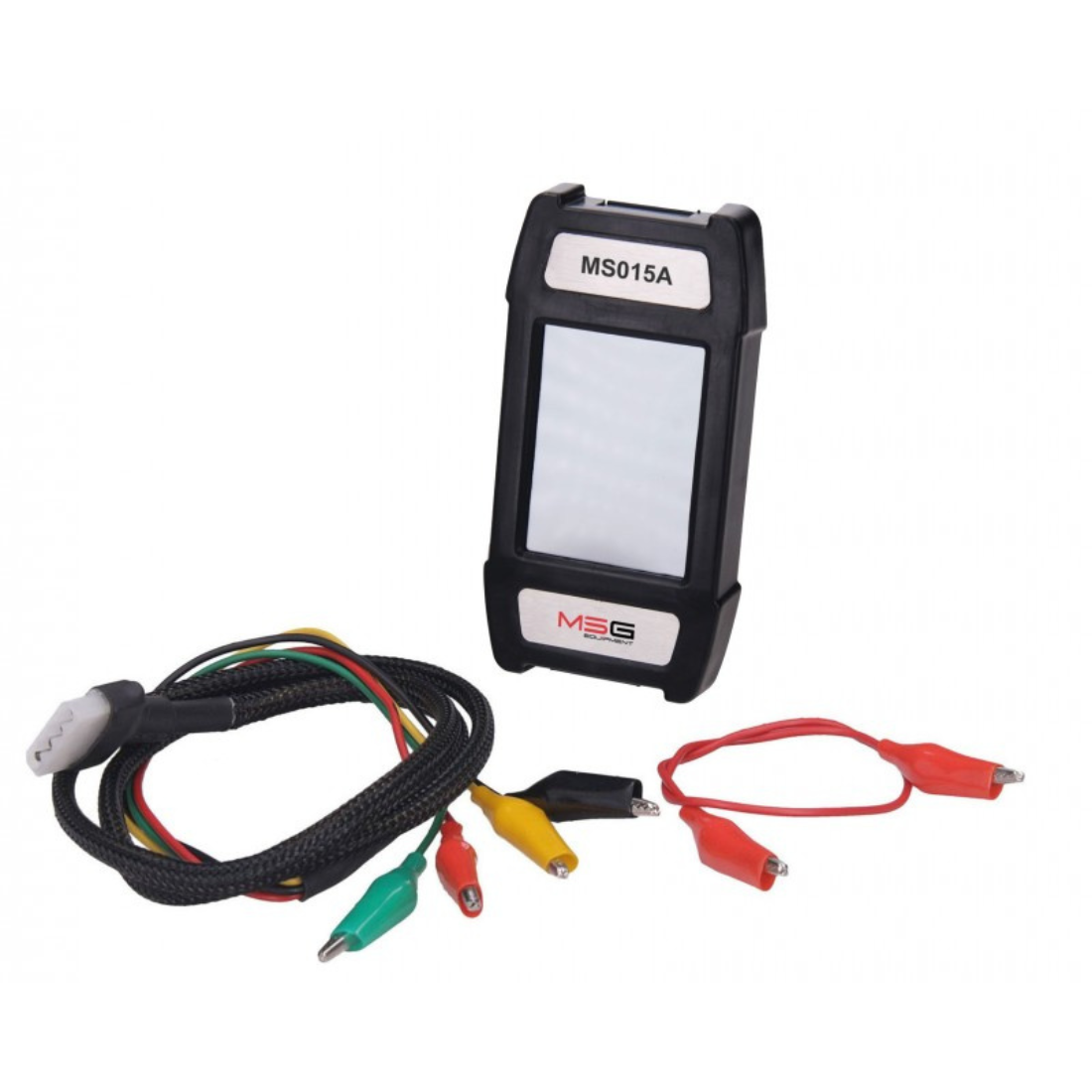

The MS015A tester is used for diagnosing 12 and 24 V automobile alternators with a controlled or digital voltage regulator directly on the vehicle.
The tester allows determining:
• Compliance of the alternator’s output voltage with its nominal value.
• The ability and accuracy of voltage regulation by the alternator.
• The operability of the voltage regulator’s feedback channel (FR, DFM, M, LI).
• Data about the voltage regulator type COM, which will help to select its replacement in case of malfunction.
Advantages:
- Diagnosis of 12/24 V automobile alternators on the vehicle without dismantling it
- Power supply of the tester from the vehicle’s onboard network
- Compact size and ease of use
- Free firmware updates
Technical Info:
- Power supply: 10-32 V from vehicle battery or from a bench
- Dimensions: (L x W x H), mm: 120×65×18
- Weight: kg: 0.3
- Display: TFT-LCD display with touchscreen, Diagonal – 2.8″
- Protection rating: IP20
- Rated voltage of the diagnosed units: V: 12 & 24
- Types of diagnosed voltage regulators: 12V = COM, LIN, BSS, SIG, RLO, RVC, C KOR, P-D, C JAP, 24V = COM, PWM
- Tested parameters: Stabilizing voltage, FR (voltage regulator response to alternator load). For COM voltage regulators: ID, Protocol type, Data exchange rate, Voltage regulator self-diagnostic errors.
- Voltage measurement accuracy, V: ±0.2
- Software update: Available
