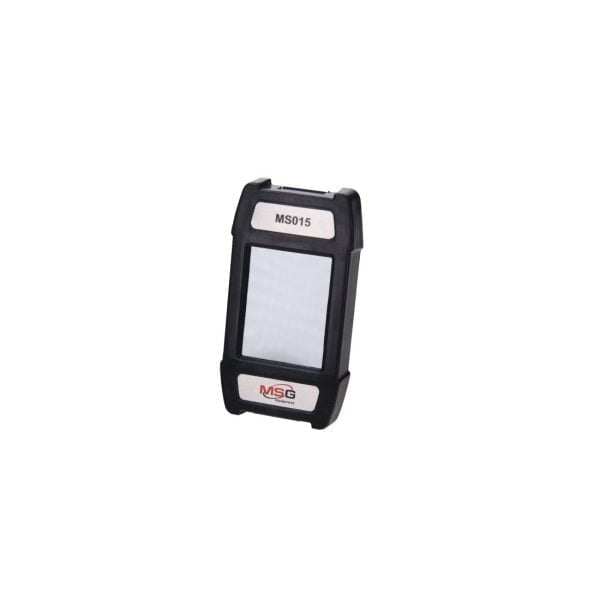

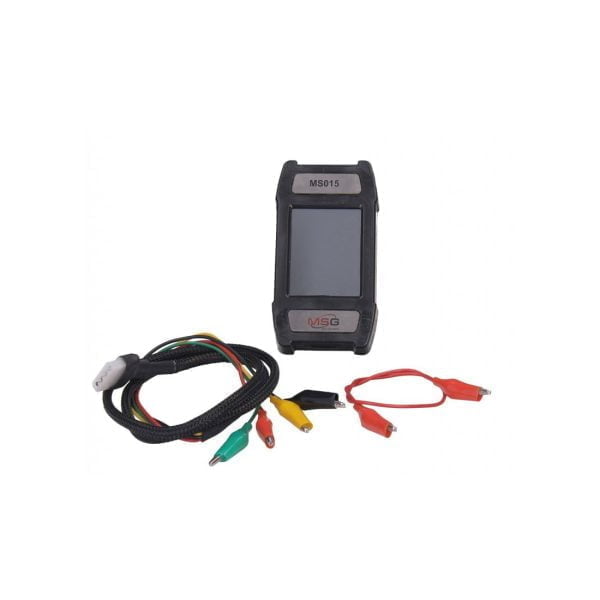

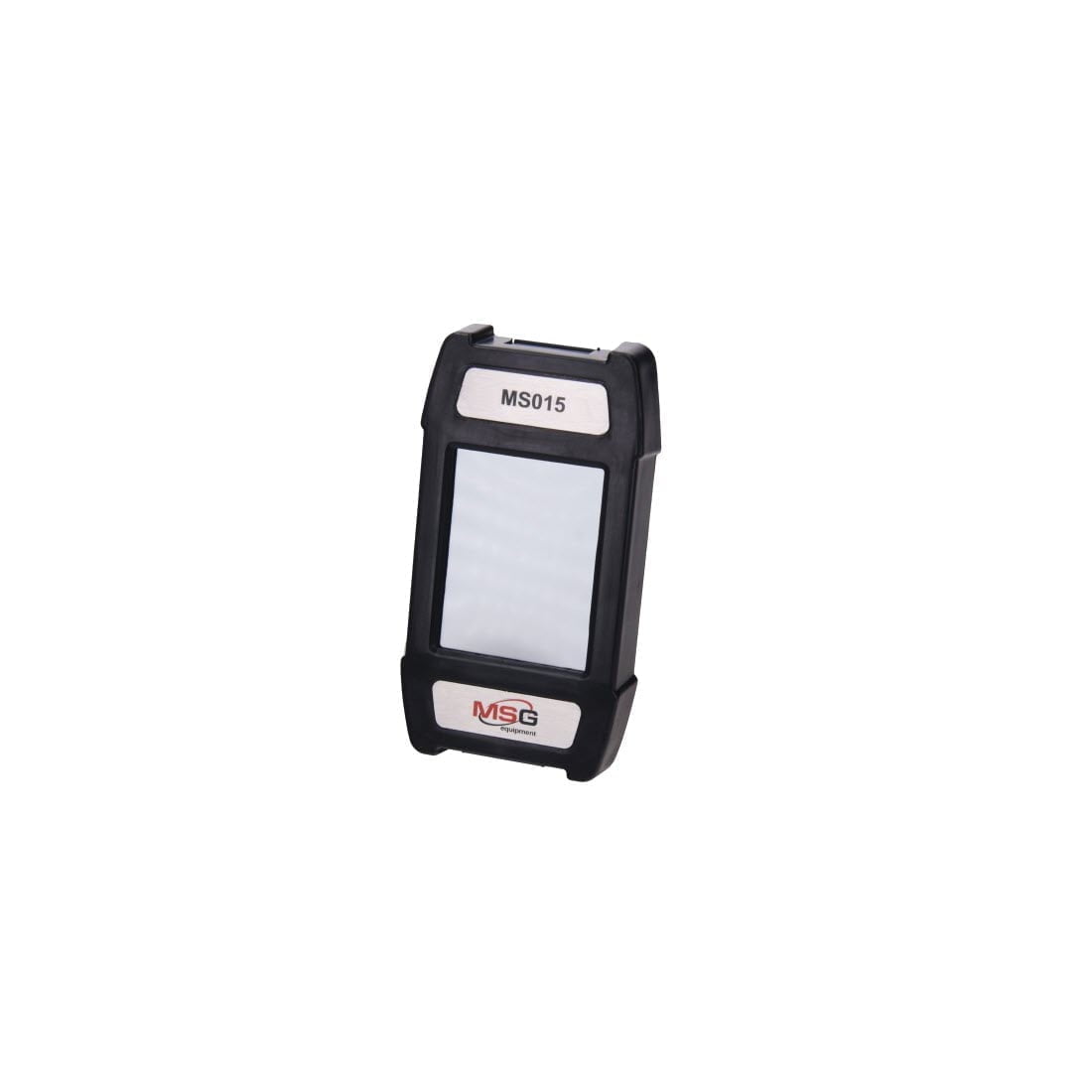

MS015 12V Alternator/Voltage Regulator Tester

Product Description

MS015 is a simple and user-friendly device for express diagnostics of 12V automotive alternators with digital or PWM-controlled voltage regulators without removing them from the cars.

The tester is intended for both small and big car repair shops.

MS015 is used for the health assessment of 12V alternators with digital or PWM-controlled voltage regulators COM, LIN, BSS, SIG, RLO, RVC, C KOR, C JAP,  P-D, The diagnostic procedure can be performed in two ways: either directly on a car or on the test bench, which provides a load on the alternator and its drive.

Advantages:

• On-the-car diagnostics of alternators
• Power supply from vehicle electrical system
• Compact size
• Convenience and ease of use
• Identification of a voltage regulator ID and detection of faults in COM voltage regulators
• Free firmware update

Technical Info:

• Power supply: 10-18 V from vehicle battery or from a bench
• Dimensions: (L x W x H), mm: 120×65×18
• Weight: kg: 0.3
• Display: TFT-LCD display with touchscreen, Diagonal – 2.8″
• Protection rating: IP20
• Rated voltage of the diagnosed units: V: 12
• Types of diagnosed voltage regulators: COM, LIN, BSS, SIG, RLO, RVC, C KOR, P-D, C JAP
• Tested parameters: Stabilizing voltage, FR (voltage regulator response to alternator load). For COM voltage regulators: ID, Protocol type, Data exchange rate, Voltage regulator self-diagnostic errors.
• Voltage measurement accuracy, V: ±0.2
• Software update: Available
