Scanmatik 3 PRO+AUX J2534 VCI

Product Description

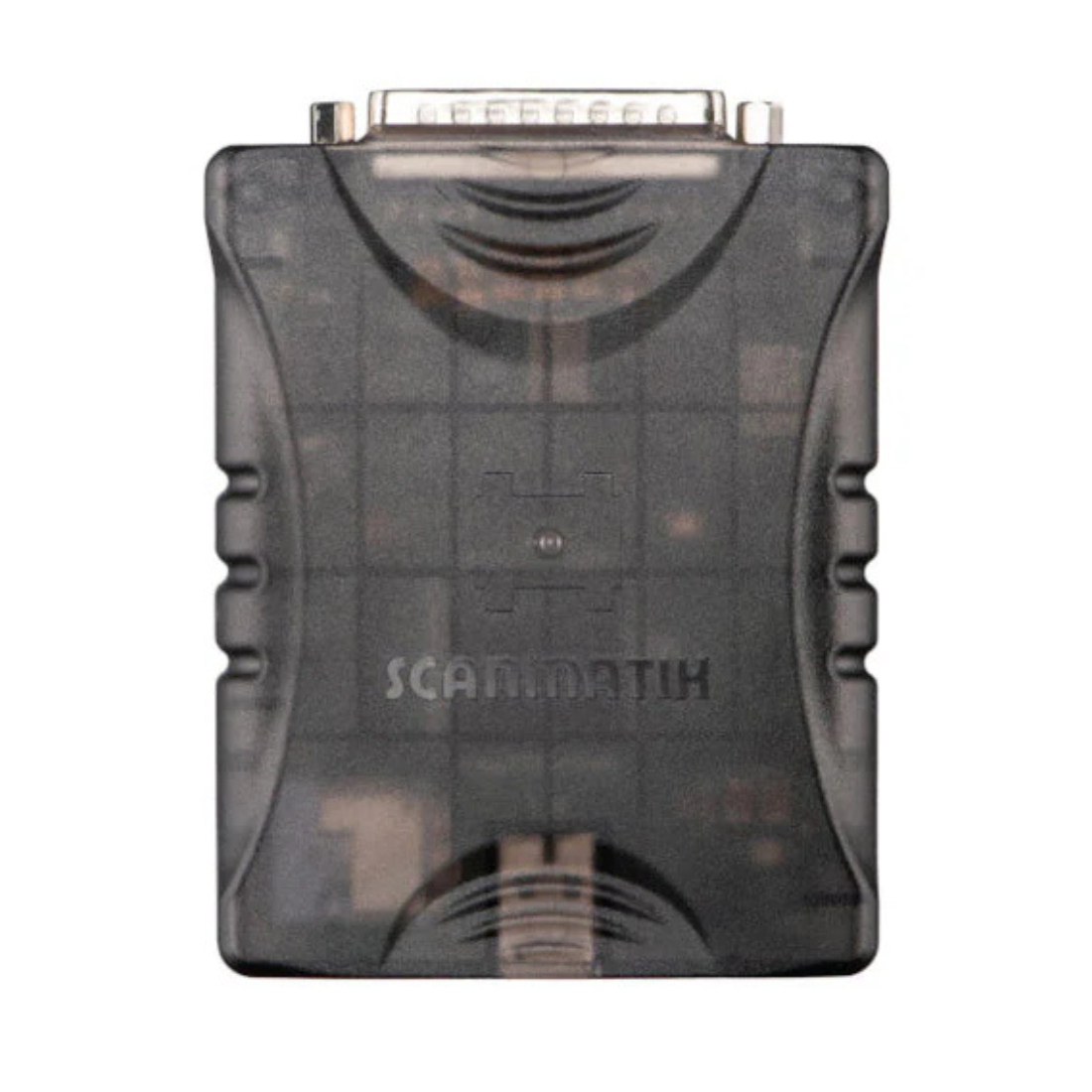

Scanmatik 3 PRO+AUX J2534 VCI

Scanmatik 3 is a newest professional scan and reprogramming tool. Scanmatik SM3 Pass-Thru adapter is a successor of SM2Pro adapter with CAN-FD and DoIP protocols. It offers widest support for SAE J2534-1/2 and TMC RP1210 standard features required by OEM vehicle diagnosis and reprogramming software, vehicle tuning and ECU reflash software like PCMflash, BitBox, Combiloader, MDFlasher etc. Exclusive per-software features was implemented to extend vehicle and function coverage (Ignition State Emulation (VAG ODIS), KLINE multiplexing (MB-DAS) and so on. J1850 VPW/PWM, Chrysler SCI interfaces were implemented to support legacy vehicles.

Note: This is not a scan tool, it is a J2534/RP1210 pass thru device to be used with other software’s that are not included with this device.

Features

• Supports USB or Wi-Fi connection to PC
• Galvanically isolated USB port
• Stable, easy-to-use Wi-Fi connection running on in-house developed Wi-Fi module firmware (no Serial Port emulation involved)
• Fully protected transceiver lines (overvoltage, short-circuit)
• Supports 24V onboard voltage (trucks and buses)
• Load dump overvoltage spike protection (withstand voltages up to 55V)
• Full support for SAE J2534-1 (V0404, V0202) and SAE J2534-2
• Full support for TMC RP1210C (heavy duty vehicles)

The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and WiFi interfaces can be used.

Specifications

• 13X ISO-9141-2/ISO-14230-2 (K-LINE)/Chrysler SCI channels multiplexed to J1962 OBD port pins [1,2,3,6,7,8,9,10,11,12,13,14,15].
• 1X J1850 VPW/PWM Channel
• 5X CAN2.0/CAN-FD Channels multiplexed to OBD port pins 6-14, 3-11, 12H-13L or 12L-13H (polarity swap), 1-9, 2-10
• 1X Single Wire CAN (GM)
• 1×10/100BASE-TX channel (DoIP)
• Programming Voltage (FEPS) generator (5-24V) multiplexed to OBD Port pins [6, 8, 11, 12, 13, 14]
• Separate AUX output for Programming Voltage to DB-25 (requires AUX-type OBD2 cable to convert to banana-jack)
• Wireless std: IEEE 802.11b/g/n
• Working frequency 2.4GHZ(2.412 to 2.480GHz)
• Adapter dimensions (L x W x H): 97×75×22mm

Package Contents

• SM3 Device

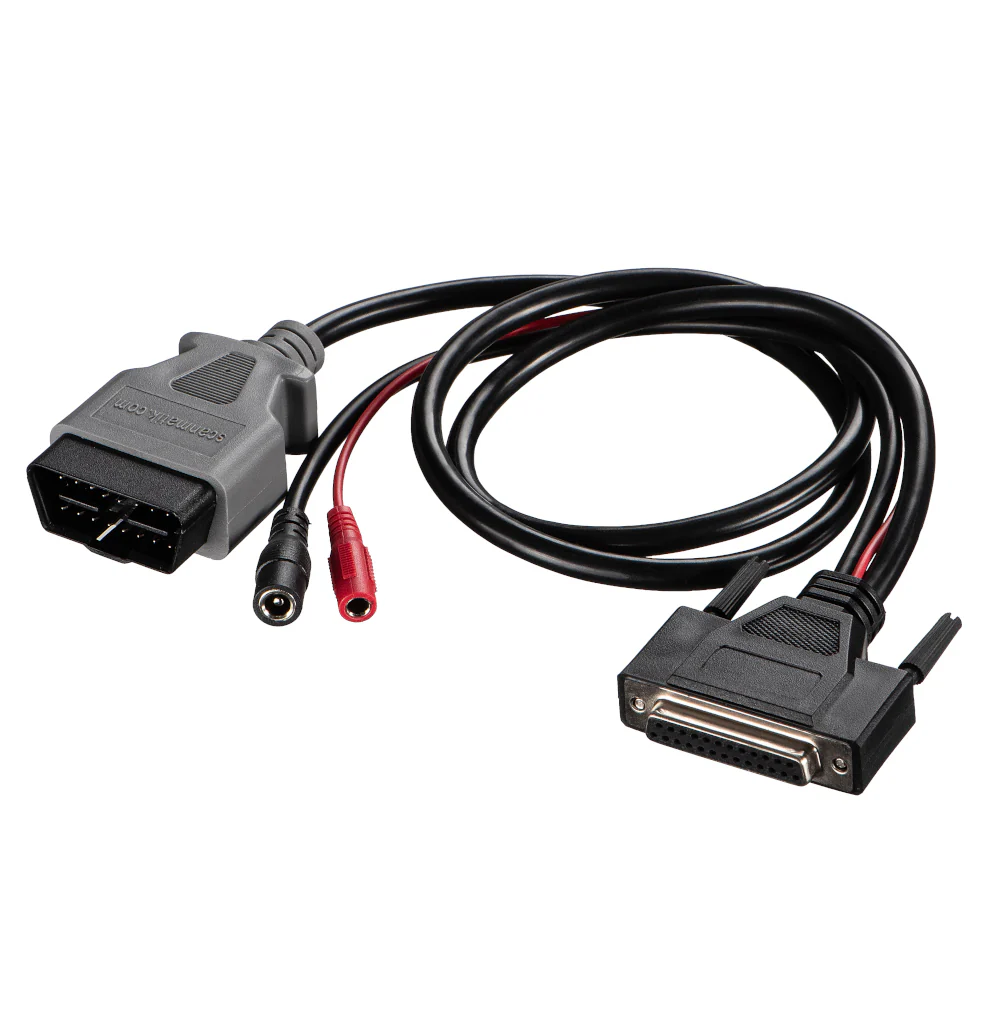

• OBDII with AUX cable

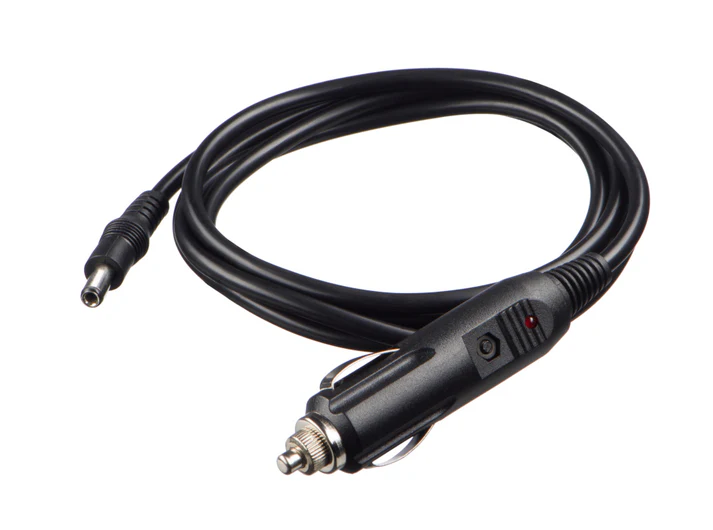

• Lighter Cable

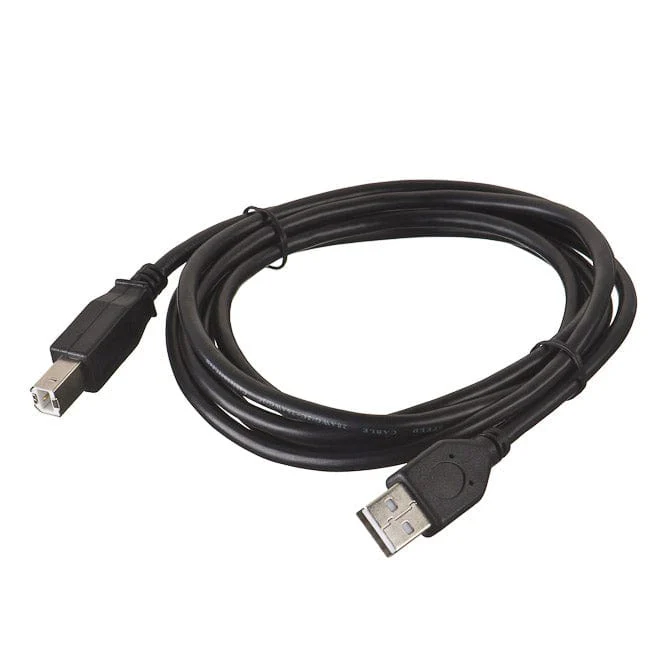

• USB A-B Cable

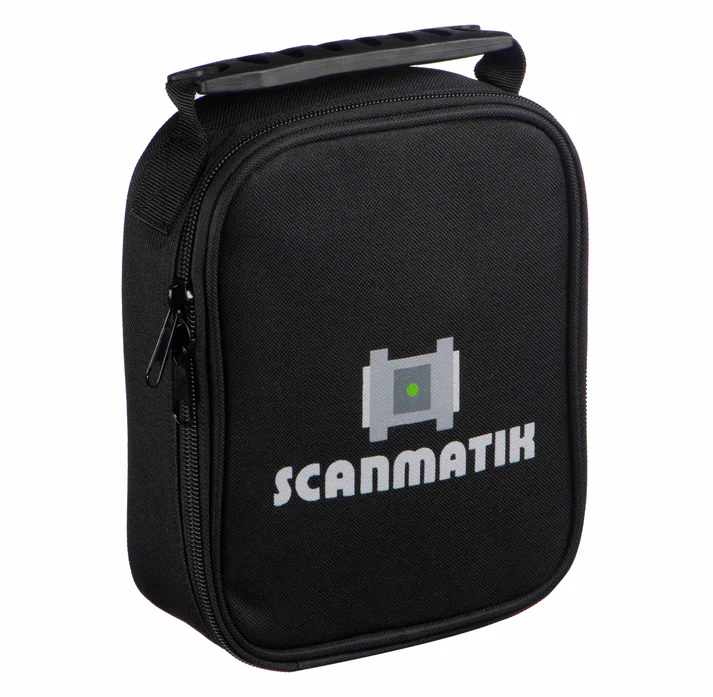

• Scanmatik-branded Bag (vertically handled)
