Scanmatik TunerWire

Product Description

Scanmatik TunerWire

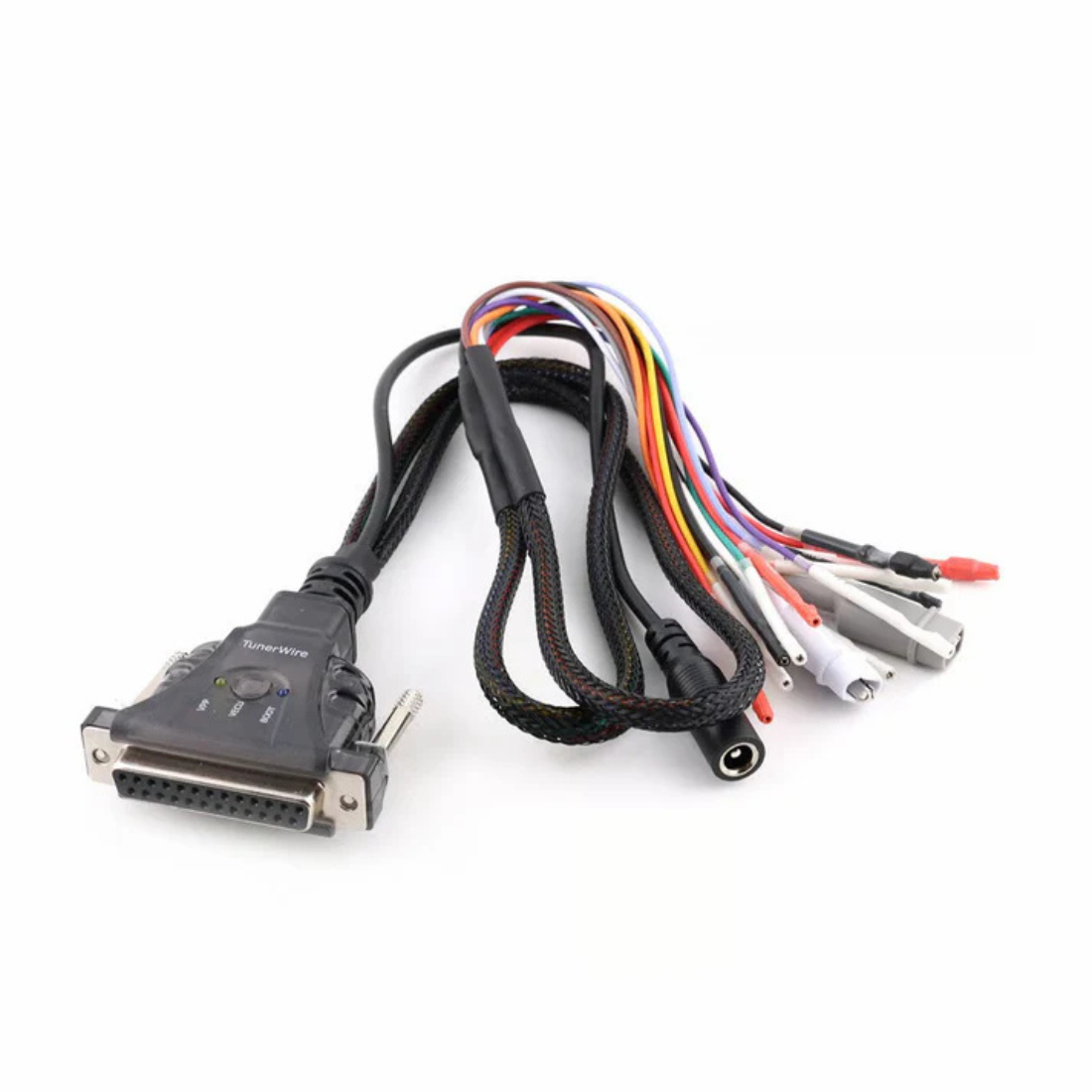

Universal TunerWire TW1 cable for Scanmatik 3 and ECU connection

Features

• Unique GPT signal conditioning circuit, eliminating the need for external capacitors/resistors for EDC family of ECUs, such as EDC7C32, EDC16CP33, EDC17C49 and many others.
• Tested on whole EDC/Simos family ECUs which are supported by PCMflash, BitBox, and Combiloader.
• ECU power supply override push-button switch with built in VECU line status indicator.
• Increased power-rating of CAN termination resistor ensures stable operation over time: it will not burn out or lose its characteristics if connected wrongly to the power pins of ECU.
• All signal and power lines are protected for short-circuits, overvoltage and reverse polarity.
• Increased power MOSFET switch suitable for ECUs that require high inrush current (up to 8A).
• Convenient shaped BOOT/CNF alligator clips, do not slip or twist during operation.
• Wires are color-coded according to PCMFlash specification
• Terminal tips are made of rigid heat-shrink tubing to prevent bending during connection to ECU pins
• BOOT/CNF and Vpp line status LED indicators
• The bottom stand ensures stability on the table.
• Connectors for ECUs with “large” flat- or round-type terminals are included

Specifications:

• Supply voltage: 12…36V
• Wire length: 0.6 m
• Weight: 0.15kg

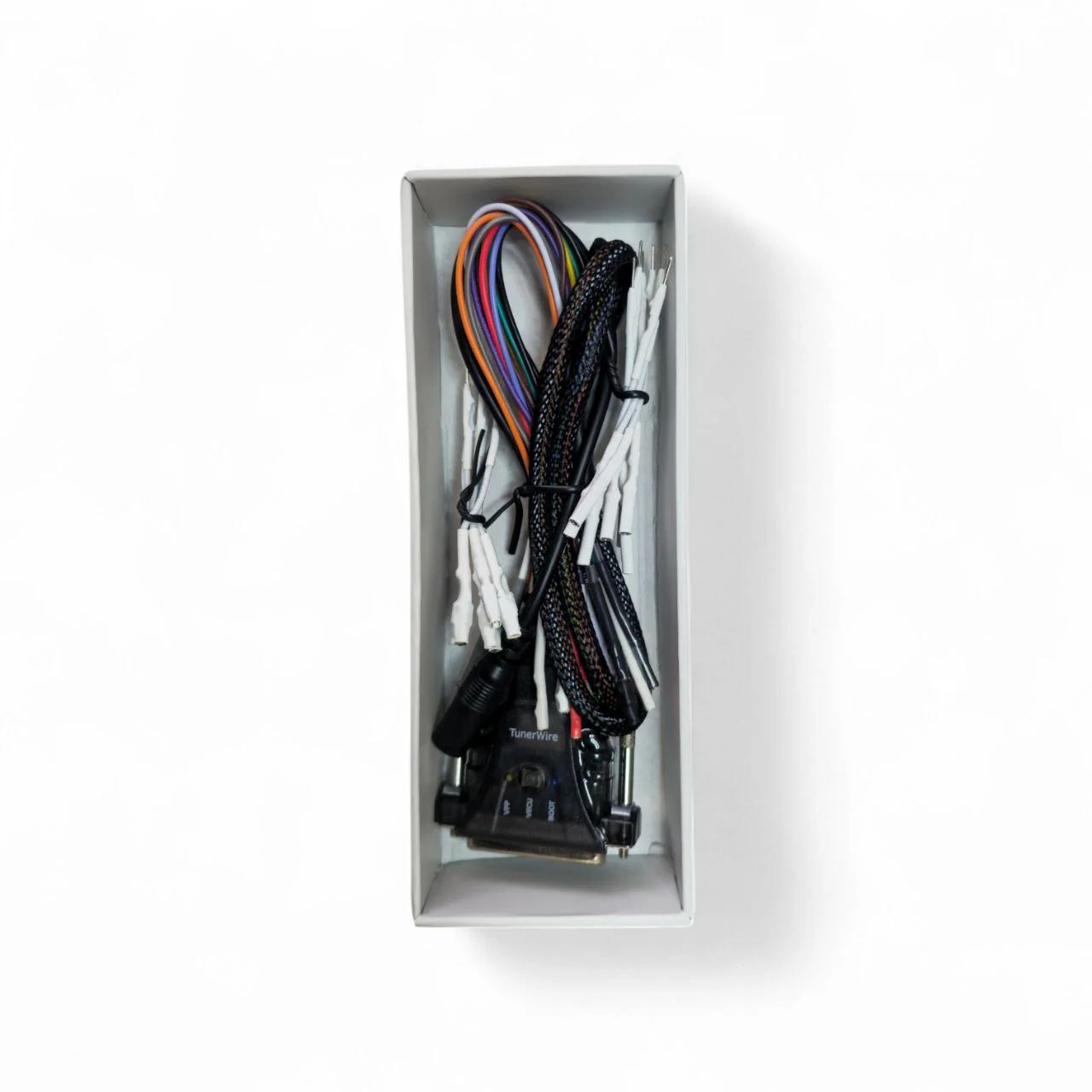

Included in the package:

• TunerWire cable

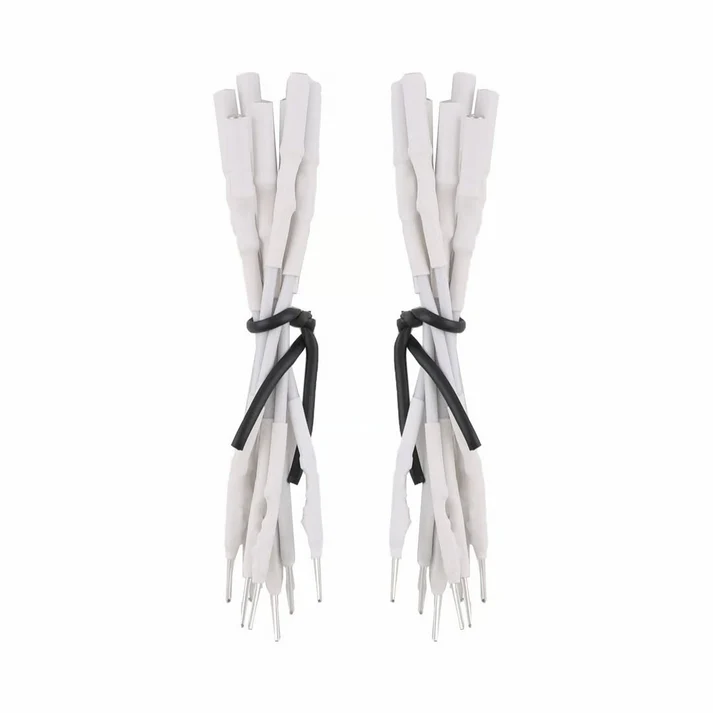

• 7-piece set of connectors for “big” flat pins (Lyra 2.1mm)
• 7-piece set of connectors for “big” round pins (2mm)
