Product Description

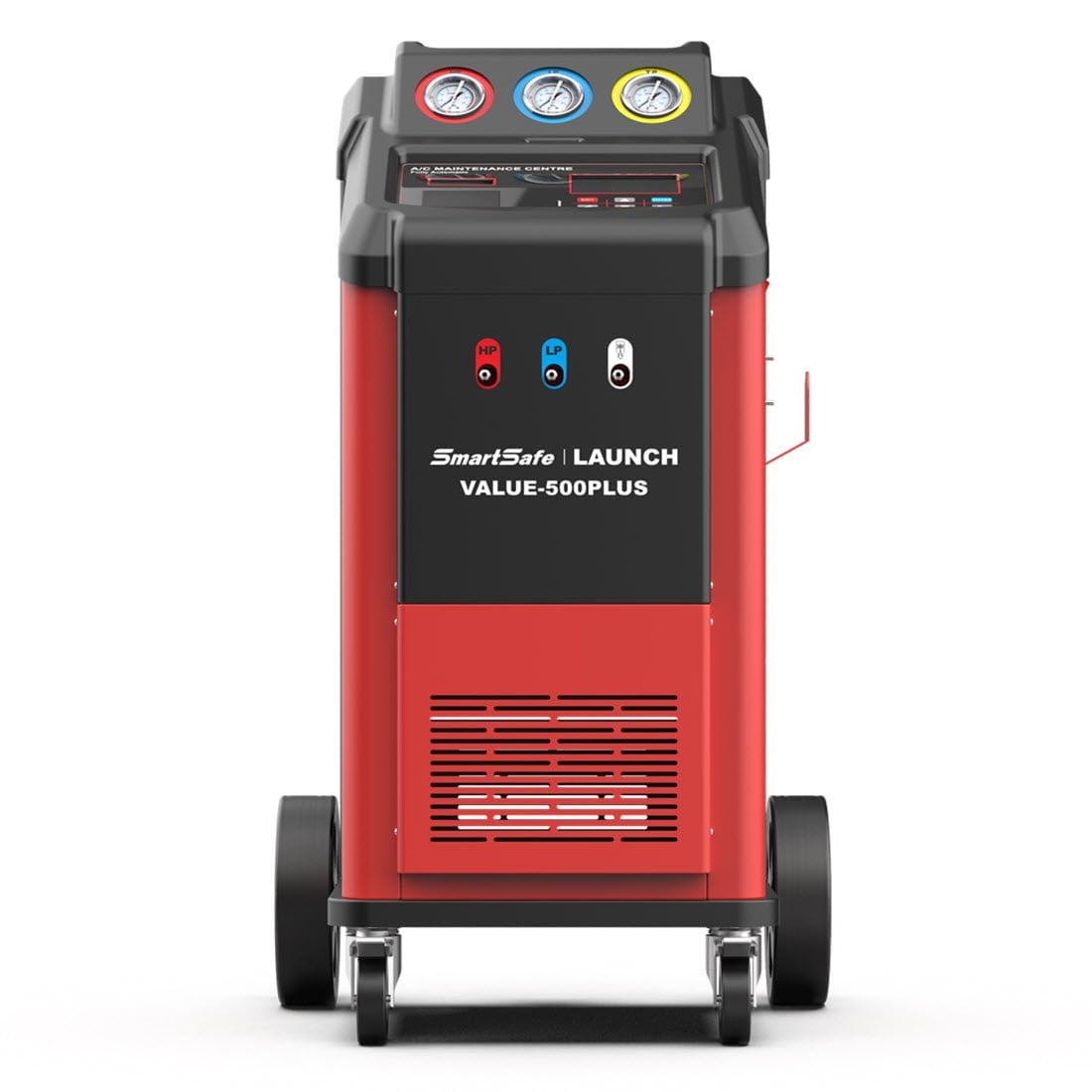

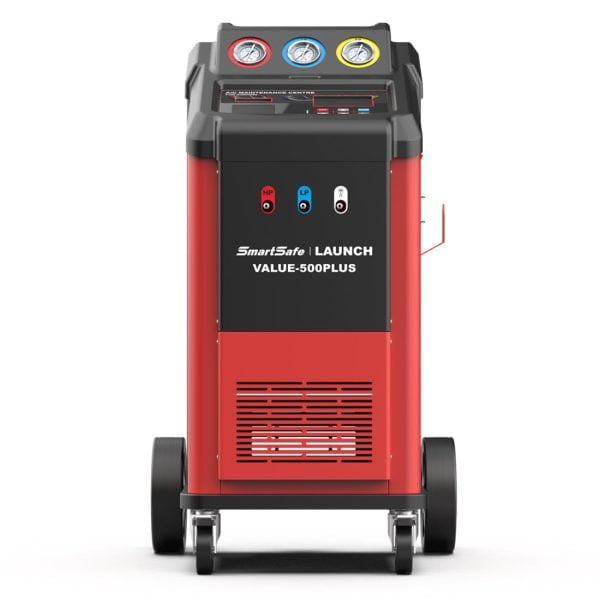

SmartSafe/Launch iSmart AC500 R134A Air Conditioning Machine
The iSmart AC500 air conditioning servicing machine provides automatic full service to automotive A/C refrigeration system which includes recycling, evacuation and recharging. With the built-in automotive A/C database, iSmart AC500 offers an accurate recharging service without disassembly and manual intervention. The AC500 Air Conditioning Machine integrates refrigerant recovery, filling, regeneration and vacuuming, air conditioning leakage detection,
Features:
- Fully automatic.
- Sleek design, with large sized glass tubes and an LED backlight which allow you to fully observe the cleaning process.
- Effectively filter the impurities of the refrigerant to reduce compressor wear.
- Vertically installed HP & LP gauges allow the operator to be able to observe the pressure parameters.
- Unique design of the pipeline to achieve the high recycling rate with both gas and liquid.
- Easy to use interface.
- Large LCD screen.
- Program and Database, with the database being updatable.
- Comes with a printer.
Specifications:
- Working conditions: Ambient temperature: 0 -50°C , relative humidity: <85%
- Voltage input: AC220V±10%-50-60Hz
- Compressor: 12.12cm³
- Vacuum Pump: 100L/Min, 2Pa
- Load cell for tank: ±10g
- Load cell for oil bottle: ±5g
- Tank: 12L
- New oil bottle: 280ml
- Used oil bottle: 500ml
- LCD Display: 240*128
- Working pressure: max. 20bar
- HP/TP gauge: -1bar-35bar
- LP gauge: -1bar – 20bar
- Backlight: LED
Contents:
- Main servicing unit
- High pressure coupler
- Low pressure coupler
- 3m high pressure hose
- 3m low pressure hose
- Expansion joint
- Power cable
- Seal for tubes
- Self cleaning coupler
- Manual
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All Smartsafe/Launch AC servicing machines come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday)
The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 1 year warranty are
Hoses and vehicle connection couplings
Service parts (Vacuum pump oil, dryer filter and labour to replace these service items)
Scales calibrations (if knocked out of calibration due to mishandling)
Database updates
Damage to machine due to ingress of stop leak additives that are on the market, You can prevent damage to your machine caused by these stop leak additives by fitting a Recycle Guard leak stop protection kit,
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, incorrect gasses, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop ready to work and can have it filled with AC gas, oils and dyes if requested (AC gas oils and dyes are a extra purchase)
And spend 2 hours onsite providing training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
AC consumables, Other AC tools and Equipment and parts
We also stock a large range of other AC products to support workshops in the AC servicing and repair business to include
Other AC tools and test equipment
AC consumables
AC parts to include compressors, Pressure sensors etc
If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €12.50 ex.VAT
