SmartSafe/Launch ADAS Radar Calibration Kit 3 in 1

Product Description

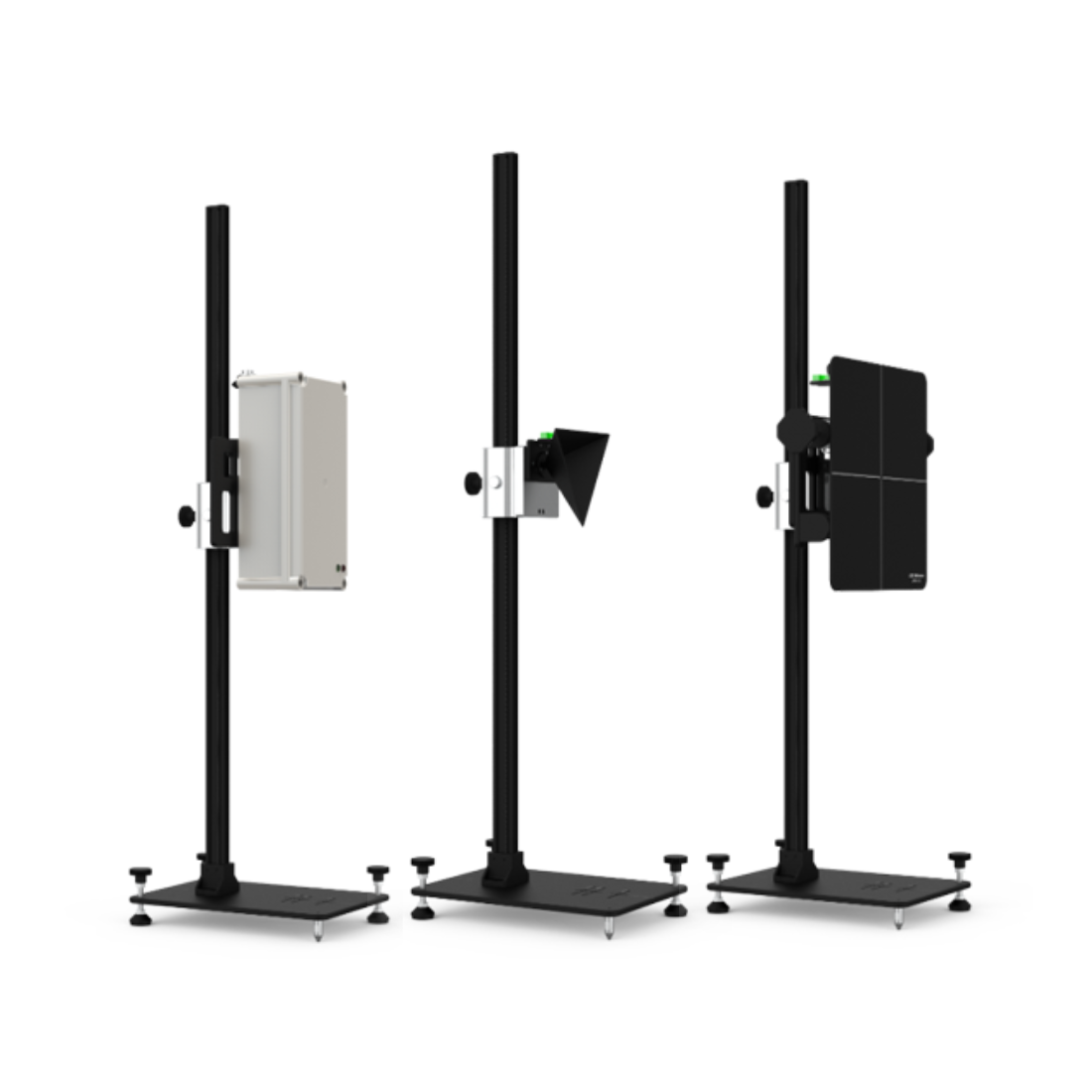

SmartSafe/Launch ADAS Radar 3 in 1

The SmartSafe Radar 3-in-1 calibration tool is a tool for radar system calibration and includes ACC radar target, corner reflector target, doppler simulator, three-in-one main frame and accessories. Support calibration for many Adaptive cruise control system, blind spot monitoring system, lane change assist system, front corner radar system.

Features:

• One machine with multiple functions, easy to switch between ACC radar reflector, corner reflector target and doppler simulator
• A economical and practical option for calibrating some Radars (no need for main calibration frame, but note this kit cannot do cameras and other ADAS componets or cannot be upgraded to do them)

Kit Includes:

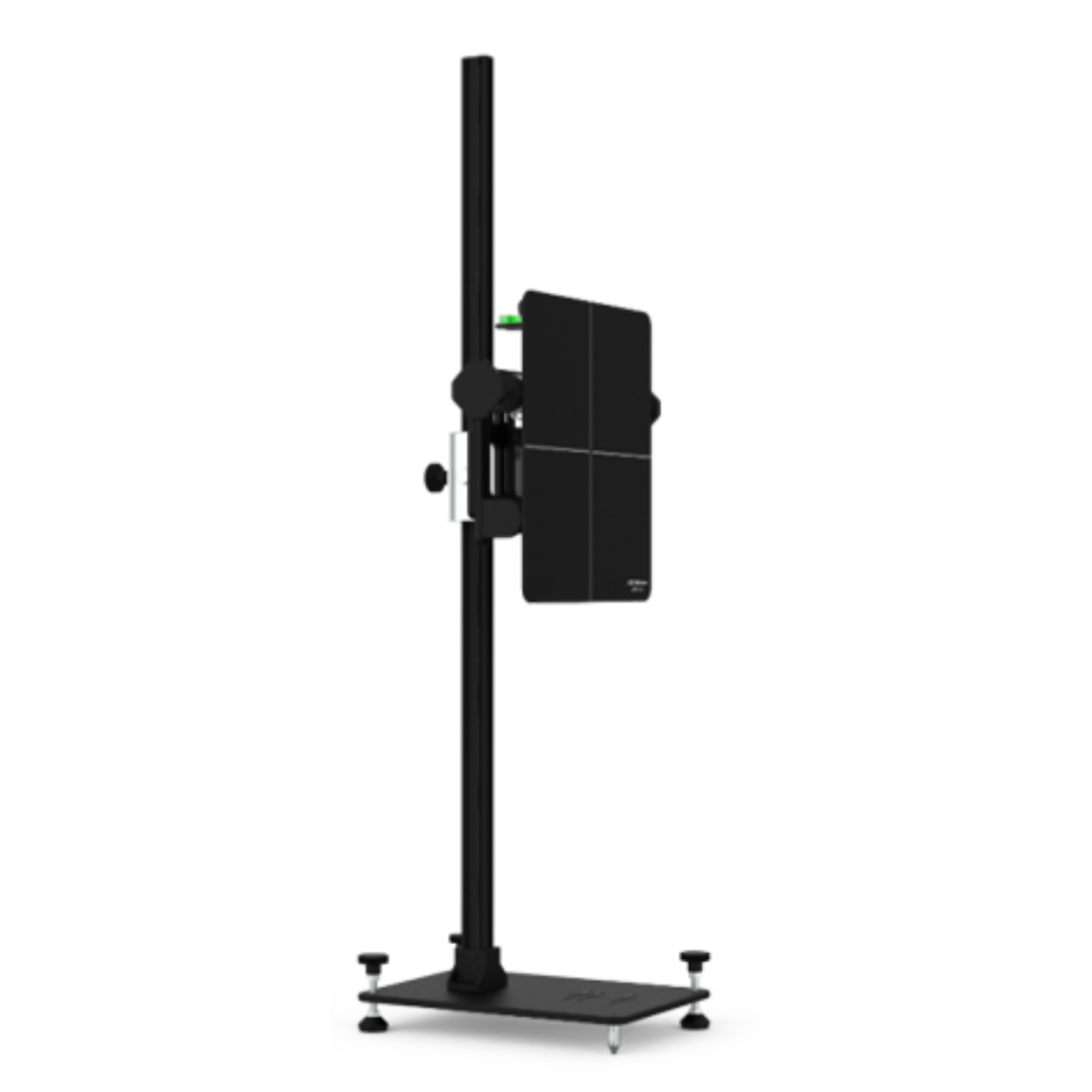

• LAM05-02 ACC Radar Target – For ACC (Adaptive Cruise Control) target for some Mercedes-Benz, BMW, Audi, VW, Porsche, SKODA, Seat, Romeo, MINI, Jeep, Nissan, Mitsubishi, Suzuki, Infiniti, Hyundai, Kia, BYD, GEELY, CHERY, etc.
• LAC05-03 Corner Reflector – For ACC (Adaptive Cruise Control), BSM (Blind Spot Monitoring) for some Toyota, Lexus, Honda, Acura, Mazda, Subaru, Mitsubishi, etc.

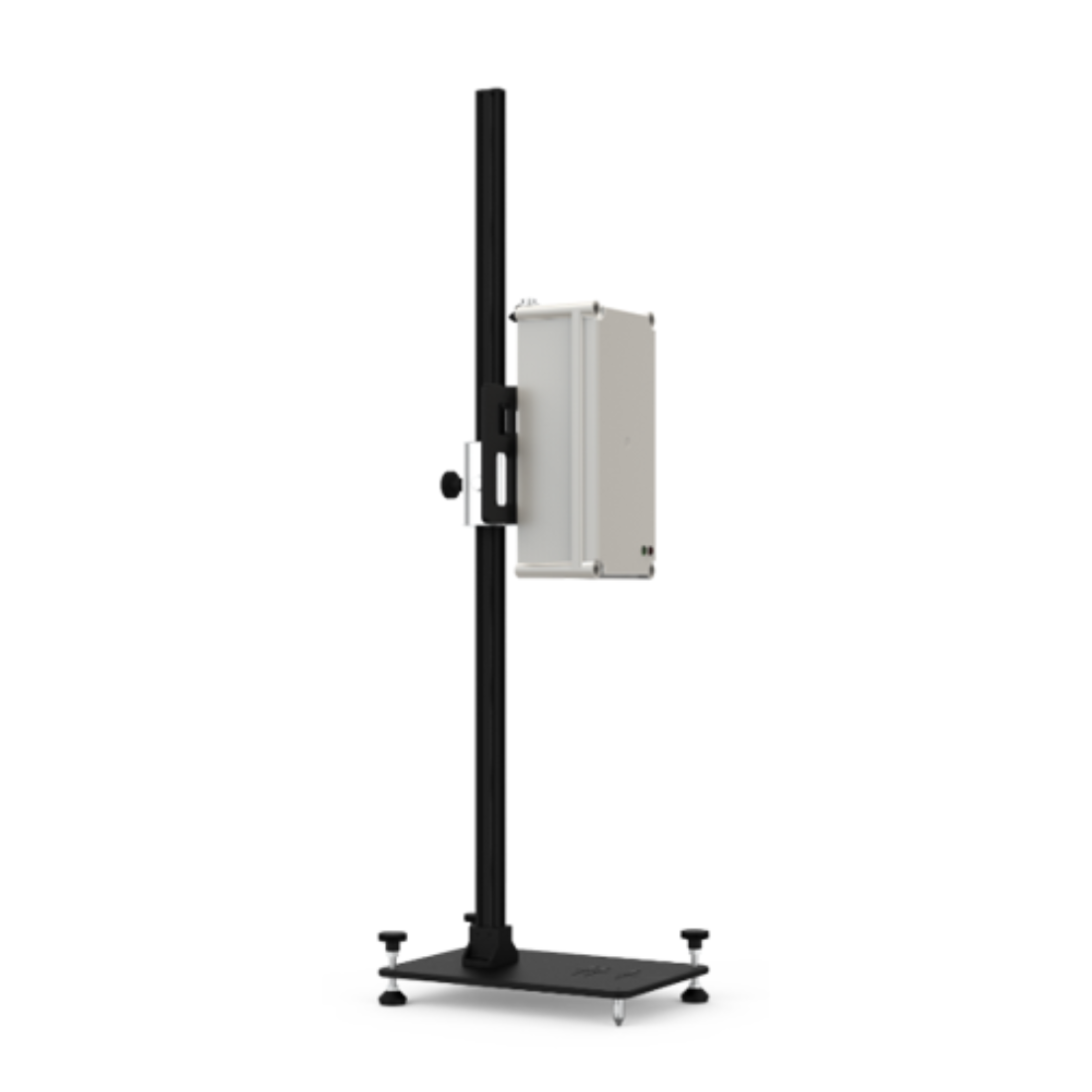

• LAC05-04 Doppler Simulator – For LCA (Lane Change Assist), FCR (Front Corner Radar) for some Volkswagen, Audi, SKODA, Seat, Mazda, etc.
• Main Unit x 1
• Mounting adaptor
• 5 line laser
• Laser reflector
• Auxiliary mirror
• Plumb line
• L-shaped positioning bracket
• Tape measure 10m

Codes: LAM05-02, LAC05-03, LAC05-04
