Product Description
SmartSafe/Launch iSmartTool ST06 With 2 Years Updates
Also know as the iSmartTool 601 Max
The ST06 is a 3 in one tool for diagnostics, TPMS and battery testing
What can be solved in your shop?
The SmartSafe/Launch iSmartTool ST06 tool is a powerful TPMS and diagnostic scanner tool, suitable for more than 98% of vehicles equipped with tire pressure system in the world. SmartSafe ST06 is specially developed for repair shops and tire centres to diagnose tire sensor faults. Therefore, iSmartTool ST06 is your ideal choice.
ST06 is not only a tire pressure sensor tester but also a multifunctional tool that integrates battery testing and car diagnosis. Regarding car diagnostics, it provides a more comprehensive solution for repair shops.

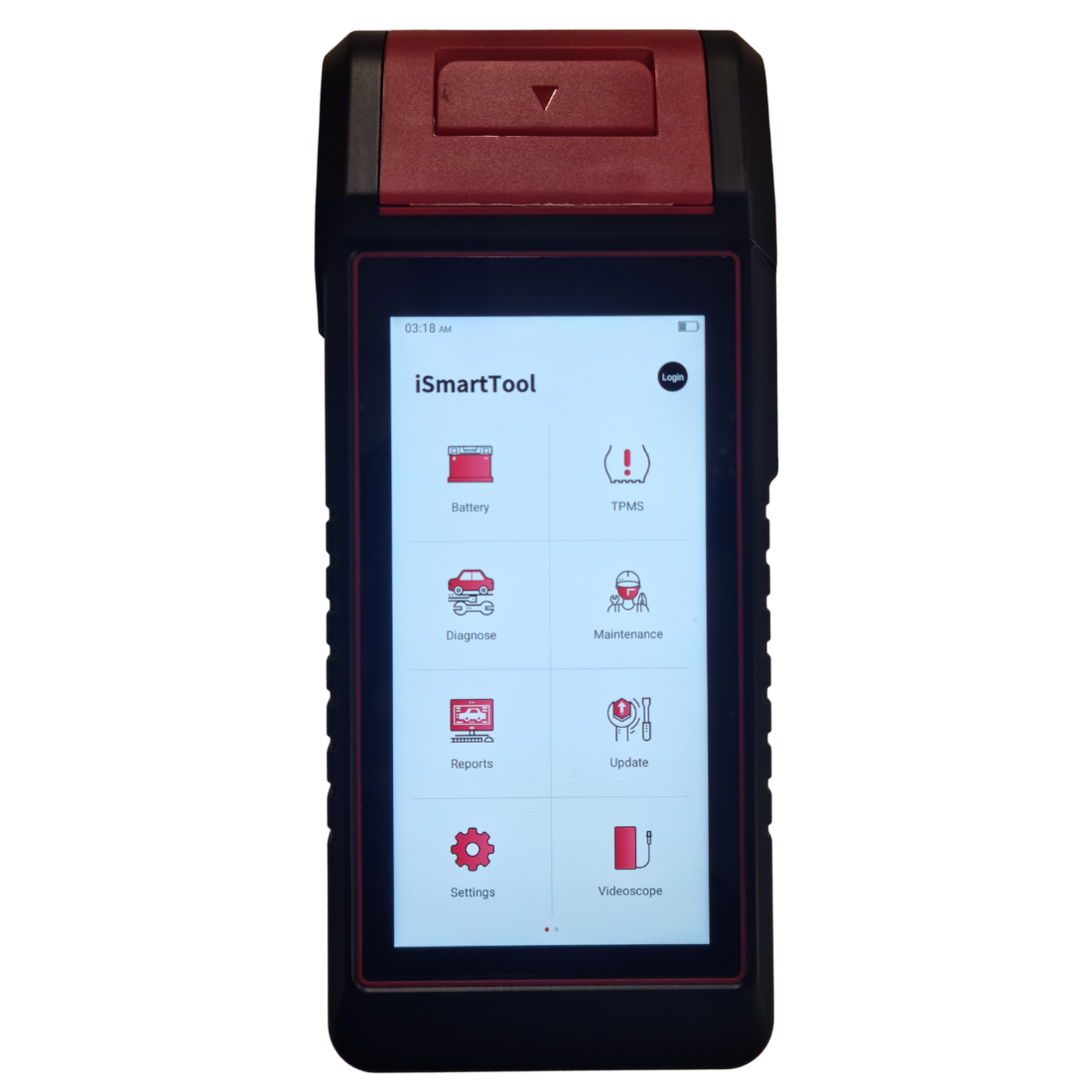

Main Functions

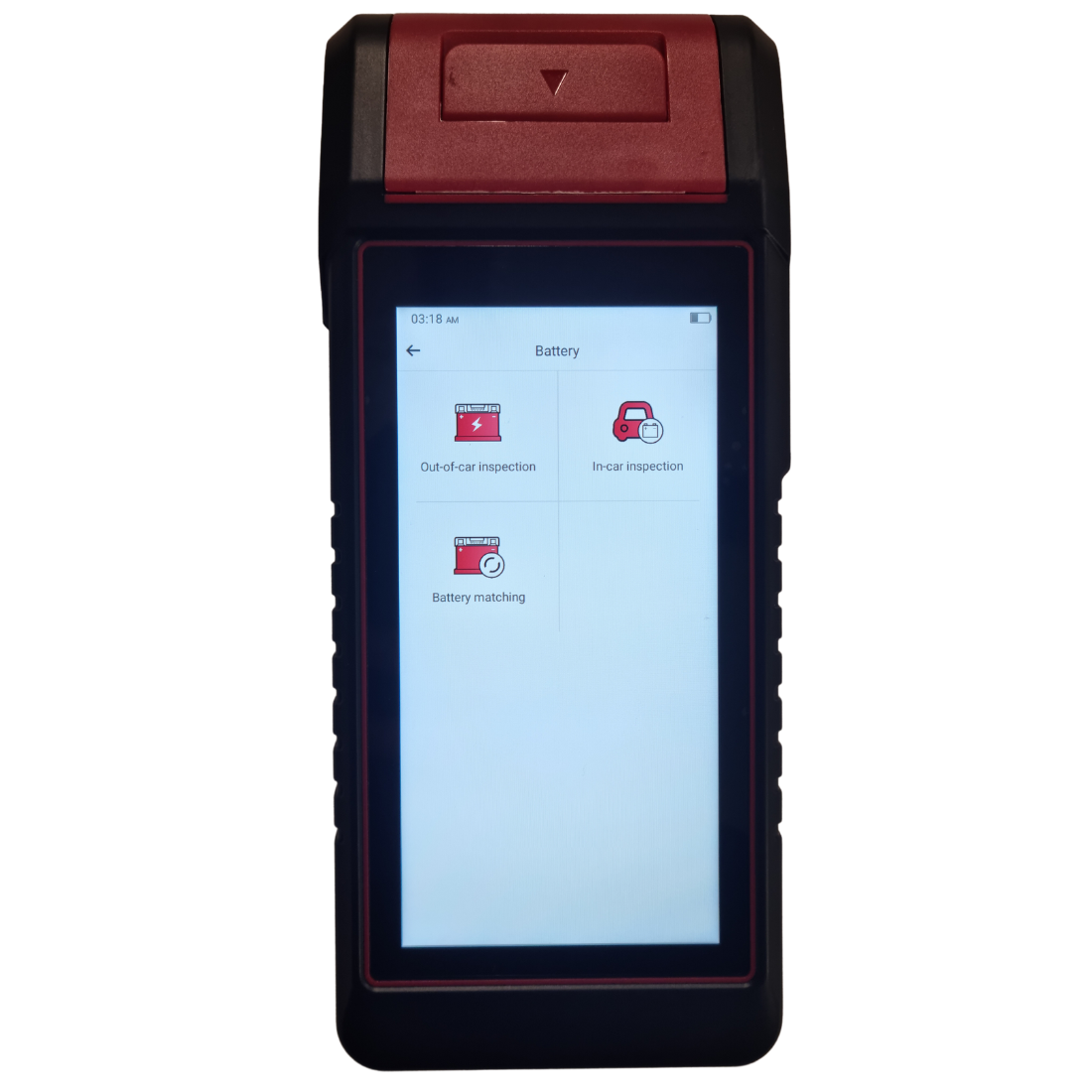

- Battery: In-car & out-of-car inspection. Battery health test, start-up test and charging test. Battery bar code scanning. Battery matching.

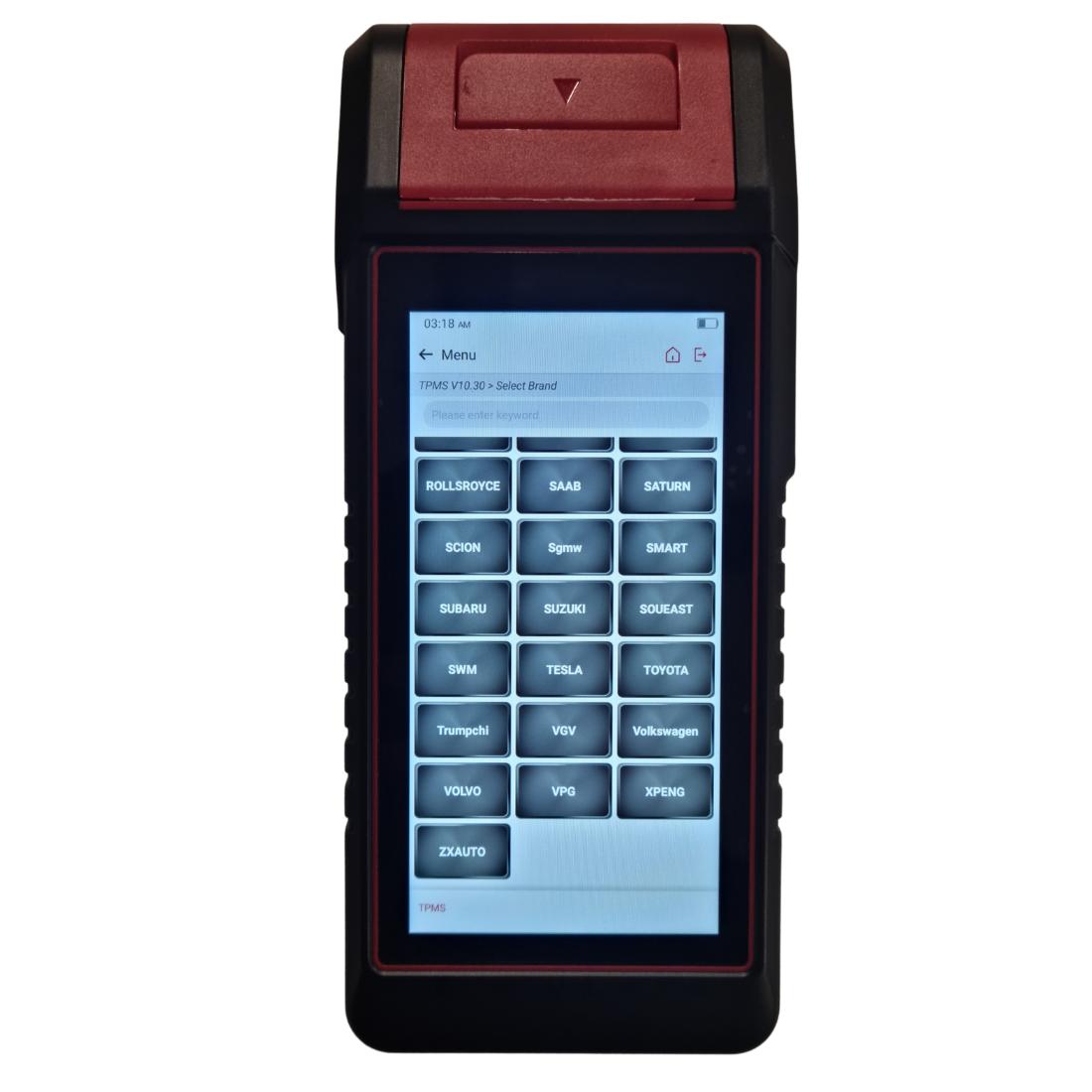

- TPMS: Coverage: over 98% of vehicles with tire pressure system in the world. 315 MHz/433 MHz tire presser sensor activation and matching learning. Tire pressure data reading: pressure, tire temperature, battery status, etc. Reading/coping/writing sensor ID value, compatible with OE and Launch and Thinkcar universal sensors, you can see the Launch universal sensor here

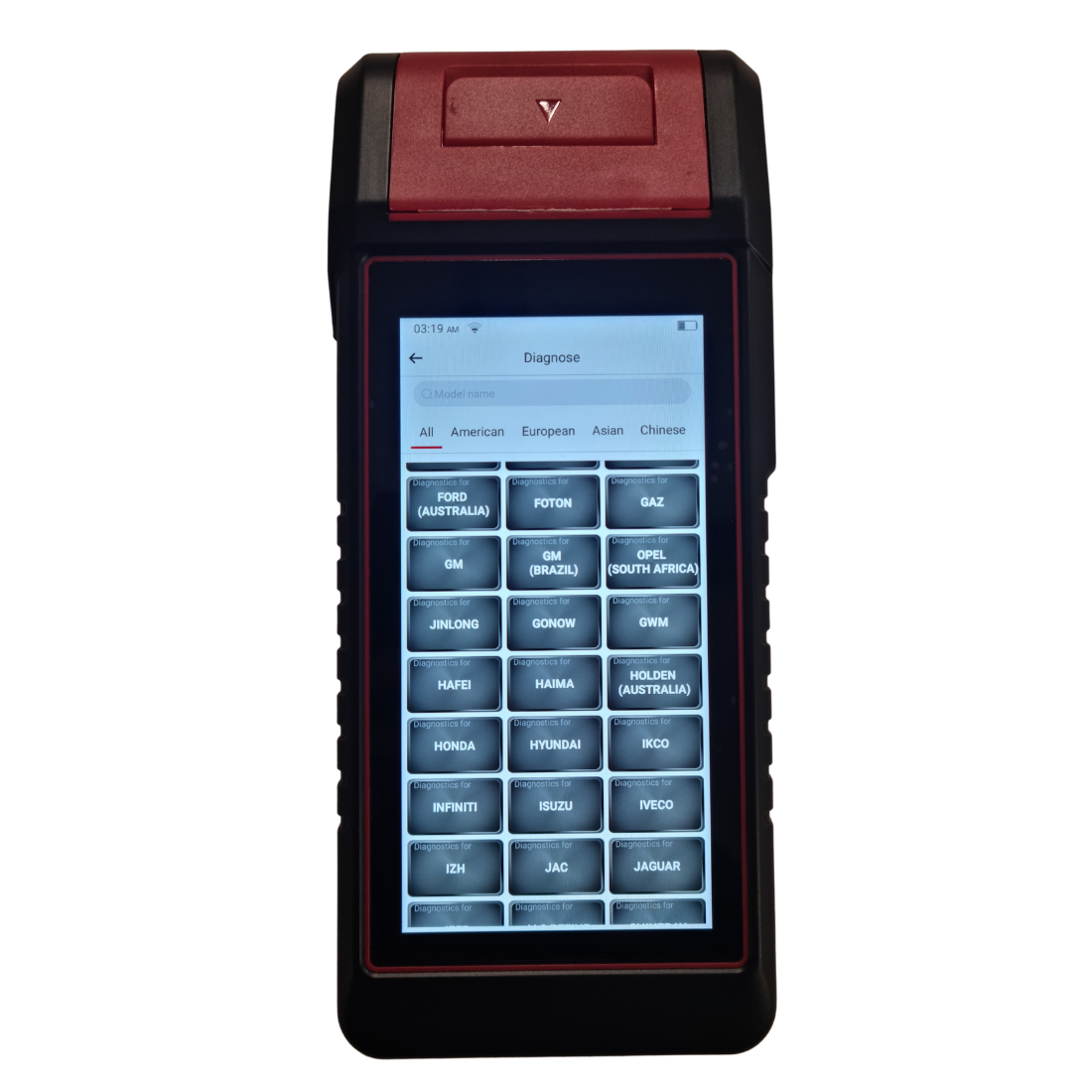

- Diagnose: Full system and full function diagnosis of more than 100 automobile brands in the world. Version information reading, code reading, code clearing, data flow reading, activation test, special function, etc.
- Maintenance: Support 26 common maintenance functions, such as maintenance light reset, throttle matching, brake
pad replacement, steering angle reset, anti-theft matching, ABS bleeding injector coding, DPF regeneration, sunroof initialization,
Gearbox matching, et
Other Functions:
- Test Report: Support the display of battery tests, tire pressure monitoring, fault detection, data flow and other reports.
- Tool Software Upgrade: Support online upgrades, including model software, firmware software, and APP software
- Module Expansion: Support the expansion of videoscope functions

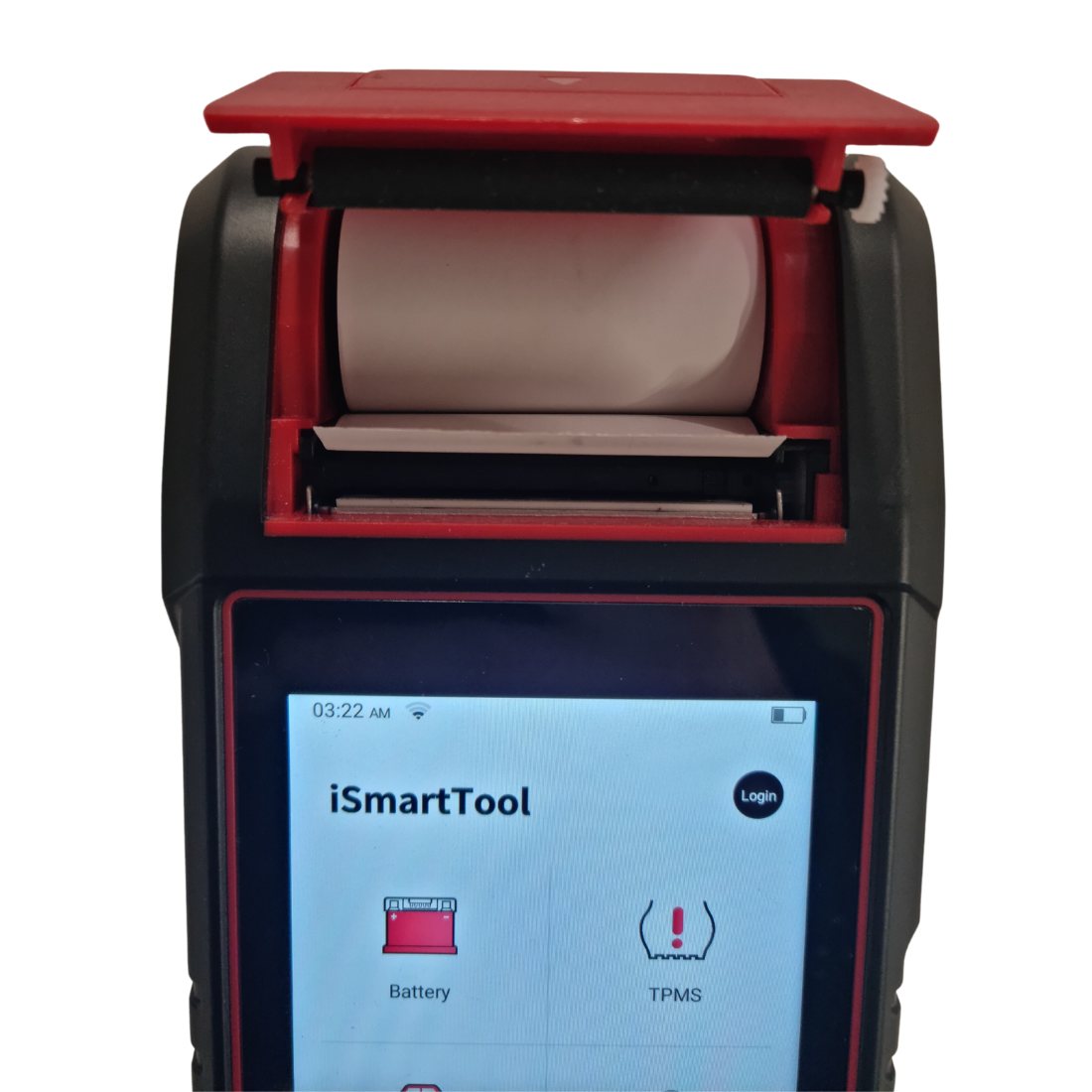

- Report Printing: Support printing reports through the built-in thermal printer
Features
- Can test all automotive starting lead-acid batteries: ordinary lead-acid batteries, AGM flat batteries, AGM winding
batteries, colloidal batteries, etc.
- Supports common battery standard test: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB.
- The bad cell can be detected directly; Directly test the battery with power loss, and there is no need to fully charge it
before testing.
- Directly detect the bad cell and batteries under voltage, no need to charge the batteries before testing.
- Polarity reverse connection protection function: battery clamp reverse connection will not damage the
equipment, nor will it have any adverse impact on the car and battery.
- Test report: directly printed or shared by email to provide online report viewing
Specifications:
- CPU: 4 Core 2.0GHz
- System: Android
- Memory: 4GB
- Storage: 64GB
- Display Size: 5.99 inch
- Resolution: 720 X1440
- Battery Capacity: 4500mAh/7.6V
- Camera: 8MP
- Wi-Fi: 2.4GHz/5GHz

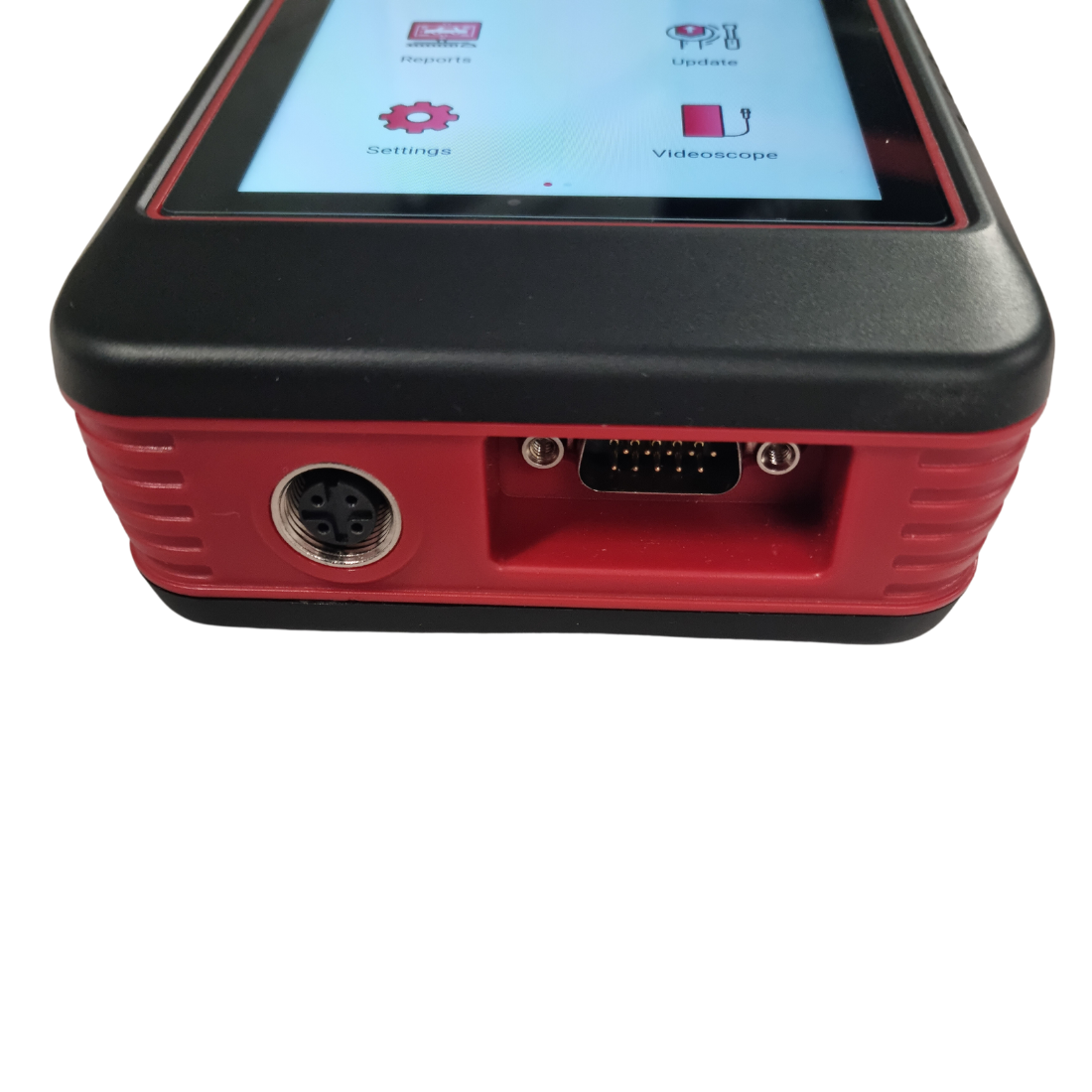

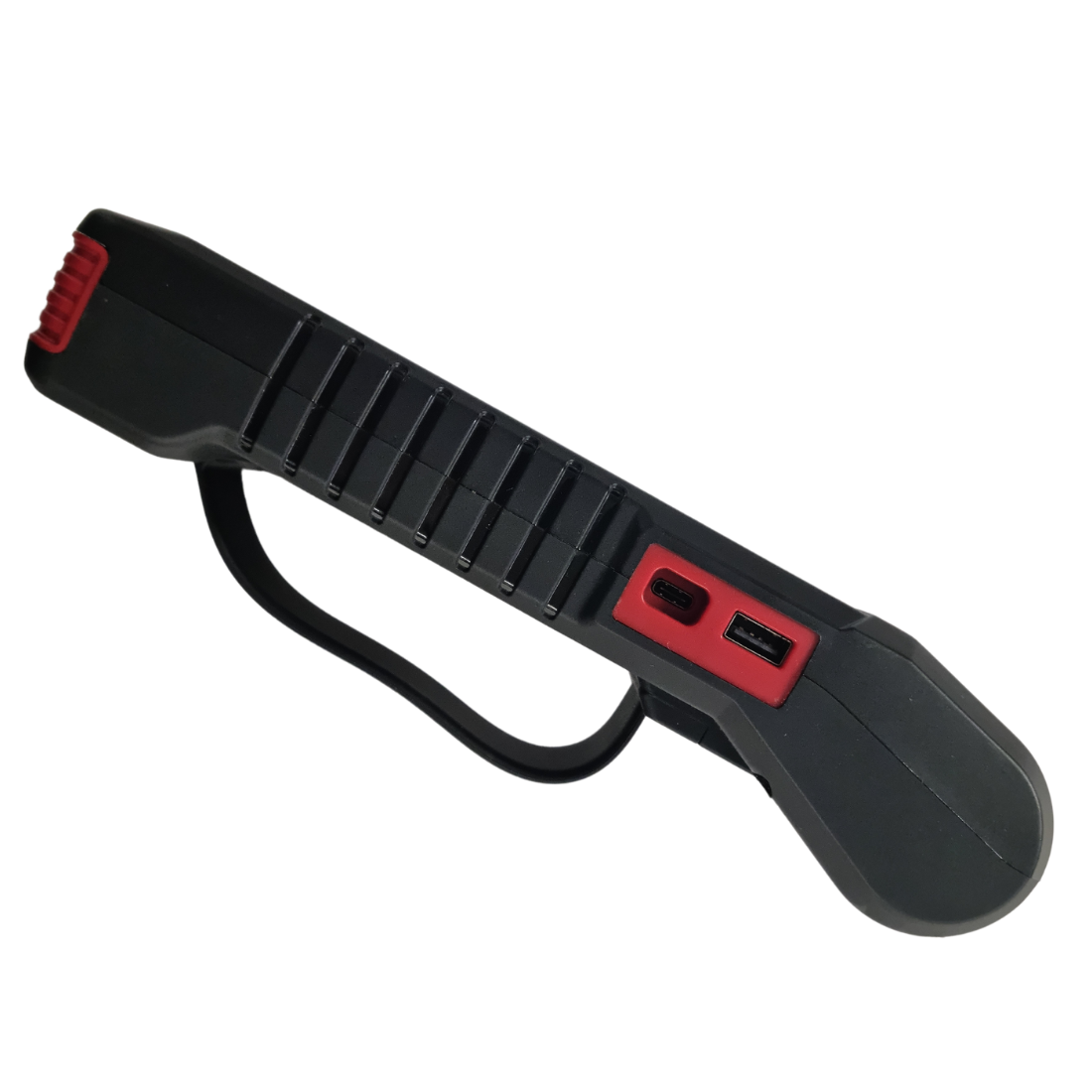

- Interface: DB15 diagnostic connection, Battery clip connector, USB Type A, USB Type C
- Working Temperature: 0~45°C
- Storage Temperature: -10~60°C
- CAN FD and DOIP compatible

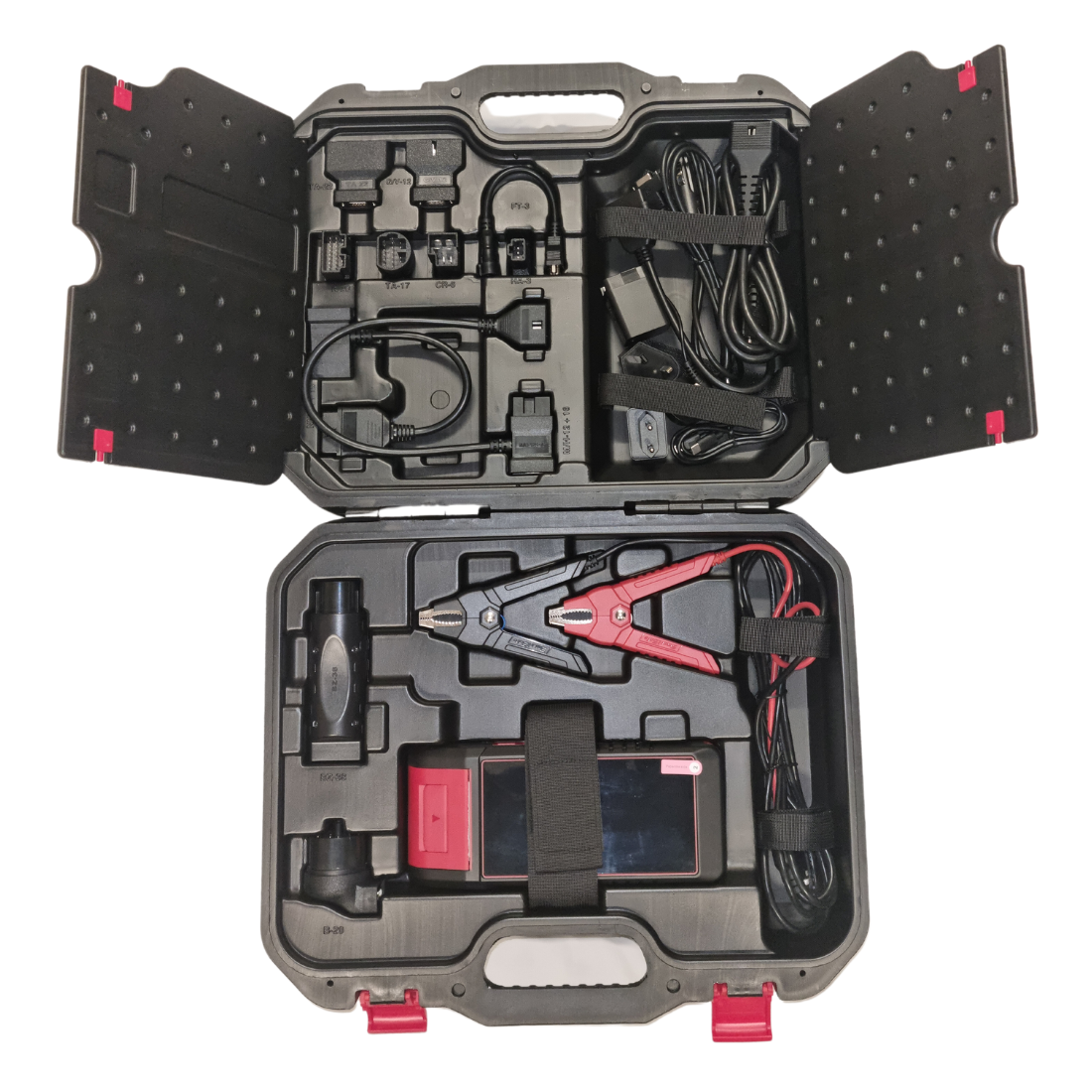

What’s in the box?
- iSmartTool
- OBD Diagnostic cable
- Battery cable clamps
- External power adaptor
- USB cable
- Password envelope
- User manual
- Cigarette lighter cable
- OBD I adaptor box
- Non-16pin adaptor cable kit
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them every day in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.
Warranty
All SmartSafe diagnostic tools come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).
Items excluded from the 1 year warranty are
Cables and OBD connections,
Problems caused by other APPS or other software’s that the user installs on the device
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.
Delivery and Training
Ryan’s Automotive or a courier will deliver the unit to your workshop registered and updated and ready to work,
And spend 1 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
We also can provide extra chargeable training if required.
Support
Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
Additional support packages are required for vehicle technical support.
Not included in the support
Technical information that is found on systems like Autodata, Alldata etc,
The above support does not include vehicle technical support but we are always willing to help customers were we can.
Repairs not covered by the warranty and after the warranty period
For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
1 Log into the unit via team viewer
2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
If you are a customer located in Ireland, spend €150 ex.VAT or more and get free delivery, or for orders under €150 ex.VAT delivery costs €12.50 ex.VAT
