Support For Transmission Jack For Removal And Refitting Of Transmissions

Product Description

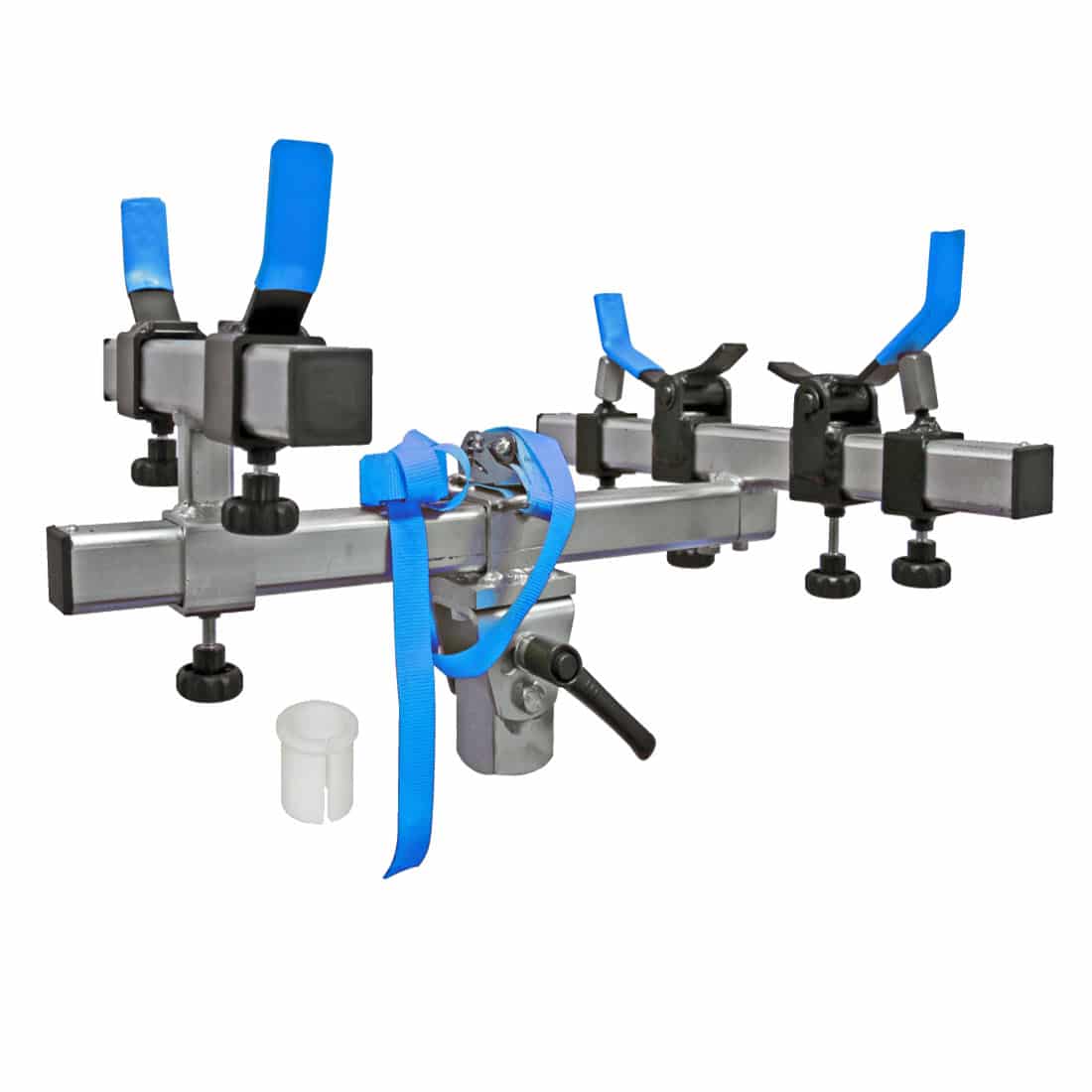

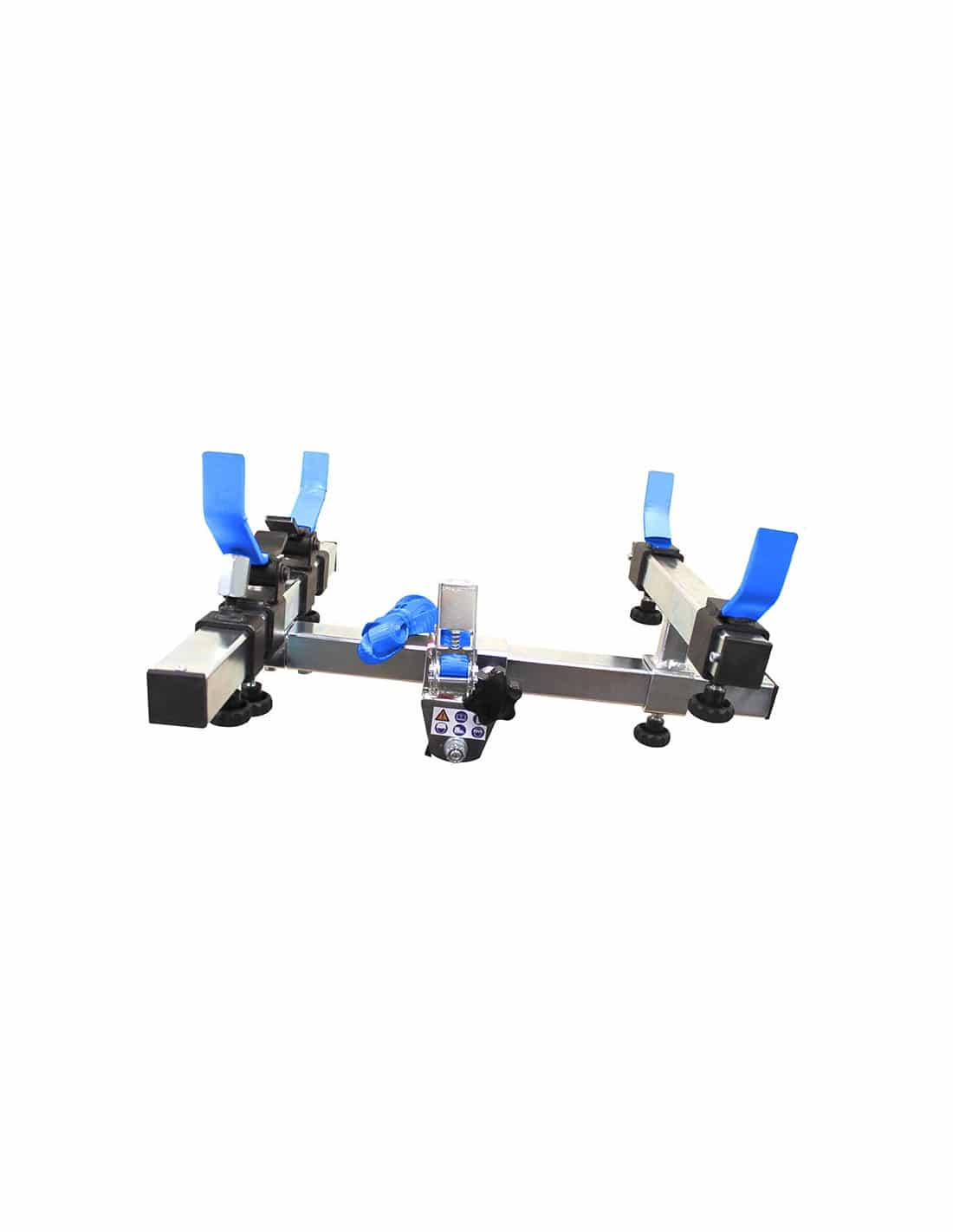

Support For Transmission Jack For Removal And Refitting Of Transmissions

Universally applicable for gearboxes, automatic transmissions and DSGs as well as differential gears etc. The front and rear support arms can be adjusted in distance, tilt and angle providing a secure grip during application and removal.

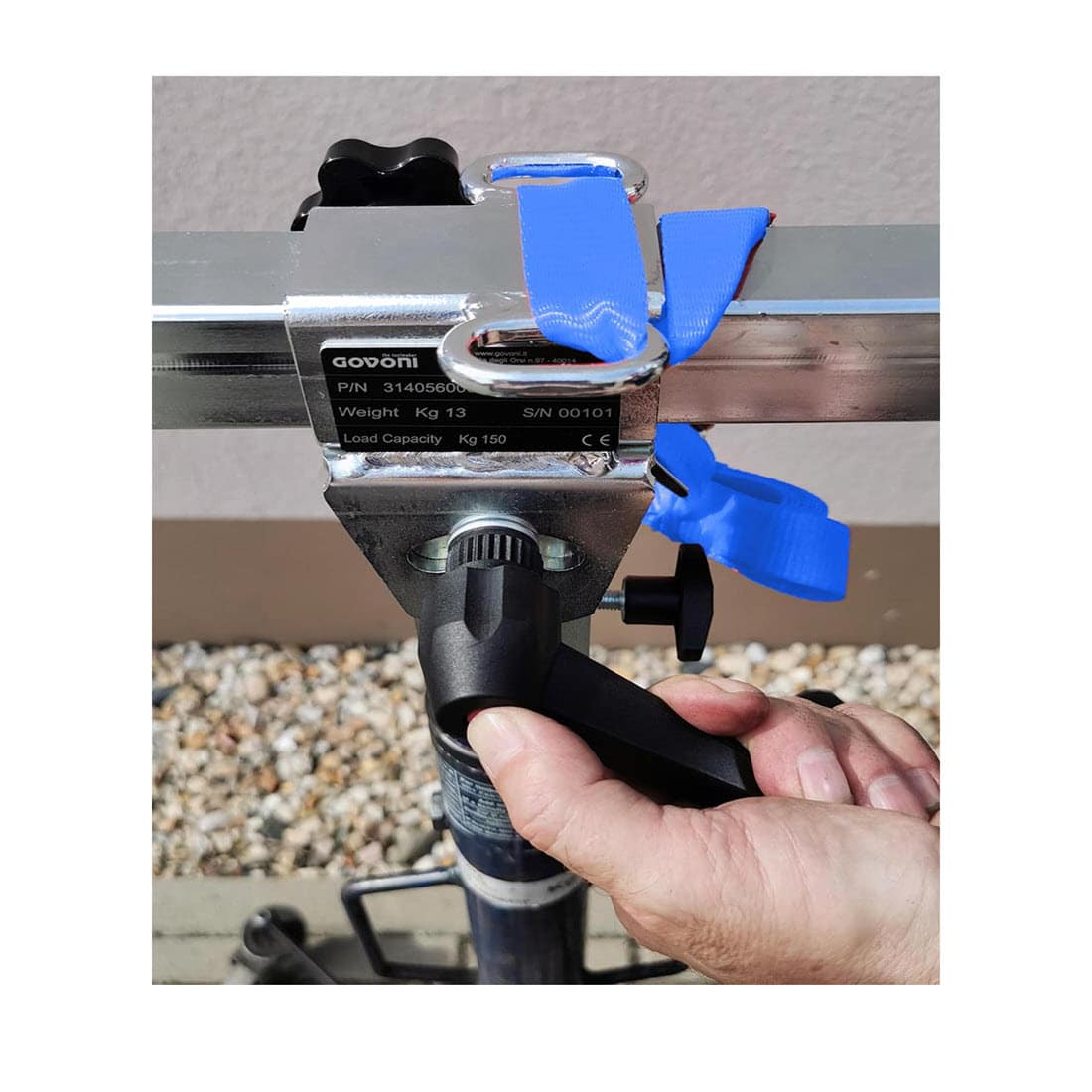

The tool includes an adapter for transmission jack  piston rod Ø30mm.

Technical data

• Weight: 13 kg
• Max. load bearing capacity: 150 kg
• Length/width: 490 mm/460 mm
• Assembly: Ø 40 mm
• Forwards/backwards tilt: ±35°
• Left/right tilt: ±5°
