TESTBOY TV 900 EV Charging Station Test Adapter

Product Description

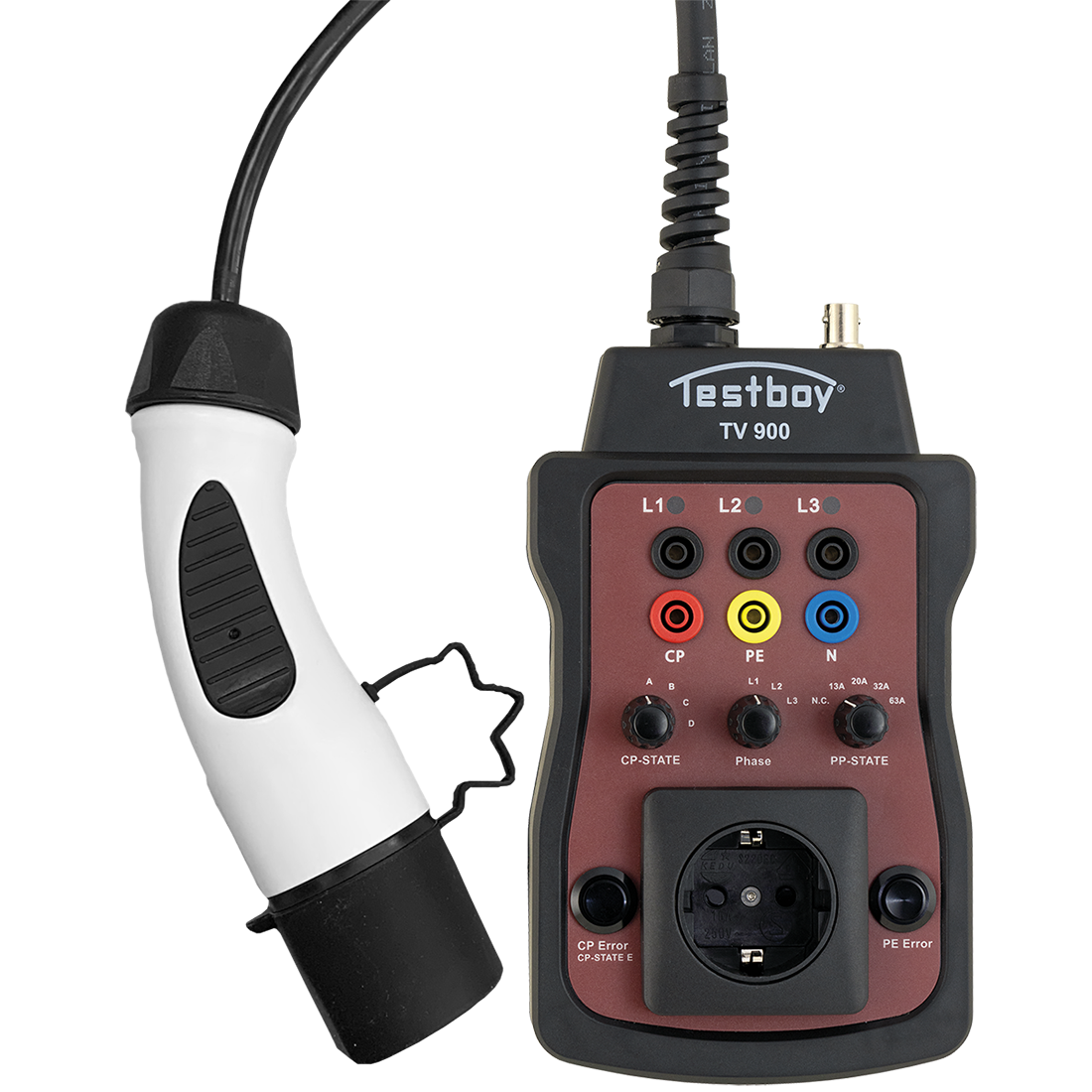

TESTBOY TV 900 EV Charging Station Test Adapter

More and more charging stations for electric cars being installed across Europe. Testboy has developed the TV 900 measuring adapter, in order to be able to test the Type 2 charging stations standardized in Europe. The TV 900 takes over and simulates the communication with the charging station and electric vehicle. An installation tester or multimeter can be connected via the 4mm banana socket. Thus a test with a VDE0100 tester, such as the Testboy device TV455. The built-in LEDs indicate whether and how many phases are present. One of the three phases can be connected to the built-in Schuko socket. This allows each phase to be tested individually.

The instrument simulates a connected electric vehicle and enables various charge states to be simulated. The TV 900 has various measuring and tapping points. To switch on the instrument, connect the type 2 connector to a charge column. When the charge column is enabled, the LEDs indicate the phase(s). The “CP-State” (Control Pilot Resistance) rotary switch can be used to simulate
various charge states. The banana jacks enable testing using various test leads. The BNC jack enables an oscilloscope to be used. Additional measuring instruments can be connected to the socket. The phases can be switched with the relevant rotary switch. The “PP-State” (Proximity Pilot Resistance) switch can be used to simulate a cable (N.C., 13 A, 20 A, 32 A, 63 A are selectable).
The “CP-State E” and “PE Fault Simulation” buttons can be used to simulate fault states. E.g. a PE conductor break.

Features:

• Suitable for wallboxes with or without cable and portable chargers/granny cables
• Connection option for installation tester or multimeter
• Direct phase check via LED display
• Built-in Schuko Socket with phase changeover

Specifications:

• Frequency Response: 50 Hz
• Dimension: 215 x 120 x 60 mm
• Weight: 1025 g
• Scope of delivery: Carrying case
