Nitrogen/Hydrogen Basic Kit from Wigam

Product Description

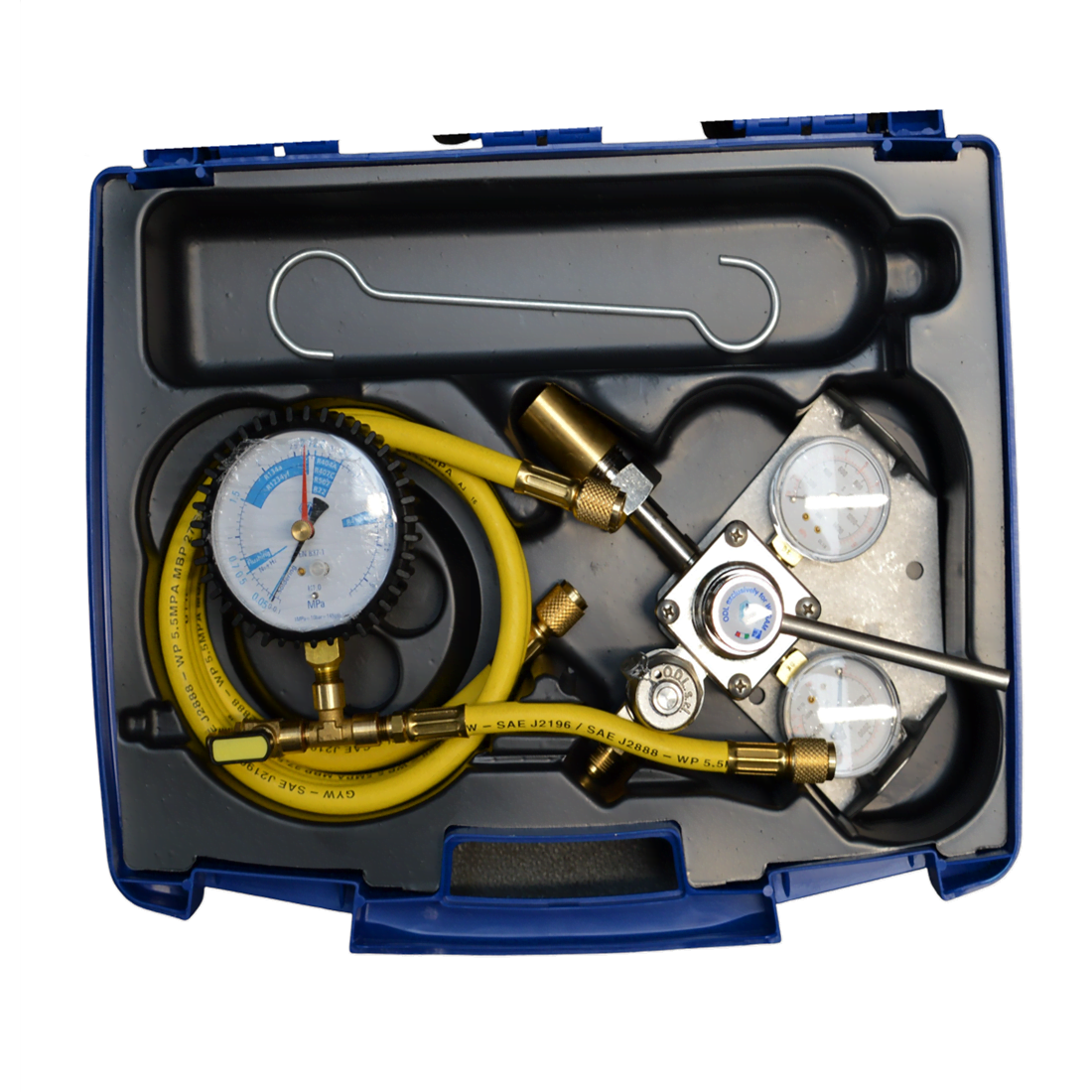

Universal Leak Detection Kit K-AZ200-50-E
N.B Quick Couplers, Nitrogen bottle and Sniffer not included

Thanks to its high maximum operating pressure (50 bar), the kit can be used to pressurize A/C systems with both nitrogen and AZOIDRO (Nitrogen/Hydrogen mix), with cartridges or cylinders. The heavy duty professional nitrogen regulator AZ200/50 with dual integrated connection for cartridges and cylinders (no external adapter required) and “High Performance” safety valve allows to pressurize the system to the value necessary to perform the check.

Technical Specifications & Features:
• AZ200/50 nitrogen regulator with dual connection. Adaptor suitable for 1 litre N2-H2 bottles and also Stargas 10 liter bottle (GB Type G5/8″ M BS341 Nr3)
• Control pressure gauge Ø80, class 1 with positioning index and adjustment screw.
• 1/4 “SAE flexible hose, 1800 mm + 200 mm.
• Connection: G5/8” M BS341 nr3

*Contact us if you need couplers/adaptors to suit this kit *
