Product Description

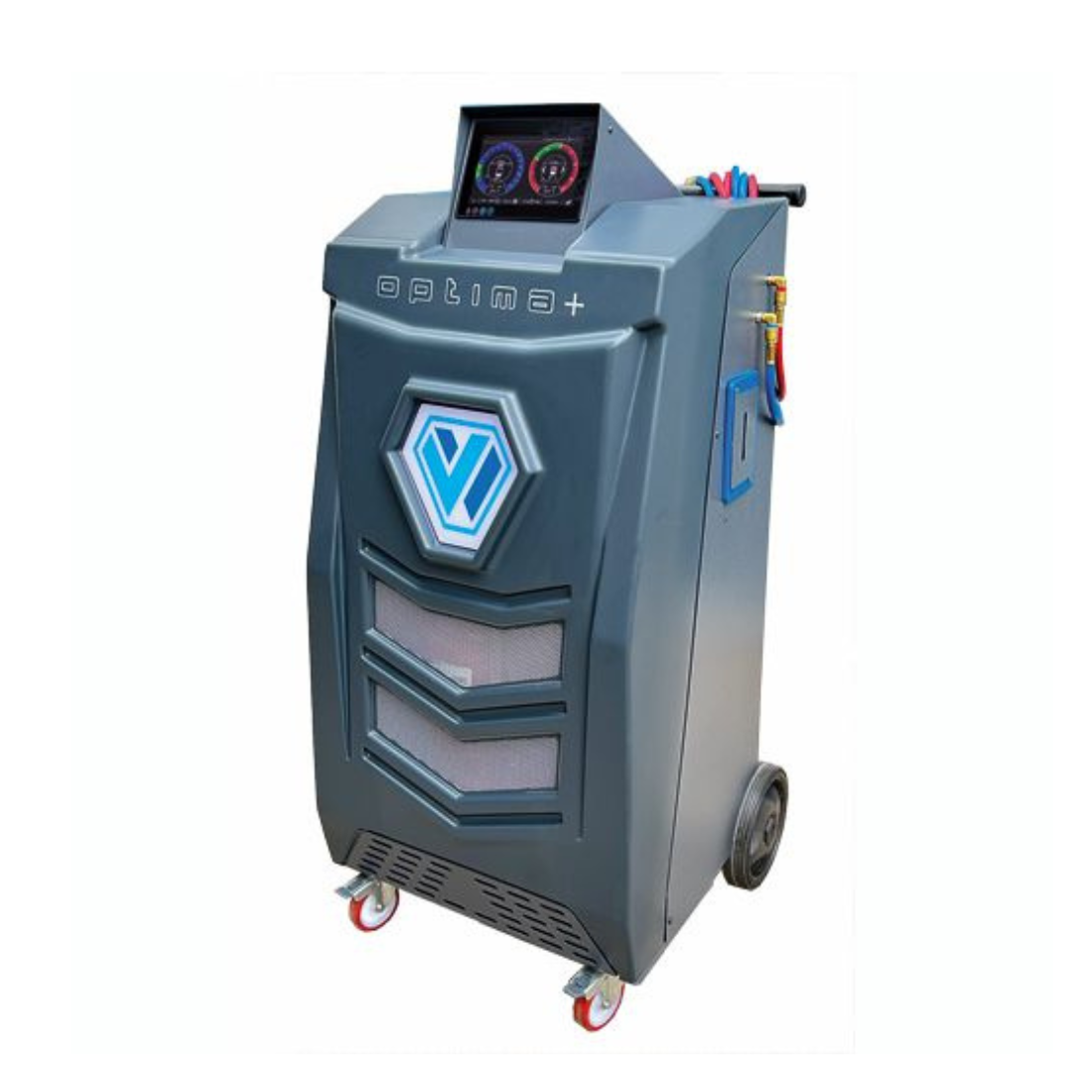

Wigam Optima P-Variant Air Conditioning Machine For R1234YF Or R134A (R456A)
(Must decide at date of purchase which gas you wish to use it for)
Automatic recovery, recycling, vacuum and charging unit with 7″ touch screen and printer
OPTIMA is the latest unit born in the Wigam factory. It represents the New Generation of Stations for recovery, recycling, vacuum and charge for the maintenance and repair of vehicle air conditioning systems.
Totally designed and produced by Wigam, Optima includes the most innovative features on the market today, combining “Technology and Simplicity” in perfect harmony.
Thanks to its New 7” Touch Screen Display, Optima can be set up according to one’s own working habits, by choosing among multiple options and personalizing the daily use.
In compliance with the WIGAM tradition, OPTIMA enjoys a design concept that allows the maximum accuracy of the refrigerant quantity, both in the recovery and the charging phase, in line with the industry standards and in full respect of the environment. The 3 independent scales with 1g resolution, managing Oils and Additives, allow to operate in a safe and reliable way on Hybrid and Full Electric Vehicles. OPTIMA is also set up to work with Hermetic Disposable Dosimeters, through the purchase of the special kit.
The set-up has also been created for the “PLUG-IN“ installation of the state of the art optional Refrigerant Analyser which interacts directly with the software.
Features:
- HYBRID-READY: AUTO-CLEAN function for hybrid and electric vehicles
- AutomaticRecovery /Recycling.
- Automatic Vacuum / Vacuum test.
- Automatic oil discharge (with scale).
- Automatic PAG, POE and UV oil charge.
- Automatic refrigerant charge.
- Automatic personalized cycle (recovery-vacuum-charge).
- Flushing cycle.
- Database upgradeable with USB memory.
- Versions with (mod. OPTIMA/P) and without printer (mod. OPTIMA).
- Customized paper report with workshop/operator data/vehicle data.
- Automatic alarm for service: the unit advises when you have to replace the filter and the oil in the vacuum pump (I.A.S.).
- Automatic bottle pressure control.
- Periodic auto-test: the unit checks the internal circuit tightness every 20 days.
- Autotest of the non-condensables gases: the unit checks the bottle every 10 days.
- Pressure test with refrigerant before the charging phase.
- Service connection on low pressure hose (I.C.S.).
- Pressure test with nitrogen or AZOIDRO (N2+H2). (optional).
- Distillation with automatic control.
- Integrated room temperature probe.
- Ready for wifi connection (optional).
Designed to integrate the new VARIANT analyzer forR134a/ R1234yf (optional) managed directly via OPTIMA touch screen.
Ready to work with hermetic disposable dosimeters (optional).
Technical Specifications:
- Refrigerants: R134a(R456a) or R1234y
- Recovery rate: 300 g/min
- Recovery accuracy: +/-15g
- Recovery efficiency: >95%
- Pump swept volume: 100l/min
- Bottle capacity: 10 kg
- Refrigerant scale resolution: 5 g
- Oil/UV scale resolution: 1 g
- Storage temperature: -10°C/+50°C
- Working ambient temperature: 0/+40°C
- Power supply: 230/1/50
- Dimensions and weight (without packaging): 54 x 56 x 118 cm / 64 kg
Optional:
- 09017024 K-ANALYZER-VARIANT Analyzer Kit (to test the type of gas in the car)
- 14028031 K-HERMETIC Hermetic dosimeters kit UV+POE+PAG46+PAG100+connections
- 14028032 K-HERMETIC/POE Hermetic dosimeters kit UV+POE+connections
- 14025171 K-WIFI Wi-Fi kit
Only logged in customers who have purchased this product may leave a review.
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All Wigam AC machines come with 1 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday)
The 2 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 2 year warranty are
Hoses and vehicle connection couplings
Service parts (Vacuum pump oil, dryer filter and labour to replace these service items)
Scales calibrations (if knocked out of calibration due to mishandling)
Database updates
Damage to machine due to ingress of stop leak additives that are on the market, You can prevent damage to your machine caused by these stop leak additives by fitting a Recycle Guard leak stop protection kit,
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, incorrect fluids, incorrect gasses, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop ready to work and can have it filled with AC gas, oils and dyes if requested (AC gas oils and dyes are a extra purchase)
And spend 2 hours onsite providing training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
AC consumables, Other AC tools and Equipment and parts
We also stock a large range of other AC products to support workshops in the AC servicing and repair business to include
Other AC tools and test equipment
AC consumables
AC parts to include compressors, Pressure sensors etc
If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT
