ThinkCar ThinkTool Euro MAX With 2 years Updates And 1 Years Haynes Pro

ThinkCar ThinkTool Euro MAX with 2 years updates And 1 Years Haynes Pro Car WorkshopData complete package,
Also know as the ThinkCar Platinum S20,
Includes 4 channel Oscilloscope, T-wand TPMS tool, Borescope cable and Thinkeasy battery tester,
Special introduction price €3850.00 + vat with Haynes Pro,



Authorized Official Irish ThinkCar distributor,
we ONLY deal directly with the manufacturer to offer you the best support possible so you can purchase with piece of mind.

Unrivalled support, warranty and replacement loan units (in case of repairs needed) supplied with ThinkCar products.

See most popular options just below and see all options at the bottom of the product description

3,850.00 ex. VAT

1 in stock

ThinkCar 1 Years FCA SGW Pass

ThinkCar 1 years FCA pass

ThinkCar 10 Times Use Renault/Dacia SGW Pass

ThinkCar 10 Times Use Renault/Dacia SGW Pass

Immo G3 Programming Tool

The Immo G3 is the newest programming tool for some car keys & some immobilizer system. This powerful tool allows users to read and write key chip data, generate special keys, and more.

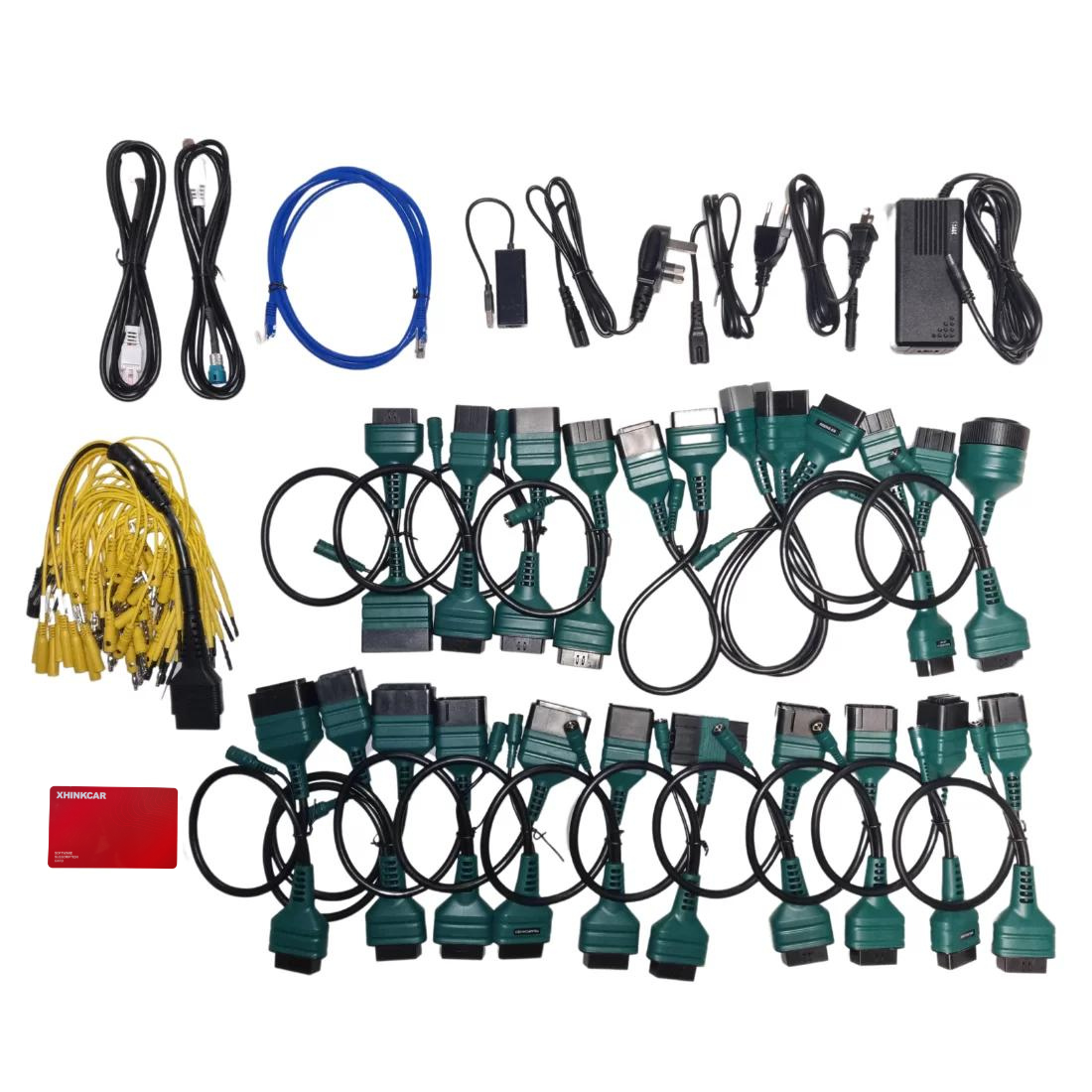

ThinkCar EV Tester Cables And Software For Electric Vehicles

ThinkCar EV Tester Cables And Software For Electric Vehicles

Free Delivery In Ireland

If you are a customer located in Ireland, spend €180 ex.VAT or more and get free delivery, or for orders under €180 ex.VAT delivery costs €12.50 ex.VAT Read Our Delivery Information

Product Description

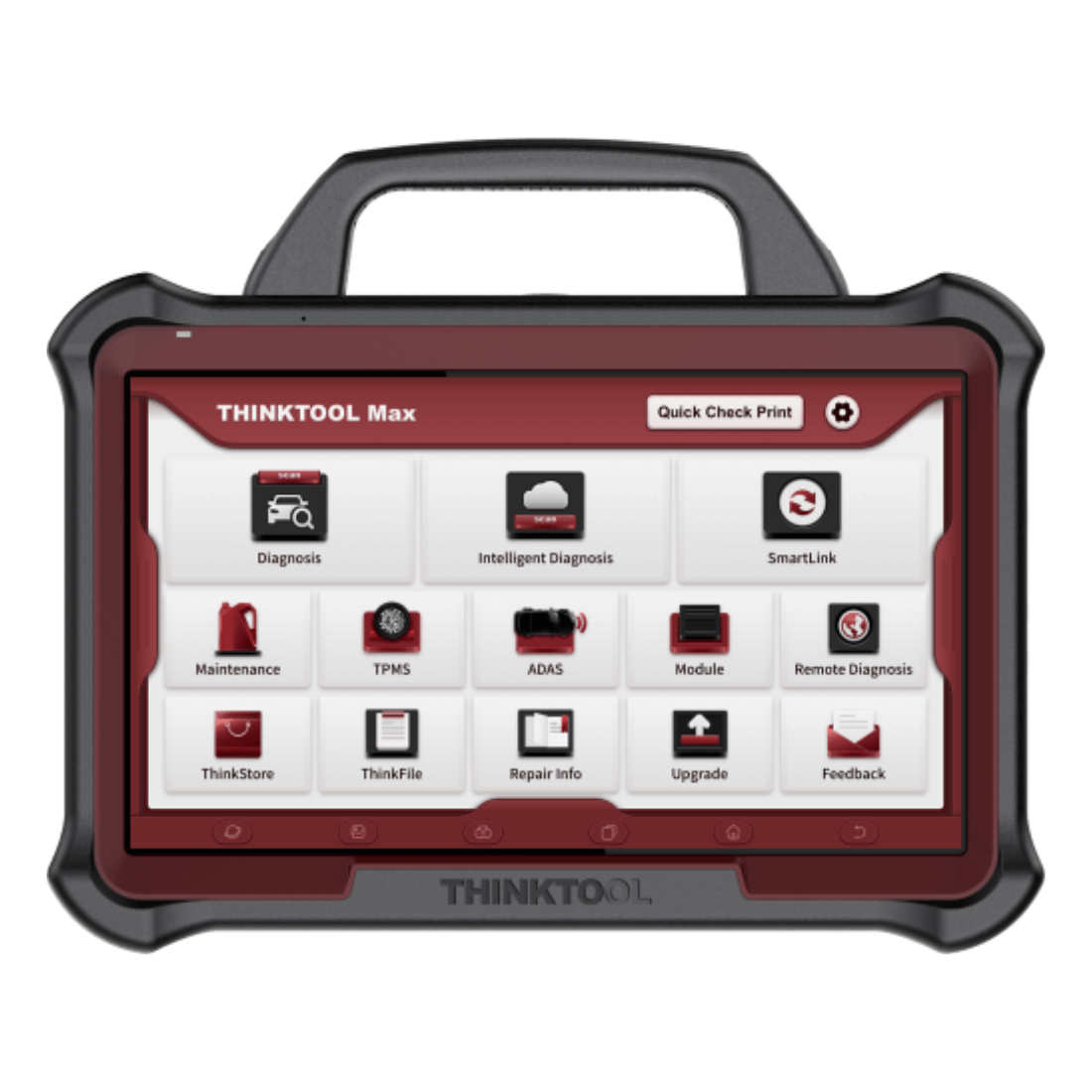

ThinkCar ThinkTool Euro MAX with 2 years updates And 1 Years Haynes Pro Car WorkshopData complete package
Also know as the ThinkCar Platinum S20
Special introduction price €3850.00 + vat with Haynes Pro

The ThinkCar ThinkTool Euro MAX scan tool is a excellent all round diagnostic tools with suburb coverage
The Euro MAX Combined with the HaynesPro Car WorkshopData helps you diagnose and repair cars and light commercial vehicles faster, more accurate and safer
Look here to see more details on the HaynesPro car WorkshopData complete package

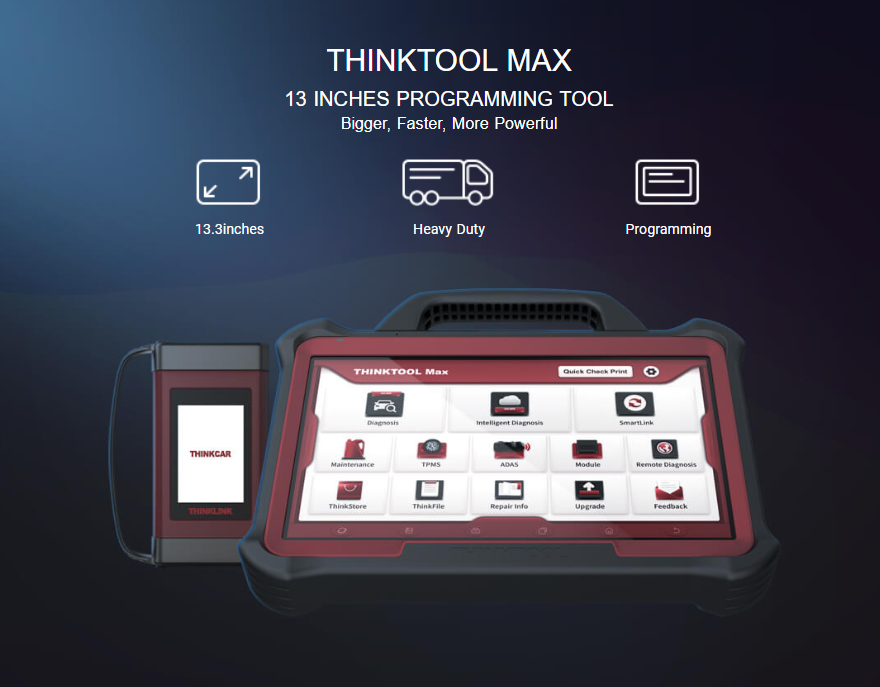

THINKTOOL MAX, a powerful modular diagnostic tool including a Battery Tester, Video Scope , T-Wand 200 (TPMS tool) and Scope Box.

Features

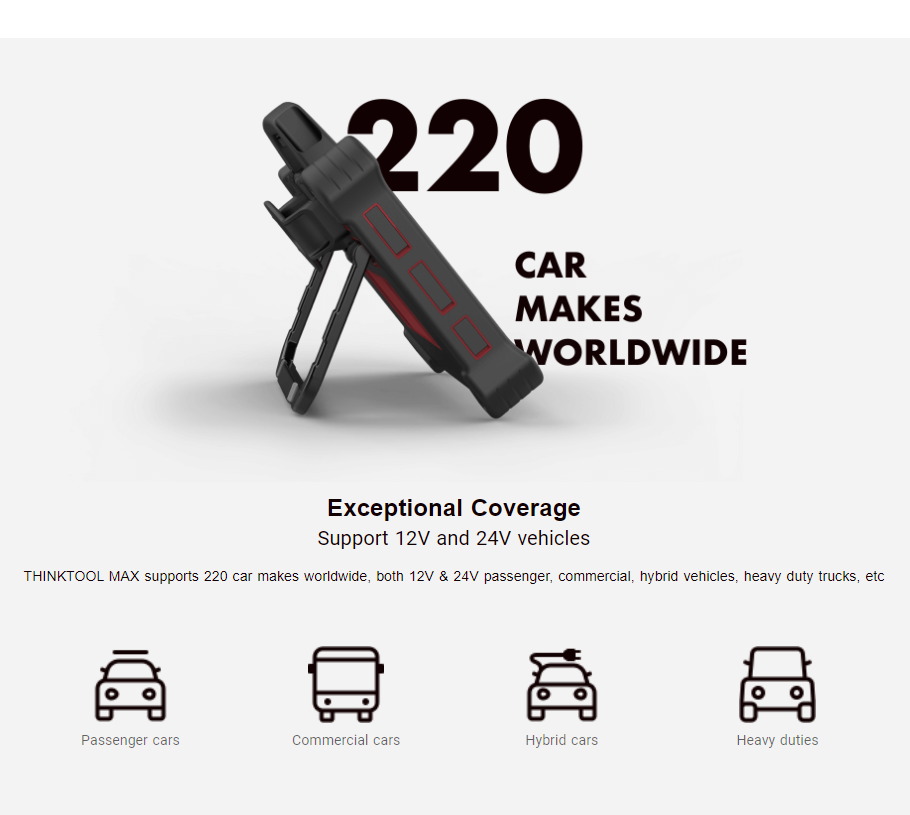

  • Exceptional Coverage: supports 220 car makes worldwide, both 12V & 24V passenger, commercial, hybrid vehicles, heavy duty trucks, etc (HD truck software and cable set is a optional extra)
  • Near OE-Level Diagnostics: Includes all you normal diagnostic functions including special functions like adaptions resets etc for a huge range of makes and models,
  • Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.
  • Live data: Numerical and graphing functions and also searchable
  • Guided Functions: with simple step-by-step procedures for quick and accurate car diagnostics.
  • Online ECU Coding: make software modifications to customize systems (also know as Retrofits and Conversions) for some systems and models on the following brands: BMW E and F series, VAG group, Toyota, Porsche,
  • Cloud-based ECU Programming: for BMW, BENZ, VW/AUDI/SKODA/SEAT, PORSCHE,LAND ROVER/JAGUAR,SUBARU, NISSAN and RENAULT without the need of the manufacture software (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all)
  • Module replacement/Coding: Module Replacement, Modification, Personalization, Anti-theft & Key Matching, and more (varies by the vehicle manufacturer, year, and model) (for coding and programming it does a huge range of systems and models in the above brands but we don’t claim all)

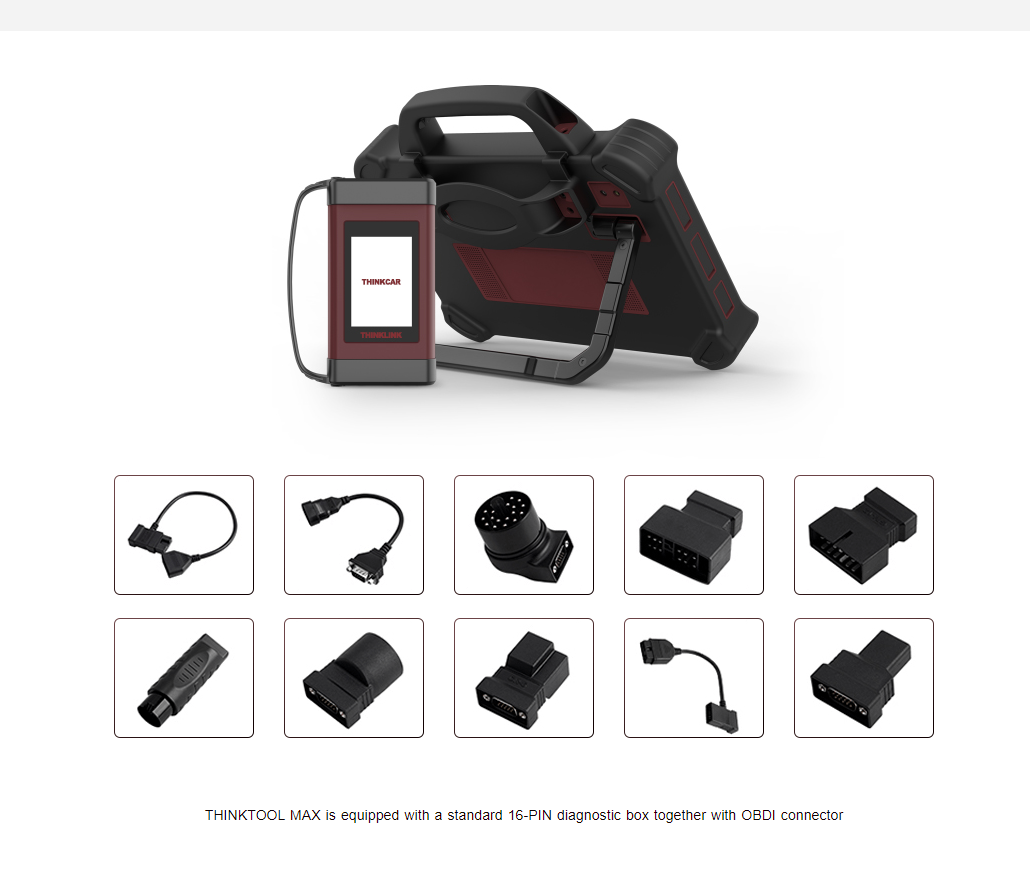

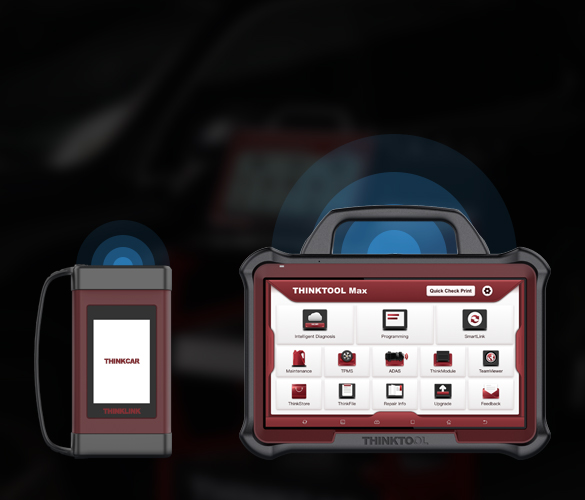

  • THINKTOOL MAX is equipped with a standard 16-PIN diagnostic box together with some of the most popular OBDI connector (pre 16pin connectors)
  • Advanced Diagnostic Functions: supports full vehicle diagnostics, read & clear codes, live data stream, actuation test, special functions, 41 different maintenance reset functions and more.
  • SGW security gate way: Optional FCA SGW yearly subscription provides SGW unlock for FCA vehicles (Abarth, Chrysler, Dodge, Jeep, Alfa Romeo, Maserati, Ram trucks, Lancia and Fiat)
    Optional Renault SGW token activations provides SGW unlock for Renault and Dacia
    VAG group SGW unlock available in conjunction with 3rd party providers on pay as needed basis (full VAG SGW unlock coming soon)
    SGW unlock for other brands coming soon
  • Dual range Wi-Fi Connection: supports dual range Wi-Fi connection. The tablet communicates with the diagnostic box through Wi-Fi, allowing technicians to quickly operate diagnostics, checking fault code and other functions.

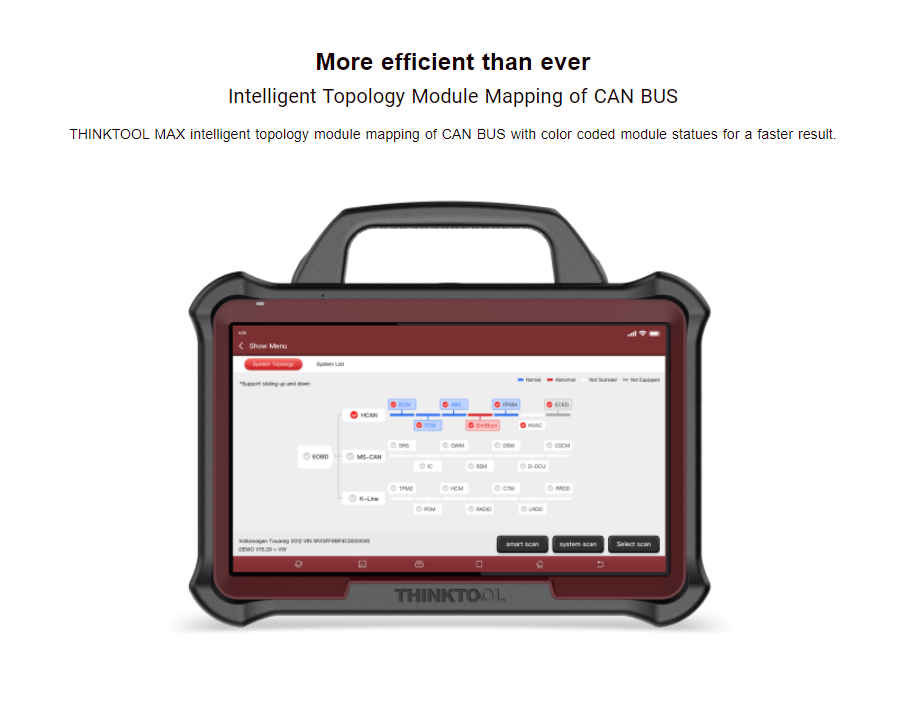

  • System topology diagram: The network topology diagram shows the networks and control units in a diagram which is very useful for us to understand how the different networks and systems are connected and when you do a full system scan we can see at a glance a overview of all the available systems and there status (this feature is new and is being added to many makes and models as updates go by)
  • Intelligent Modular Combination: The tool is equipped with four intelligent diagnostic modules, THINKEASY 2 Bluetooth Battery Tester, Video Scope , T-Wand 200, Scope Box. All modules connect to the tablet via Wi-Fi or USB cable, making the diagnostic easier and quicker.

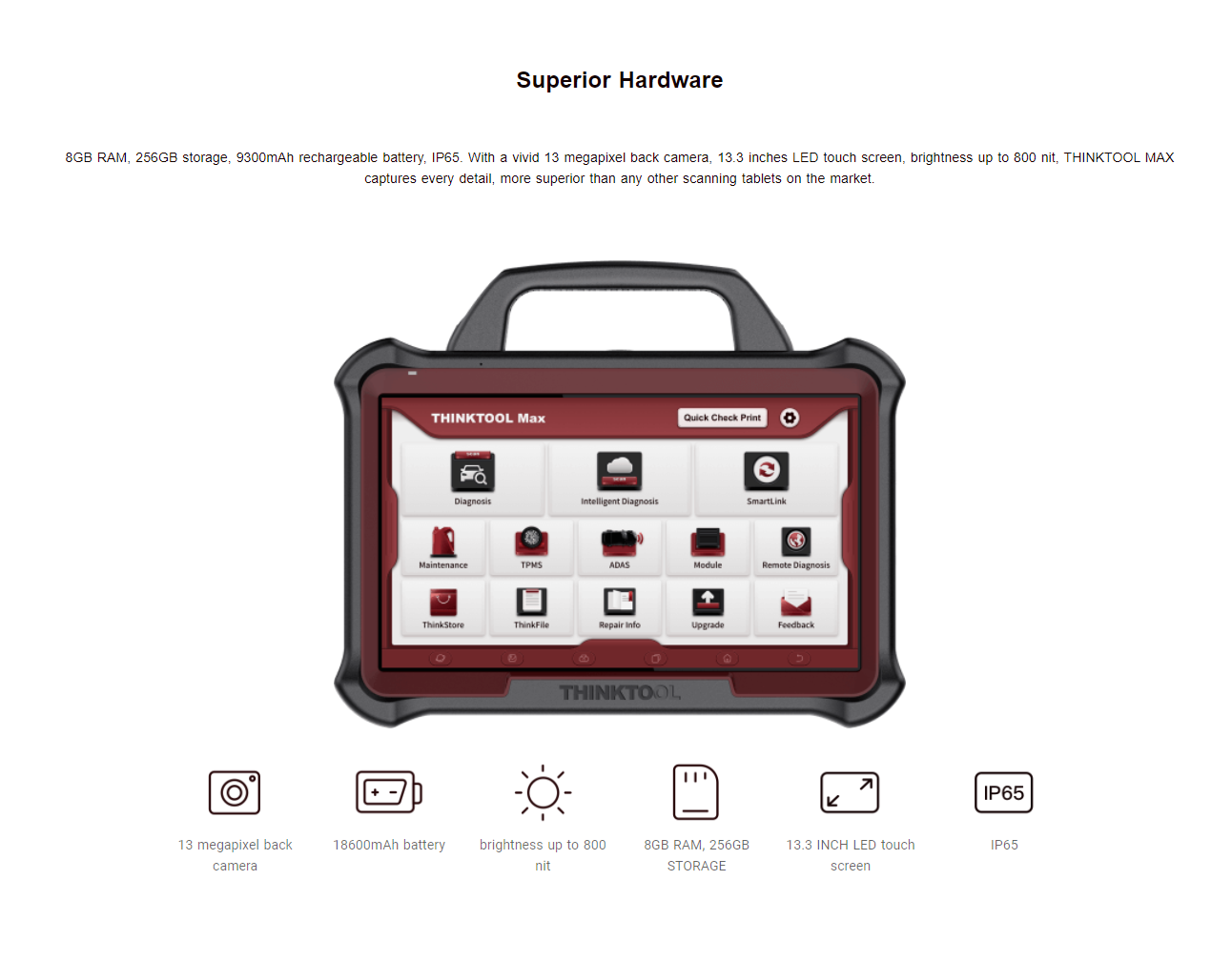

  • Superior Hardware: 8GB RAM, 256GB storage, 9300mAh rechargeable battery, IP65. With a vivid 13 megapixel back camera, 13.3 inches LED touch screen, brightness up to 800 nit, THINKTOOL MAX captures every detail, more superior than any other scanning tablets on the market.
  • Customer Support Service: Remote Diagnosis provides direct technical support to remotely access any Max tool in the field. Helping technicians fix problems quickly and accurately for better customer support.

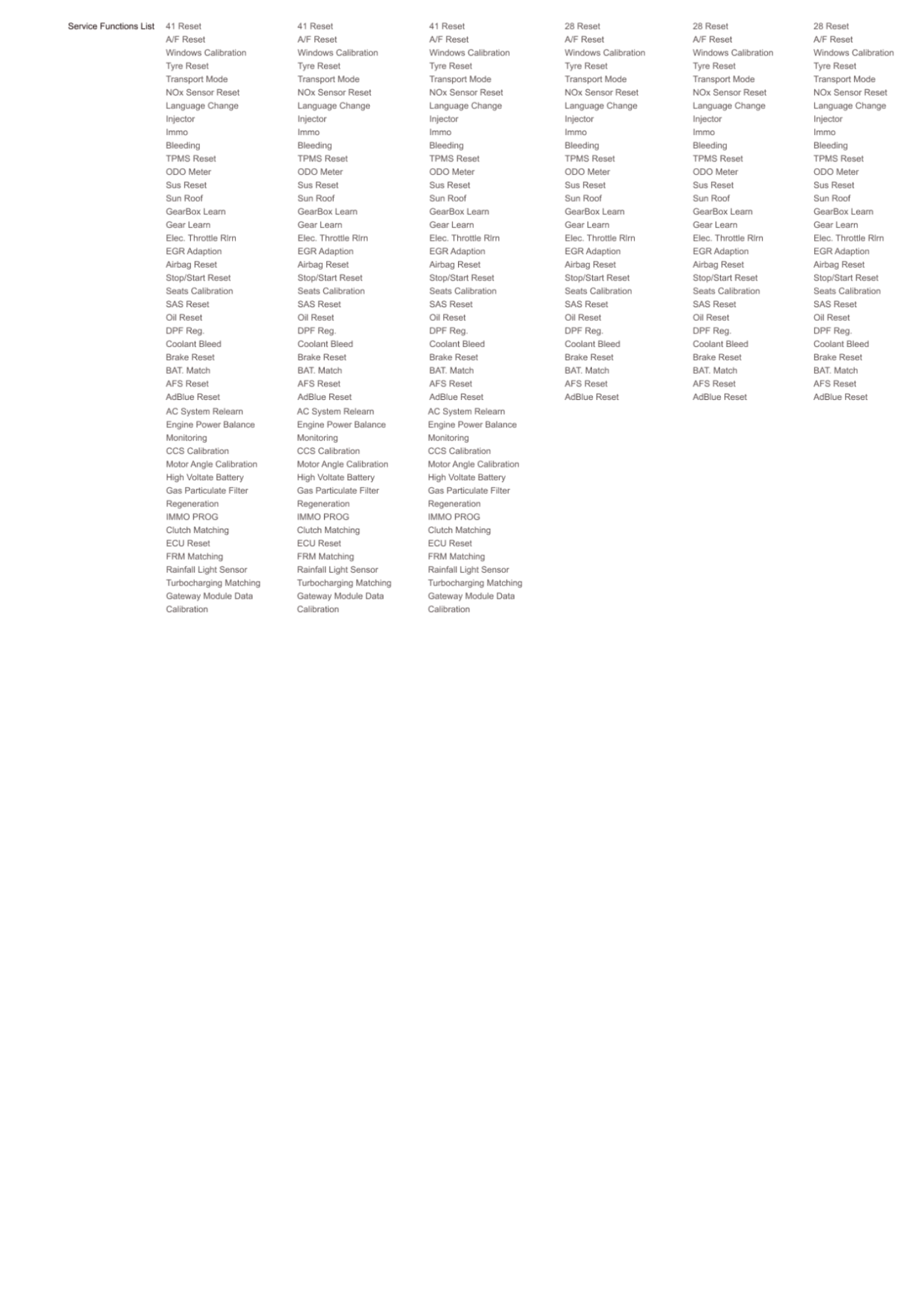

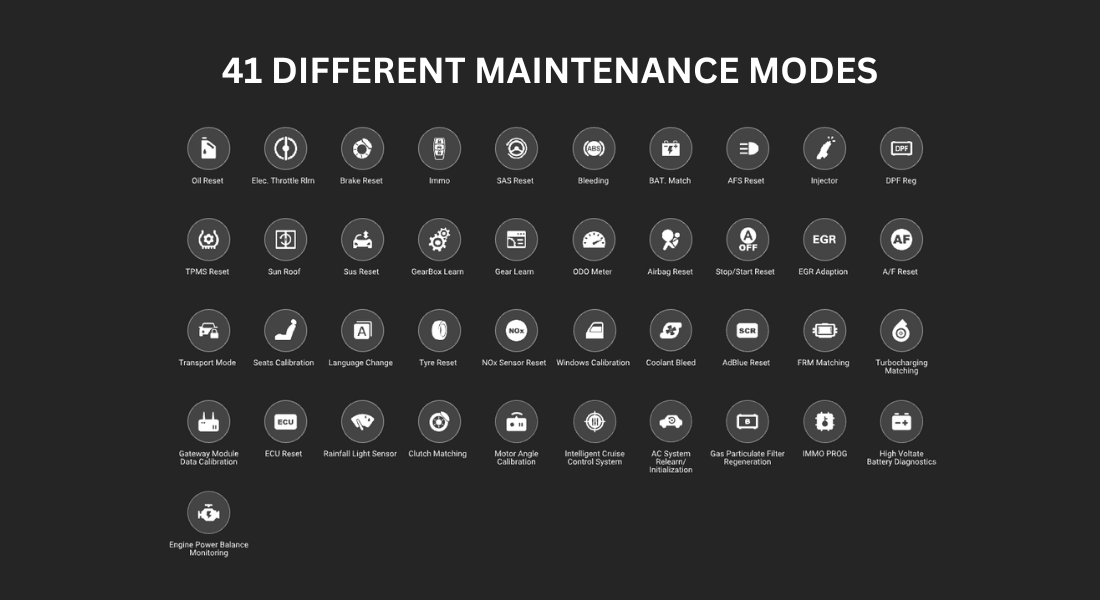

  • Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, etc, 41 functions available in total, and still expanding
  • Smart AutoVIN & AutoScan: AutoVIN in many cases will auto identify the car make / model / year, and head towards proper diagnostics and in the cases where it does not AutoVIN the vehicles you can still use the standard manual method of selecting the correct vehicle details
  • Camera VINScan: quick recognition of vehicle barcode with rear camera  (for many makes and models)
  • Printing/share: Pint diagnostical reports via WIFI to a WIFI printer or share a report by email

Specifications

  • Camera: 13.0MP Rear
  • Battery: 18600mAh/3.7V
  • ROM/RAM: 256G/8G
  • PROCESSOR: 2.0GHz | OCTA-Core
  • TEAMVIEWER: Supported
  • Water Proof: IP 65
  • Display Screen: 13.3-Inch
  • ADAS: Calibrations Supported when used with a Thinkcar ADAS system
  • Operating System: Android 9.0
  • VW Guided Function: Supported
  • Secure Gateway Access: AUTHORIZED FCA ACCESS via a optional subscription and other brands coming to include VAG group, Renault, Mercedes etc
  • Software Update (Heavy Duty): Purchase Separately
  • Topology Module Mapping: Supported
  • Software Update (Passenger): 2-Year Free Update

Multiple Protocols

Advanced Diagnostic Functions

Providing OE Level Diagnosis

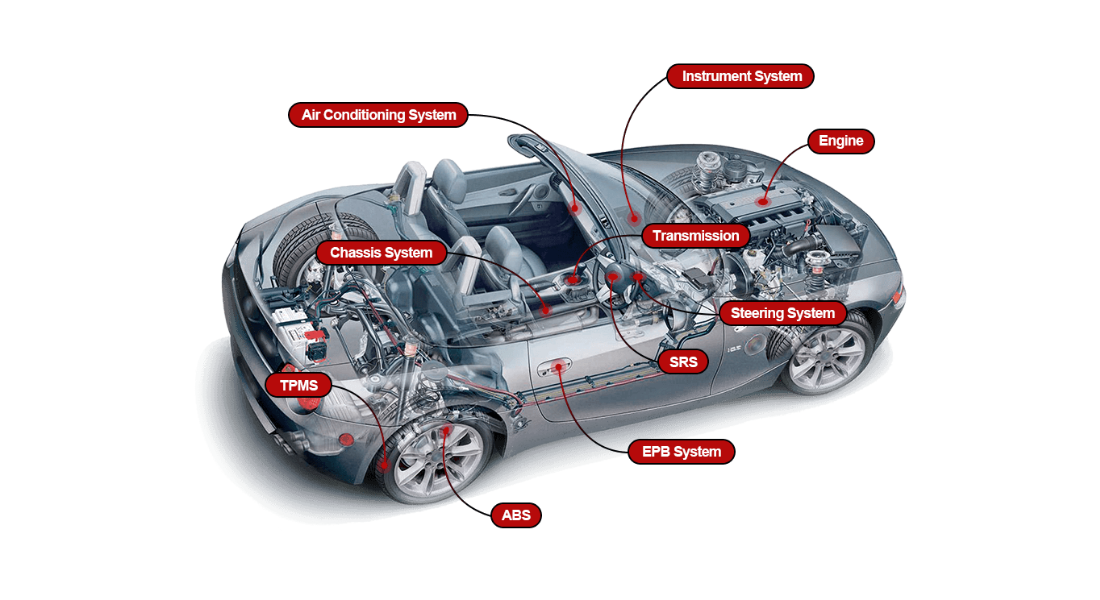

THINKTOOL MAX supports full vehicle diagnostics, read & clear codes, live data stream, actuation test, special functions, 41 different maintenance reset functions and more.

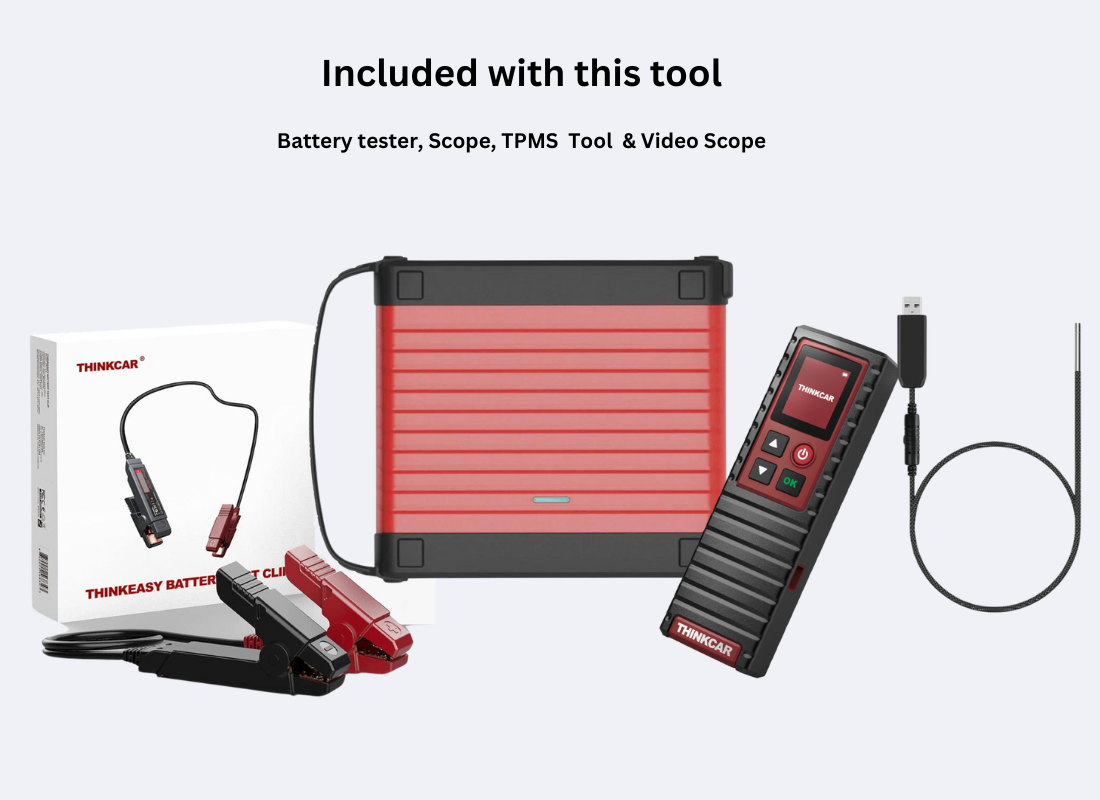

This tools comes with the below:

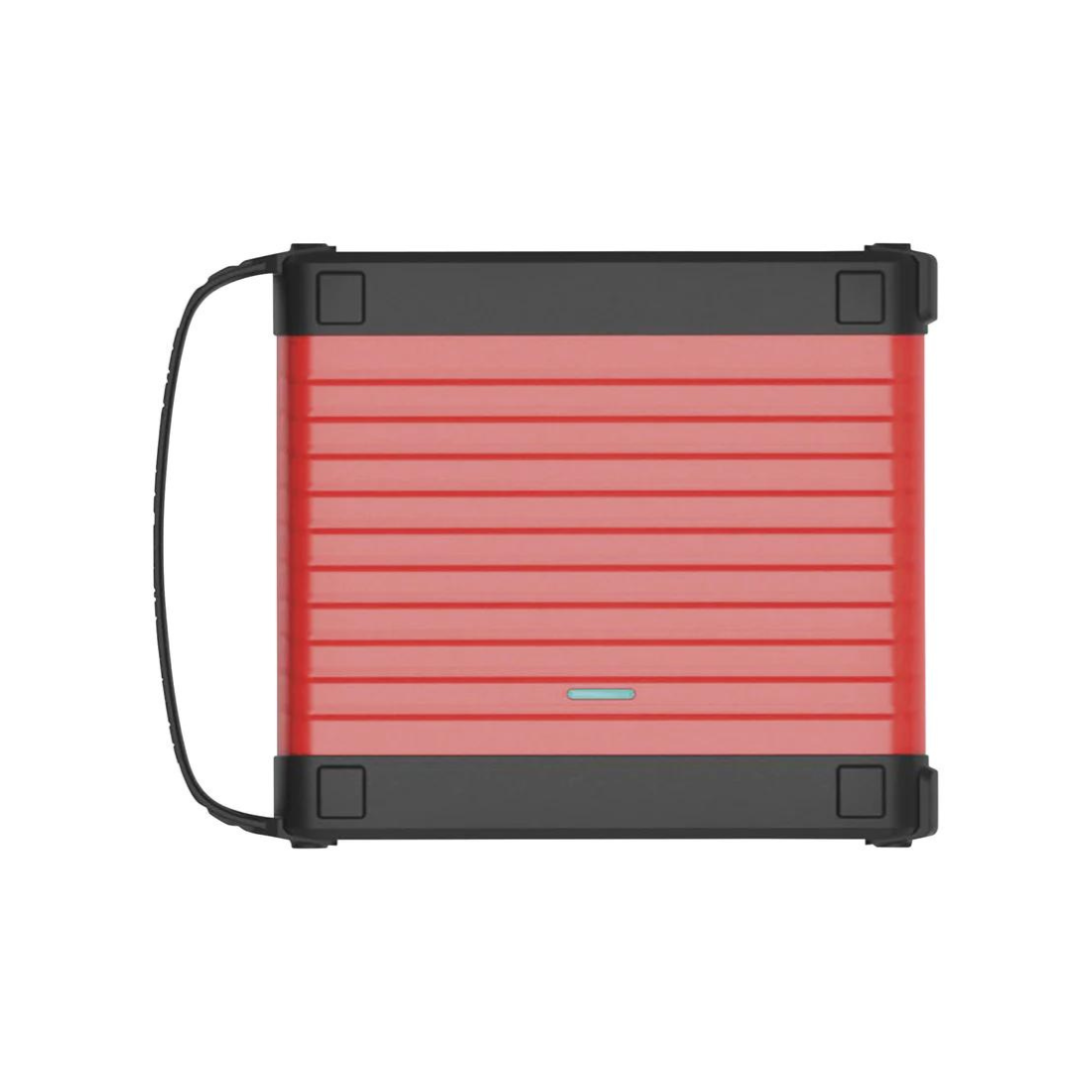

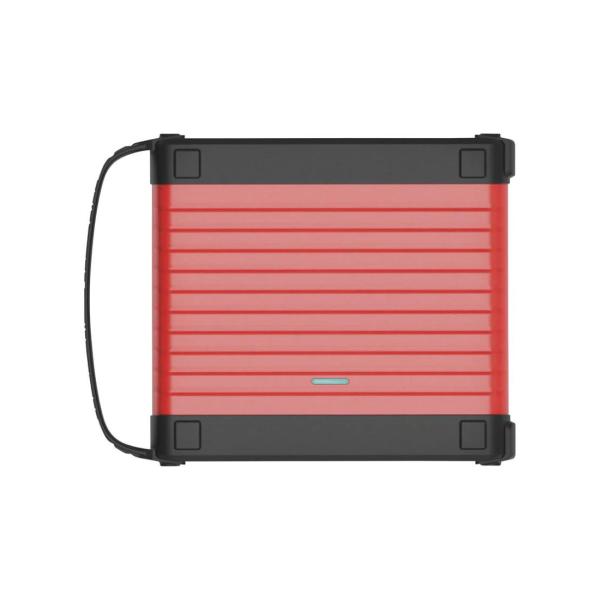

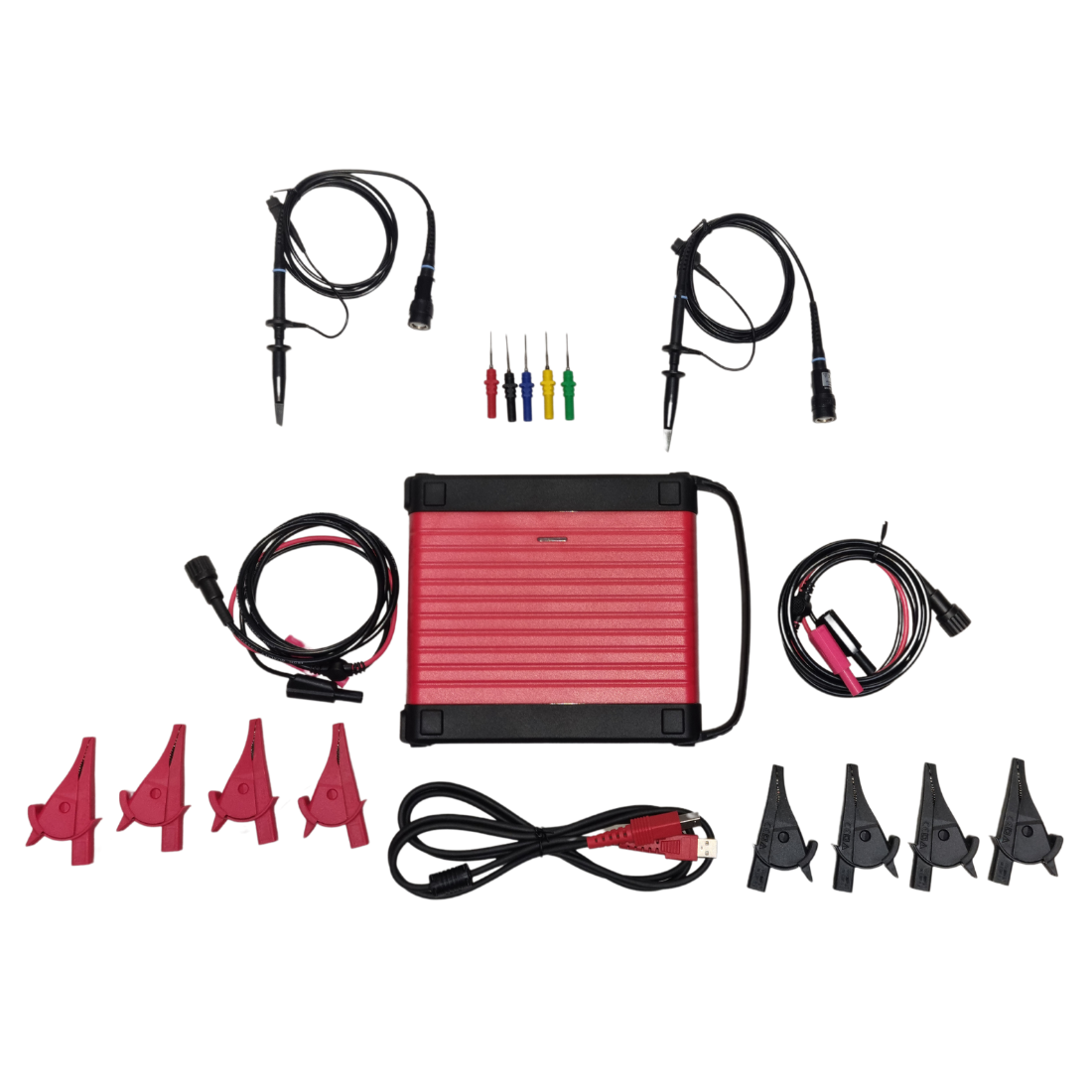

  • 4 Channel Oscilloscope and accessories.

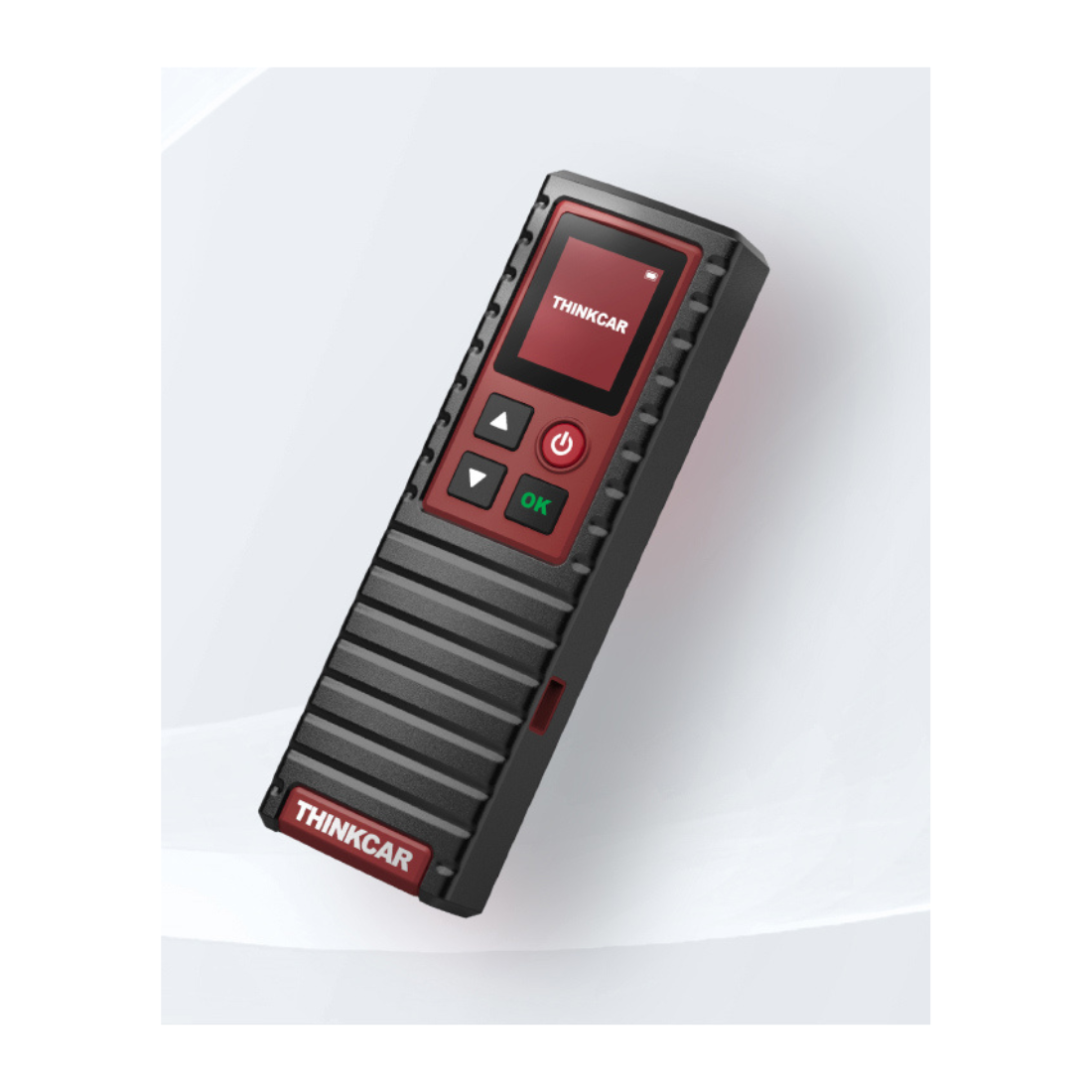

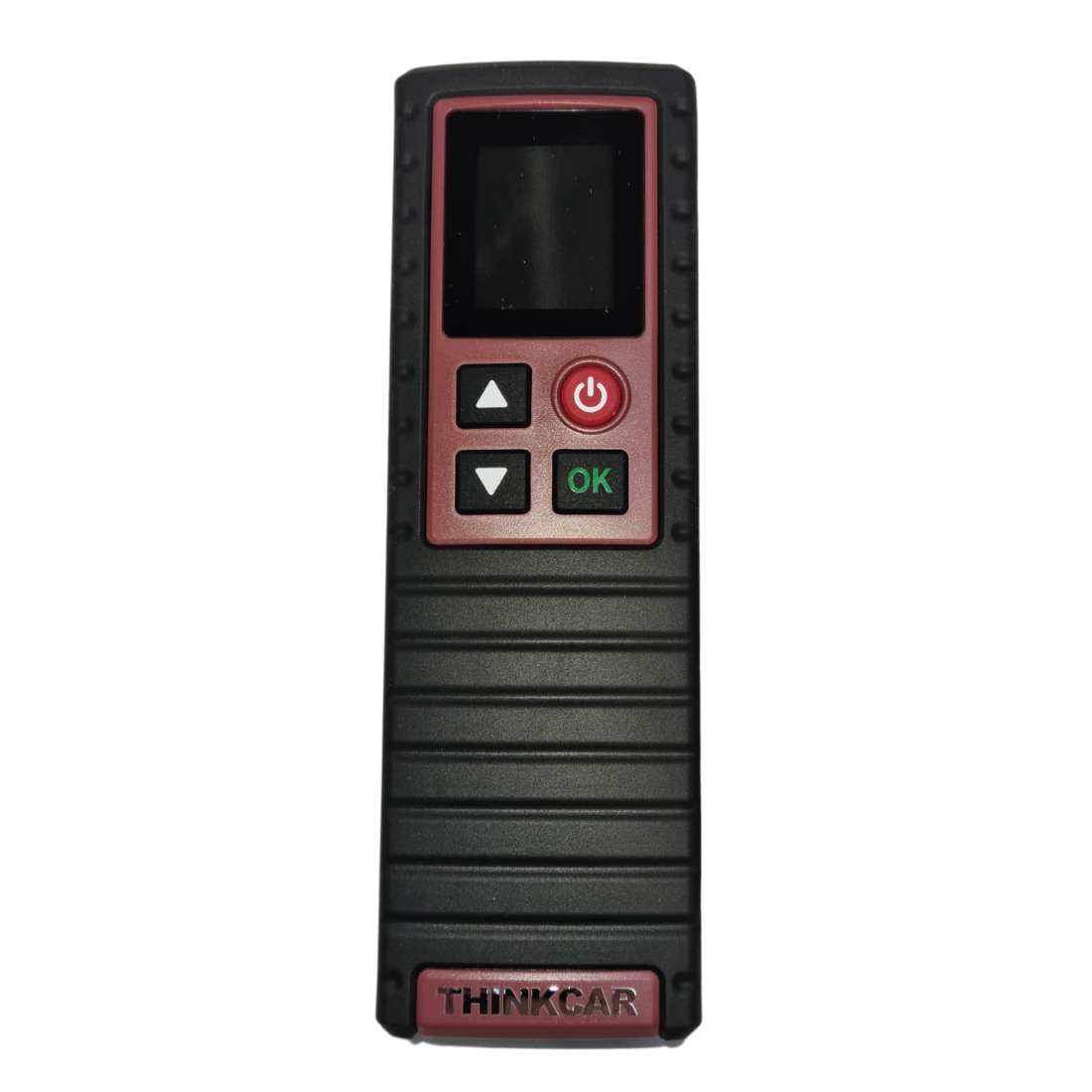

  • TPMS tool with Integrated TPMS Sensor Activation, Programming and Relearn Function. (For programming new blank universal sensors it is only compatible with ThinkCars Universal TPMS sensors)

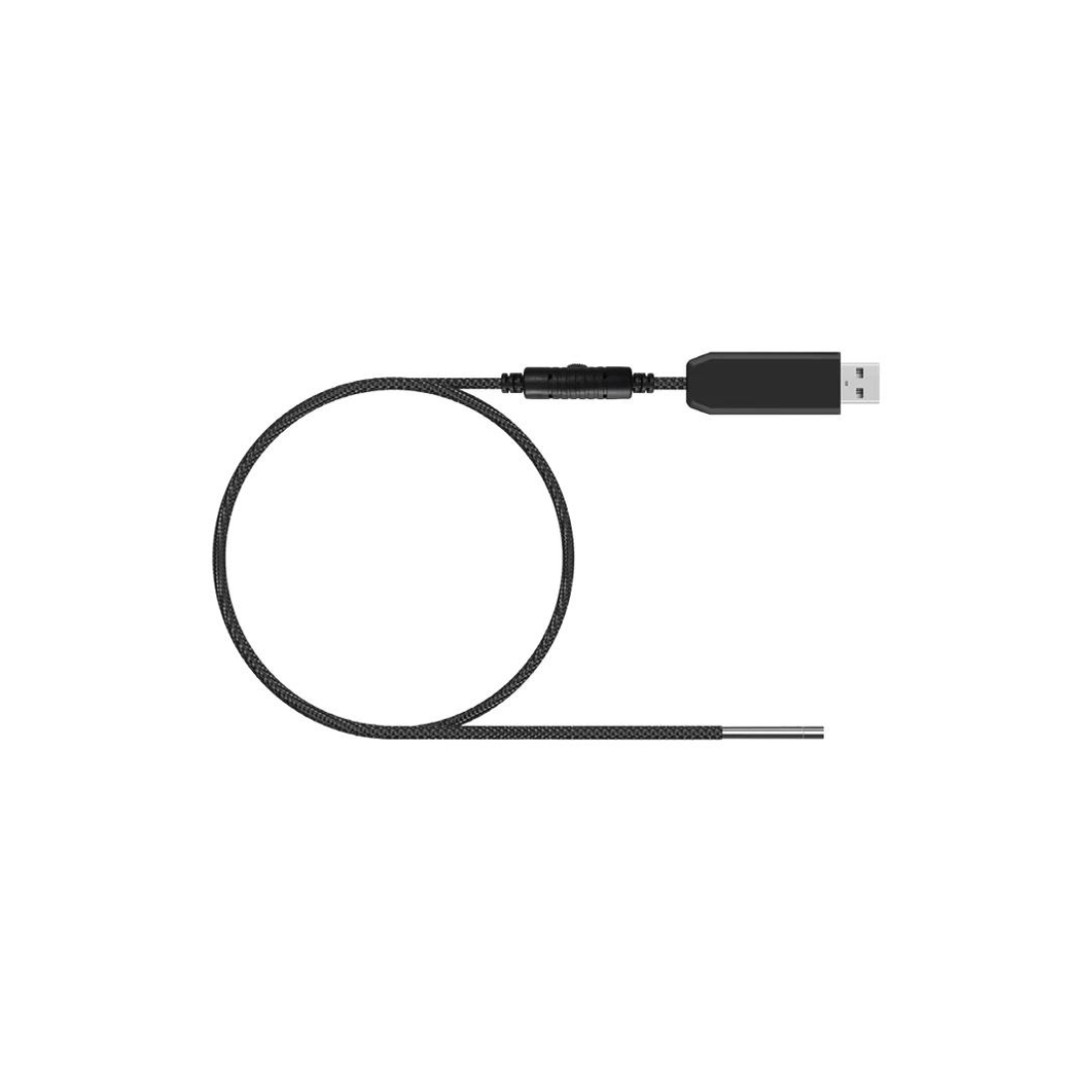

  • Video scope.

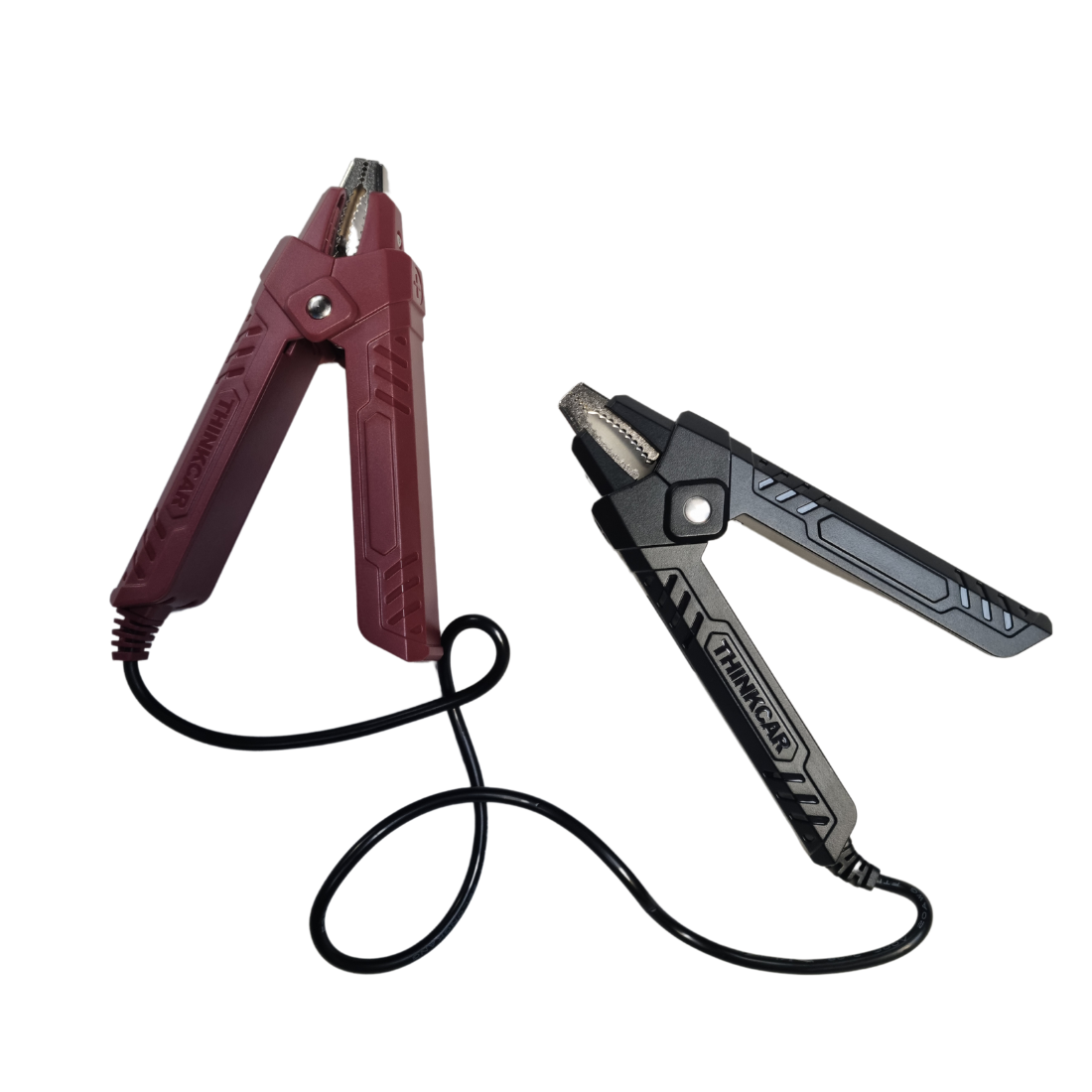

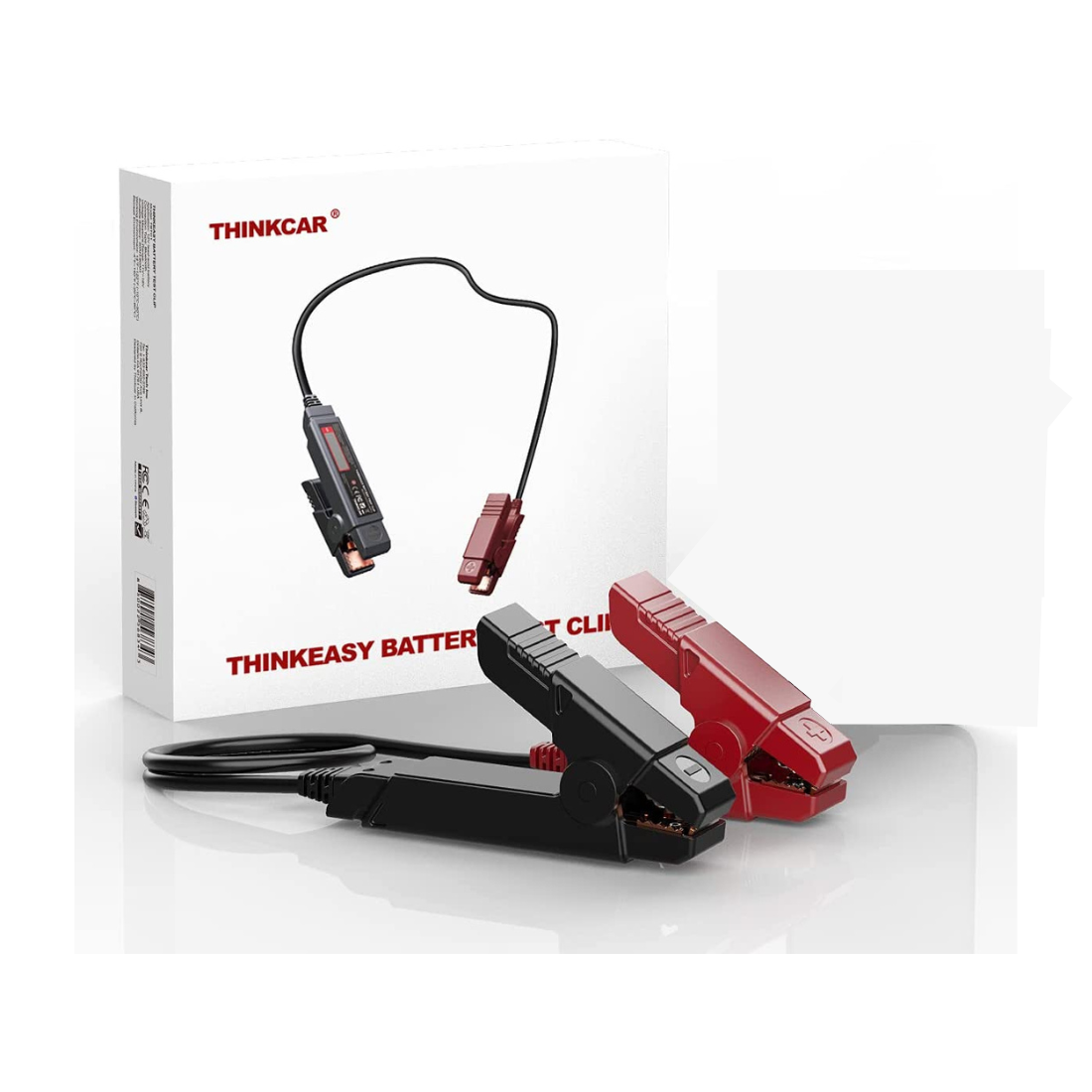

  • Battery tester.
  • And all other items shown in the below picture

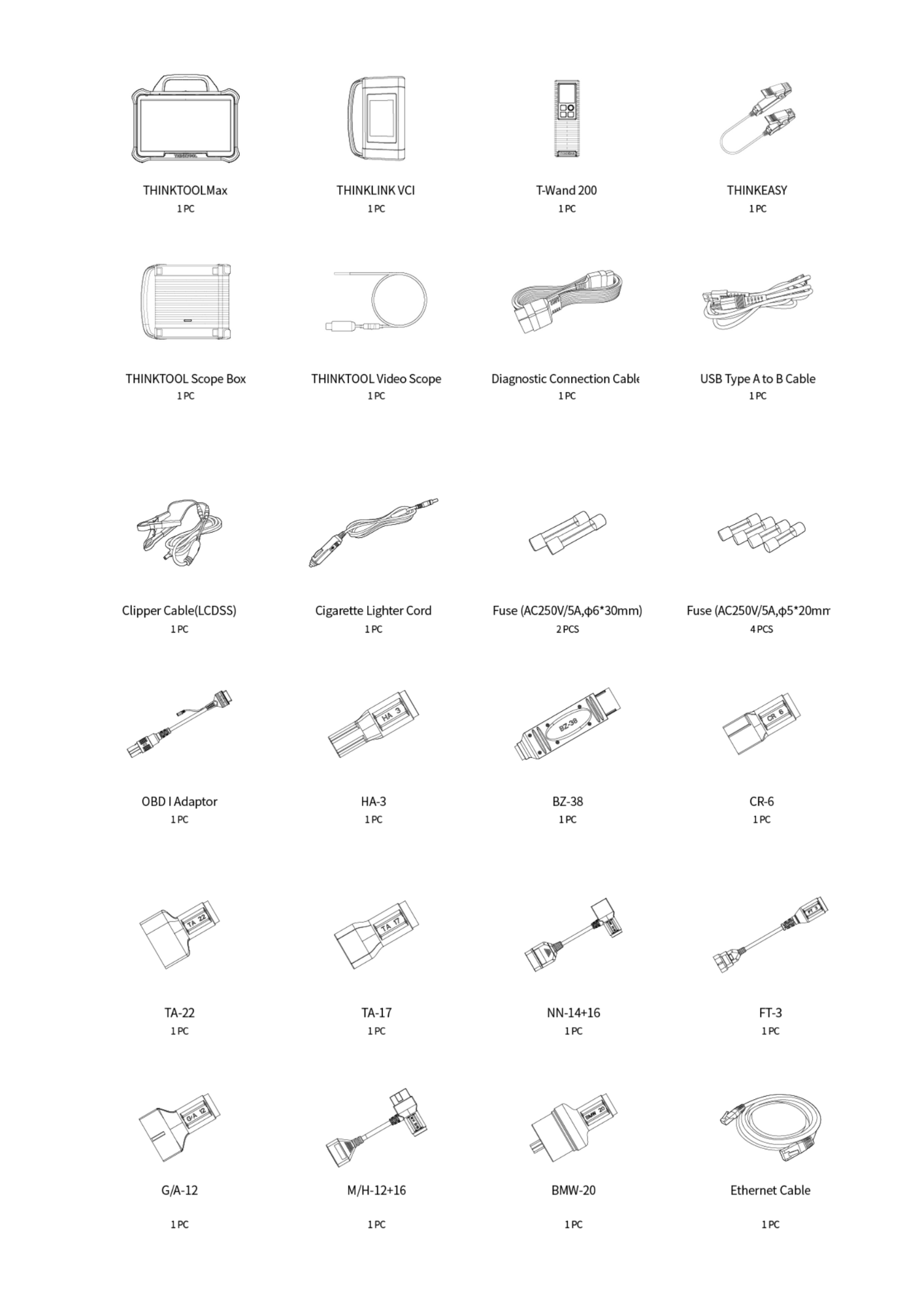

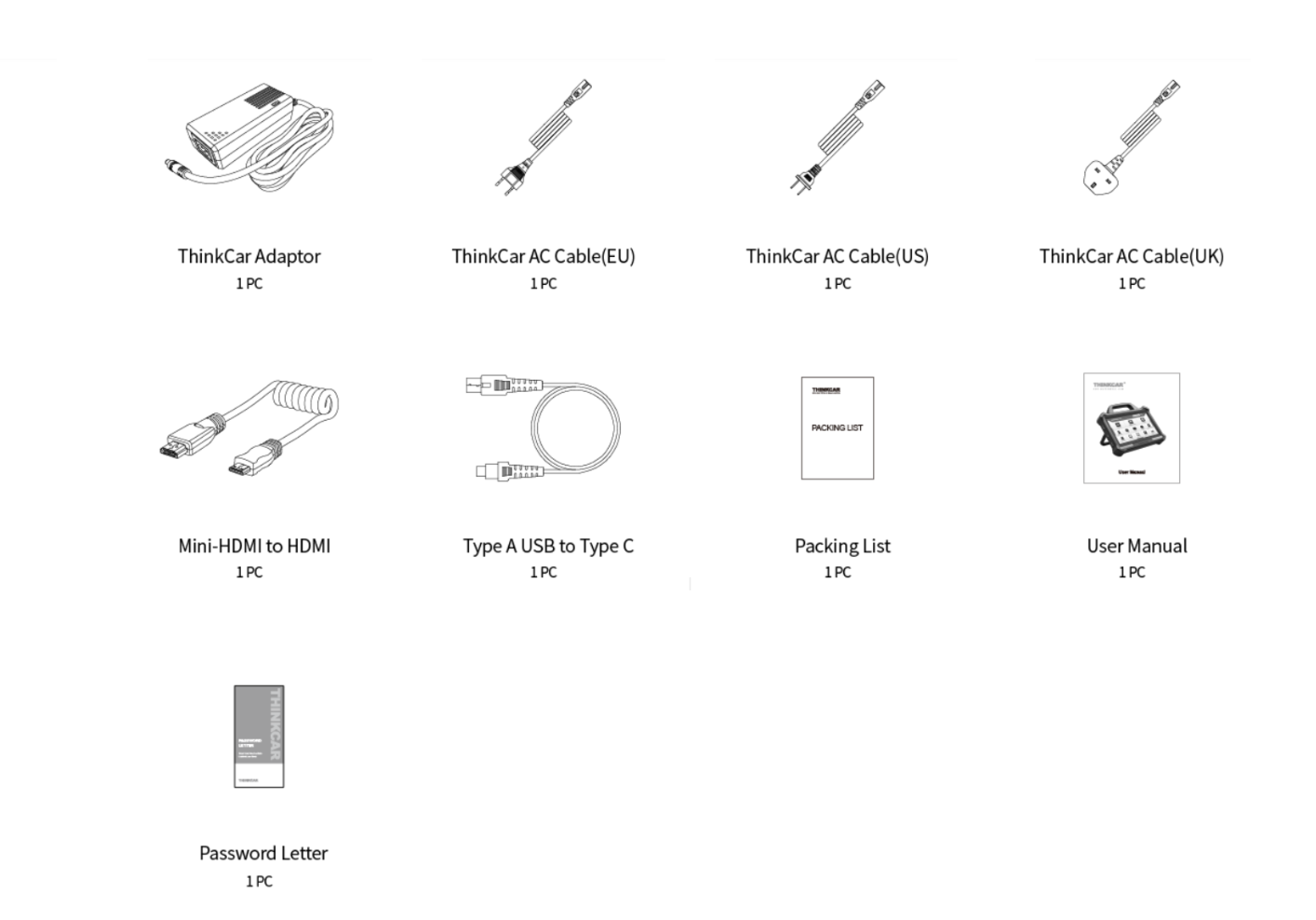

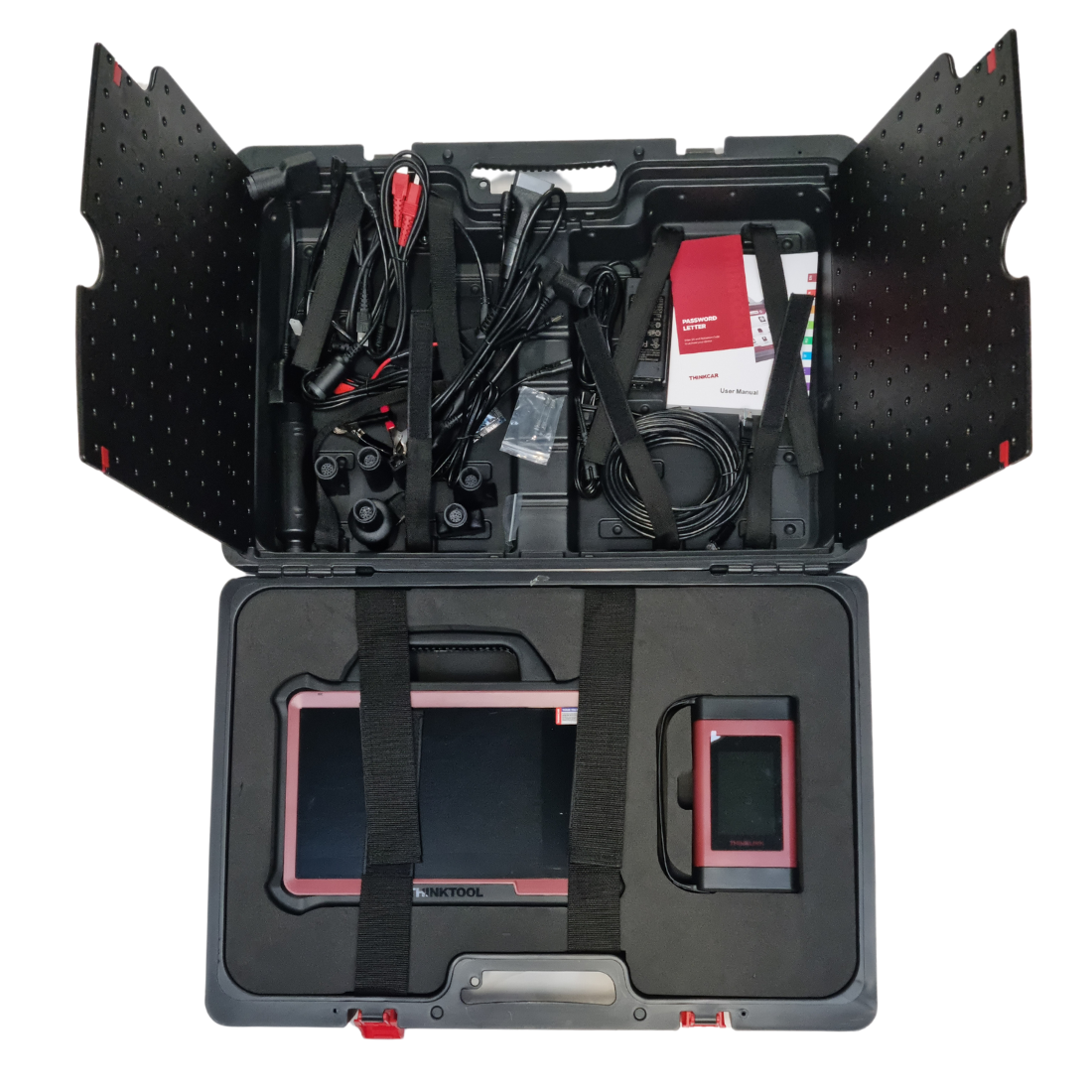

What’s in the box?

Options:

Coverage list: Click here to view the coverage list, make sure to select the product type from the drop down list

Product Specifications

Weight 14.5 kg
Dimensions 78 × 58 × 52 cm

These videos may not be accurate to the tool listed.

Note the remote diagnostic service is a pay per use service and also requires a remote diagnostic subscription of €150 + vat per year, 1st year is not included in the purchase price,

Remote diagnostics: With the Thinktool Euro MAX repair shops and automotive technicians can use the remote function to request and receive support from remote diagnostic service providers where they providers can connect to the car in your workshop with there diagnostic equipment and perform remote diagnostics services for you

How the remote diagnostics works: Via the Euro MAX device a remote connection is made with the car, which does not have to leave your workshop. The communication between the car and the Euro MAX device and the service provider is done entirely via the internet network. The Euro MAX is connected to the OBD plug on one side, then the car is selected and the user fills out the request and books a appointment with the service provider, then the provider will arrange a appointment with you, and when ready the provider can connect to the car remotely with there huge array of diagnostic equipment and preform many specialist diagnostic services for you

Just think of it like its a very long diagnostic cable that allows us to connect to a vehicle anywhere in Ireland with our diagnostic equipment

Wide Range of Remote Services:

General Diagnostics,
Service resets
Electric parking brake (pads replacement)
injector coding
SCR and DPF diagnostics and resets, relearns, regeneration and adaptions
Other engine management components resets and adaptions
Key programming
Programming tow bar electrics,
Body computer coding and configurations,
Power Steering Module Coding,
ECU coding/Configuration
Steering lock coding
Steering angle calibration
TPMS sensor learning (in some cases a activation tool will be needed at the remote side)
Air suspension calibrations and coding/configurations
ADAS diagnostics
And much more,
But as with any automotive diagnostic work there is always some limitations, NO ONE CAN DO EVERYTHING AND SUCH CLAIMS NEED TO BE TAKEN WITH A PINCH OF SALT

Some of the limitations are

Wont work with some older vehicles that use old diagnostic protocols
Wont work with older vehicles that does not have a 16 pin diagnostic socket
Wont perform any coding functions on BMW vehicles that require coding trough the MOST bus diagnostic connection
Not recommended for software updates on vehicles due to the risk of a issue when trying to transfer a larger file over the internet
And if Ryan’s Automotive or Other service providers don’t have the necessary diagnostic software to complete the function

Choice: Huge Range of Diagnostic Equipment at your fingertips without the cost or hassle.

Example of use:

A workshop in Cork has a vehicle in his workshop and needs to replace steering lock and he needs to perform the steering lock coding

He tries one of his own diagnostic tools and he does not have that function listed in his diagnostic tool for that vehicle

Then he tries his other diagnostic tool and this wont do it either,

Now he has a few options

Option 1: Tell his customer he will have get the vehicle towed to a different workshop to get the steering lock coded

Option 2: Take the car to a workshop or a dealer with a tow truck to get the job completed

Option 3: Have a mobile diagnostic person call to his workshop to perform the coding

The 3 options above will get the job done but creates extra hassle, delays and expensive to either the customer or the workshop

But with the Thinkcar Thinktool Euro MAX the workshop would have been able to complete the job without the vehicle having to leave his workshop

Contact us for more information and some examples of how this system can help your workshop

Terms and conditions:

The workshop must have internet speeds exceeding 30Mbps download and 15Mbps upload
Workshop must have a minimum 100amp battery support unit
Must be a registered workshop in Ireland
Will need SERMI approval when SERMI is up and running in Ireland
Customer must be present at the vehicle at all times during the connection to cycle ignition etc
The Euro MAX must have a valid diagnostic software subscription as well as the remote diagnostic suscription
Other terms and conditions apply, contact us for more information
At the moment we can only offer this tool and service in Ireland

Pricing:

Yearly subscription €150 + vat (1st year not included in Euro MAX purchase)
Pay per use, POA

    If you want to ask a pre-sale question about this product, please feel free to use the form below.

    Your First Name (required)

    Your Phone (required)

    Your Last Name (required)

    Your Email (required)

    Your Question

    General
    We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
    As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
    We are also in a great position to support these products as we use them every day in our own workshop,
    Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
    All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.

    Warranty
    All Thinkcar diagnostic tools come with 2 year warranty
    And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
    We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).

    Items excluded from the 2 year warranty are
    Cables and OBD connections,
    Problems caused by other APPS or other software’s that the user installs on the device
    Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.

    Delivery and Training
    Ryan’s Automotive or a courier will deliver the unit to your workshop registered and updated and ready to work,
    And spend 2 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
    We also can provide extra chargeable training if required.

    Support
    Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
    We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
    Additional support packages are required for vehicle technical support.

    Not included in the support
    Technical information that is found on systems like Autodata, Haynes Pro Alldata etc,
    The above support does not include vehicle technical support but we are always willing to help customers were we can.

    Repairs not covered by the warranty and after the warranty period
    For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
    1 Log into the unit via team viewer
    2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
    3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
    4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
    5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
    6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
