Air Conditioning System Educational Trainer

Product Description

Air Conditioning System Educational Trainer AE410650M

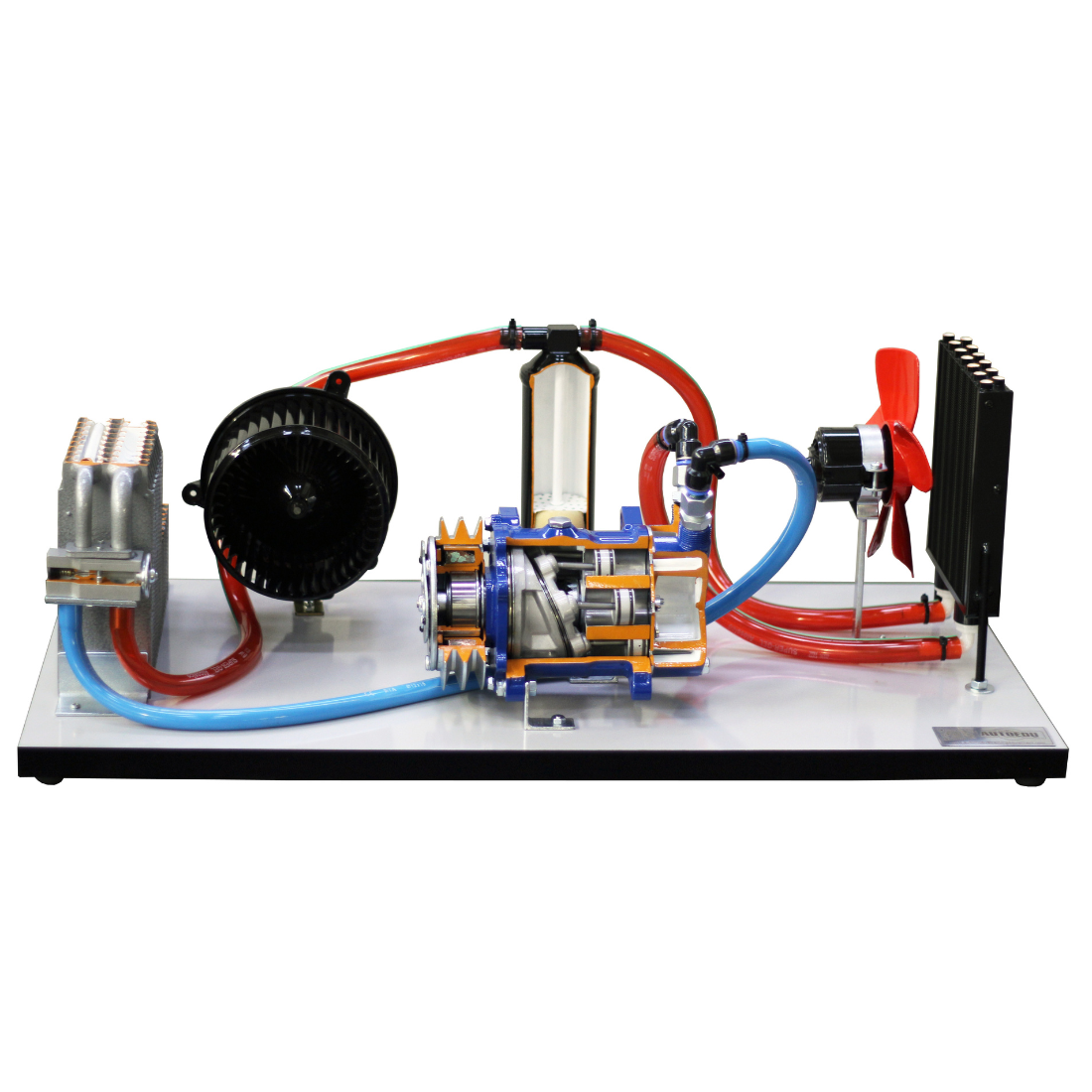

Air conditioning system training model is designed to provide a complete, hands-on learning experience for students studying automotive air conditioning systems. Featuring components such as a radial piston compressor, condenser, expansion valve, evaporator, and electric fans, this educational tool offers insight into the functioning of air conditioning and refrigeration cycles, as well as airflow mechanics. The trainer includes high and low-pressure connecting hoses, allowing students to understand and visualize the entire cooling process. This unit is mounted on a durable base, making it suitable for technical and vocational automotive training environments.

Features

• Radial piston compressor for simulating real automotive air conditioning systems.
• Condenser and evaporator for studying heat exchange processes.
• L-expansion valve to demonstrate refrigerant pressure regulation.
• High and low-pressure connecting hoses for practical exercises in pressure system diagnostics.
• Electric fans to simulate airflow mechanics in automotive applications.
• Filter with integrated microfilter and holed screen for understanding refrigerant filtration.
• Service valves for practical training in system maintenance and refrigerant handling.

Value for Students

• Understand the mechanics of a radial piston compressor, including its internal components like pistons, cam rotors, and valve plates, for in-depth technical knowledge.
• Analyze the refrigeration cycle, from the compressor through the condenser and expansion valve to the evaporator.
• Learn how to work with high and low-pressure systems using connecting hoses that simulate real-world automotive applications.
• Study the function and operation of an axial alternative compressor with detailed examination of its pistons, seals, slide gears, and valve systems.
• Perform hands-on diagnostics and repair procedures on air conditioning components, including the evaporator, condenser, and electric fans.
• Develop the ability to troubleshoot issues related to refrigerant flow and air conditioning efficiency, using the system’s visible and accessible components.
• Explore the role of expansion valves in regulating refrigerant pressure, using the L-expansion valve with features like a calibrated hole, diaphragm, and thermostatic sensor.

Value for Instructors

• Provide students with a fully operational air conditioning system on a sturdy, mobile base, ideal for classroom and workshop use.
• Teach real-world automotive air conditioning principles using actual system components, helping students gain experience in repair and diagnostics.
• Easily demonstrate the complete refrigerating cycle and airflow process, allowing students to visualize and comprehend each phase.
• The system’s clear layout and separate components make it simple to highlight specific areas during lessons, improving understanding and engagement.
• Ensure safety during practical exercises with a well-contained system that offers high visibility and clear access to all components.
• Facilitate collaborative learning opportunities by allowing multiple students to engage in hands-on activities simultaneously.

Specifications

• Dimensions: 1050 x 600 x 400 mm (41.34 in×23.62 in×15.75 in)
• Weight: 18 kg (40 lb)
• Product number: AE410650M
