CVT Gearbox Cutaway Model

Product Description

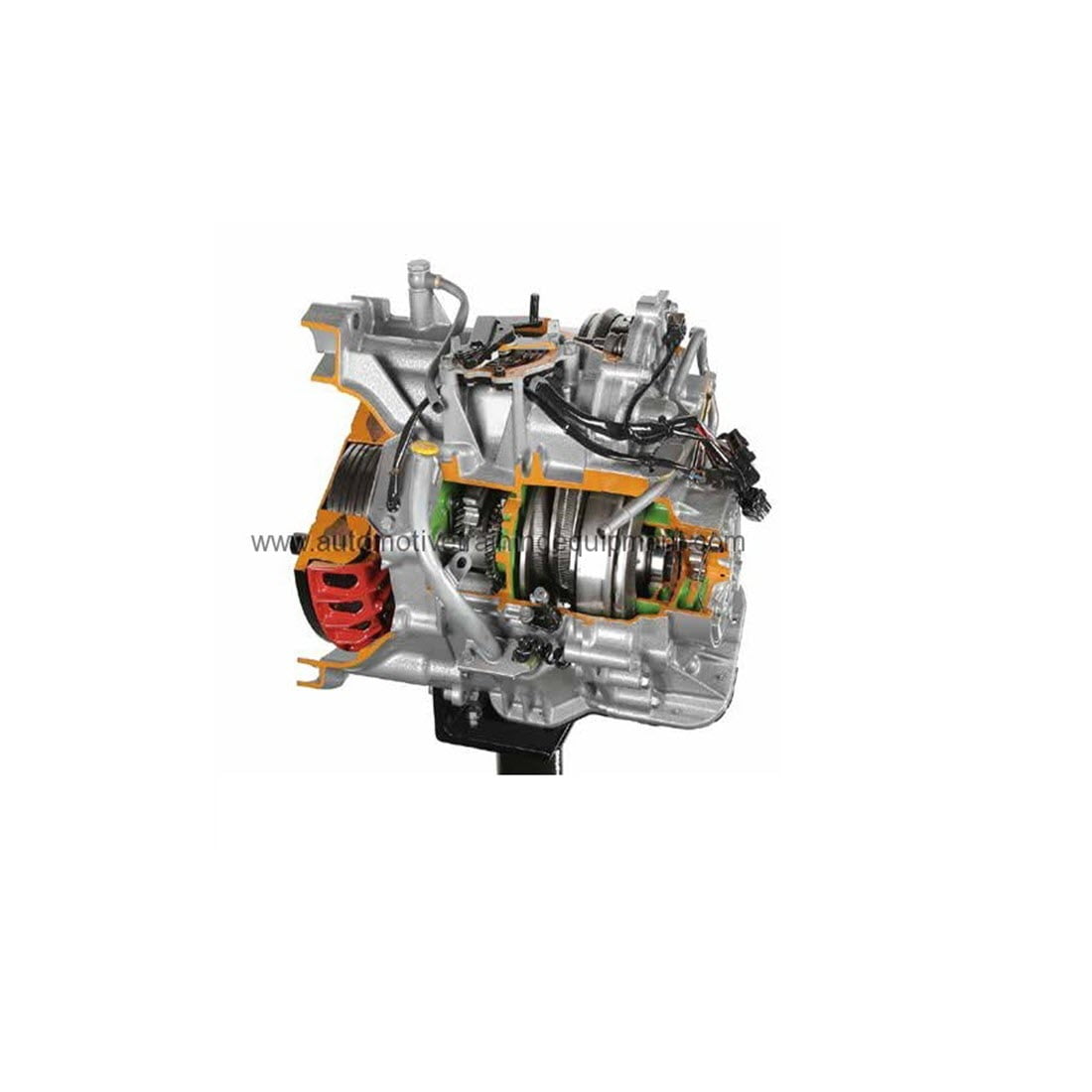

CVT gearbox cutaway model

Order nr.: AE311068M

Special gearbox that can change continuously through an infinite number of effective gear ratios between maximum and minimum values. There are two V-belt pulleys that are split perpendicular to their axes of rotation, with a V-belt running between them.

Operated manually through a crank handle.

Technical specifications

• Electro-magnetic clutch
• Forward and reverse insertion lever
• Primary pulley
• Secondary pulley
• Roller belt
• Final reduction unit
• Hydraulic command unit
• On a stand with castor wheels

Approx. weight and dim.:

• Dimensions approx.: 60x50x80h cm
• Weight (netto) approx.: 45 Kg
• Weight (brutto) approx.: 75 Kg
