Diesel CR Turbo Engine

Product Description

Diesel CR Turbo Engine Educational Trainer VIVV01-RHX

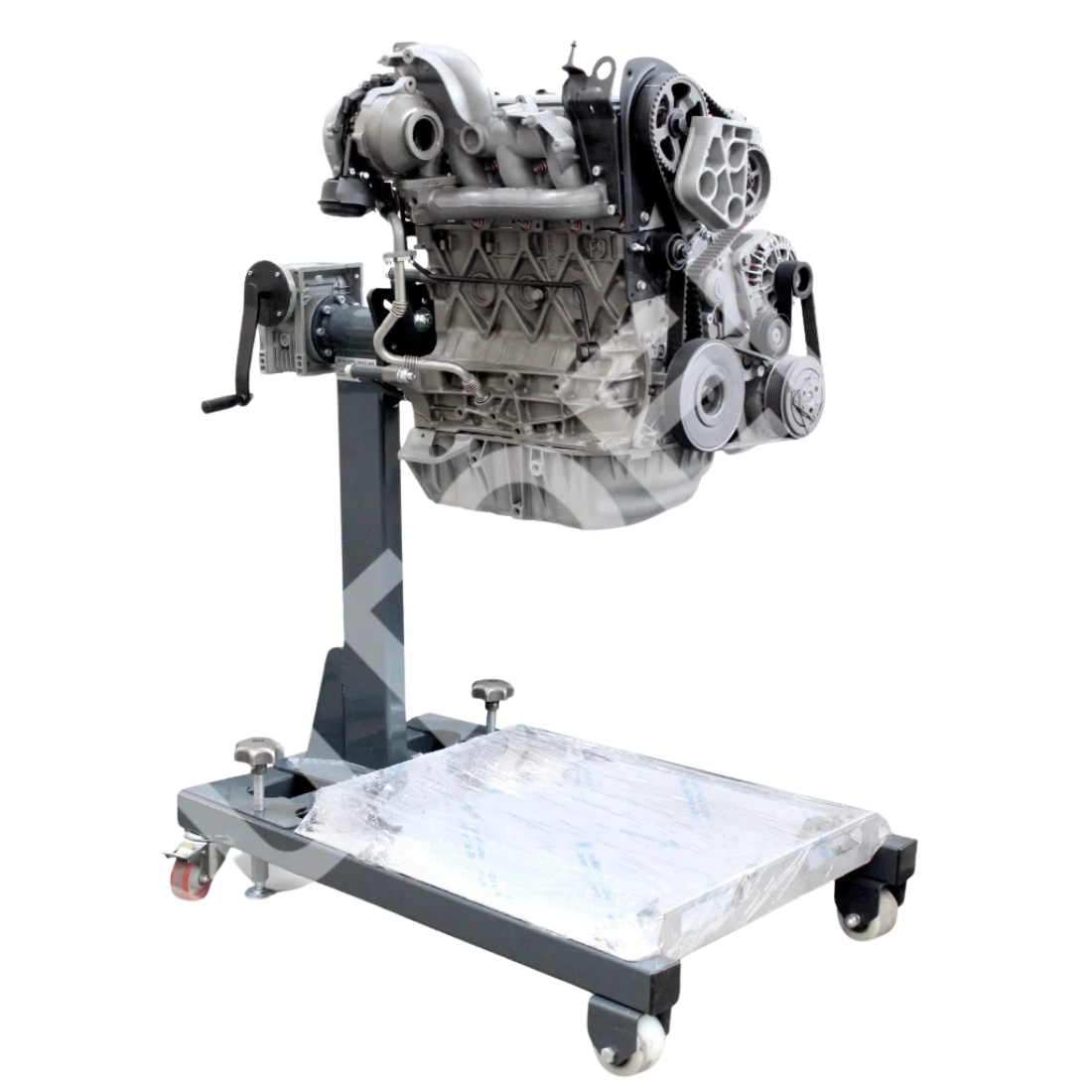

Trainer for disassembling and assembling for CR-type diesel engine with a turbocharger, mounted on a manually rotating stand for 360° access. It features a complete timing and auxiliary belt system and is equipped with a mobile base on four castors for easy movement during disassembling or assembly.

Features

• Based on OEM car engine equipped with a CR-type fuel supply system and a turbocharger.
• Engine mounted on a manually operated stand with 360° rotation using worm and wheel gearboxes for comprehensive visibility and access.
• Equipped with four castors for easy movement and repositioning in the classroom or workshop.

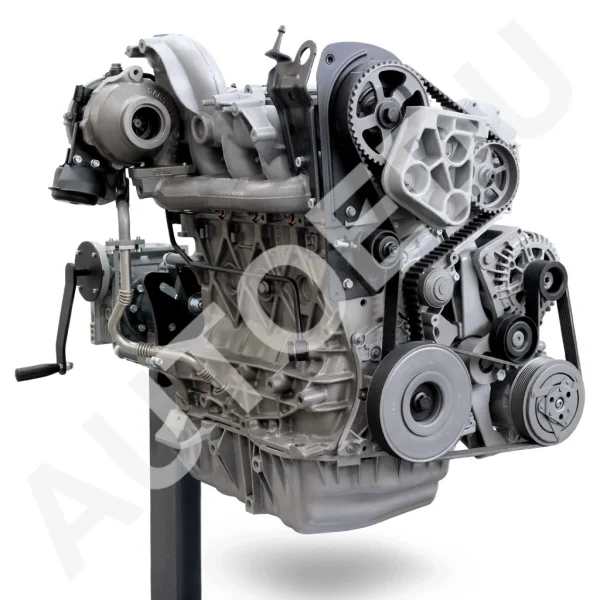

• Complete system for practical demonstration of timing and auxiliary belt operations.
• Engine is presented without wiring diagrams or sensors to focus on mechanical and assembly aspects.

Value for Students

• Engage with a fully functional CR-type diesel engine, gaining practical experience with the turbocharged system and the Common Rail fuel supply, which provides insights into high-pressure direct fuel injection systems and their operational benefits.
• Develop technical skills by performing detailed engine assembly and disassembly. Understanding the engine’s internal components, such as pistons, crankshaft, camshaft, and turbocharger, enhances comprehension of engine mechanics and repair techniques.
• Learn about engine timing and auxiliary belt systems, including their roles in engine synchronization and operation. This knowledge is crucial for ensuring engine performance and reliability.
• Study the working principles of the turbocharger and its impact on engine efficiency and power output. The CR system’s high-pressure injection and its influence on combustion efficiency are key learning points.
• Understand the interplay between various engine components and systems, focusing on how the CR fuel system and turbocharger interact to improve engine performance and fuel efficiency.

Value for Instructors

• Training Tool offers a realistic and detailed engine trainer for teaching OEM diesel engine mechanics, including turbocharging and CR fuel systems.
• The 360° rotating stand allows for versatile and accessible demonstration angles, making it easier to illustrate complex engine assembly and disassembly processes.
• With its mobile base and castors, the trainer can be easily repositioned within the classroom or workshop, supporting dynamic and interactive teaching methods.
• Provides a hands-on approach to learning, allowing students to gain practical experience with engine components and systems in a controlled and safe environment.

Specifications

• Dimensions: to be specified based on the exact model configuration.
• Weight: to be specified based on the exact model configuration.
• Product number: VIVV01-RHX

Other Information:

• Made in Lithuania
• CE certificate
