Product Description
DSG Gearbox Educational Trainer For Disassembling & Assembling
Order Nr: GDIVV1-DSG

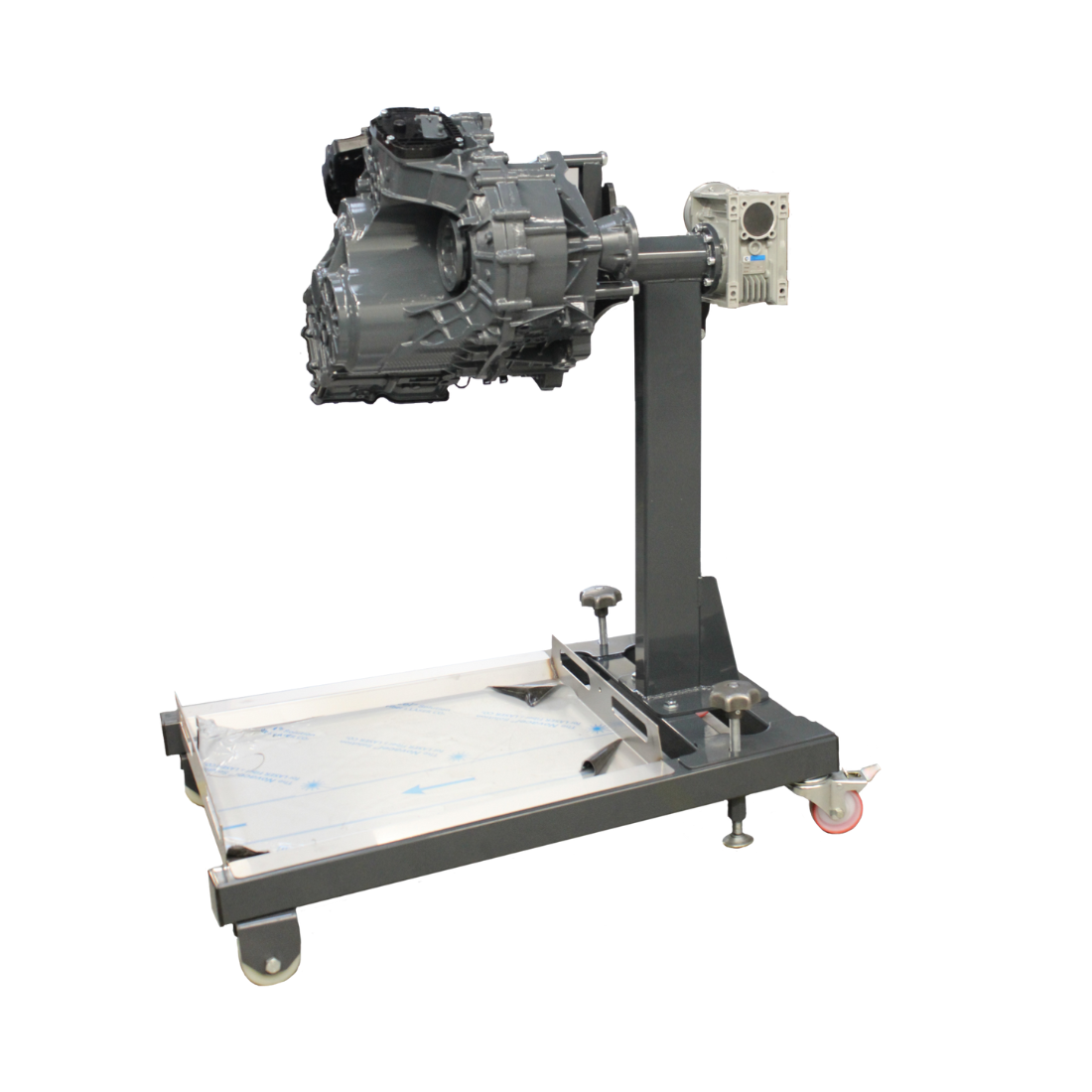

Educational Trainer is designed for disassembling and assembling a dual-clutch DSG transmission featuring a dry-type double clutch, seven forward gears, and one reverse gear. The gearbox is mounted on a manually rotatable stand with worm and wheel gearboxes, offering 360° rotation. It includes a tool set, oil collection tray, tool tray, gearbox control handle, and stabilization propellers. The trainer is mobile on four castors for easy maneuverability and stability.
Features
- Includes a dual-disc clutch with torque transmission capability ranging from 240 to 280 Nm, and a gearbox with seven forward and one reverse gear.
- Features a 360° rotating mechanism with worm and wheel gearboxes, allowing for versatile positioning and examination of gearbox components.
- Complete set of tools for disassembly and assembly, enabling practical hands-on experience.
- Mobile and stable design, mounted on a mobile stand with four castors, equipped with stabilization propellers for enhanced stability during operation.
- Integrated tray for collecting drained oil, ensuring a clean and efficient working environment.
Value for Students
- Engage directly with a DSG transmission system, gaining practical experience in the assembly and disassembly of a dual-clutch gearbox, enhancing understanding of complex automatic transmission mechanisms.
- Study essential components including the two-disc clutch system, planetary gear sets, and the torque transmission mechanism. Understand how the dry-type double clutch facilitates rapid gear shifts and manages torque between 240 to 280 Nm.
- Learn about the operational principles of a seven-forward and one-reverse gear setup, including how gear ratios and shifting sequences impact vehicle performance.
- Use provided tool set to practice maintenance techniques, including removing and replacing clutch components, analyzing gear wear, and addressing common transmission issues.
- Observe the gearbox’s internal mechanics and gain insight into potential fault diagnostics by examining wear patterns, fluid levels, and component integrity.
Value for Instructors
- The trainer serves as a detailed educational resource for demonstrating the functionality and repair of OEM DSG transmissions, providing visual and tactile learning experiences.
- Features a stable, rotatable stand with castors for easy mobility and adjustment, making it suitable for dynamic classroom environments.
- Comes with a full set of tools for disassembly and assembly, ensuring that students have everything needed for a thorough educational experience.
- Equipped with stabilization propellers and an oil collection tray to maintain cleanliness and safety during practical sessions.
- The rotating stand allows for 360-degree manual rotation, providing optimal access to all gearbox components and facilitating detailed examination from multiple angles.
Specifications
- Dimensions: 1200 x 700 x 1200 mm (47.24 x 27.56 x 47.24 in)
- Weight: 116 kg (255 lb)
- Product number: GDIVV1-DSG
