Product Description
Educational Petrol Engine Trainer With Multipoint Injection System EURO 4/5

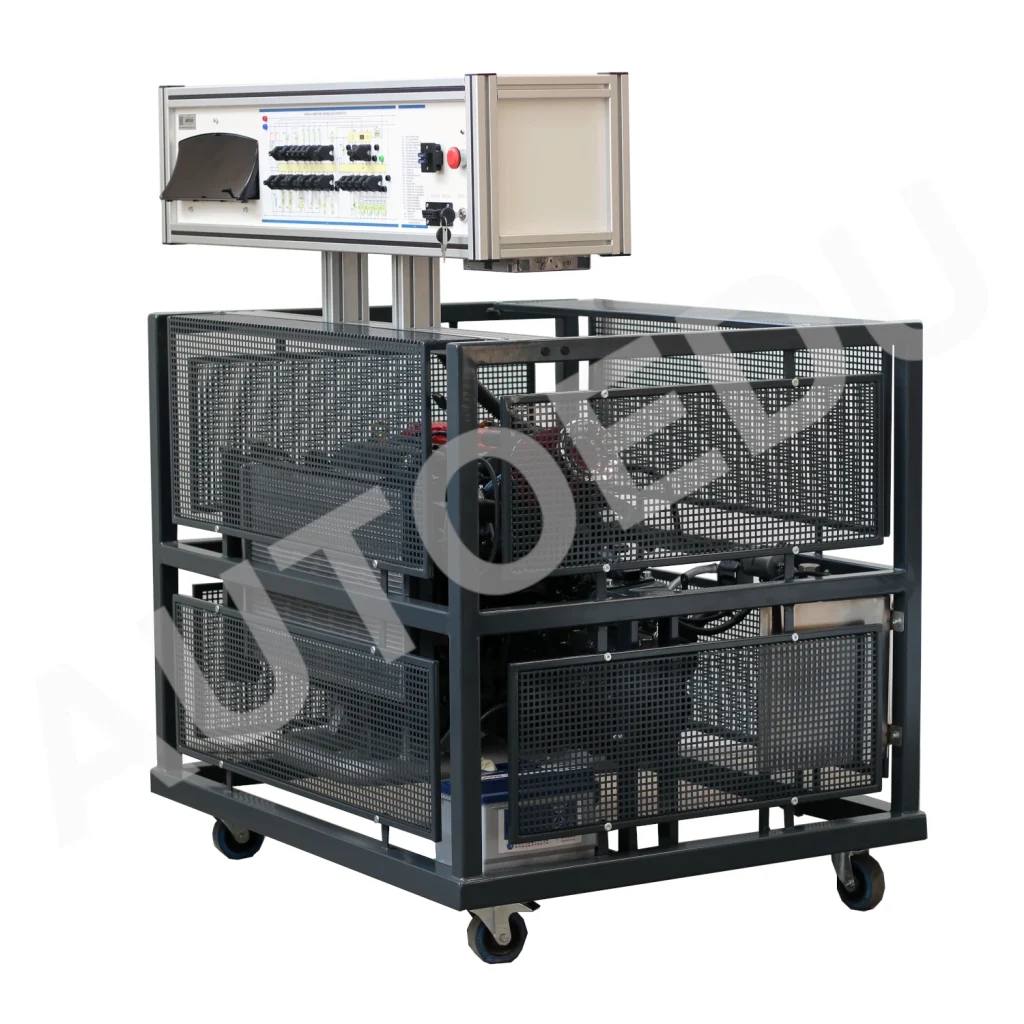

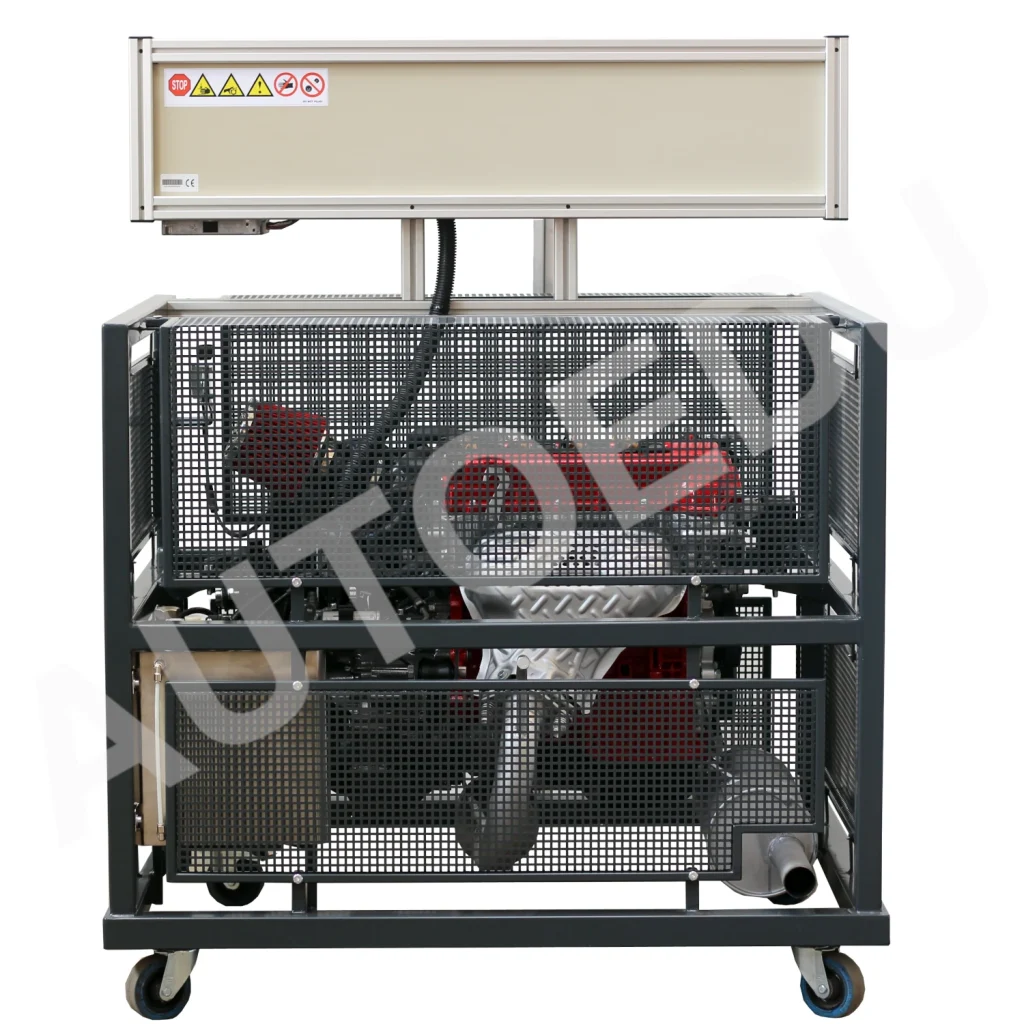

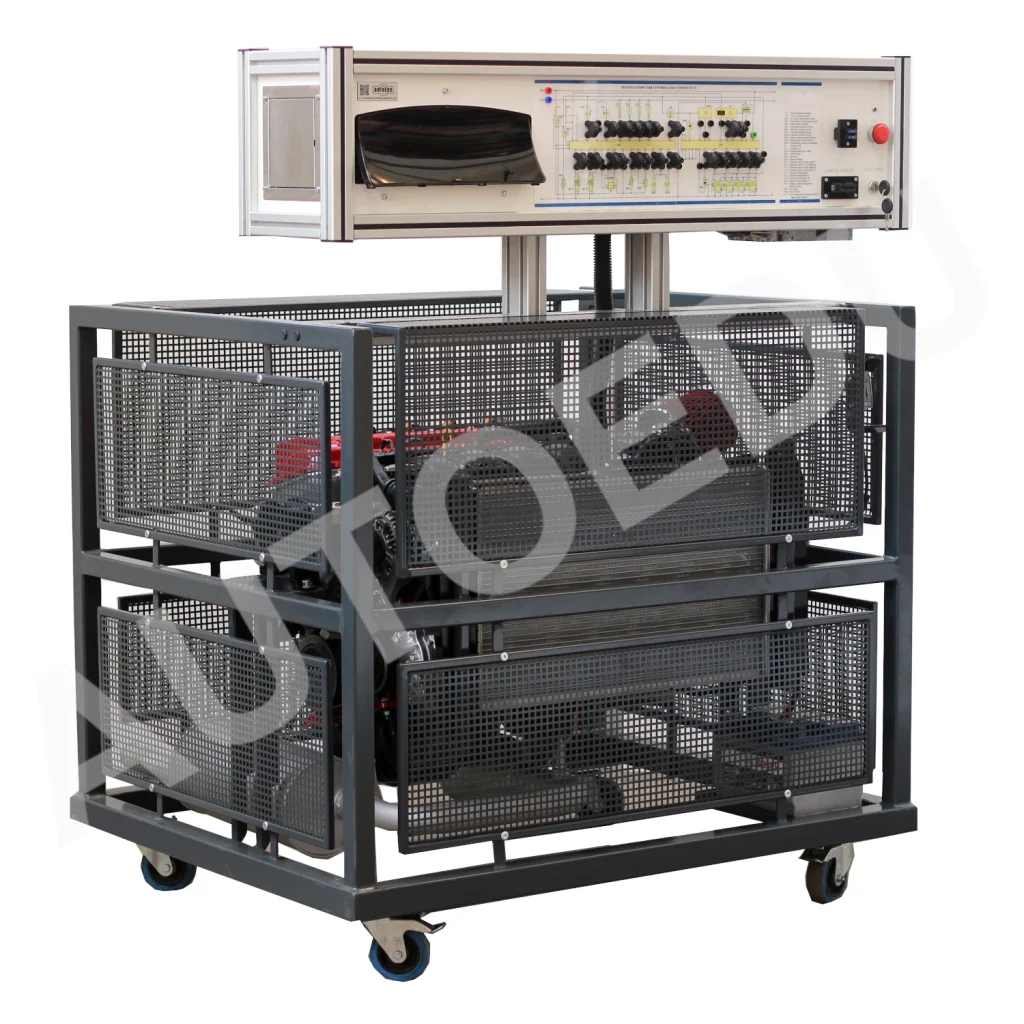

Educational petrol(gasoline) engine trainer with multipoint injection system MPI EURO 4-5 MVMPI02-TOY AutoEDU Fully functional Toyota 4-cylinder EURO 4/5 multi-point injection (MPI) petrol(gasoline) engine installed in a durable metal frame with transport wheels. It includes a control panel with all necessary devices, electrical diagrams, and component markings, providing a comprehensive hands-on learning experience for understanding engine operations, diagnostics, and troubleshooting.
- Fully functional Toyota 4-cylinder EURO 4/5 MPI petrol engine
- Mounted on a mobile, transportable metal frame
- Centralized engine control with detailed wiring diagram and component legend
- OBD II 16-pin diagnostics for live data, fault codes, and actuator activation
- Measurement access points for circuit and component parameter monitoring
- Jumper-based fault simulation system
- Equipped with: fuel pump, injectors, ignition coils, throttle and camshaft position sensors, lambda, knock, speed, air mass, IAT, and coolant sensors
- Includes Toyota TCCS control module
- Plug-and-play operation—no assembly or mounting required
- Fully operating 4-cylinder EURO 4/5 MPI petrol(gasoline) engine gives real experience on multi-point injection fuel injection, exhaust, cooling systems, wiring and other components working principles.
- Use the OBD 16-pin diagnostic connector to perform ECU identification, read and erase fault codes, display live data, and test actuators. Learn to interpret real-time data and understand system parameters.
- Learn to identify and diagnose engine faults by manipulating jumpers to simulate various operational failures, enhancing problem-solving skills.
- Measure and monitor working parameters of key components, such as the fuel pump, injectors, ignition coils, sensors, and control valves, using open contacts and a detailed circuit diagram.
- Understand the function and operation of sophisticated components like the throttle position sensor, camshaft position sensor, lambda sensor, knock sensor, air mass meter, and coolant temperature sensor.
- Work with safety removable panels that protect against hot and rotating parts, enhancing both learning and safety. You can access its components directly through removable panels.
- Offers a complete functional engine model ideal for teaching and demonstrating modern engine technology, including multi-point injection systems, turbocharging, and exhaust management.
- Utilize the control panel, electrical diagrams, and component markings to provide detailed explanations and facilitate in-depth understanding of engine systems. The integrated OBD diagnostic connector enables detailed training in fault code management, system parameter analysis, and actuator testing.
- Built with a closed steel frame construction, ensuring durability and ease of maintenance. The compact design integrates an instrument cluster, measurement, and fault simulation panel within a sturdy structure.
- Allows instructors to demonstrate and simulate a wide range of faults, providing students with valuable troubleshooting practice.
- The training stand is designed for simplicity, requiring only small adjustments to reset to default parameters, making it easy to prepare and start each lesson quickly and efficiently.
- Plug and play design, requiring no additional mountings, assembly, or special preparation for operation.
- Dimensions: 1200 x 1000 x 1500 mm (47.24 in x 39.37 in x 59.06 in)
- Weight: approx. 300 kg (660 lb)
- Available EURO4/5 configuration
- Product number: MVMPI02-TOY
Optional equipment (sold separately)
- Diagnostic Scan tool
- Diagnostic Oscilloscope
Product number: MVMPI02-TOY
Other Information:
- Made in Lithuania
- CE certificate
