Educational Trainer Electric Vehicle Training Stand

Product Description

Educational Trainer Electric Vehicle Training Stand

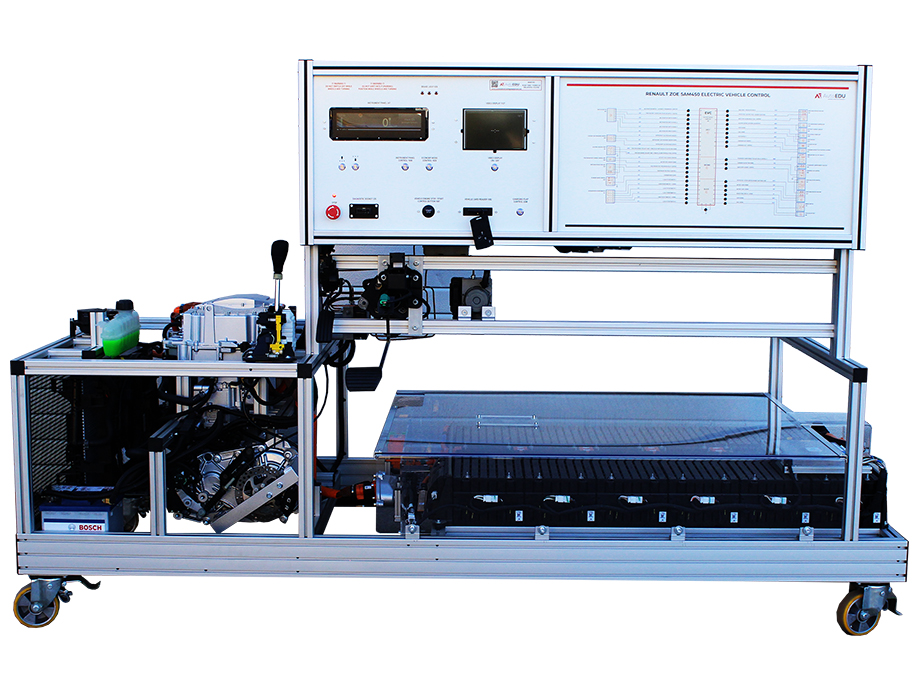

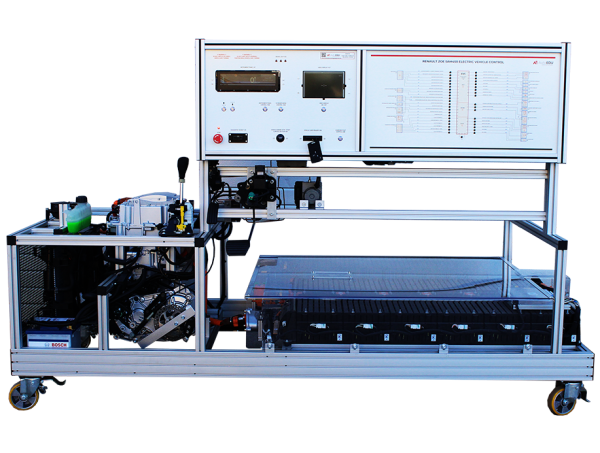

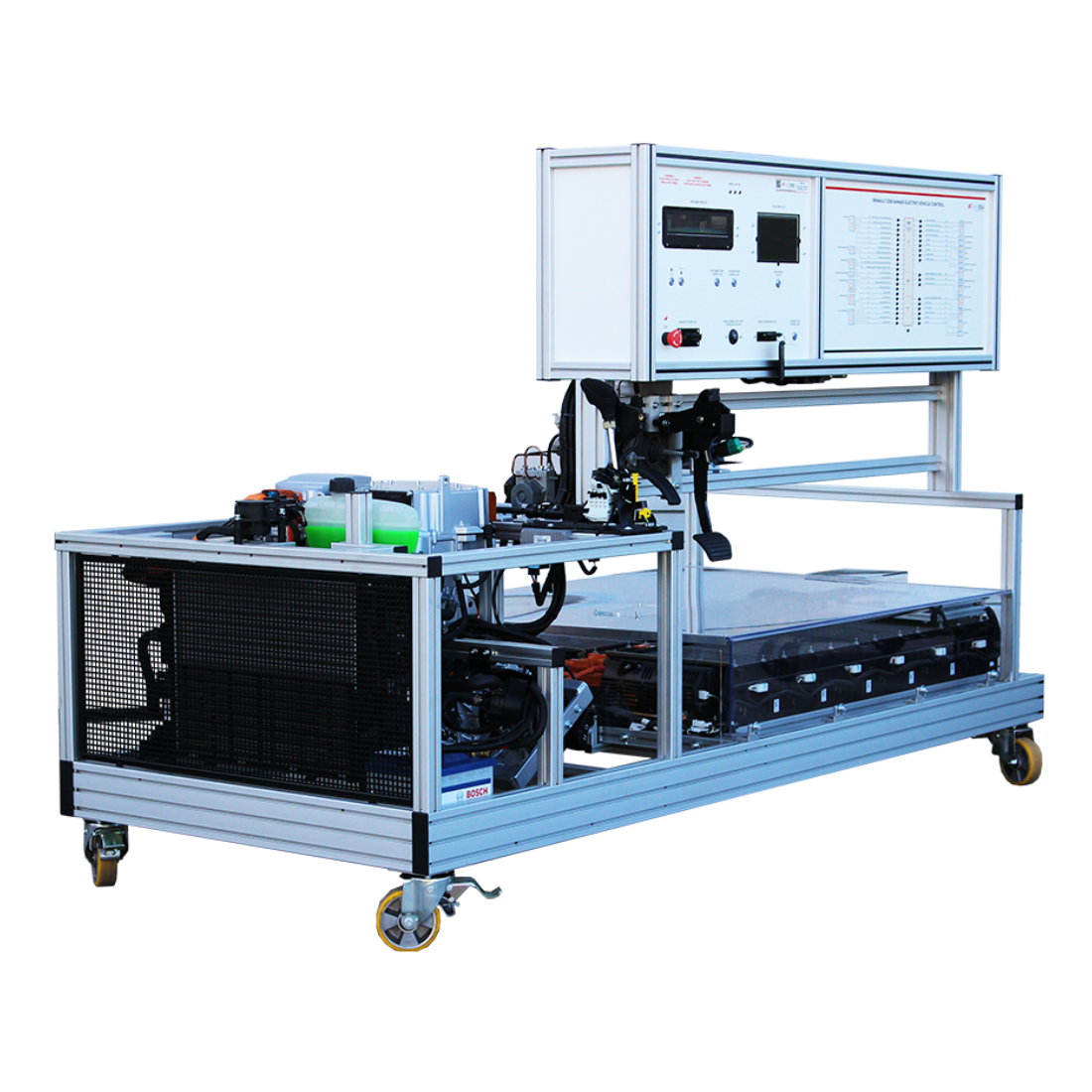

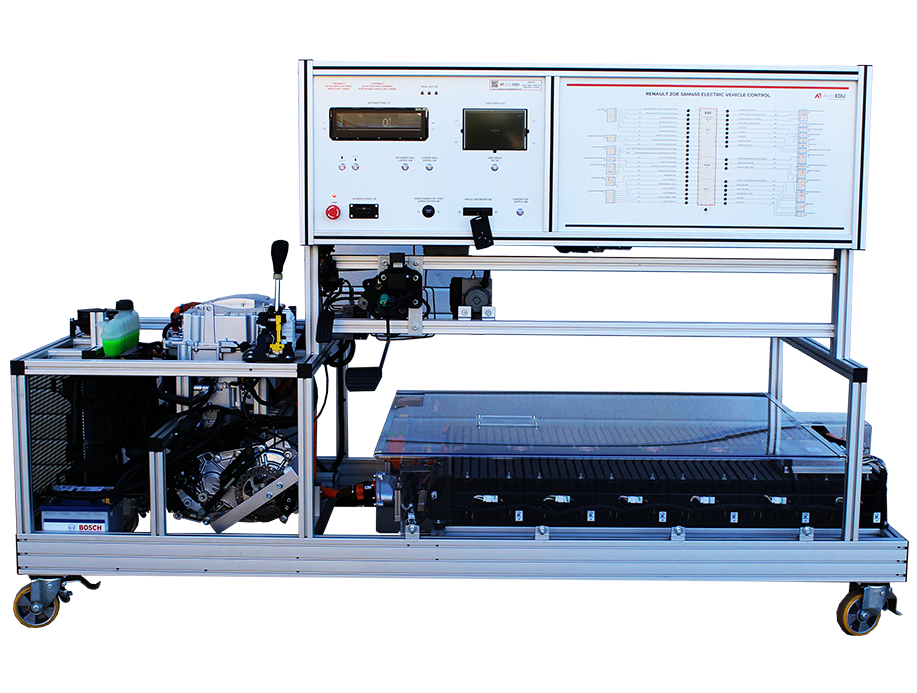

Electric vehicle training stand is based on the Renault ZOE electric car, offering a comprehensive hands-on and theoretical training experience using real electric vehicle components. Designed for automotive students, this educational stand includes the main systems of electric vehicles, such as the electric motor, inverter, high-voltage battery, and charging port. All components are connected with original high-voltage “orange” cables and covered with protective plexiglass for safety.

As a result, it is perfect for initial training and familiarization with Electric Vehicle safety requirements before teaching EV maintenance and repair. This stand is also suitable for training diagnosticians and EV repair specialists. Demonstrating EV components, parts, and connections is convenient and straightforward. There is no car body or other body parts that cover or hide the high-voltage “orange wires,” connections, and components of the EV car. With the help of this stand, it is easy to show all the components of the EV car, such as the electric motor, inverter, battery pack, and charging connectors. It is simple to explain and demonstrate how these components are connected and how they interact with each other.

Safety is paramount, making this one of the most important automotive training equipment used before working with real EVs. All stand components are mounted on a sturdy aluminum frame with castors, allowing for easy movement and space-saving in a training classroom or EV lab.

Features

• Electric Motor: Integrated real electric car motor for practical learning.

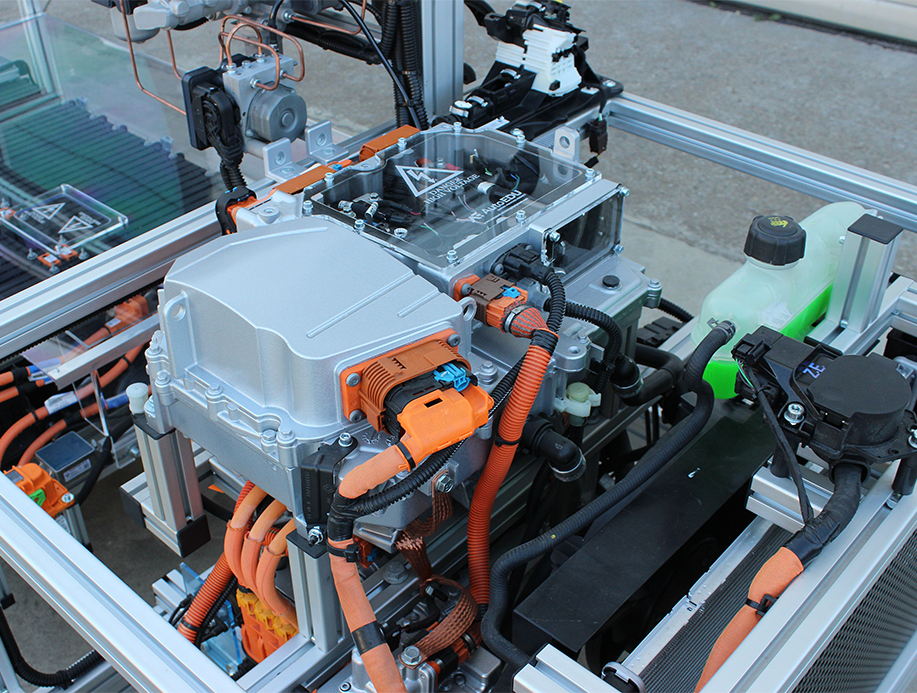

• Electric Inverter: Genuine electric inverter for accurate system management.

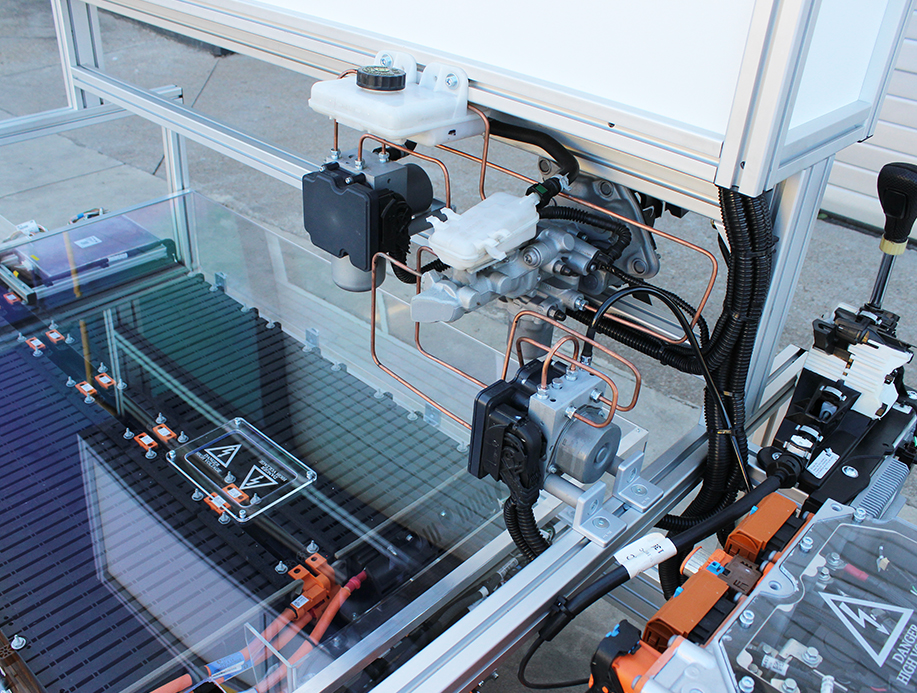

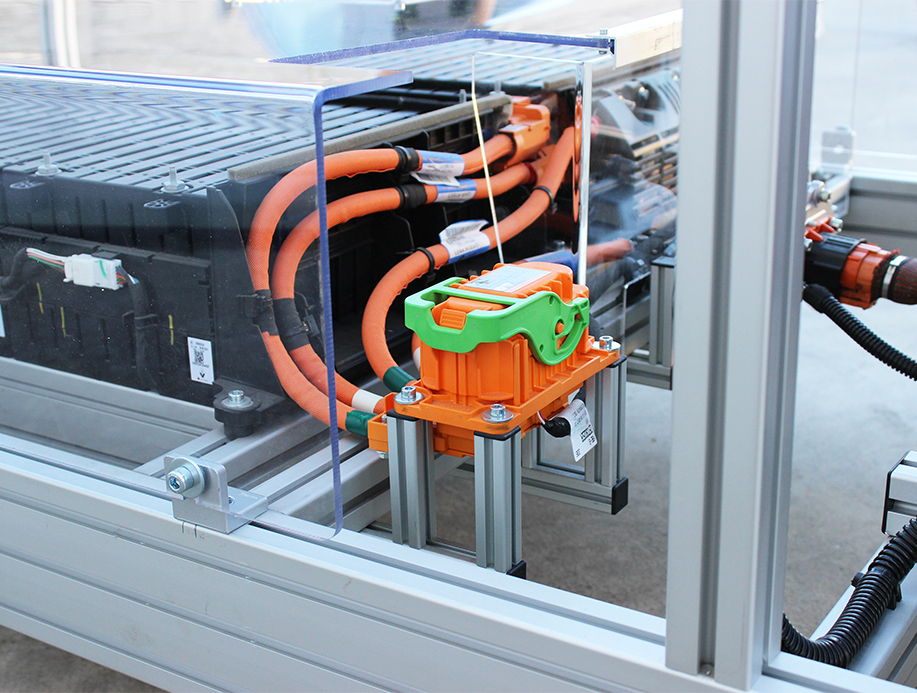

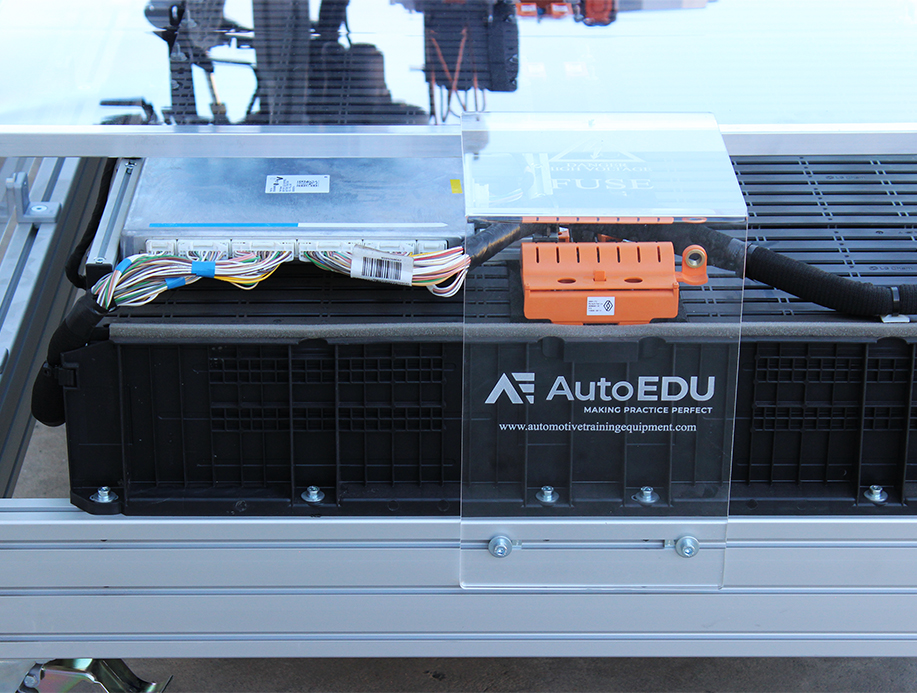

• High Voltage Battery: Real high-voltage battery, including a high-voltage service plug for safety.

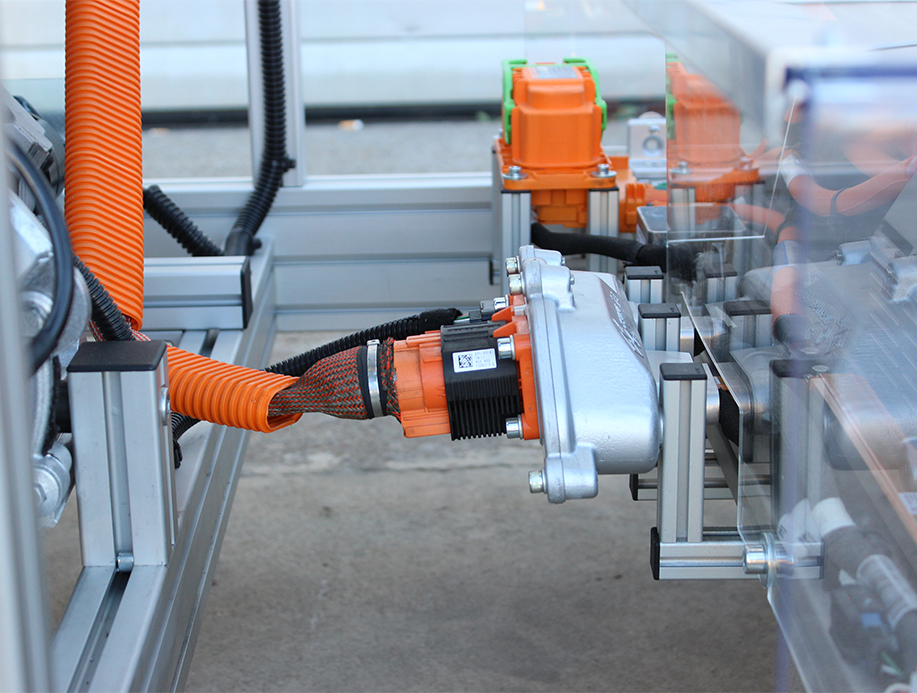

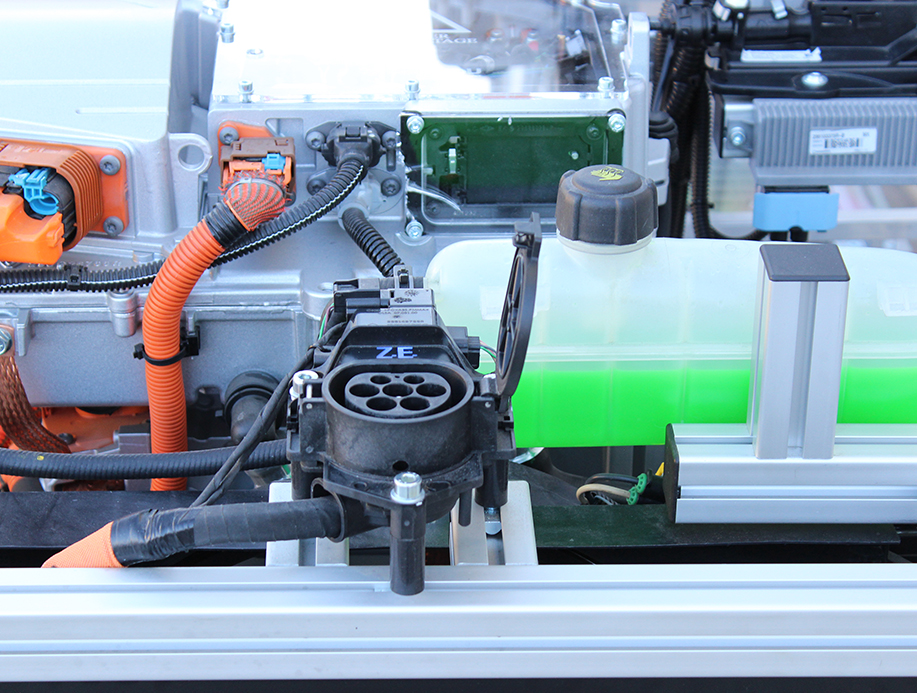

• High Voltage Cables and Protective Plexiglass: Genuine “orange” high-voltage cables with connectors and safety features to prevent electrical hazards during training.

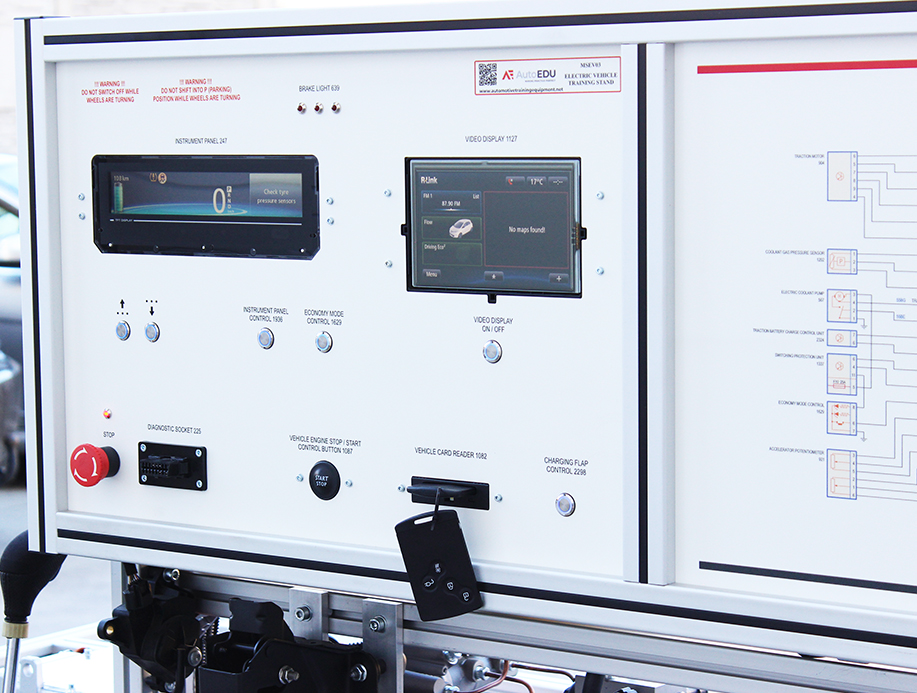

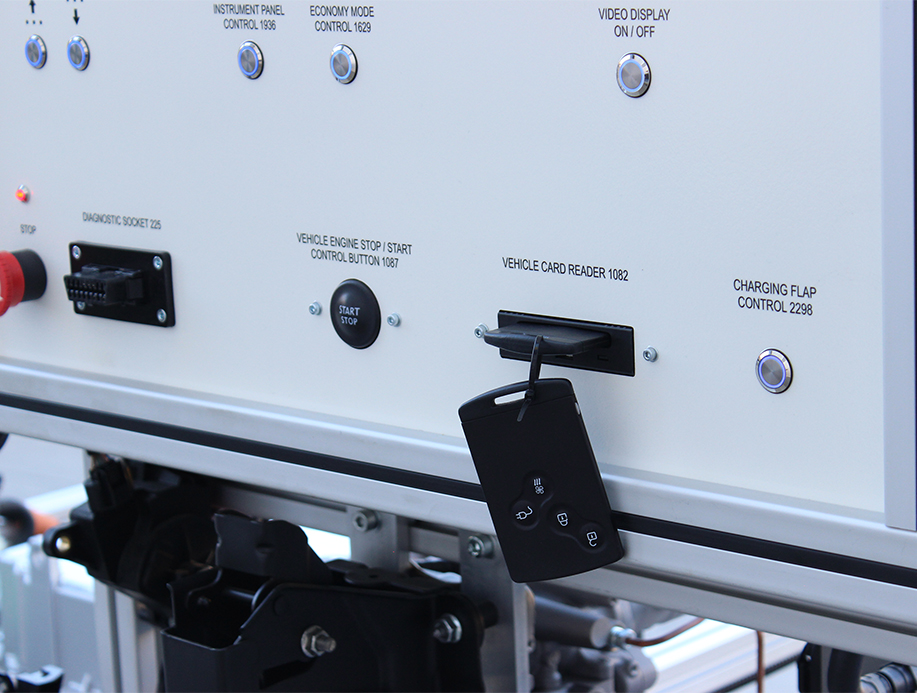

• OBD Diagnostic Capability: Diagnosis through OBD 16-pole diagnostic socket for ECU operations.

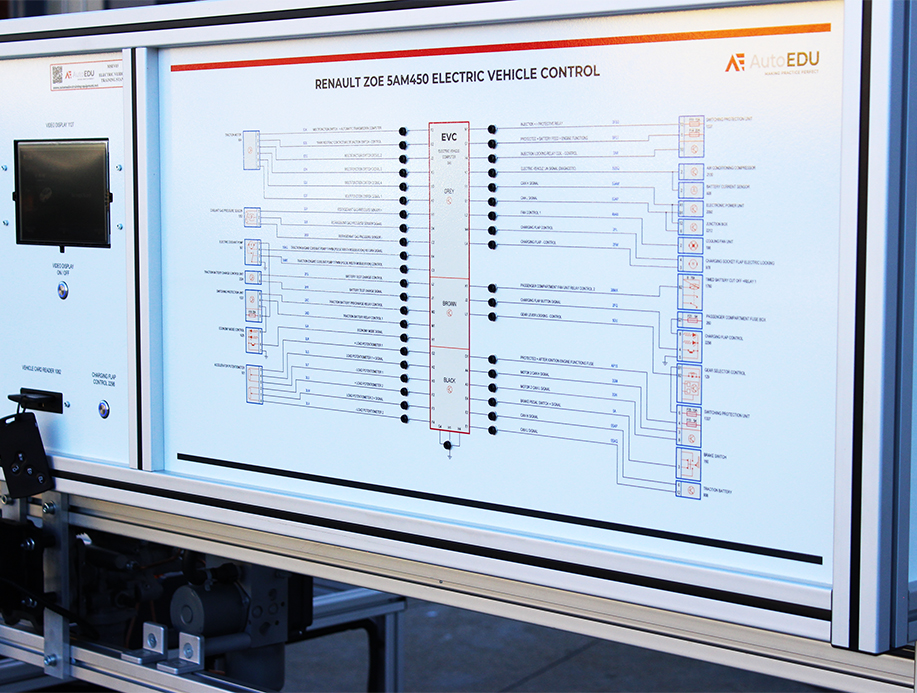

• Electric wiring diagram of the electric car ECU connecting.
• Parameter Measurement: Equipped with BOB and open contacts for real-time measuring of electrical parameters.
• Fault Simulation Capability: Allows simulation of up to 10 faults on the EV control system (not the high voltage).

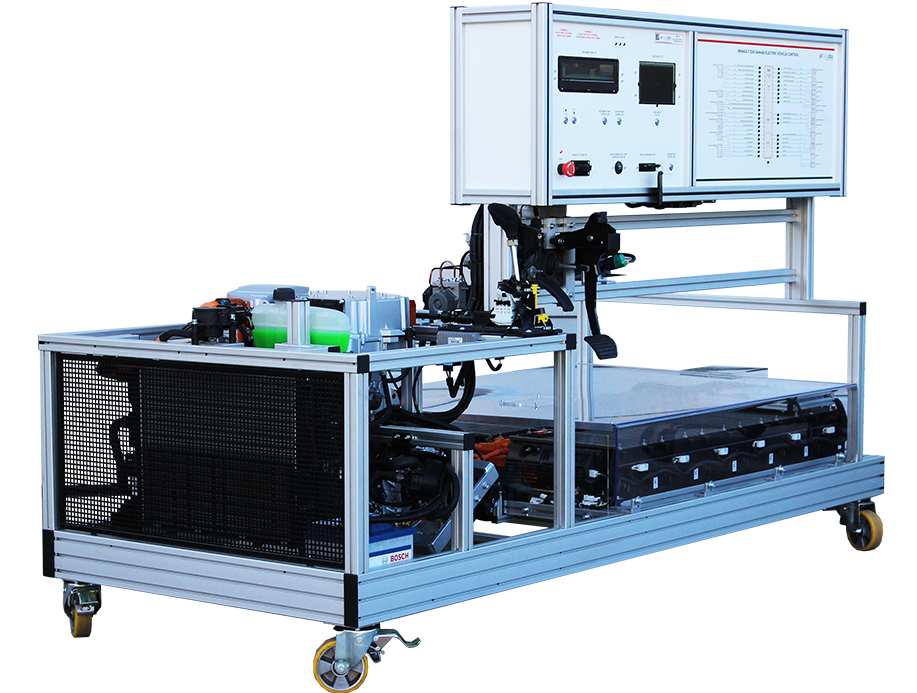

• Aluminum Frame with Castors: Durable and mobile, designed for efficient classroom or lab use.

Specifications

• Power Supply: Autonomic
• Battery: 12V battery
• Dimensions: [dimensions not provided]
• Net Weight: [weight not provided]
• Product Number: MSEV03

Other Information:

• Made in Lithuania
• CE certificate
