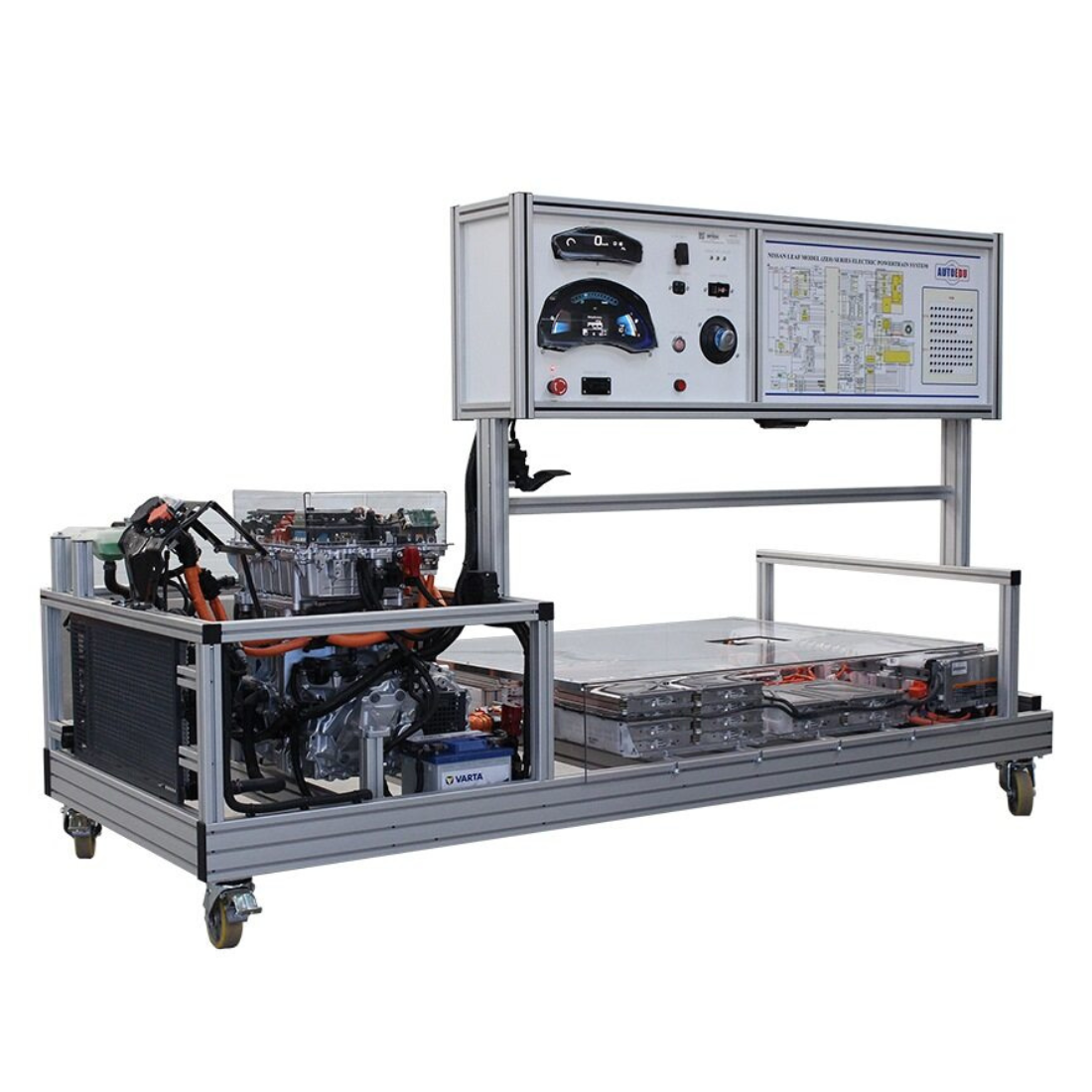

Educational Trainer Electric Vehicle Training Stand

Product Description

Educational Trainer Electric Vehicle Training Stand

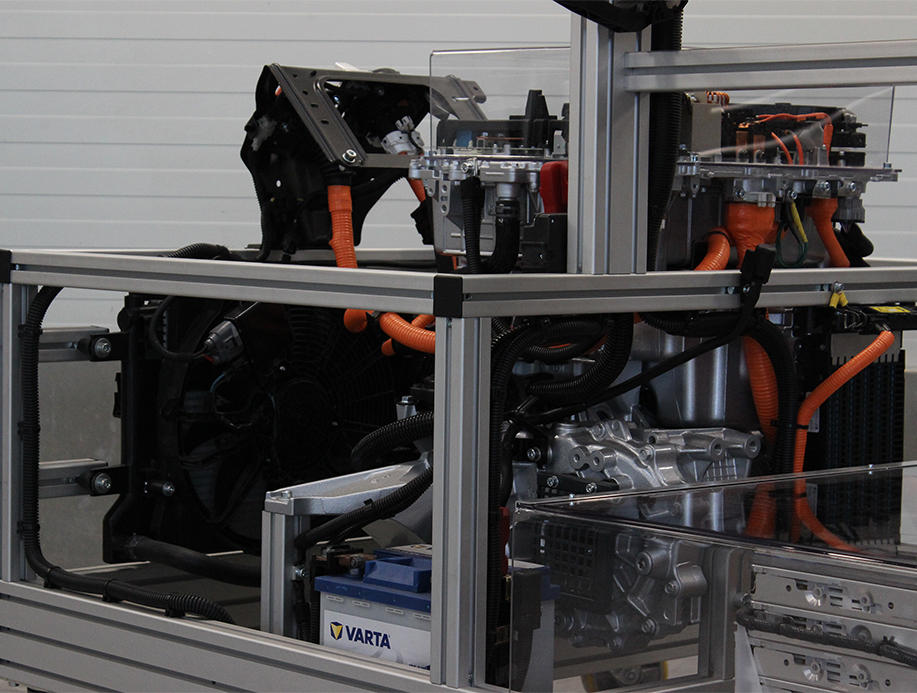

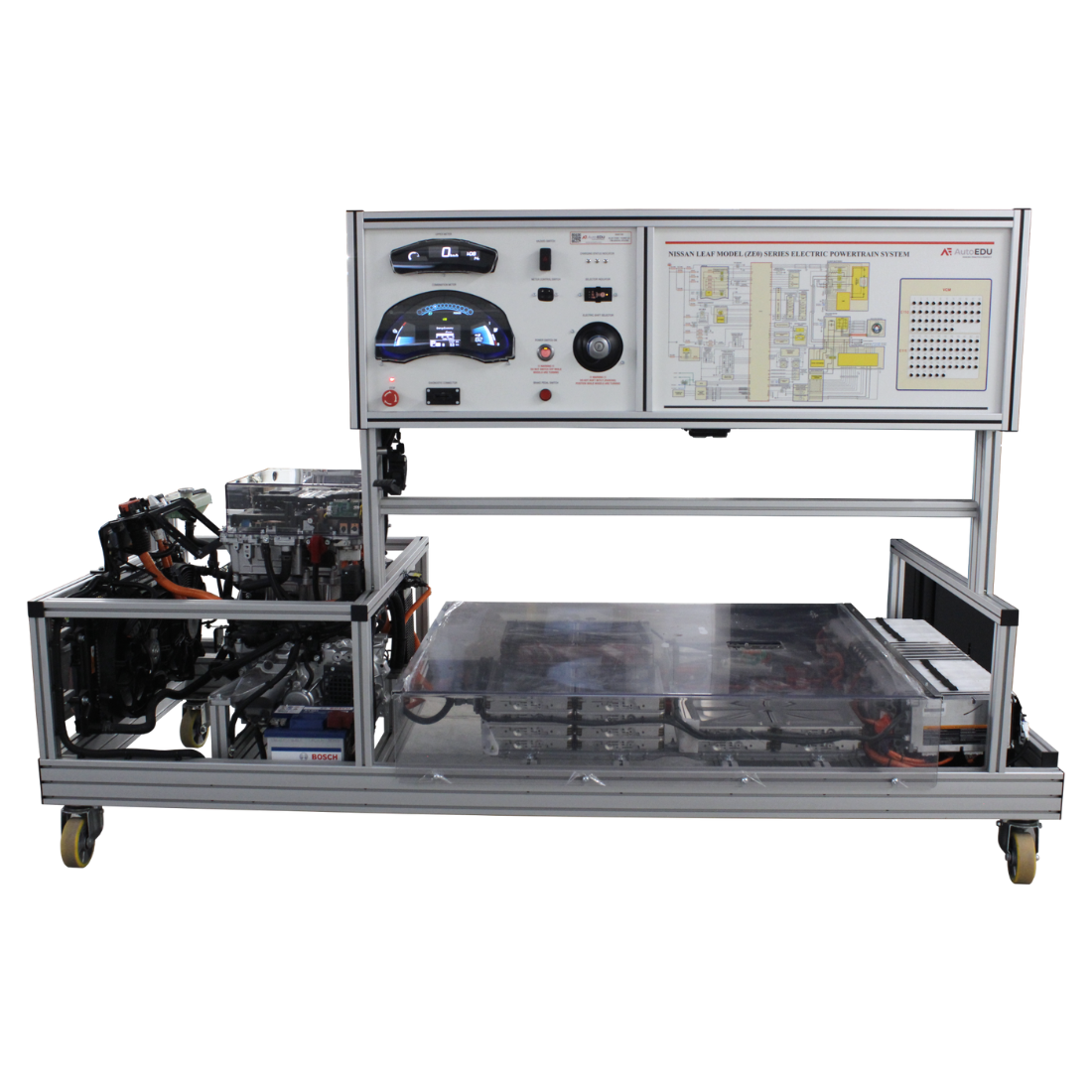

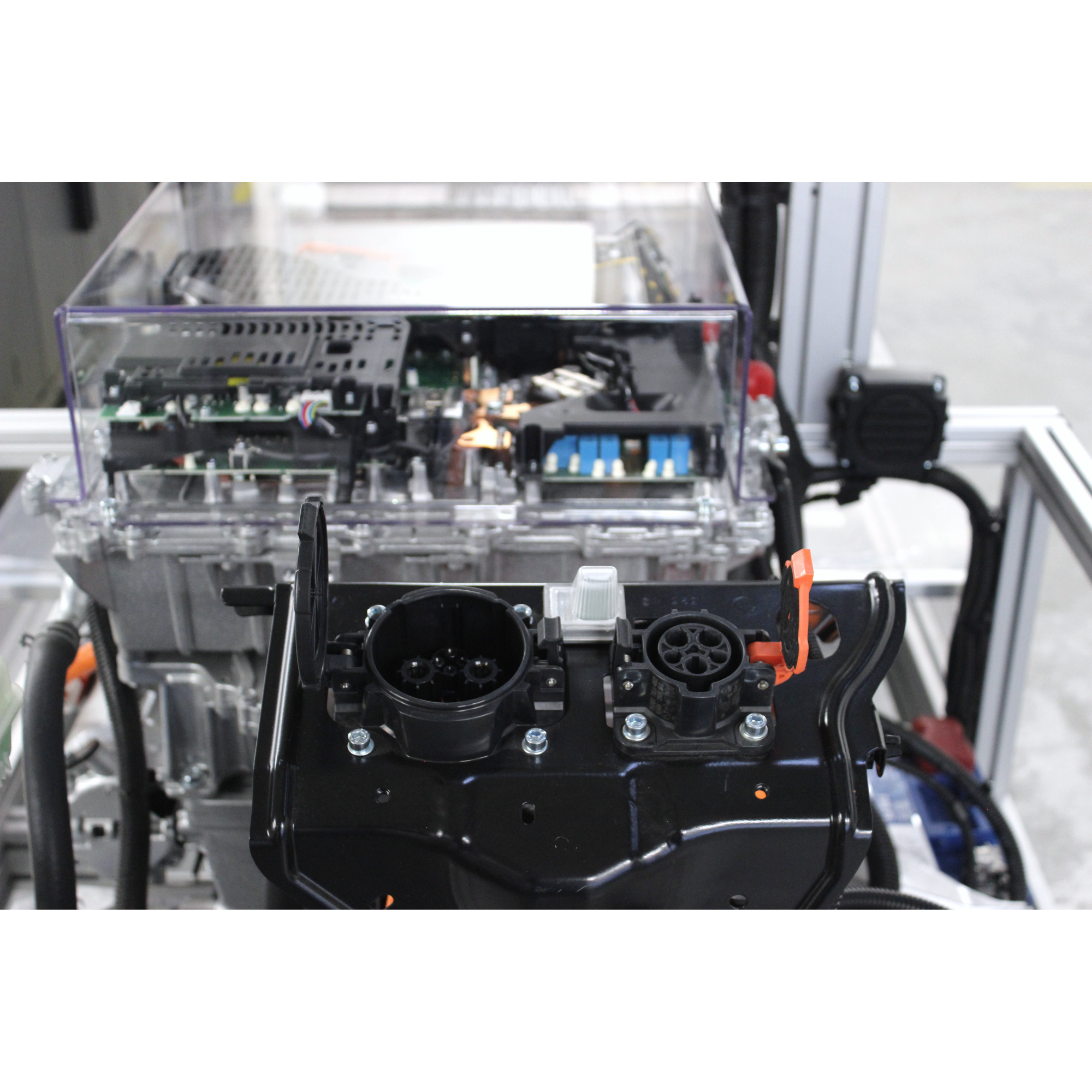

Fully functional electric vehicle training stand is based on the Nissan Leaf electric car, offering a practical and theoretical training experience using real electric vehicle components. This educational stand includes the main systems of electric vehicles, such as the electric motor, inverter, high-voltage battery, high-voltage cables, charging port and other essential elements. All components are connected with original high-voltage “orange” cables and covered with protective plexiglass for safety.

It is perfect tool for initial training and familiarization with electric vehicle safety requirements and teaching EV maintenance and repair. This stand is also suitable for training diagnosticians and EV repair specialists. Demonstrating EV components, parts, and connections is convenient and straightforward. There is no car body or other body parts that cover or hide the high-voltage “orange wires,” connections, and components of the EV car. With the help of this stand, it is easy to show all the components of the EV car, such as the electric motor, inverter, battery pack, and charging connectors. It is simple to explain and demonstrate how these components are connected and how they interact with each other.

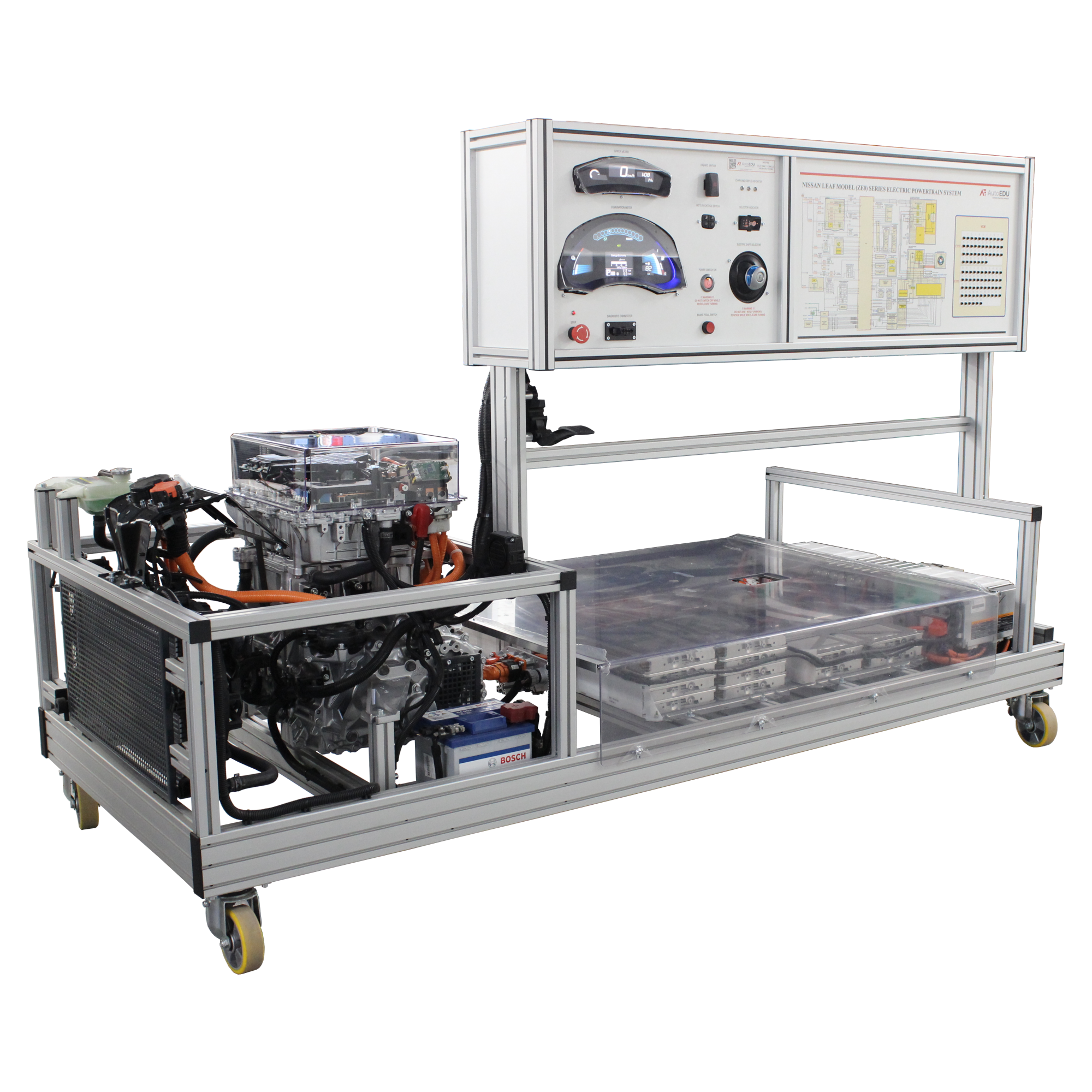

Safety comes first, making this one of the most important automotive training equipment used before working with real EVs. All stand components are mounted on a sturdy aluminum frame with castors, allowing for easy movement and space-saving in a training classroom or EV lab.

Features

• Integrated real electric car motor.

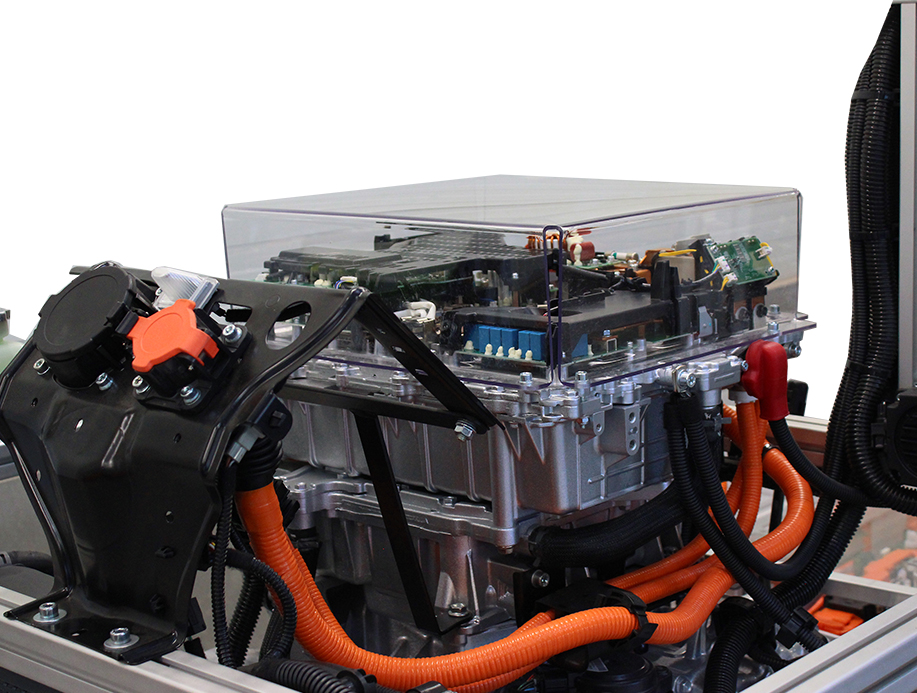

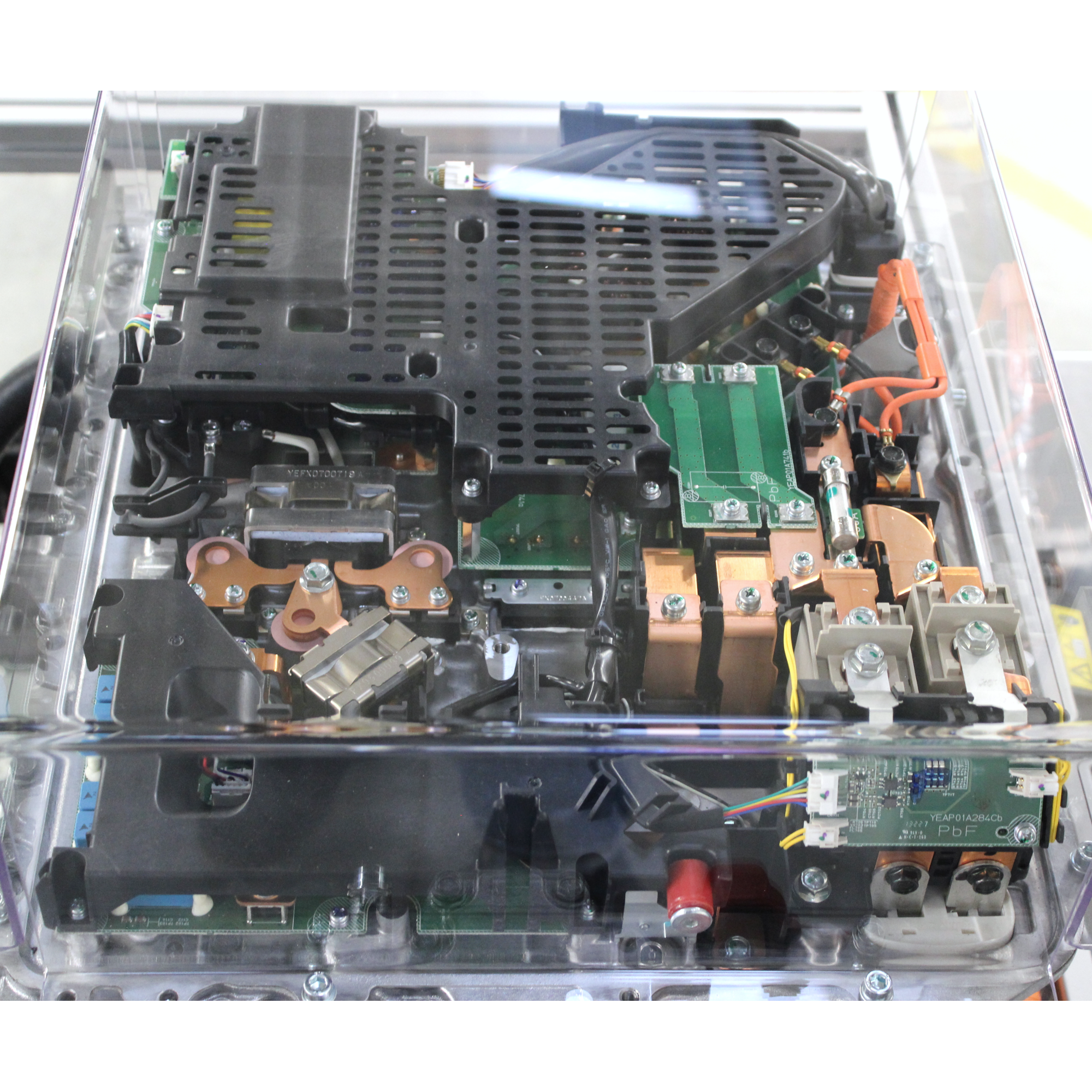

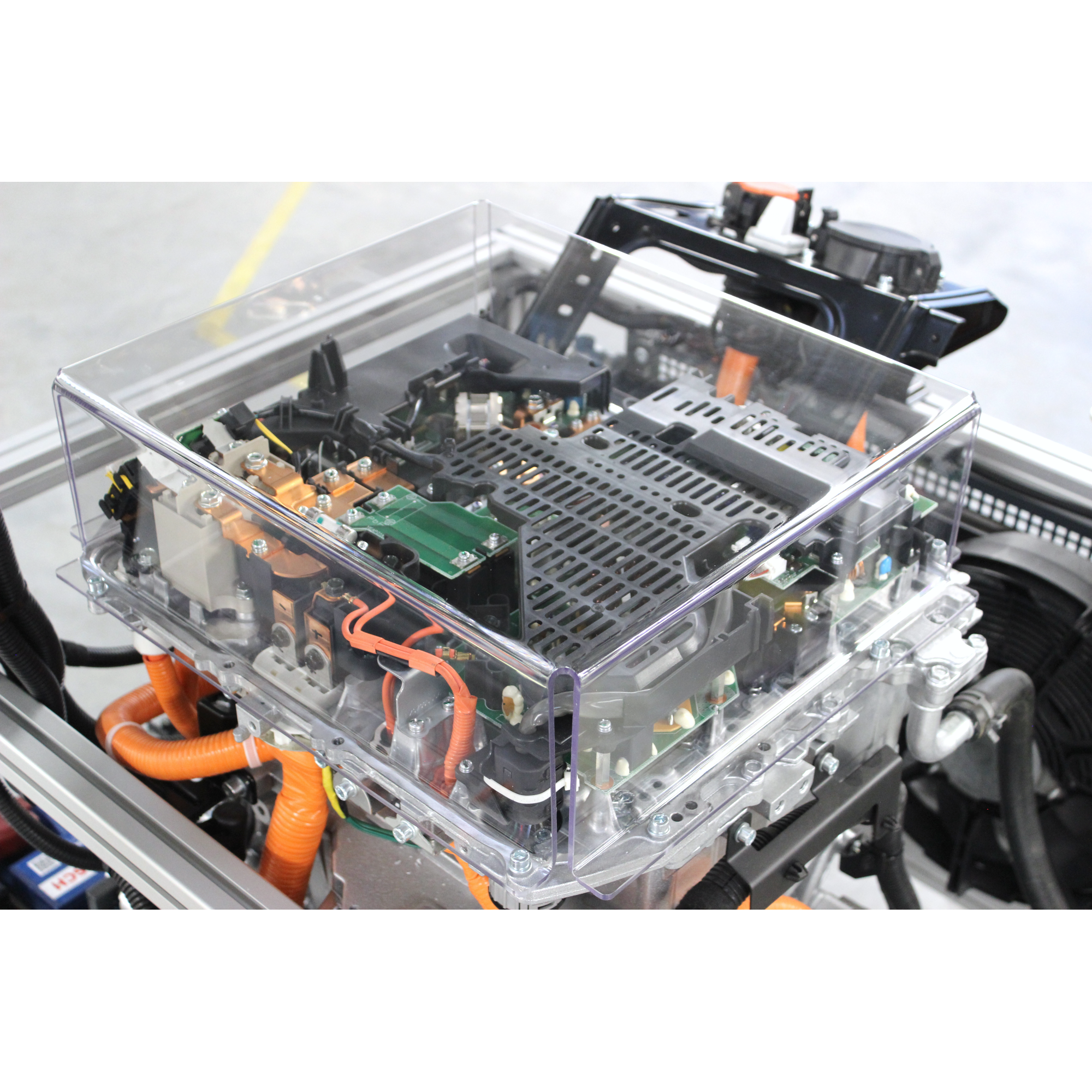

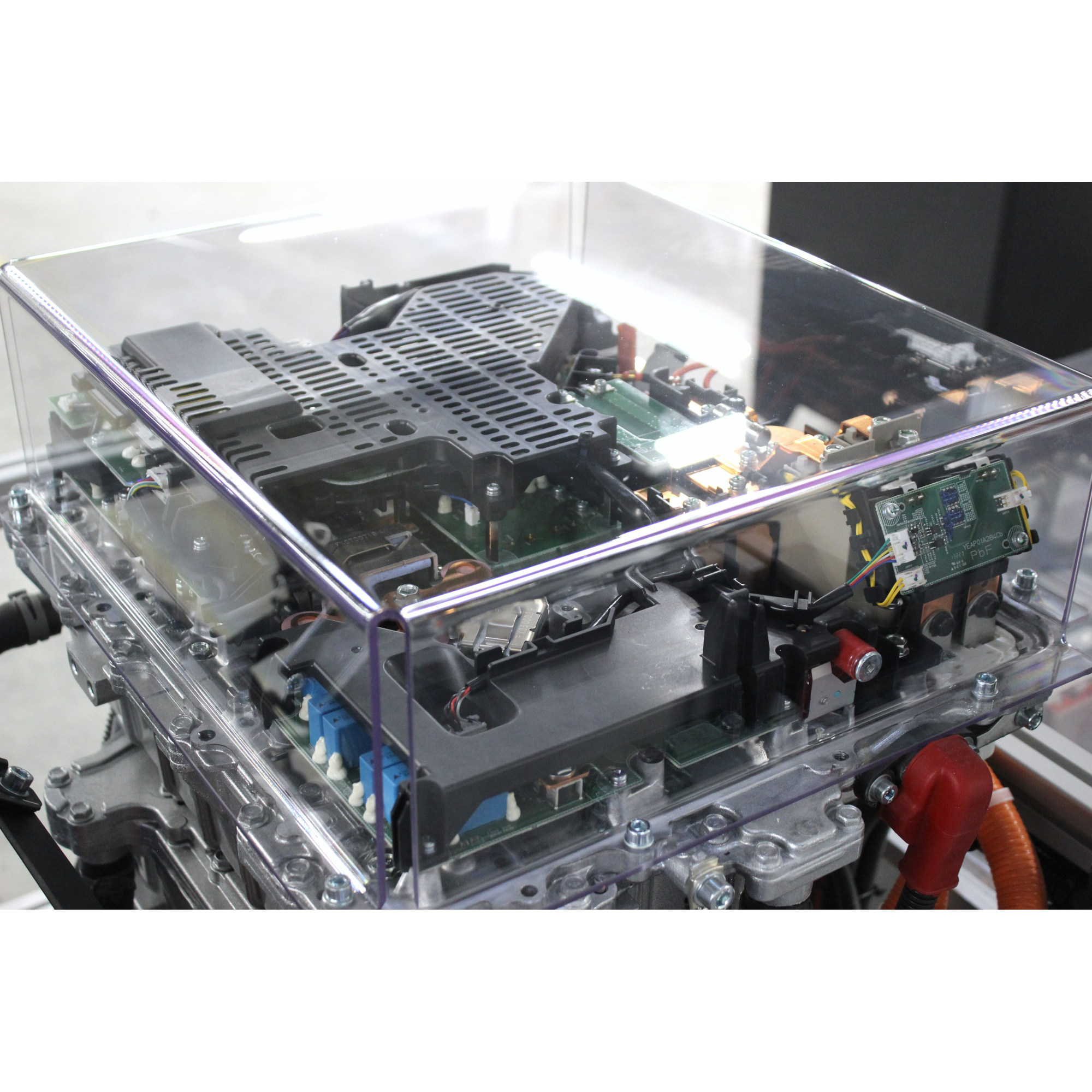

• Genuine electric inverter for accurate system management.

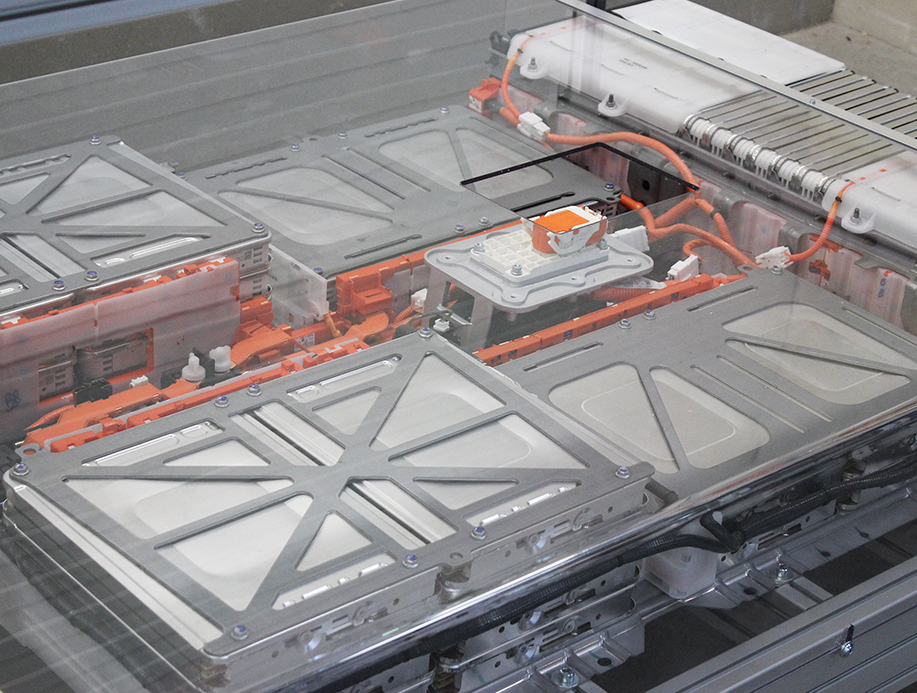

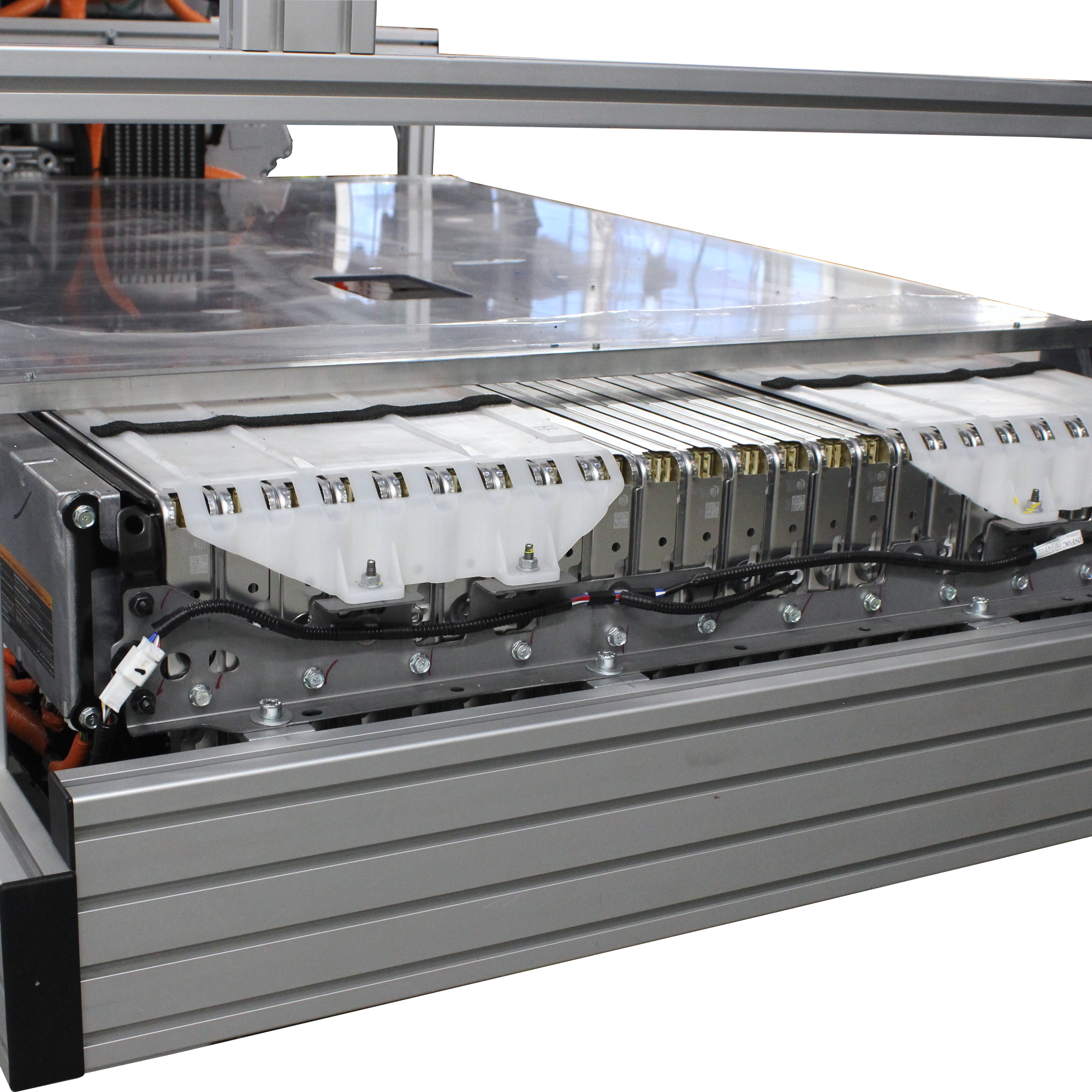

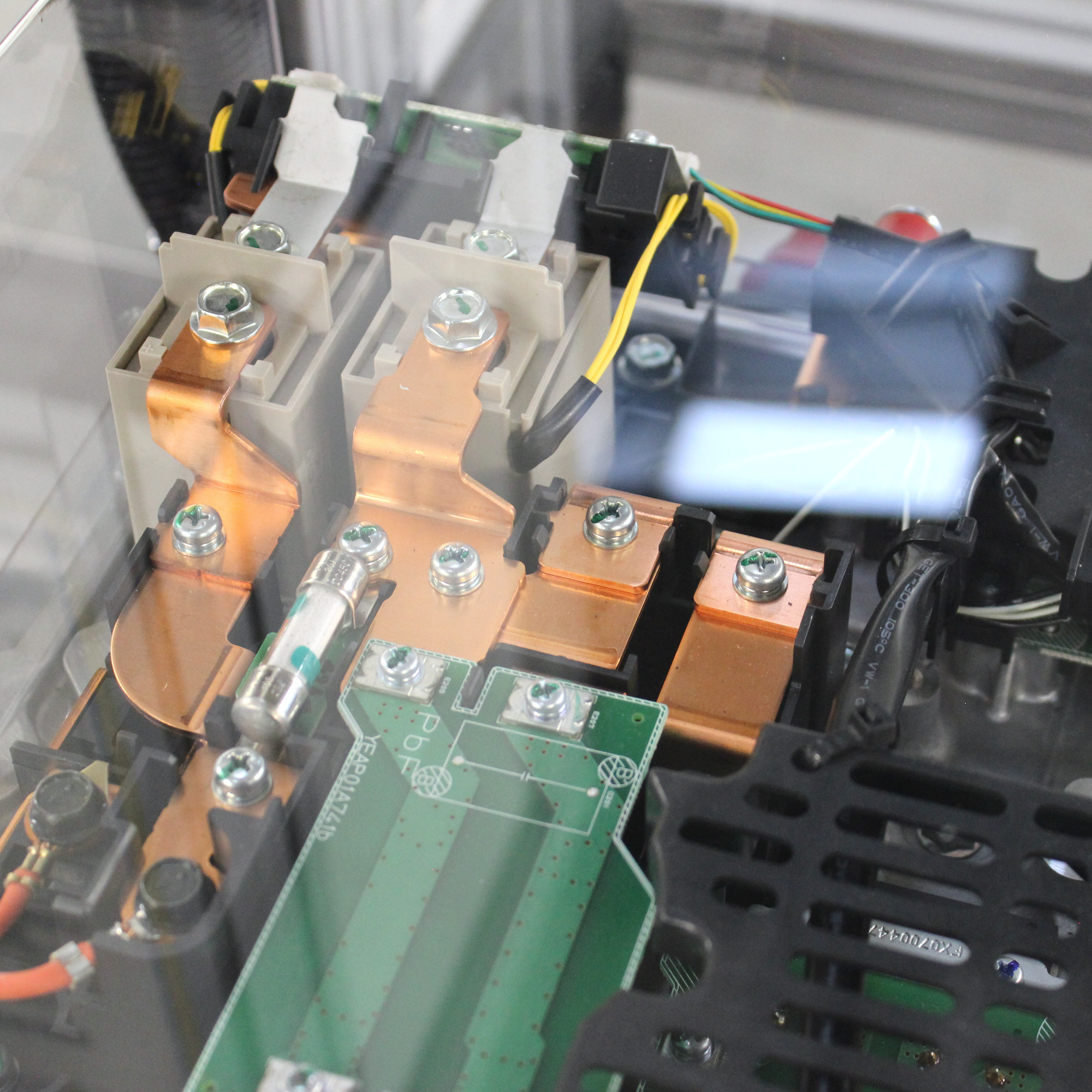

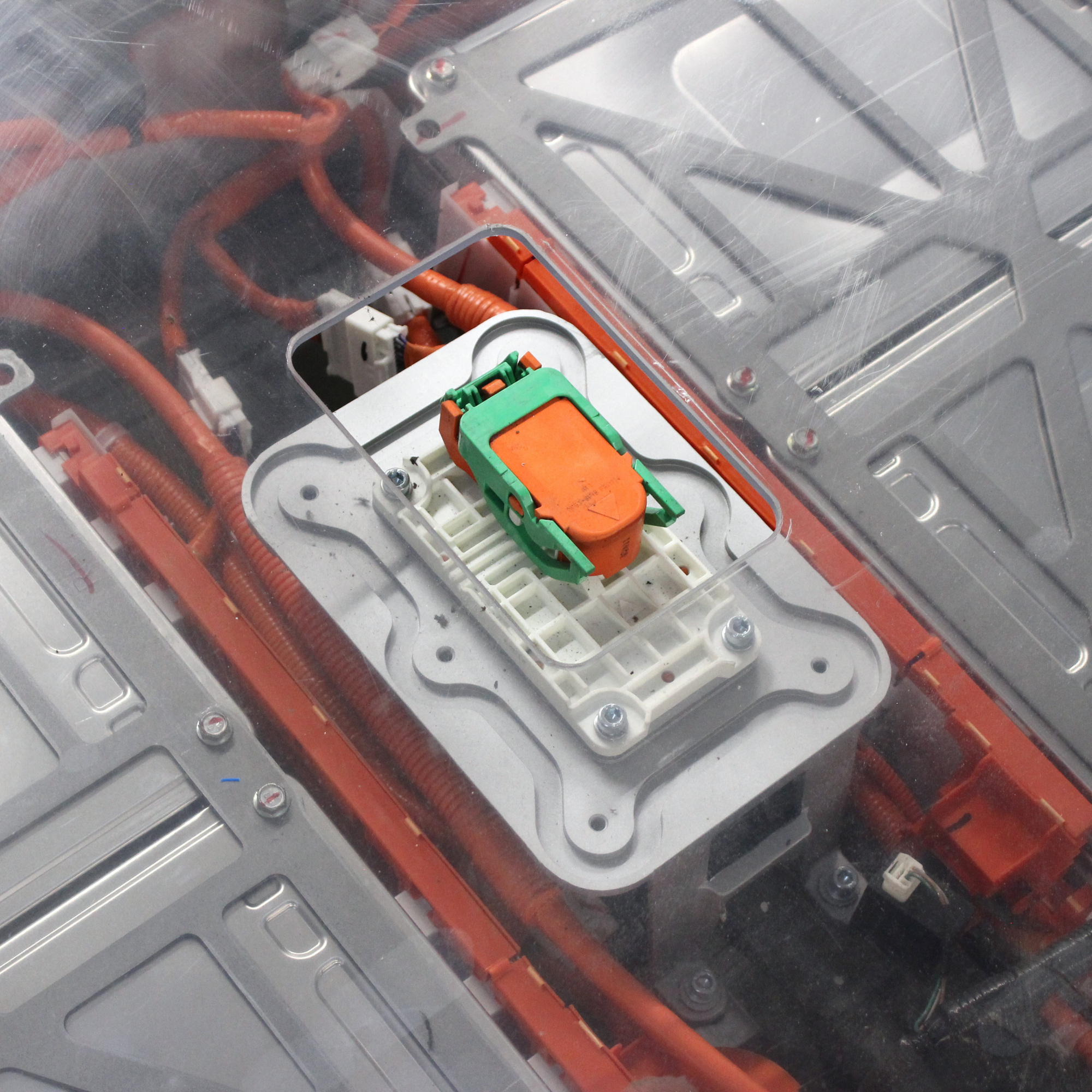

• Real high-voltage battery, including a high-voltage disconnect plug/fuse for safety.
• Functional electric AC compressor to understand climate control in EVs.
• Genuine “orange” high-voltage cables with connectors and safety features to prevent electrical hazards during training.

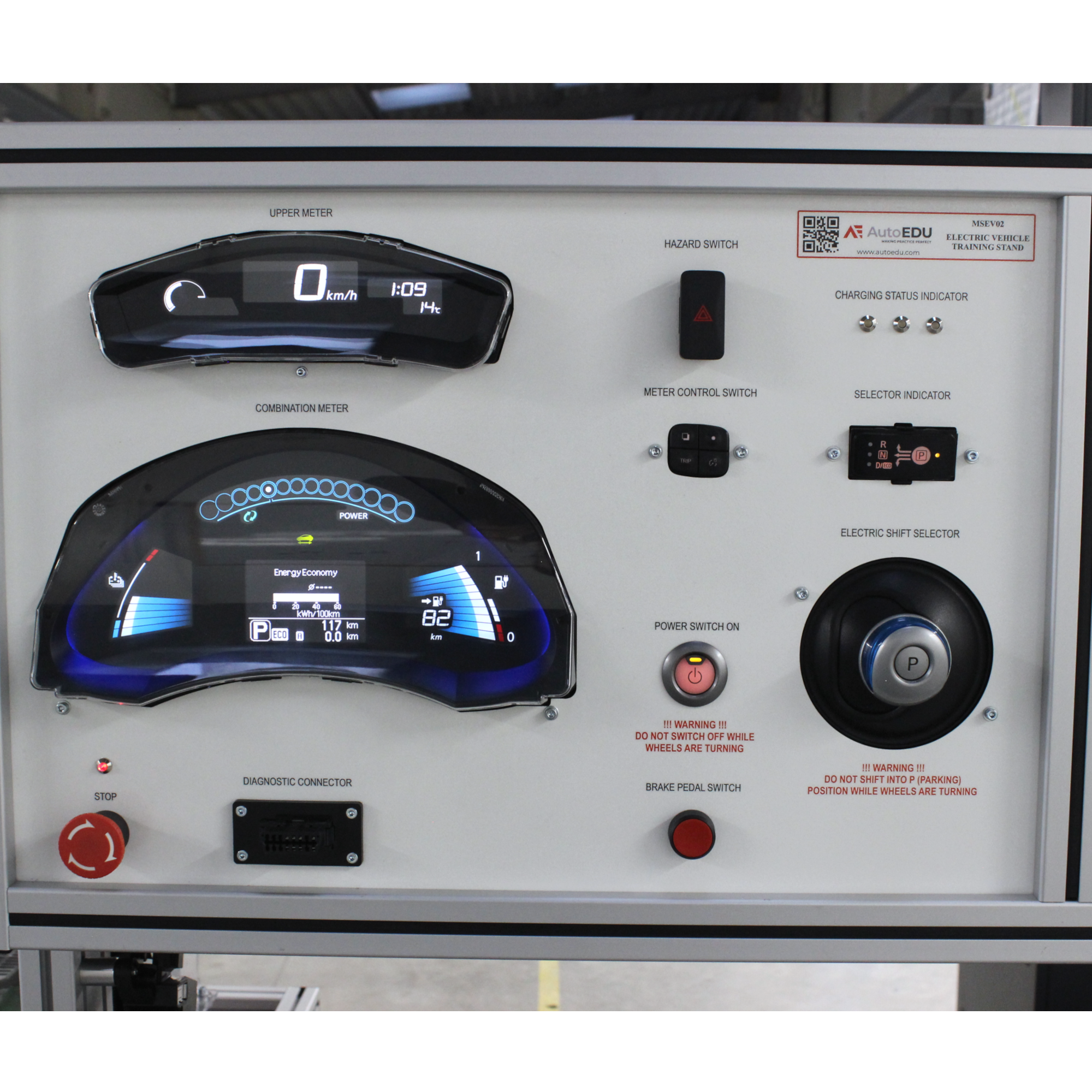

• Diagnosis through OBD 16-pole diagnostic socket for ECU operations.

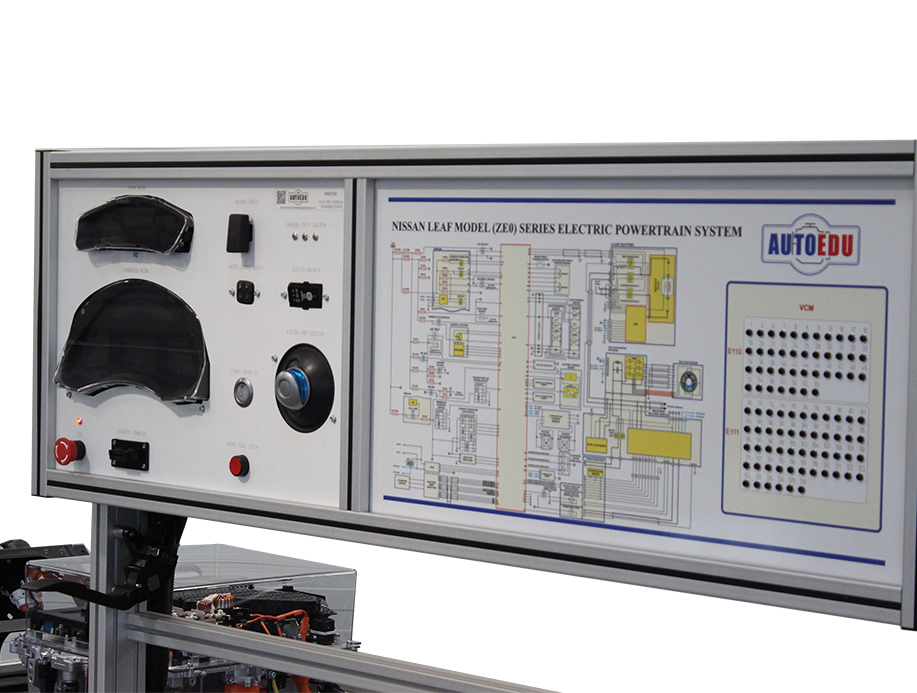

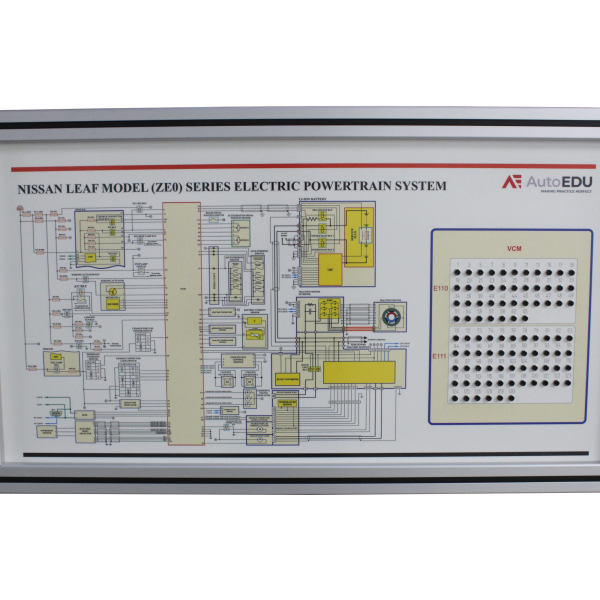

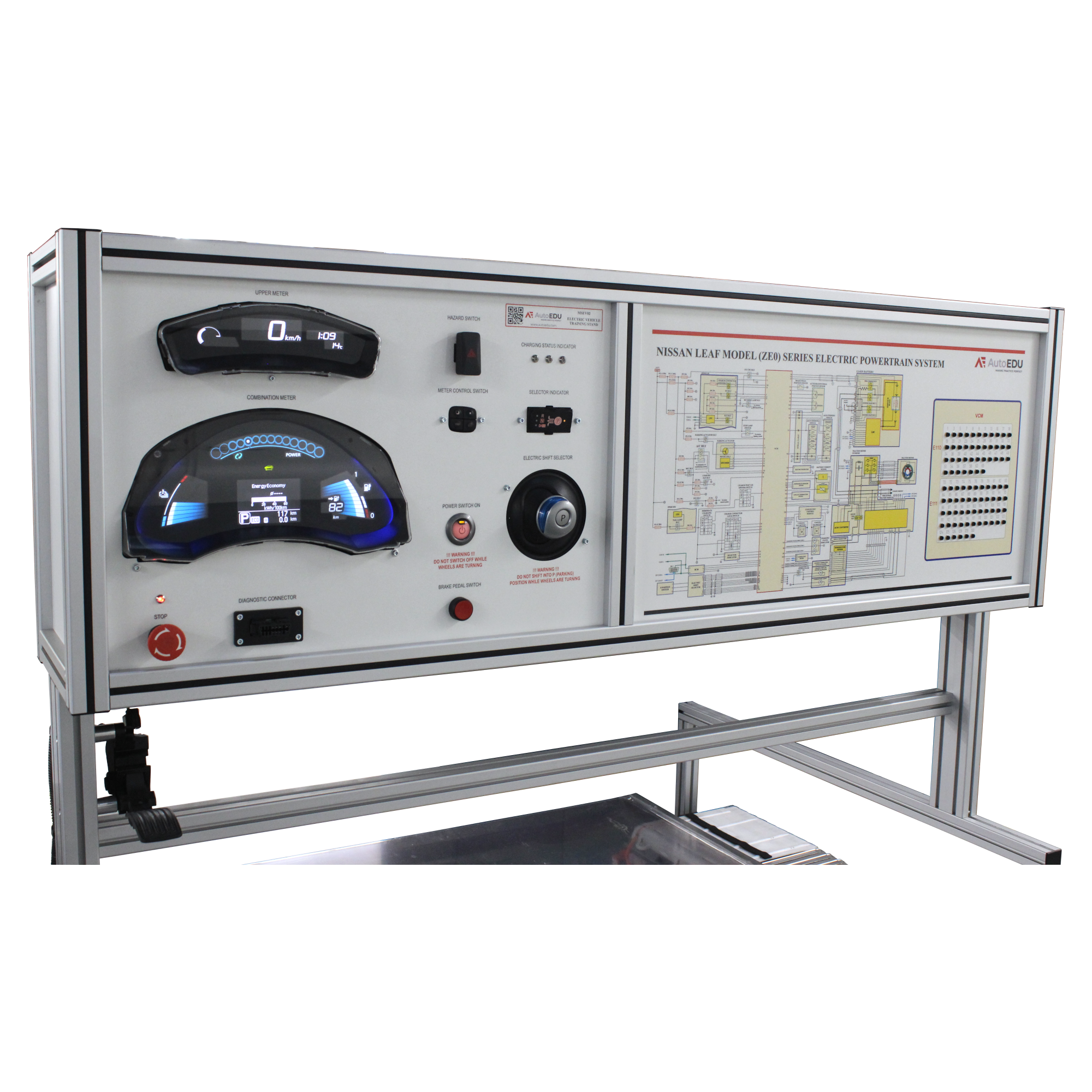

• Includes a principal electric wiring diagram of the electric car for reading and understanding electrical diagrams, component markings, and using this knowledge for troubleshooting and
• repairing modern electric vehicles.
• Equipped with open contacts for real-time measuring of electrical parameters.
• Allows simulation of up to 10 faults on the EV control system (not the high voltage).
• Includes prepared procedures and instructional manuals with images.
• Durable and mobile, designed for efficient classroom or lab use.

Specifications

• Dimensions: 2505 x 1055 x 1605 mm (98.62in x 41.53in x 63.18in)
• Weight: approx. 700 kg (1543 lb)
• Power Supply: 12V battery, High-voltage battery (~400V) 24 kWh, 230V 50 Hz household electricity network
• Power: 80 kW (109 HP), 280 Nm
• Product Number: MSEV02

Other Information:

• Made in Lithuania
• CE certificate
