Educational Trainer Toyota Prius III Functional Plug In Hybrid

Product Description

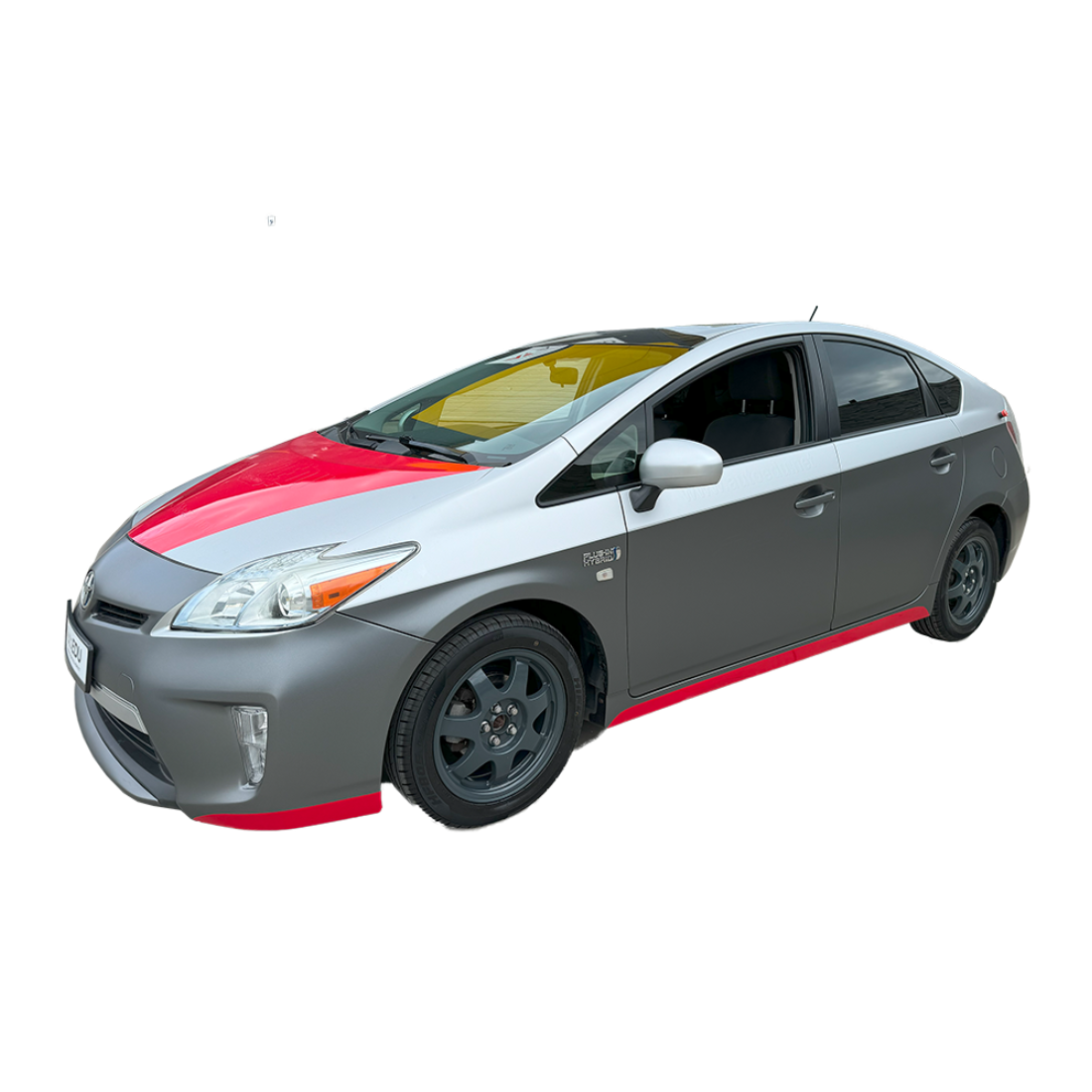

Toyota Prius III hybrid Plug-in functional Educational Trainer AHPLIN03 AutoEDU

The AHPLIN03 function trainer, based on the Toyota Prius III hybrid plug-in, provides a learning experience of fully operational Plug-in Hybrid Electric Vehicle. This is an immersive training platform for diagnosing and understanding complex hybrid systems. Equipped with built-in measuring boxes, fault code simulation for multiple systems, and open contacts and wiring diagrams, this training equipment is designed to enhance technical and vocational automotive education and training.

Features

• Includes all key components of a Toyota Prius III, providing a complete and operational hybrid system for training.
• Offers training on the PHEV version, allowing students to understand both conventional hybrid and plug-in technologies.

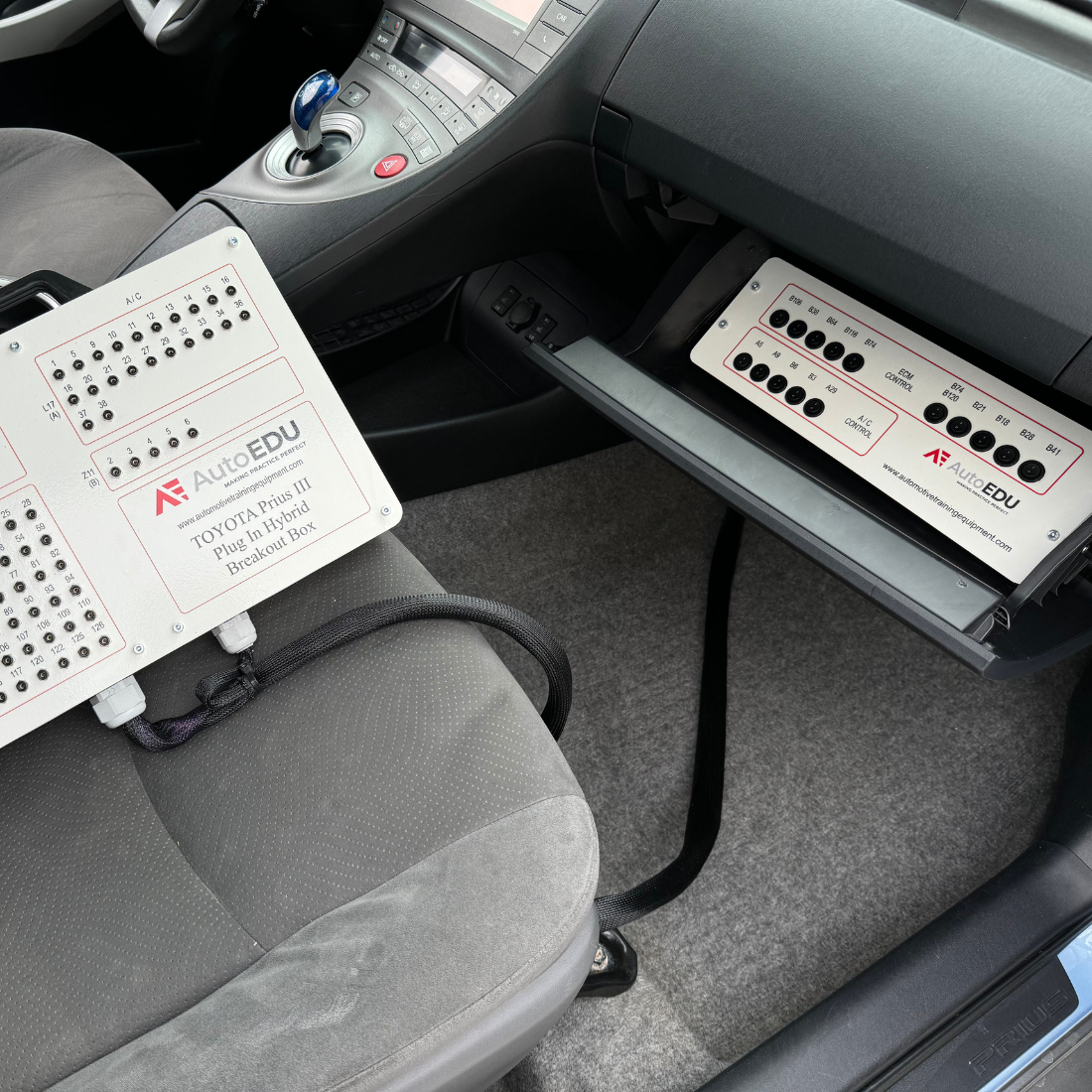

• Integrated measuring boxes with open contacts and wiring diagrams for detailed electrical system analysis.
• One system by default, additional systems can be ordered separately if required .
• Simulates faults in engine control, ABS, airbag, climate control and high voltage systems, offering realistic diagnostic training. One system by default, additional
• systems can be ordered separately if required .
• Supports engine, ABS, AC, and airbag diagnostics, providing a broad scope of training opportunities.

Value for Students

• Provides easy, safe, and comfortable training that builds confidence, using OEM components to offer a realistic car repair experience.
• Gain hands-on experience with a fully operational hybrid ,Plug-in (PHEV) version, vehicle system, to understand the complexities of modern hybrid technology.
• Learn to diagnose and troubleshoot hybrid vehicle systems, including engine, ABS, AC, airbags and more with various diagnostic tools.
• Study and analyze the electrical circuits of hybrid systems with built-in measuring boxes and open contact wiring diagrams.
• Develop troubleshooting skills by simulating and diagnosing faults in multiple electronic systems.
• Perform various laboratory tasks and measurements, gaining in-depth knowledge of system parameters and their impact on vehicle performance.

Value for Instructors

• Provides easy, safe, and comfortable training that builds confidence, using OEM components to offer a realistic car repair experience.
• Uses OEM automotive parts for an authentic and practical learning experience. Students gets real experience with all parts and functions based on Toyota Prius III Plug-in model.
• Easier real-time monitoring and fault simulation to improve student understanding and troubleshooting skills.
• The Toyota based system allows students to be trained in diagnostics using almost any multibrand, specialized or OEM scan tools, ensuring a safe and high-quality learning environment.
• The training stand is designed for simplicity, requiring only small adjustments to reset to default parameters, making it easy to prepare and start each lesson quickly and efficiently
• Functional model on castors version, which is mobile and space saving in the classroom, allows concurrent use by multiple students, promoting collaborative learning and practical training opportunities..

Specifications

• Dimensions: 4480 x 1745 x 1490 mm (176.38 in x 68.70 in x 58.66 in)
• Weight: 1420 kg (3130 lb)
• Power Supply: 12 V battery

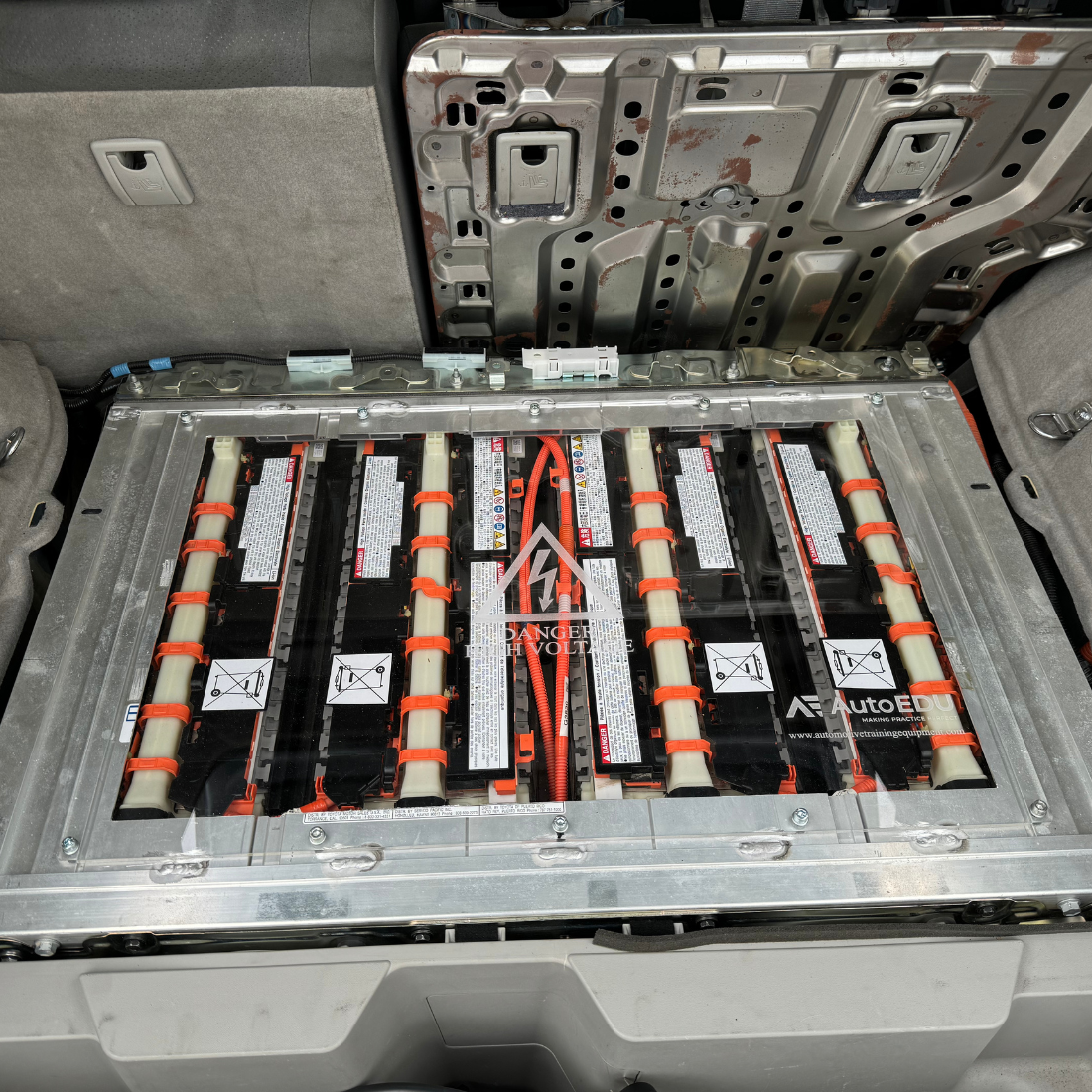

• High Voltage Battery: 21.5 Ah, 207 V
• Fuel Type: Gasoline A91 or higher
• Safety Equipment: Protective Tools Set EHVS01 (optional)
• Measuring and Fault Simulation Systems
• This product includes two measuring and fault simulation systems by default (except high-voltage system), selected from the available options below. Additional systems can be ordered separately if required.

Available systems:

• AHPLIN-ENG-BOX – Built-in measuring box with open contacts and wiring diagram for the engine control system
• AHPLIN-BR-BOX – Built-in measuring box with open contacts and wiring diagram for the braking system
• AHPLIN-AC-BOX – Built-in measuring box with open contacts and wiring diagram for the climate control system
• AHPLIN-SRS-BOX – Built-in measuring box with open contacts and wiring diagram for the SRS airbag system
• AHPLIN-HB-BOX – Built-in measuring box with open contacts and wiring diagram for the hybrid system (excluding high-voltage side)
• AHPLIN-HV-BOX – Built in measuring box with open contacts and wiring diagram for Hybrid system (high voltage side)(not included in default).

Optional Equipment (Sold Separately)

• Diagnostic Scan Tool
• AutoCOM ICON
• Oscilloscope
