Product Description
Automotive training equipment | Petrol engine trainer (1.4 TSI)
Order number: MVTSI01

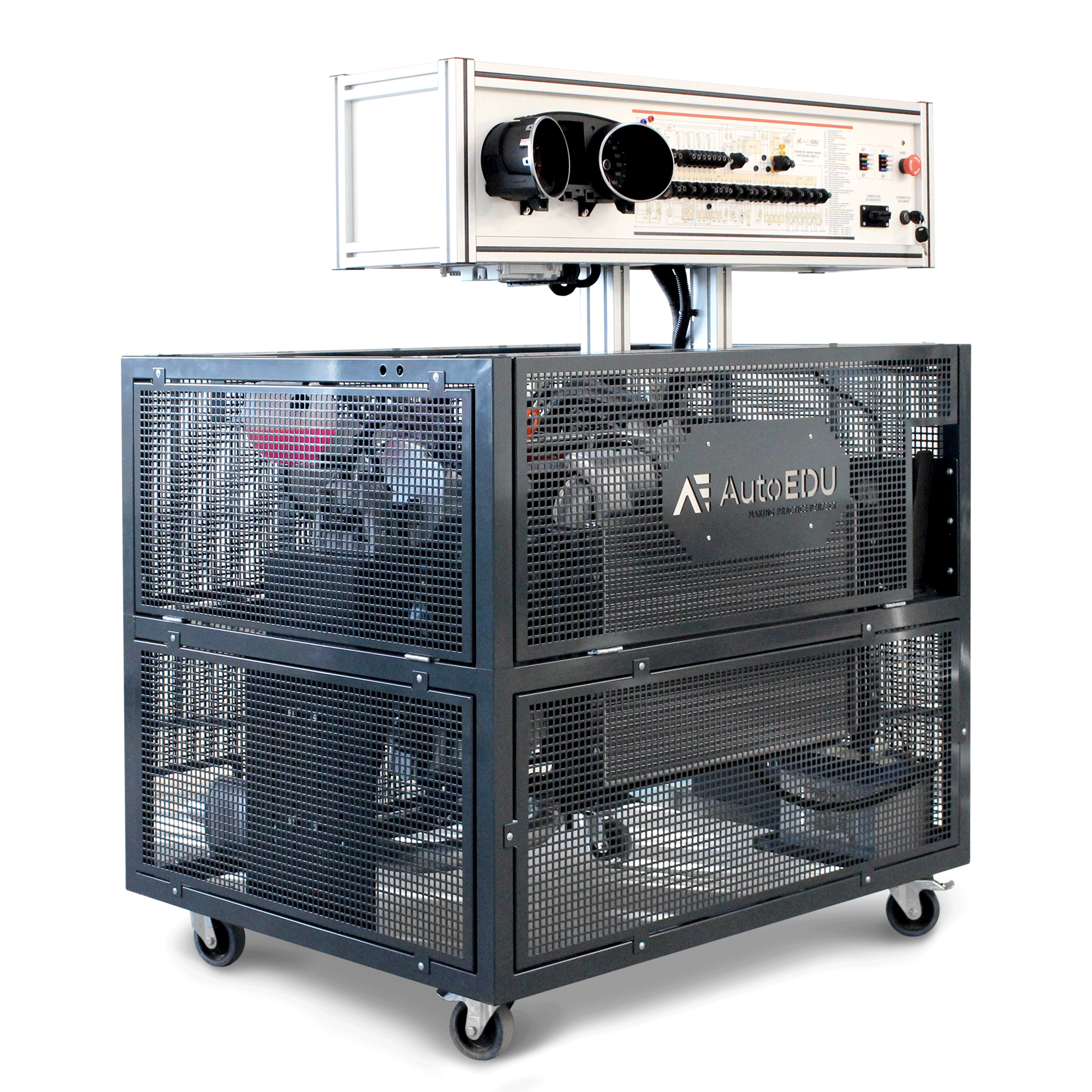

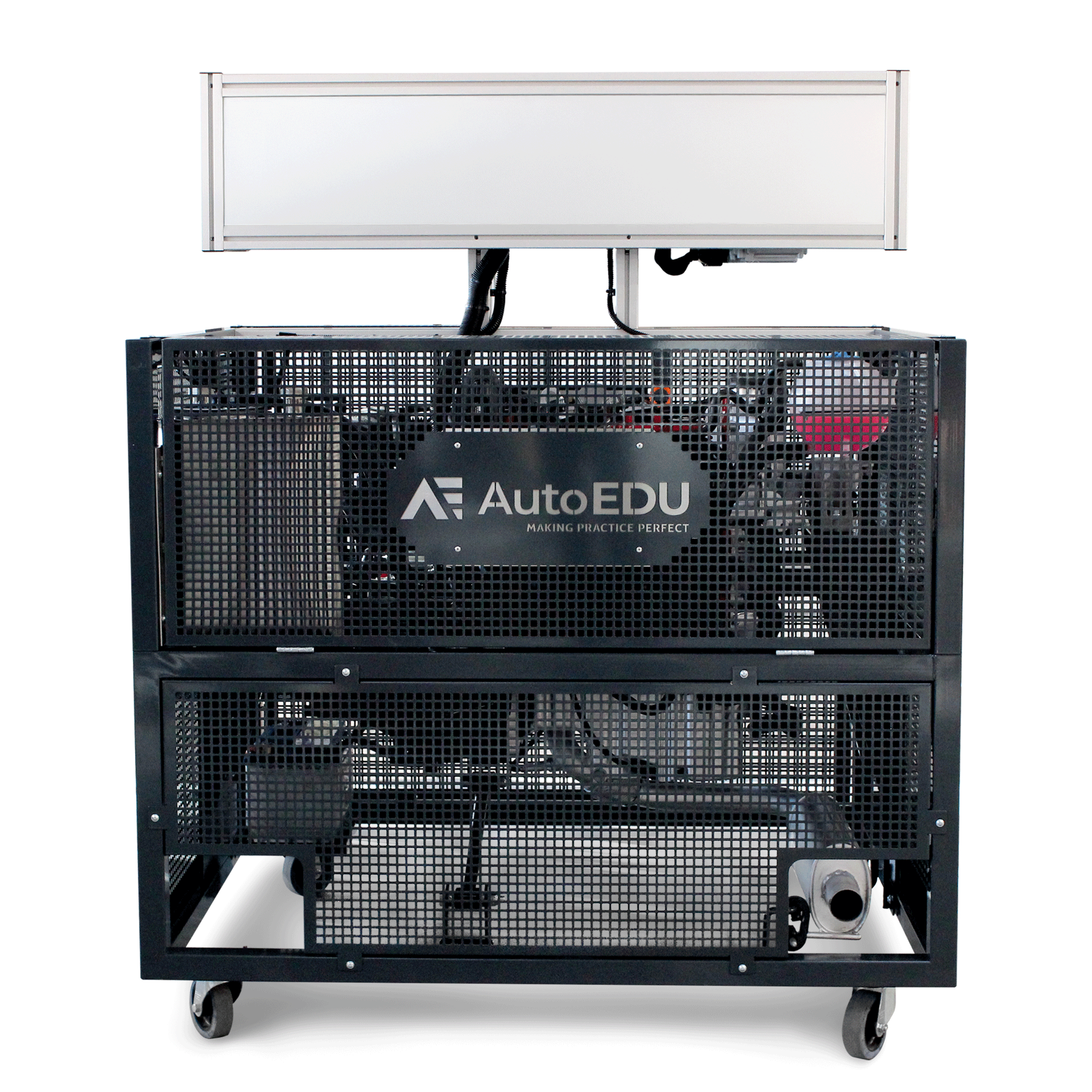

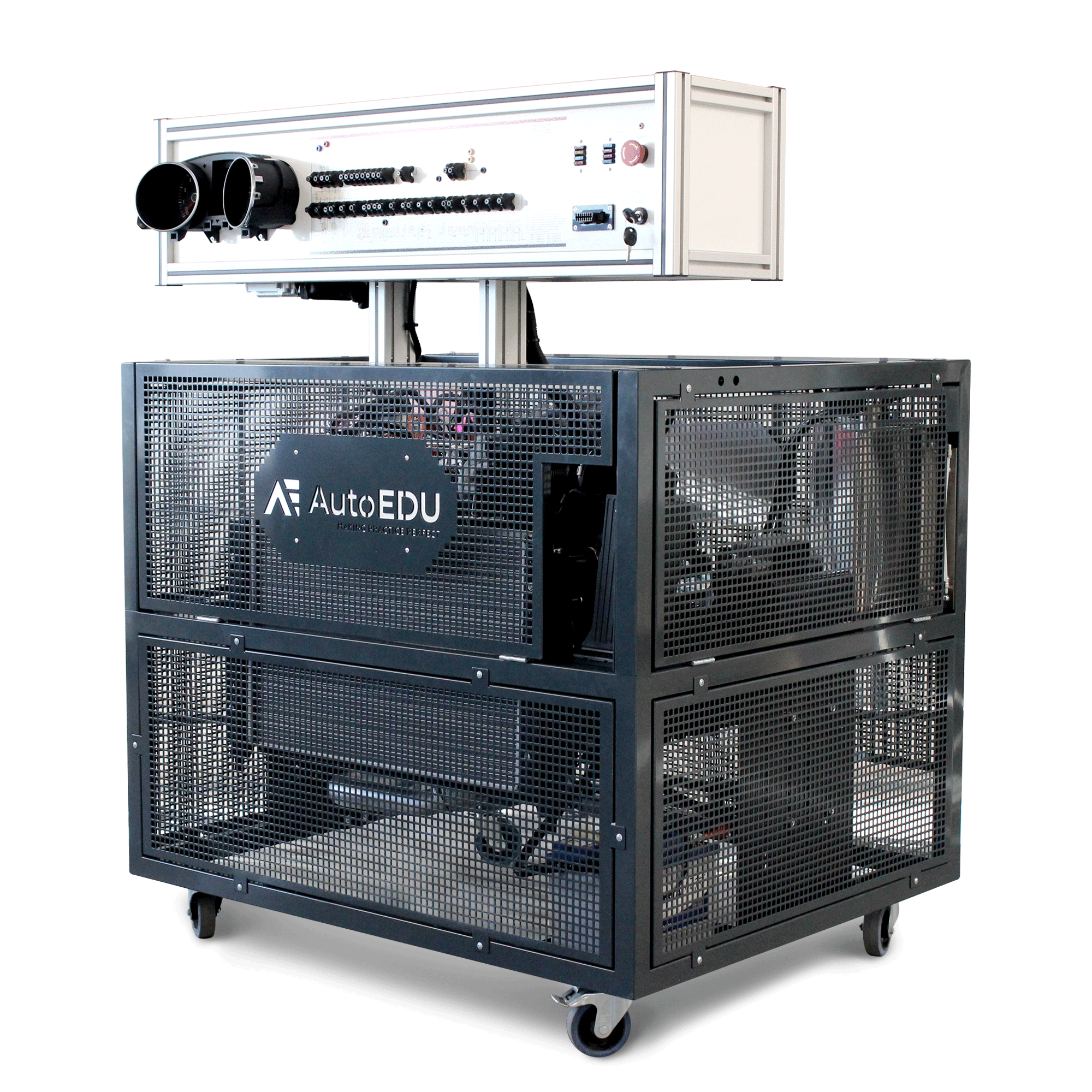

The Educational Petrol(gasoline) Engine Trainer with Turbocharged Stratified Injection (TSI) EURO 5 features a fully operational 1.4 TSI engine, complete with a direct petrol(gasoline) injection system, turbocharger, and exhaust system. This model allows students to engage in detailed diagnostics through an OBD 16-pin connector and simulate over 30 faults using banana plug jumpers. It provides hands-on experience in measuring exhaust gases before and after the catalytic converter and understanding engine components through its open structure and safety removable panels. This trainer is ideal for mastering engine maintenance and advanced diagnostic techniques.
Technical specifications and functions:

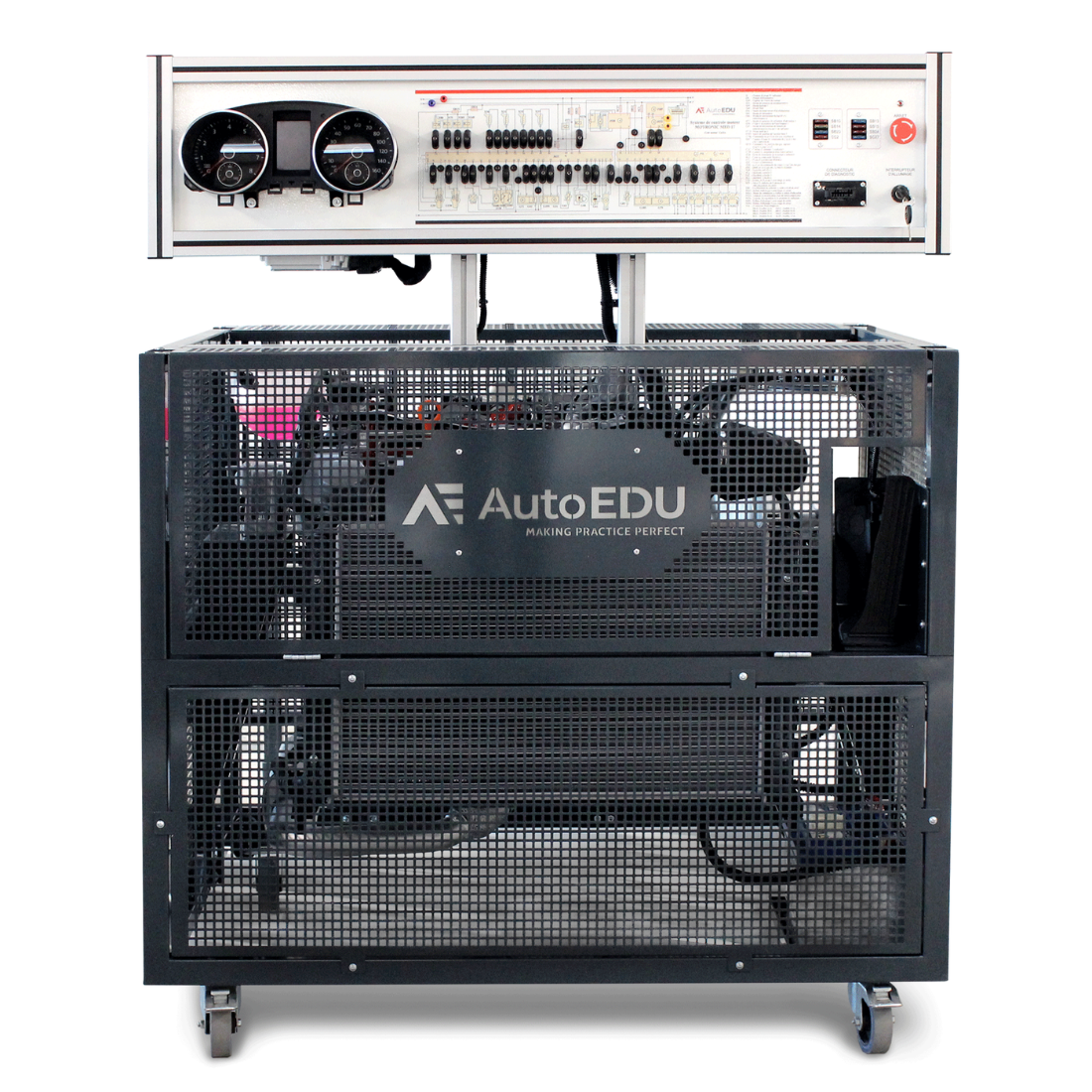

- The educational functional engine model with direct petrol injection (TSI) system, instrument cluster, cooling system, power supply system, turbocharger and the exhaust system;
- Ability to measure the exhaust gas before and after the catalytic converter;

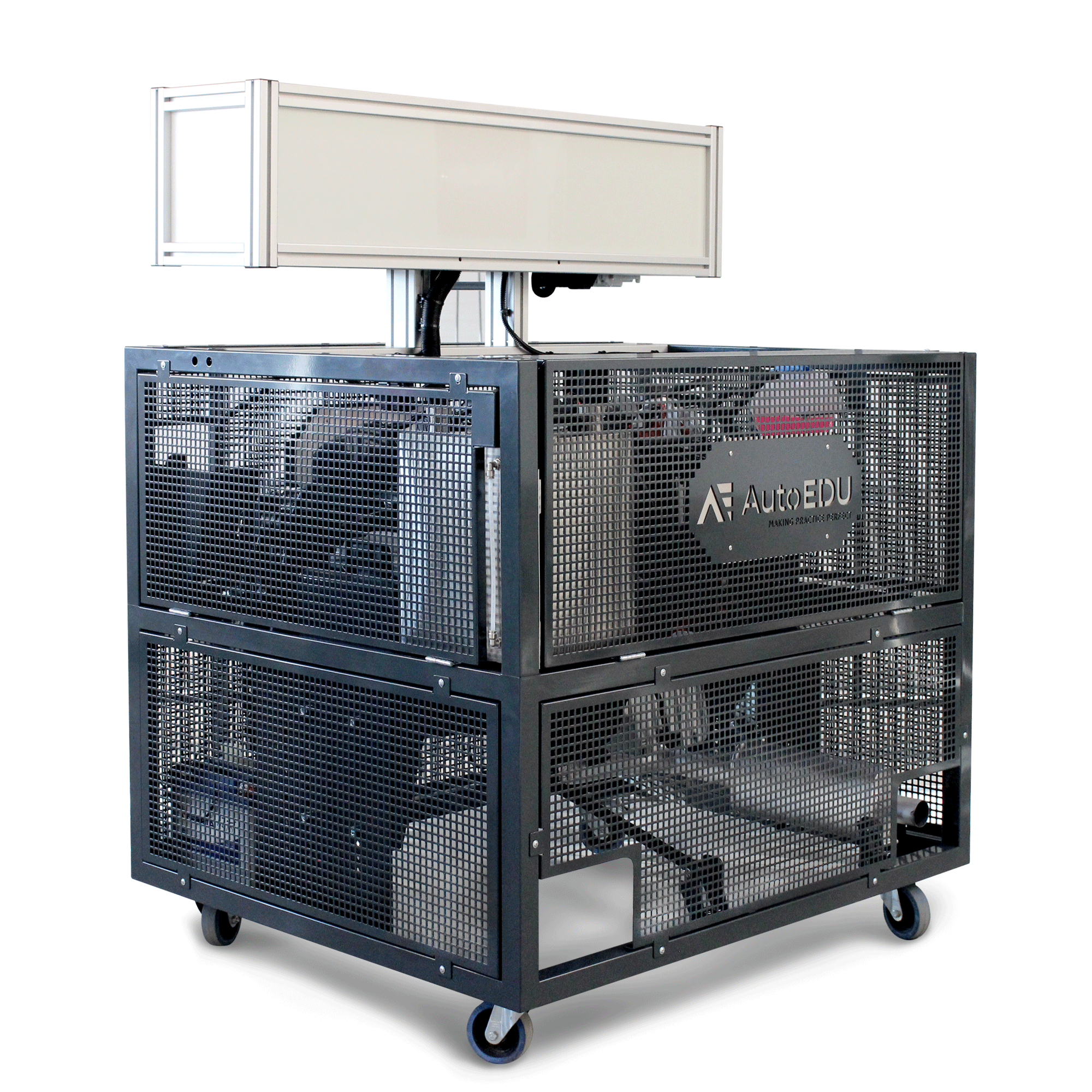

- Completed with safety removable panels to protect against hot and rotating parts;

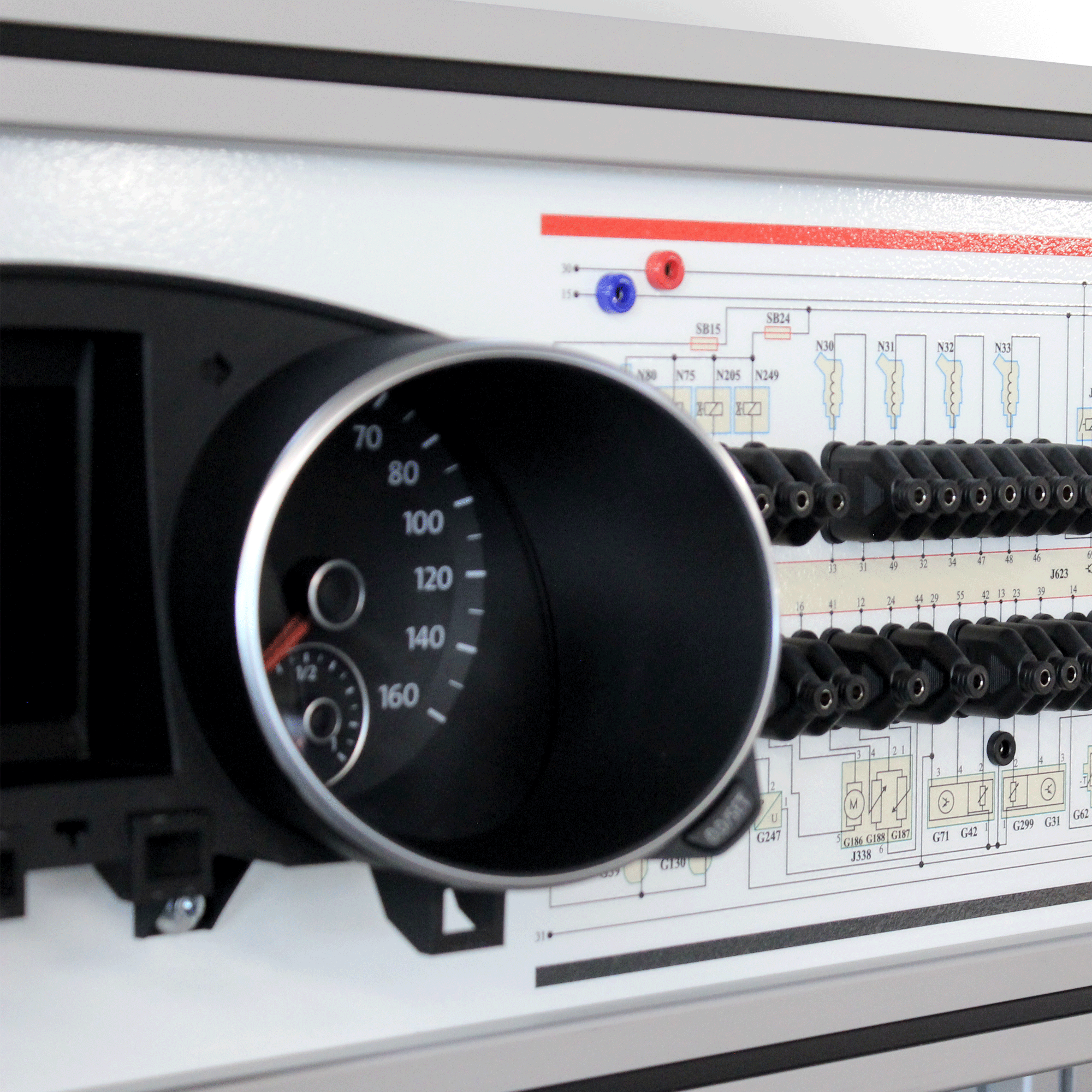

- Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
- Ability to simulate more than 30 faults by disconnecting Banana plug jumpers;

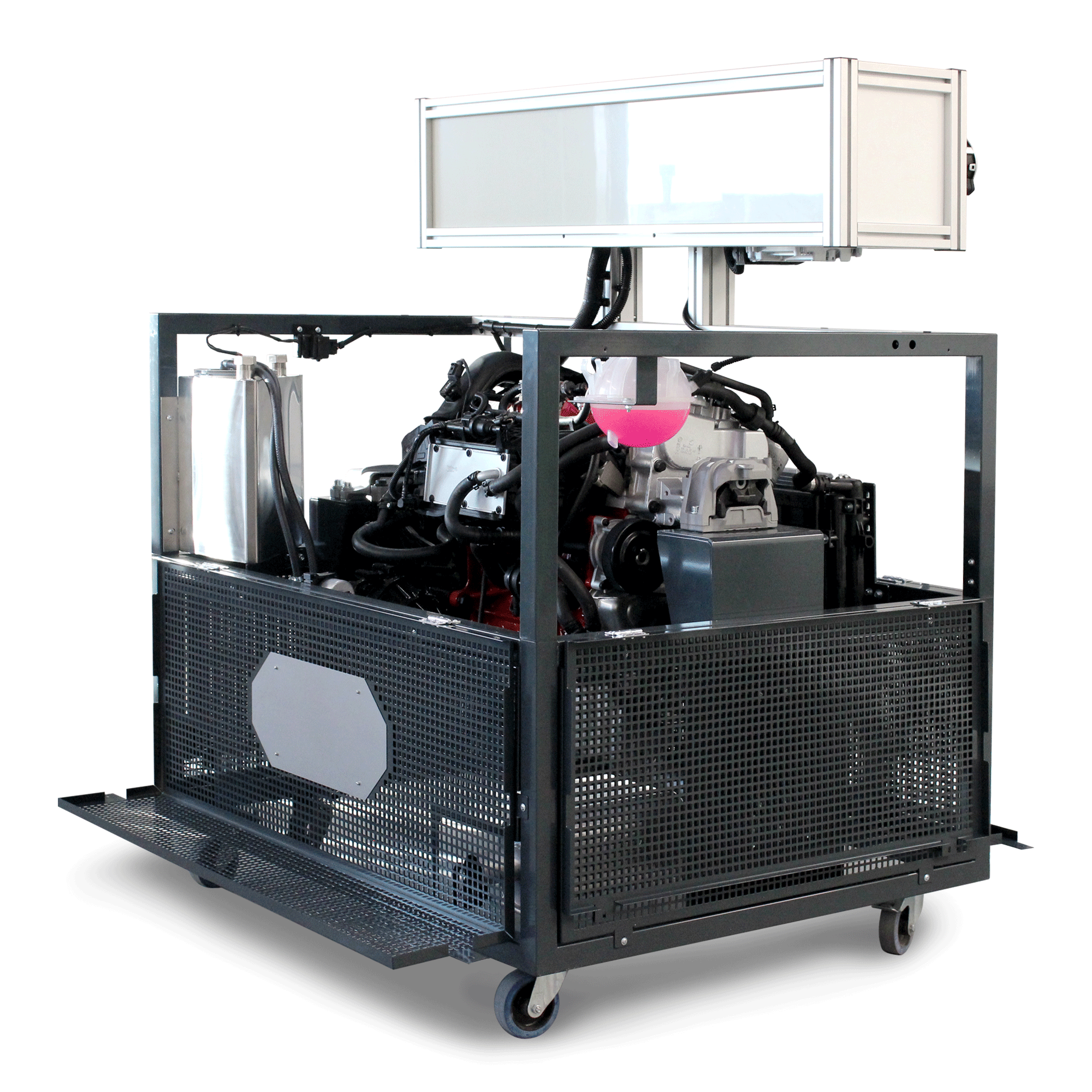

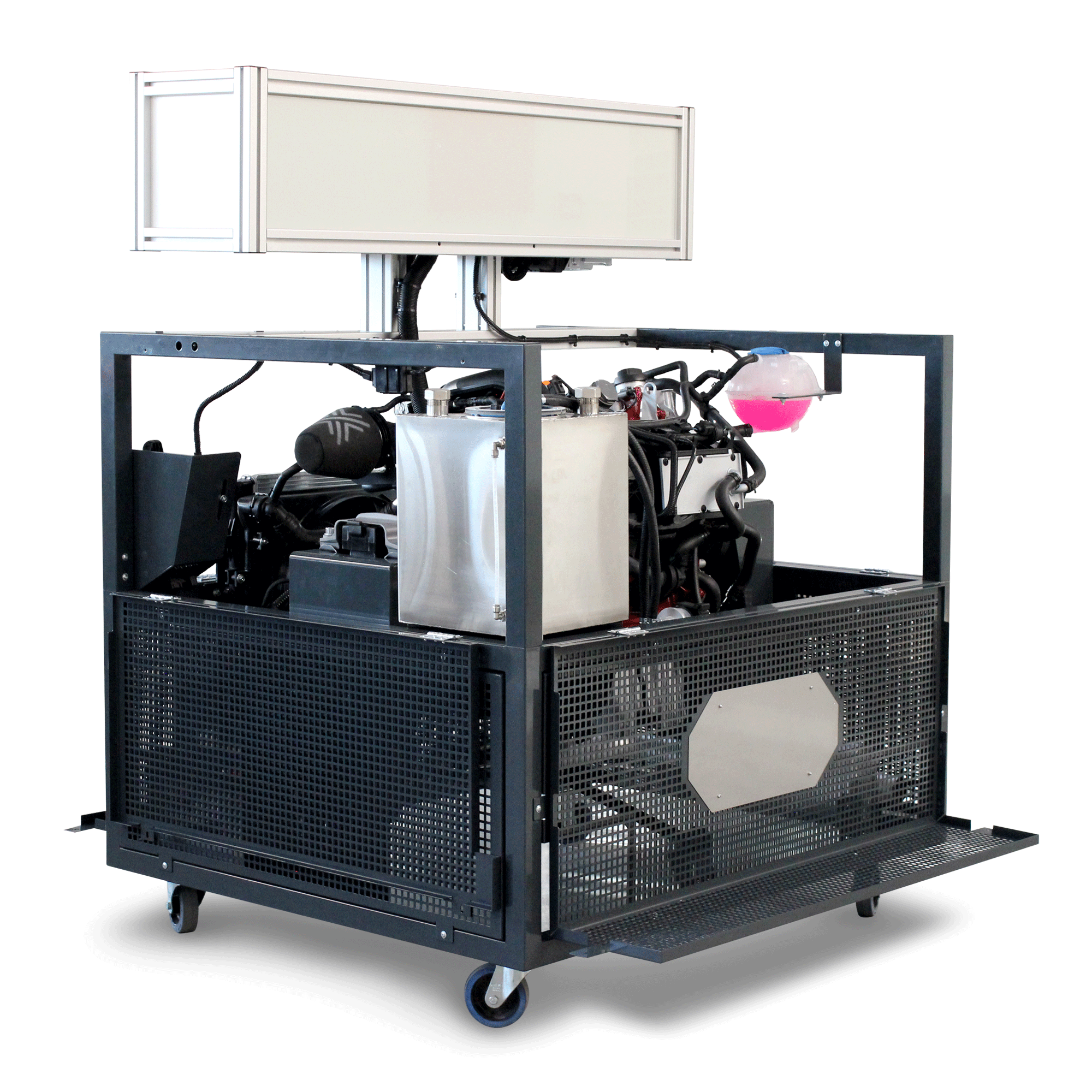

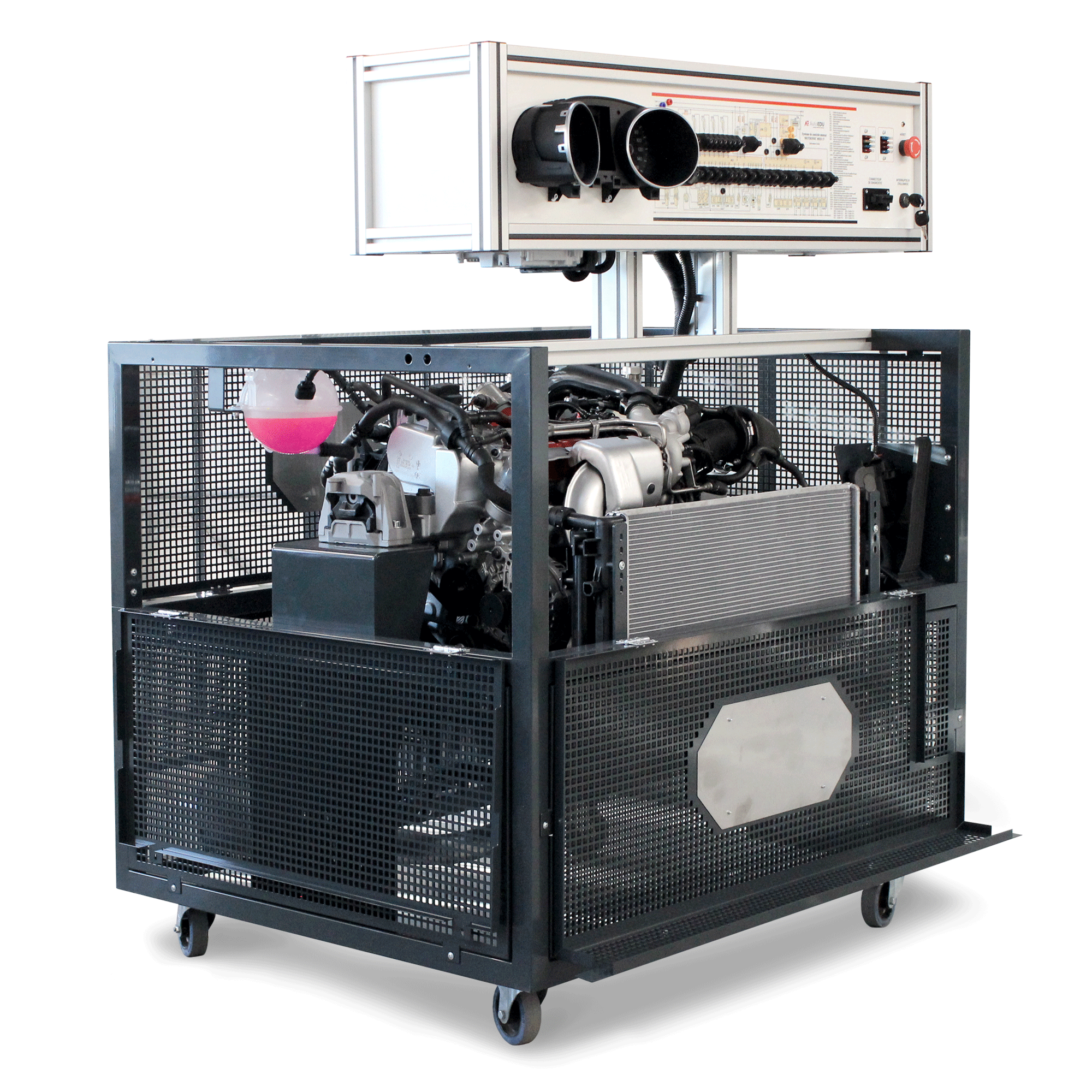

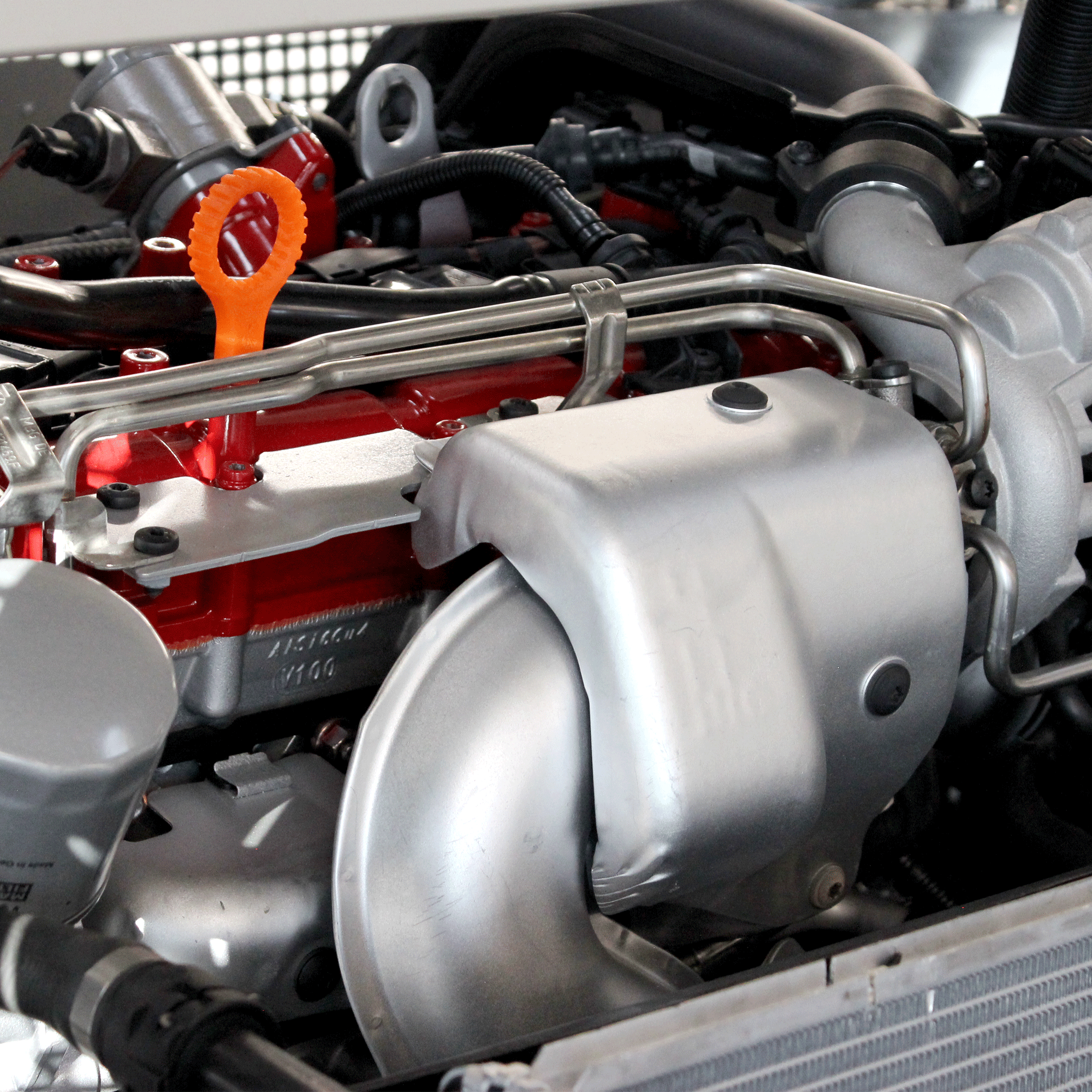

- The engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
- Integrated engine emergency stop button;
- 1.4 TSI direct petrol(gasoline) injection system with turbocharger and exhaust system.
- OBD 16-pin diagnostic connector for ECU identification, fault code management, live data display, and actuator testing.
- Over 30 faults simulated via removable banana plug jumpers.
- Electrical signal parameters and high voltage circuits measured through banana connectors.
- Measurement of exhaust gases before and after the catalytic converter.
- Removable panels for protection against hot and rotating parts.
- Instrument cluster, measurement, and fault simulation panel within a closed aluminum frame.

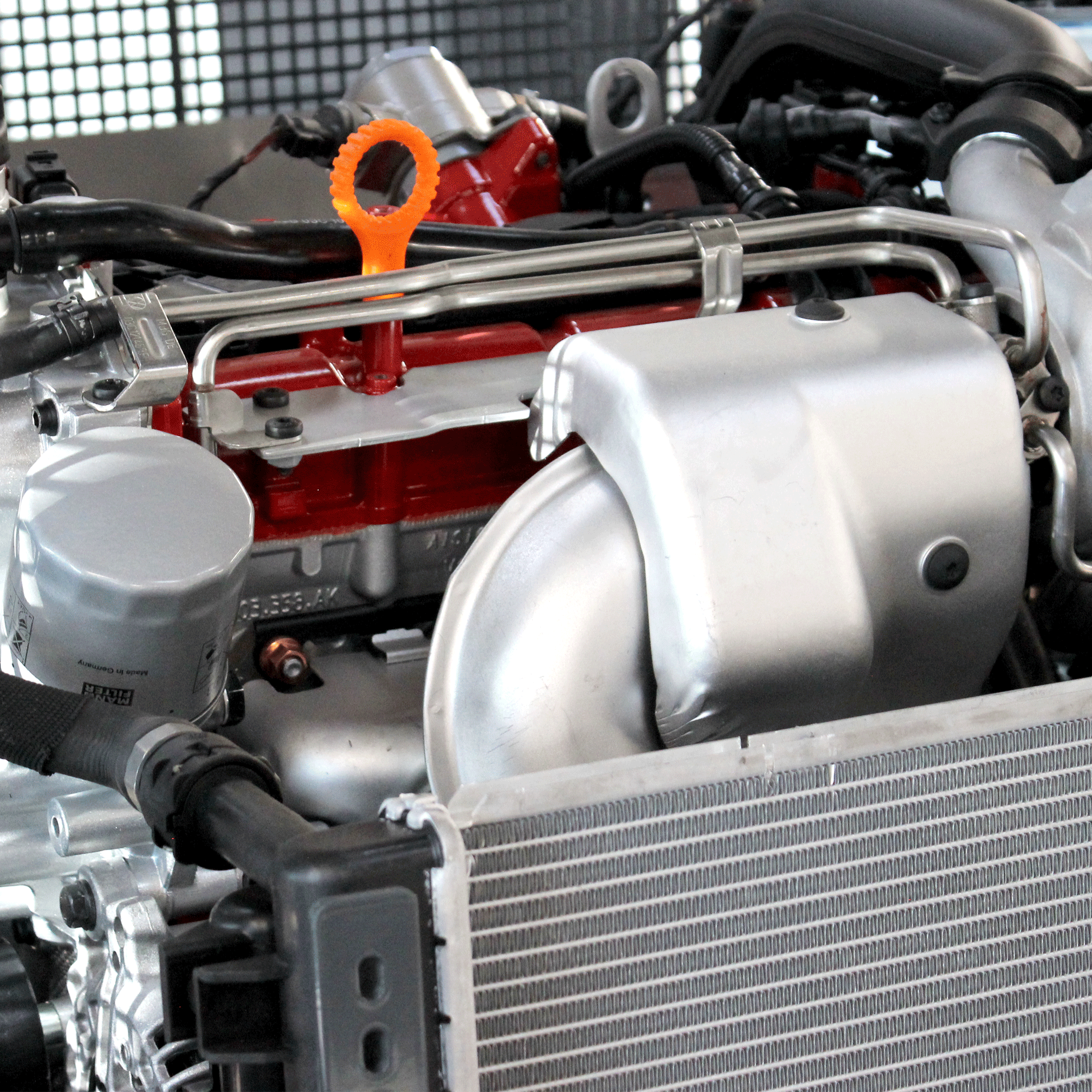

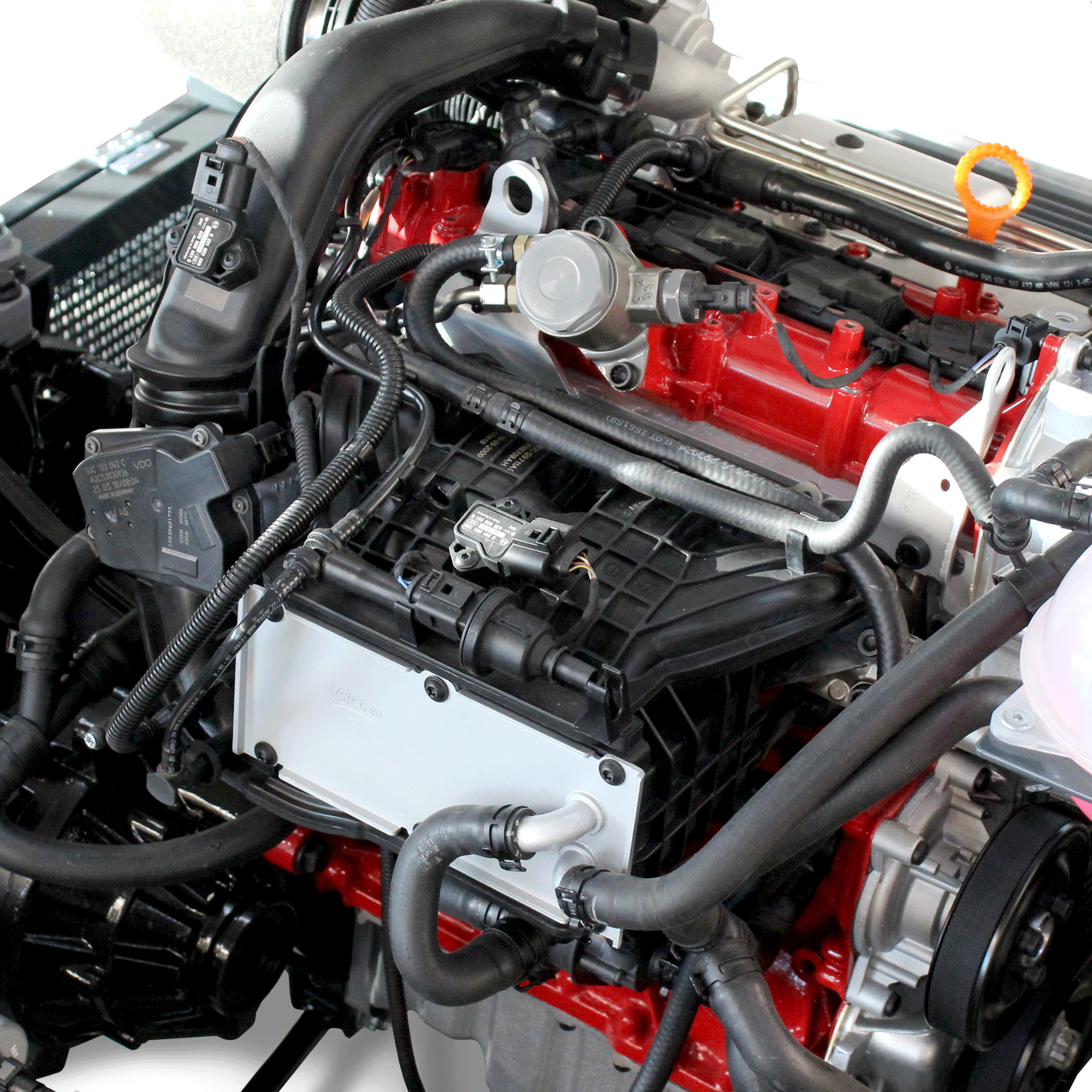

- Learn with real OEM 1.4 TSI EURO 5 engine, gaining hands-on experience with direct petrol(gasoline) injection systems, turbochargers, cooling and exhaust systems.
- Use the OBD 16-pin diagnostic connector to perform ECU identification, read and erase fault codes, display live data, and test actuators. Learn to interpret real-time data and understand system parameters.
- Simulate over 30 different faults by disconnecting banana plug jumpers, practice troubleshooting and diagnostic skills.
- Measure electrical signal parameters of system components, including high-voltage ignition circuits, using integrated banana plug connectors and diagnostic tools such as oscilloscopes and multimeters.
- Analyze exhaust gas before and after the catalytic converter to study emission control and evaluate system performance.
- Work with safety removable panels that protect against hot and rotating parts, enhancing both learning and safety. You can access its components directly through removable panels.
- Offers a complete functional engine model ideal for teaching and demonstrating modern engine technology, including direct injection systems, turbocharging, and exhaust management.
- Features removable safety panels and a closed structure to prevent exposure to hot and rotating parts, ensuring a safe learning environment.
- The integrated OBD diagnostic connector enables detailed training in fault code management, system parameter analysis, and actuator testing.

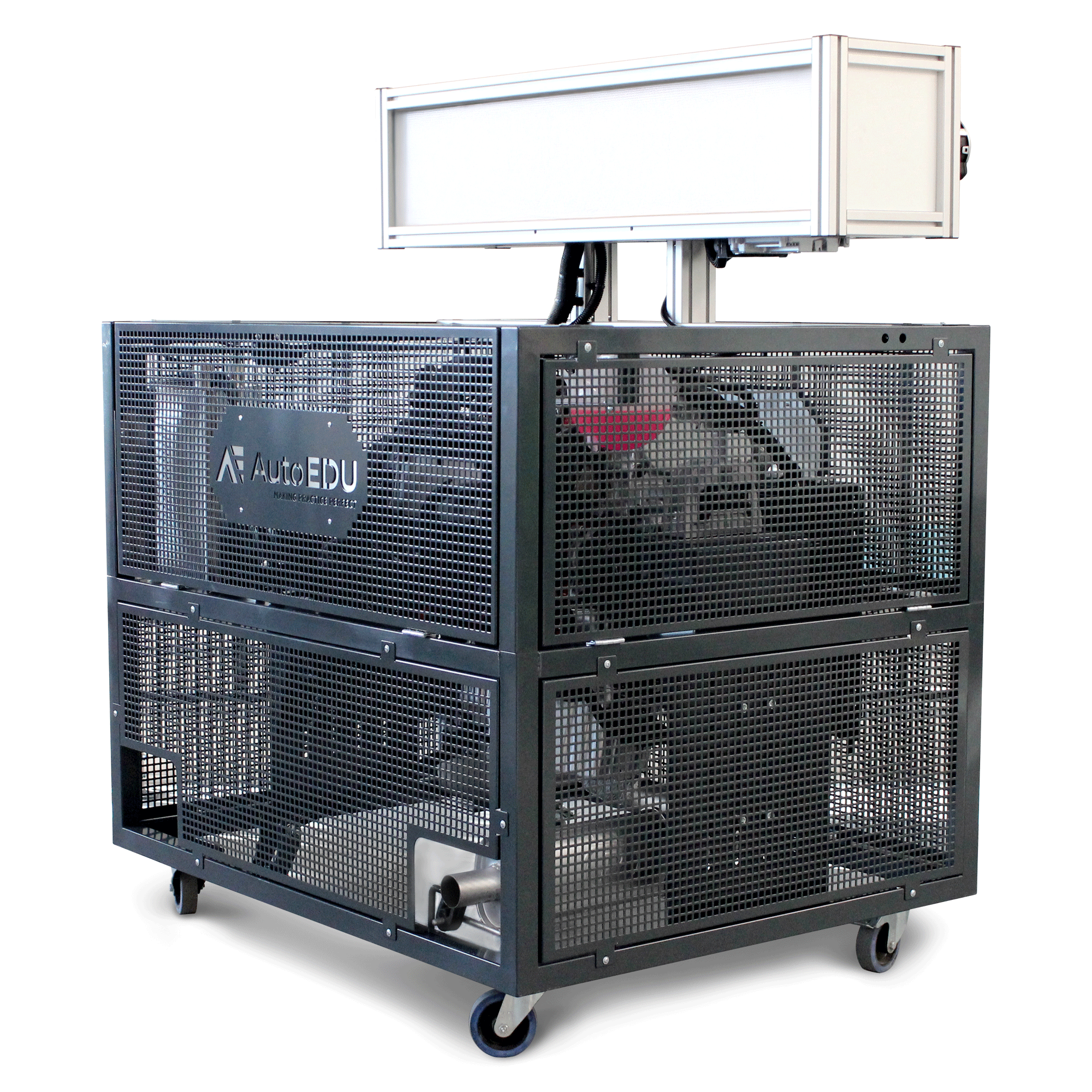

- Built with a closed steel frame construction, ensuring durability and ease of maintenance. The compact design integrates an instrument cluster, measurement, and fault simulation panel within a sturdy structure.
- Allows instructors to demonstrate and simulate a wide range of faults, providing students with valuable troubleshooting practice.
- The training stand is designed for simplicity, requiring only small adjustments to reset to default parameters, making it easy to prepare and start each lesson quickly and efficiently.
- Mobile and space saving in the classroom, allows concurrent use by multiple students.
- Plug and play design, requiring no additional mountings, assembly, or special preparation for operation.
- Dimensions: 1550 x 1000 x 1200 mm (61.02 in x 39.37 in x 47.24 in)
- Weight: approx. 300 kg (660 lb)
- Product number: MVTSI01
Optional accessories:
- Examination console for 10 hidden fault simulations
- Vacuum gauge
- The pressure gauge in the fuel supply line
- Automotive oscilloscope
- OBD diagnostic scan tool
- The gas analyser
- The exhaust extraction system
