High Voltage Battery Educational Trainer

Product Description

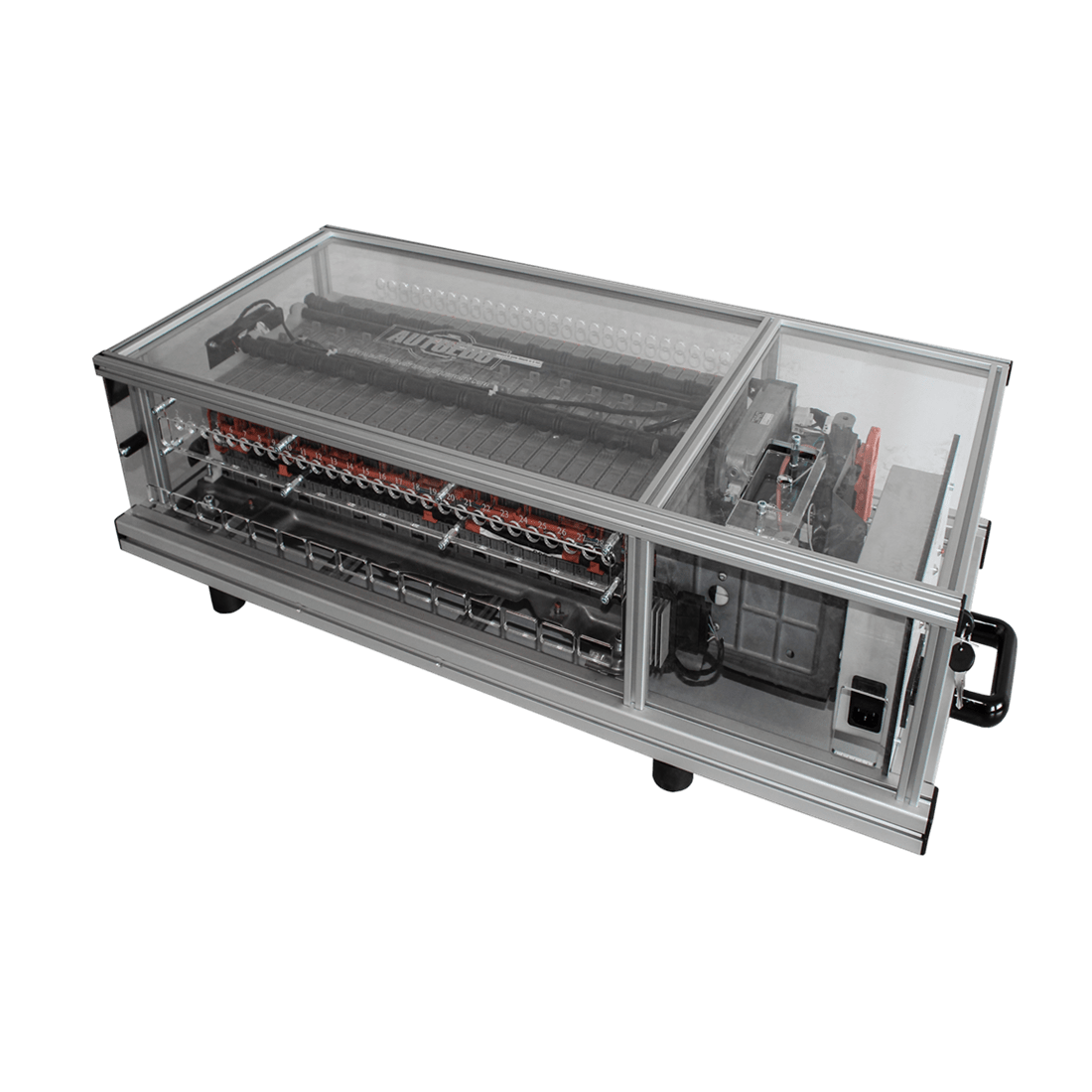

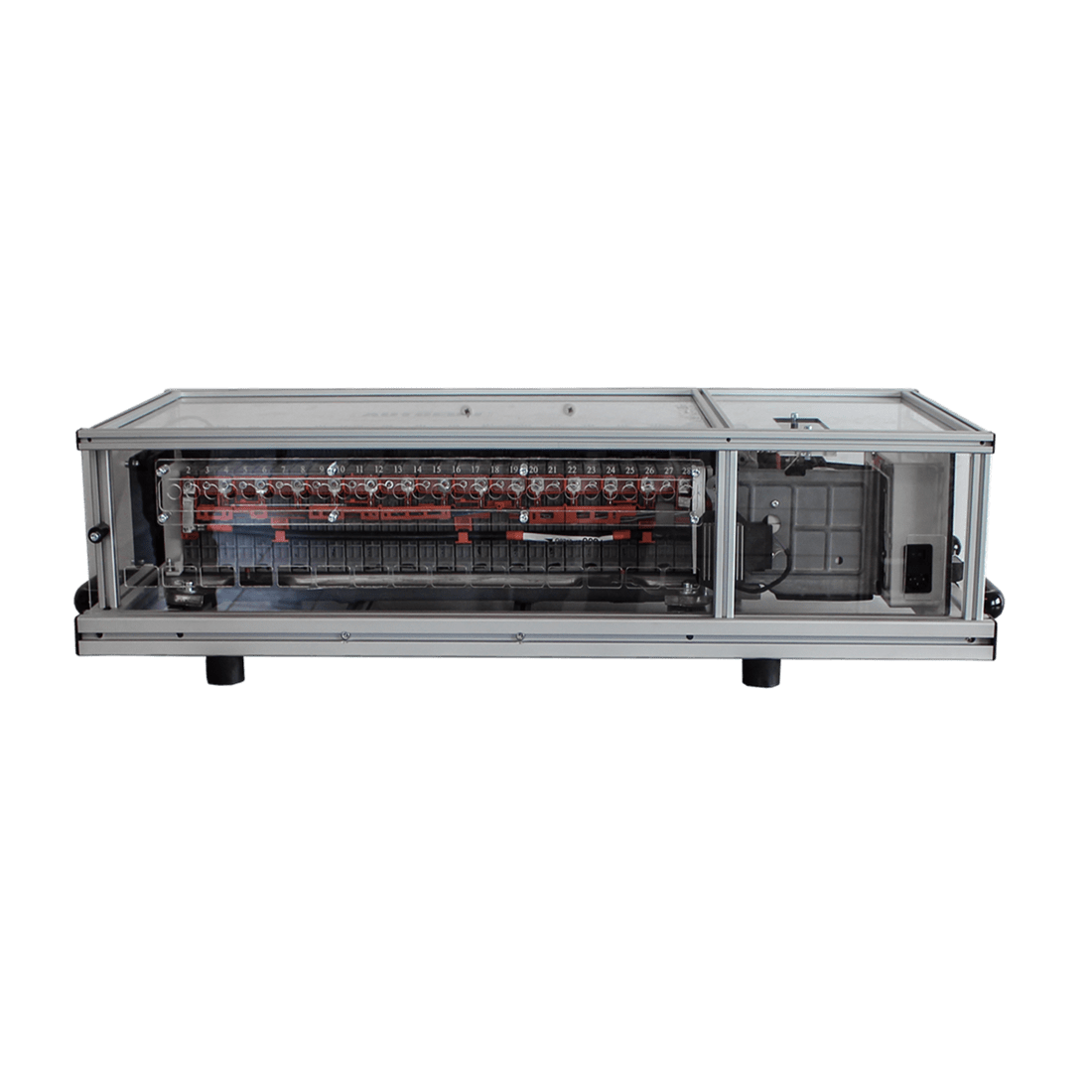

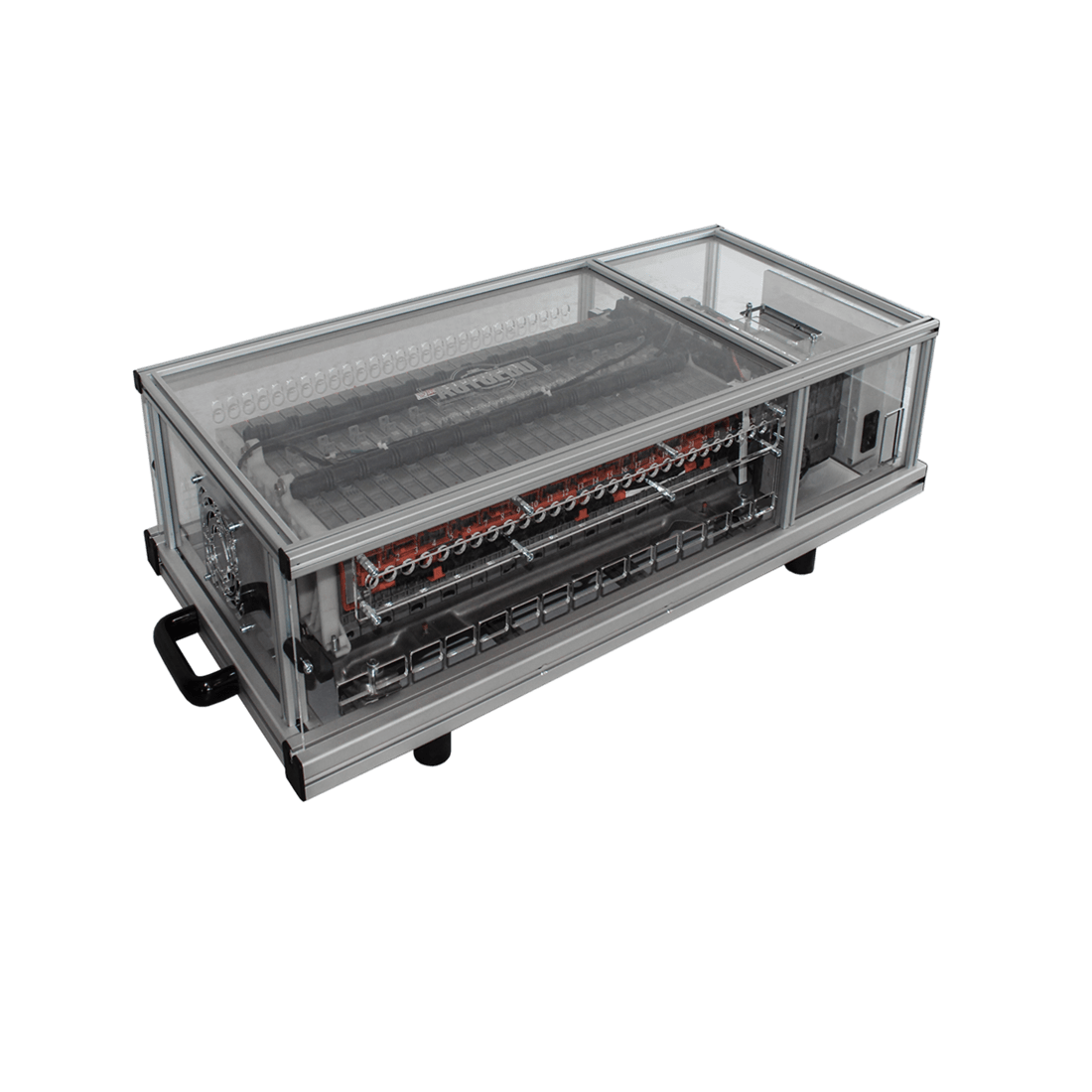

High Voltage Battery Educational Trainer

Features:

• Based on original car parts (Toyota Prius)
• The high voltage unit is ready for safe use in the training process
• Clearly visible device structure, arrangement of components, controllers, control units, battery Modules/blocks/cells and other elements
• A battery model with a high-voltage disconnect fuse is easily accessible for training purposes
• Based on battery Ni Mh
• The Training board is designed for safe preparation, repair, and maintenance procedures of hybrid or electric high voltage cars
• The Training board is designed for safe fuse on/off demonstration and training

Diagnosis Through OBD 16 Pin Diagnostic Connecter (With the scan tool):

• Electronic control unit (ECU) identification
• Reading/erasing fault codes
• Displaying the operating system parameters (live data)
• Activating function

The scan tool should be purchased separately.
