Hybrid System Petrol/Electric System Cutaway Educational Trainer

Product Description

Hybrid System Petrol/Electric System Cutaway Educational Trainer

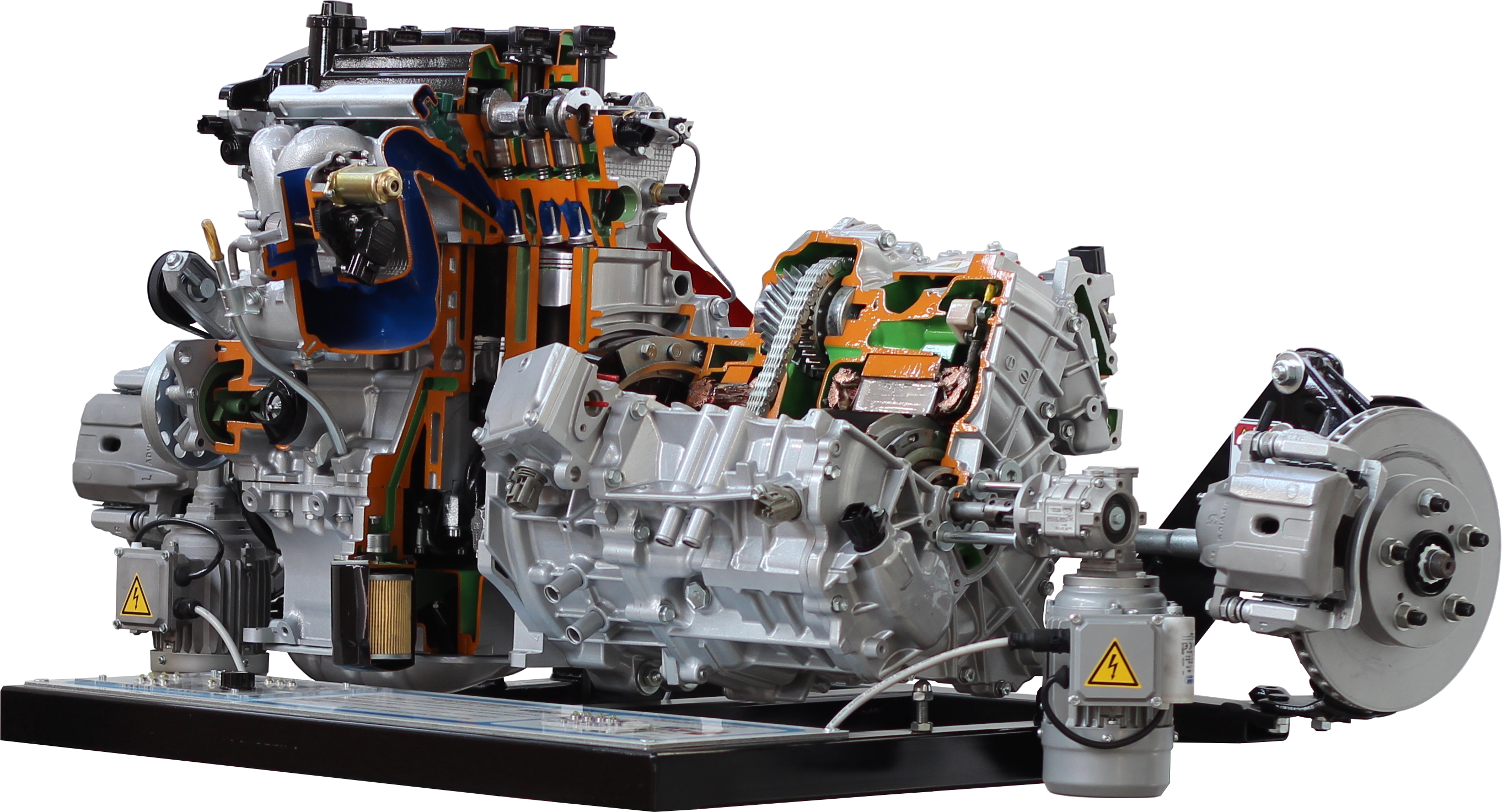

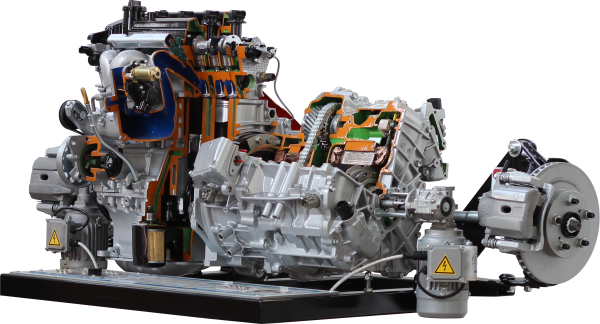

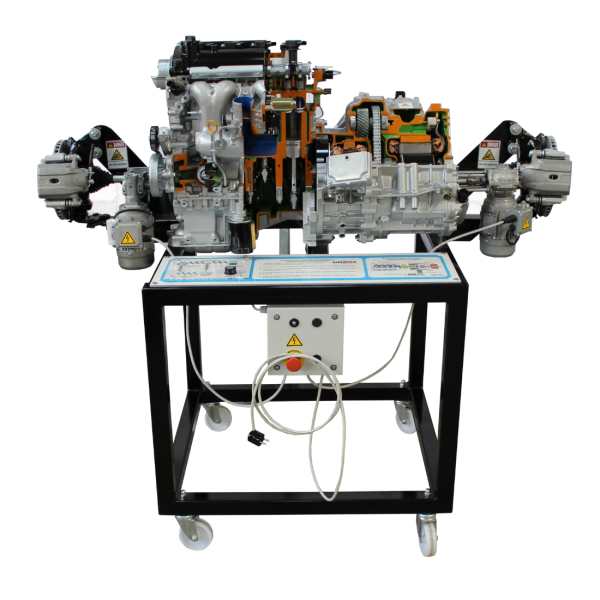

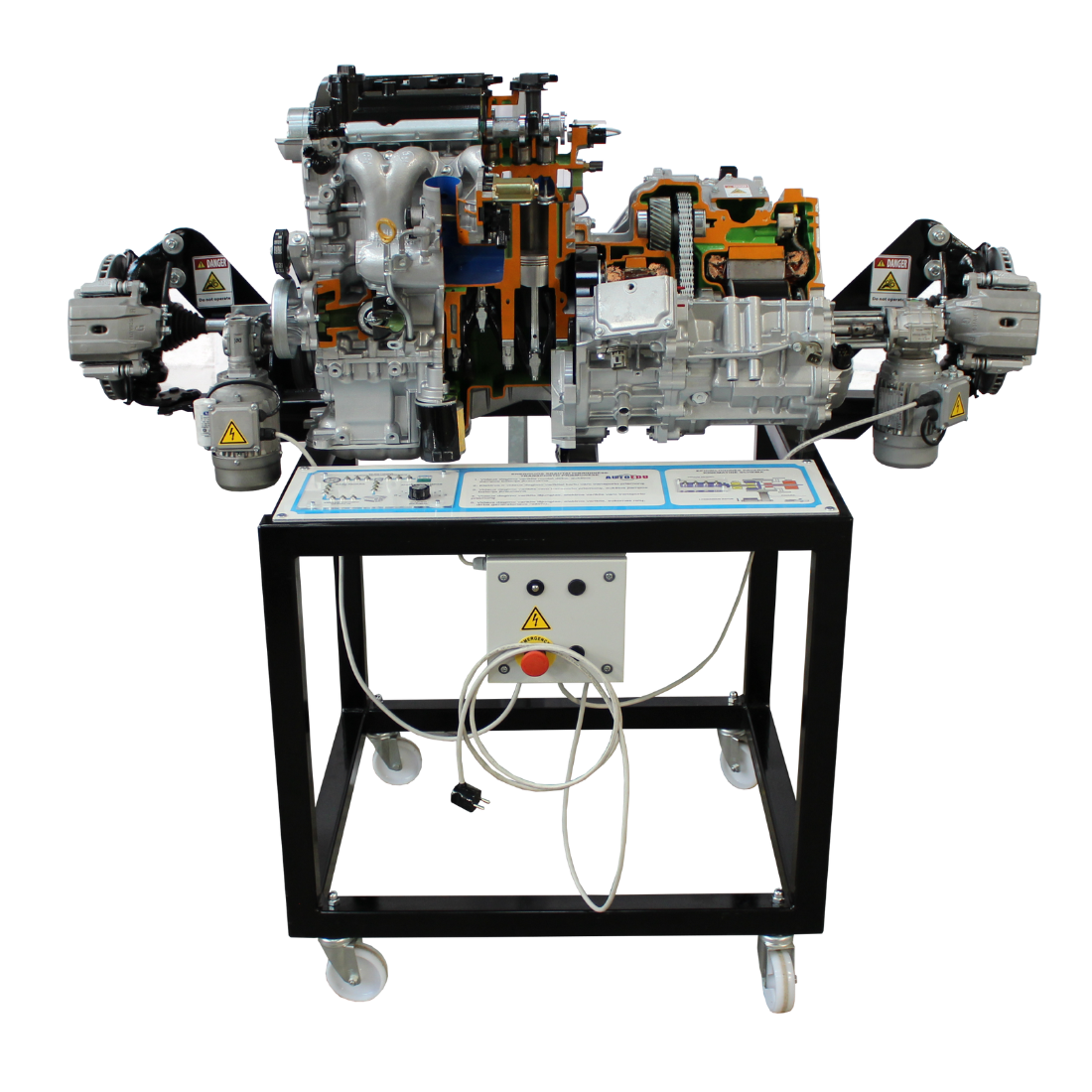

Highly detailed instructional tool featuring a 1500 cm³, 4-cylinder engine with a DOHC overhead camshaft and VVT-i (Variable Valve Timing) system. This model includes multi-point electronic injection, an epicyclic engine, and a transmission belt (CTV) integrated with Toyota’s Hybrid System (THS), comprising both petrol (gasoline)  and electric motors. The trainer allows electric rotation of the engine and generator, enabling hands-on learning of hybrid technology, energy recovery, brake systems, suspension integration, and efficient power transfer through its advanced transmission components and differential group. The model also includes detailed brake components, driveshaft, and suspension elements, providing a comprehensive understanding of how hybrid systems interact with driving components.

Features

• Toyota Hybrid System (THS): Integrated petrol (gasoline) engine and electric motors with energy recovery and multiple operation modes.

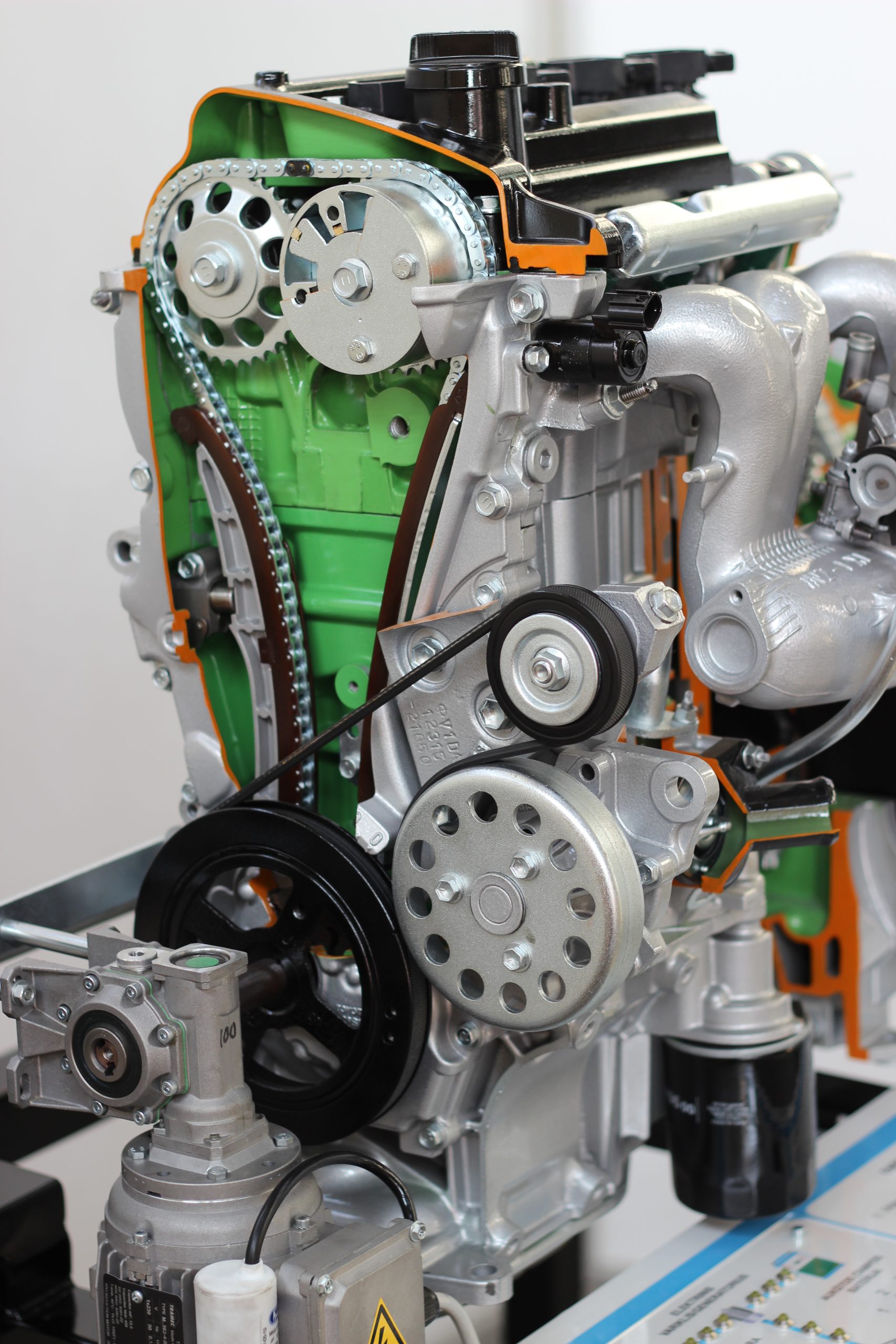

• 4-Cylinder Engine: 1500 cm³ displacement, DOHC overhead camshaft, 4 valves per cylinder, with VVT-i and multi-point electronic injection.
• Electric Operable Components: Engine and generator can be rotated electrically, allowing for detailed study and analysis.

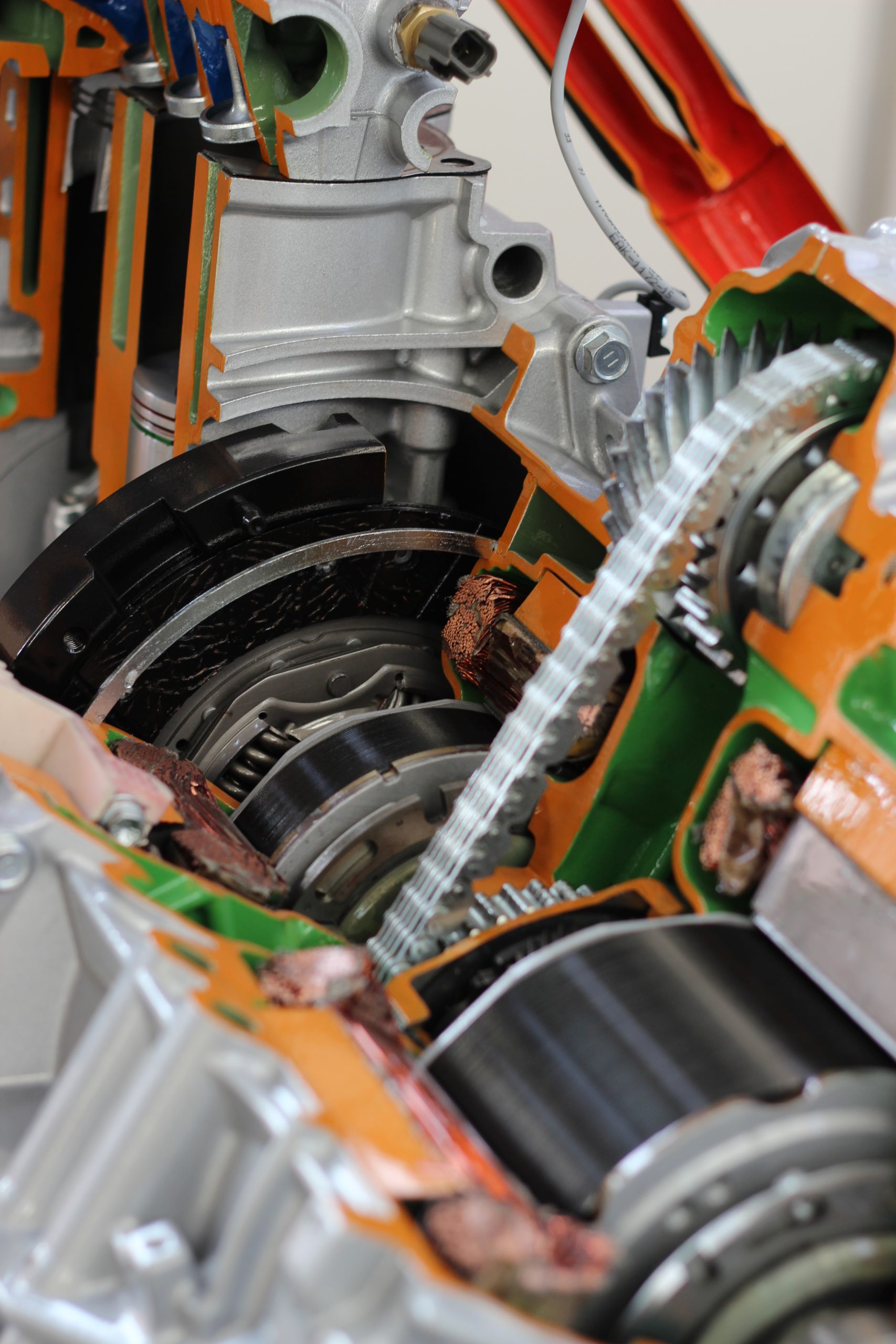

• Epicyclic Engine and Transmission: Features a transmission belt (CTV), gears, and a differential group for comprehensive transmission training.
• Exhaust System: Includes an exhaust manifold with a Lambda probe for studying emissions and exhaust control.
• Brake System Components: Product includes attached disc brakes and calipers to observe brake system components and functionality.
• Working Driveshaft: Connected to the engine and gearbox, allowing learners to understand how engine performance interacts with the suspension system and contributes to vehicle movement.
• Suspension System Integration: Attached part of the suspension system demonstrates how key elements like the engine, gearbox, generator, brakes, suspension, and wheels work
• cohesively, giving students a holistic view of vehicle operation.

Specifications

• Dimensions: 1300 x 900 x 1550 mm (51.18 in×35.43 in×61.02 in)
• Weight: approx.. 190 kg (418 lb)

Other Information:

• Made in Lithuania
• CE certificate
